D Absolute Maximum Ratings (Ambient Temperature 25°C):
Properties
Power Dissipation (Yellow)
Power Dissipation (Blue)
Peak Forward Current
Continuous Forward Current
Reverse Voltage
ESD Threshold/ Human Body Modell
duty/10@1kHz
Test conditions
PDiss Y
PDiss B
IF Peak
IF
VRev
VESD HBM
Value
72
105
100
30
5
1000
Unit
mW
mW
mA
mA
V
V

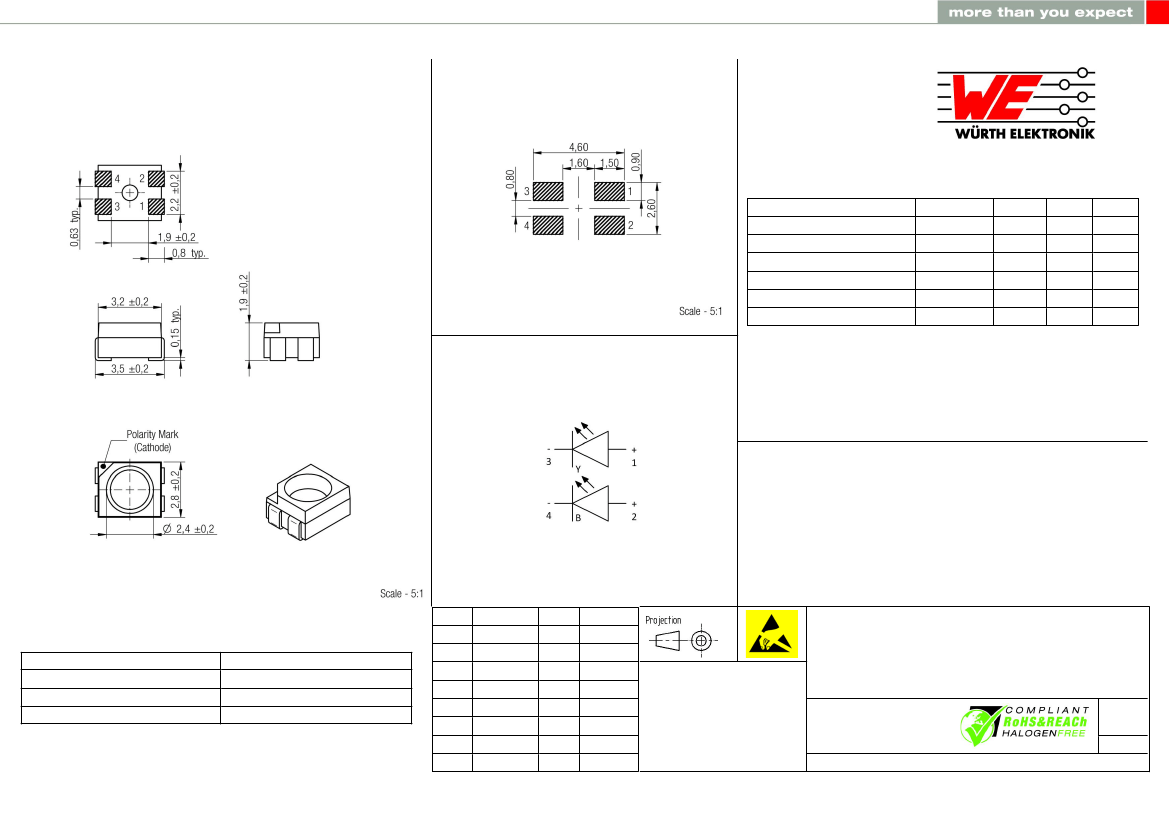

C Schematic:
E General information:
•Operating temperature: -40°C to +85°C
•Storage temperature (sealed bag): -40°C to +85°C; 60% RH max.
•Moisture Sensitivity Level (MSL): 3
DESCRIPTION
Optical Properties:
Properties
Chip Technology
Emitting Color
Lens Type
Value
AlInGaP + InGaN
Yellow & Blue
Top LED
2.8
2.7
2.6
2.5
2.4
2.3
2.2
REV
2015-03-23
2014-03-17
2013-12-09
2013-10-08
2013-09-10
2013-05-14
2013-04-10
DATE
SSt
SSt
SSt
SSt
SSt
SSt
SSt
BY
HOe
SSt
HOe
HOe
SSt
HOe
SSt
CHECKED
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WL-SBTW SMD TOP LED bi-color
waterclear
Order.- No.
SIZE
A4
150141YB73100
Size: 3528
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
D Electrical & Optical Properties:
Properties
Peak Wavelength (Yellow)
Dominant wavelength (yellow)
Luminous Intensity (Yellow)
Forward voltage (yellow)
Spectral Bandwidth (Yellow)
Peak Wavelength (Blue)
Dominant wavelength (blue)
Luminous Intensity (Blue)
Forward voltage (blue)
Spectral Bandwidth (Blue)
Reverse Current
Viewing Angle
Test conditions
min.
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
20 mA
5V
20 mA
λ
Peak Y
λ
Dom Y
IV Y
VF Y
Δλ
Y
λ
Peak B
λ
Dom B
IV B
VF B
Δλ
B
IRev
2θ50%
200
200
Value
typ.
592
590
220
2.0
15
465
470
240
3.2
20
10
120
3.5
2.4
max.
nm
nm
mcd
V
nm
nm
nm
mcd
V
nm
μA
°
Unit
DESCRIPTION
2.8
2.7
2.6
2.5
2.4
2.3
2.2
REV
2015-03-23
2014-03-17
2013-12-09
2013-10-08
2013-09-10
2013-05-14
2013-04-10
DATE
SSt
SSt
SSt
SSt
SSt
SSt
SSt
BY
HOe
SSt
HOe
HOe
SSt
HOe
SSt
CHECKED
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WL-SBTW SMD TOP LED bi-color
waterclear
Order.- No.
SIZE
A4
150141YB73100
Size: 3528
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

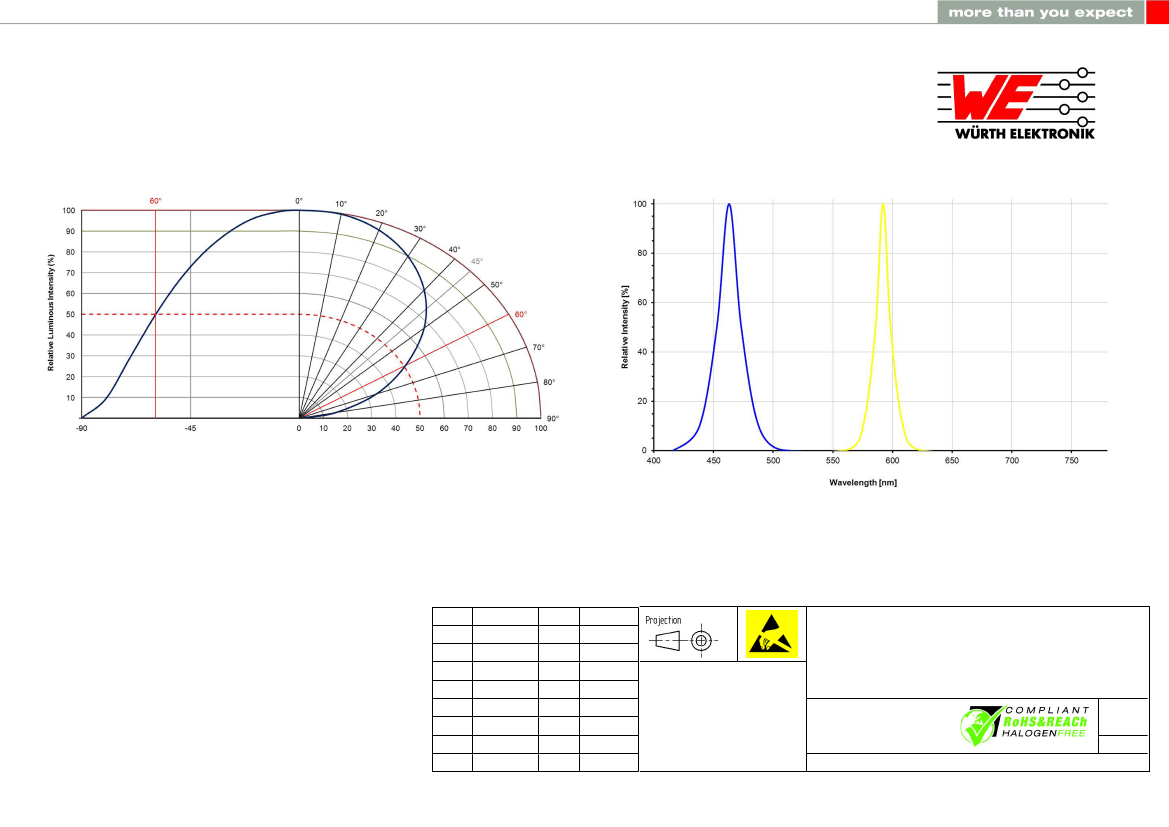

F1 Viewing Angle:
F2 Spectral:
DESCRIPTION
2.8
2.7
2.6
2.5
2.4
2.3
2.2
REV
2015-03-23
2014-03-17
2013-12-09
2013-10-08
2013-09-10
2013-05-14
2013-04-10
DATE
SSt
SSt
SSt
SSt
SSt
SSt
SSt
BY
HOe
SSt
HOe
HOe
SSt
HOe
SSt
CHECKED
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WL-SBTW SMD TOP LED bi-color
waterclear
Order.- No.
SIZE
A4
150141YB73100
Size: 3528
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

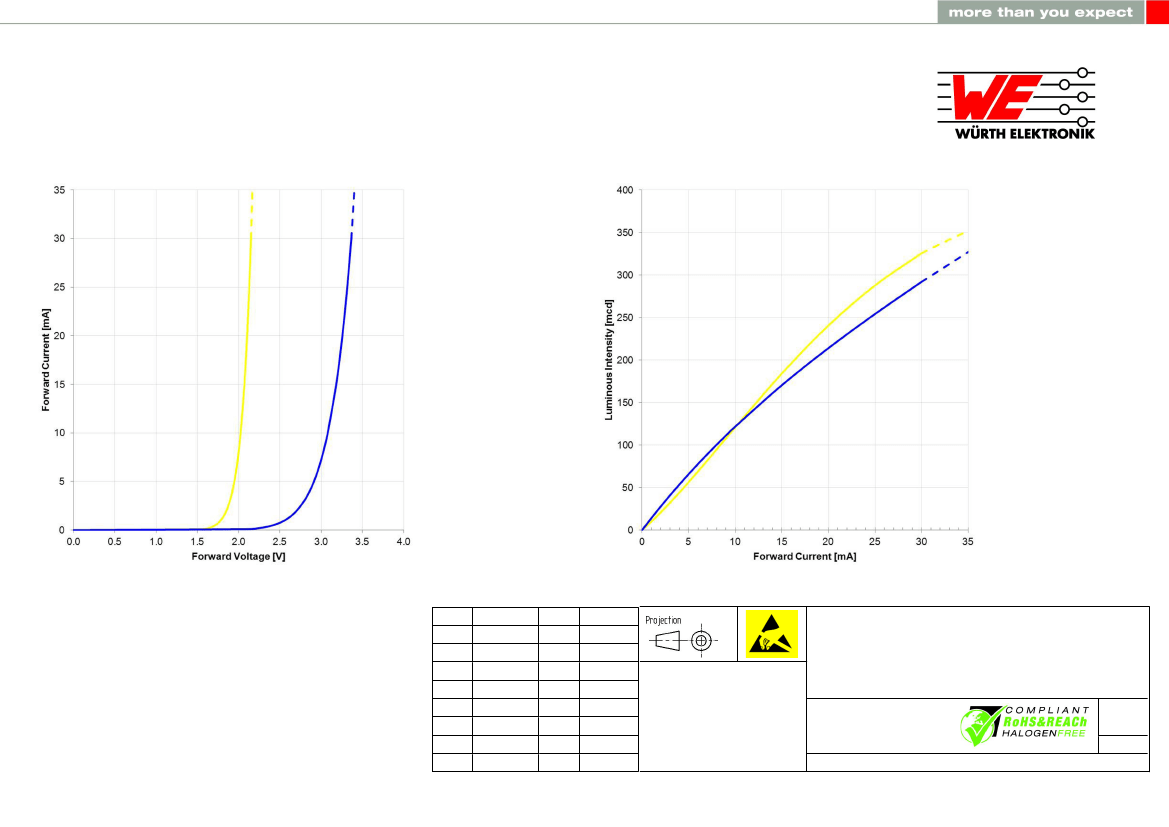

F3 Forward Current vs. Forward Voltage:
F4 Luminous Intensity vs. Forward Current:
DESCRIPTION
2.8
2.7
2.6
2.5
2.4
2.3
2.2
REV
2015-03-23
2014-03-17
2013-12-09
2013-10-08
2013-09-10
2013-05-14
2013-04-10
DATE
SSt
SSt
SSt
SSt
SSt
SSt
SSt
BY
HOe
SSt
HOe
HOe
SSt
HOe
SSt
CHECKED
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WL-SBTW SMD TOP LED bi-color
waterclear
Order.- No.
SIZE
A4
150141YB73100
Size: 3528
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

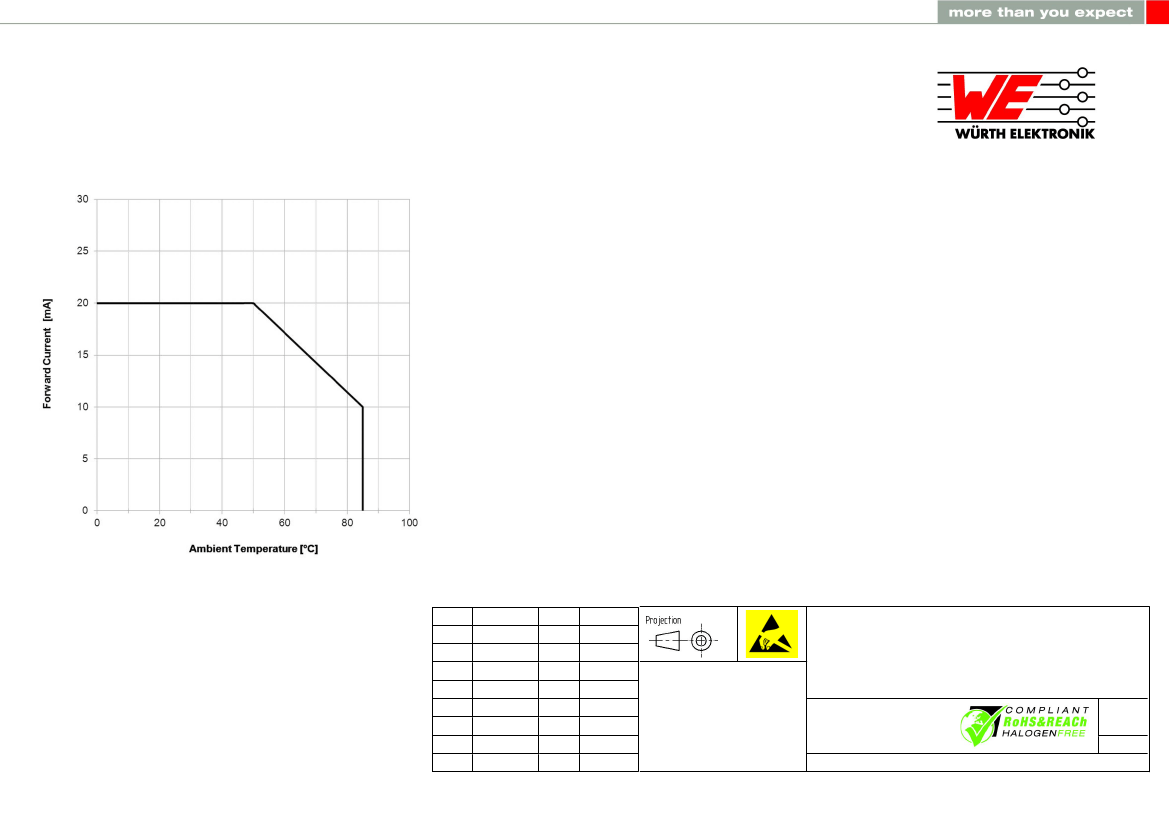

F5 Derating Curve:
DESCRIPTION
2.8
2.7
2.6
2.5
2.4
2.3
2.2
REV
2015-03-23
2014-03-17
2013-12-09
2013-10-08
2013-09-10
2013-05-14
2013-04-10
DATE
SSt
SSt
SSt
SSt
SSt
SSt
SSt
BY
HOe
SSt
HOe
HOe
SSt
HOe
SSt
CHECKED
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
WL-SBTW SMD TOP LED bi-color
waterclear
Order.- No.
SIZE
A4
150141YB73100
Size: 3528
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use.
Moreover Würth Elektronik eiSos GmbH & Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before
the design-in stage. In addition, sufficient reliability evaluation checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
