SURFACE MOUNT LED
PURE GREEN, 1206 IL PACKAGE
SM1206PGC-IL
♦
♦
♦
♦
♦
♦
Industry Standard 1206 Package
RoHS Compliant
Water Clear Inner Lens
High Luminous Intensity
Narrow Viewing Angle
Ideal for Status Indication, Display, and Backlighting
Bivar Surface Mount 1206 Inner Lens package LED may be used in nearly any lighting or indication
application. The water clear inner lens provides a narrow viewing angle and high luminous intensity
making it suitable for small scale applications such as display, backlighting, and general indication.
Low power consumption and excellent long life reliability are ideal for battery powered equipment.
Wide variety of wavelength and intensity combinations are available to meet any illumination need.
The SM1206-IL LED is packaged in standard tape and reels for pick and place assemblies.
Part Number
SM1206PGC-IL
Material
GaP
Emitted Color
PURE GREEN
Peak
Wavelength
λp(nm)
TYP.
555
Lens
Appearance
Water Clear
Luminous
Intensity
(mcd) TYP.
7.2
Viewing Angle
30°

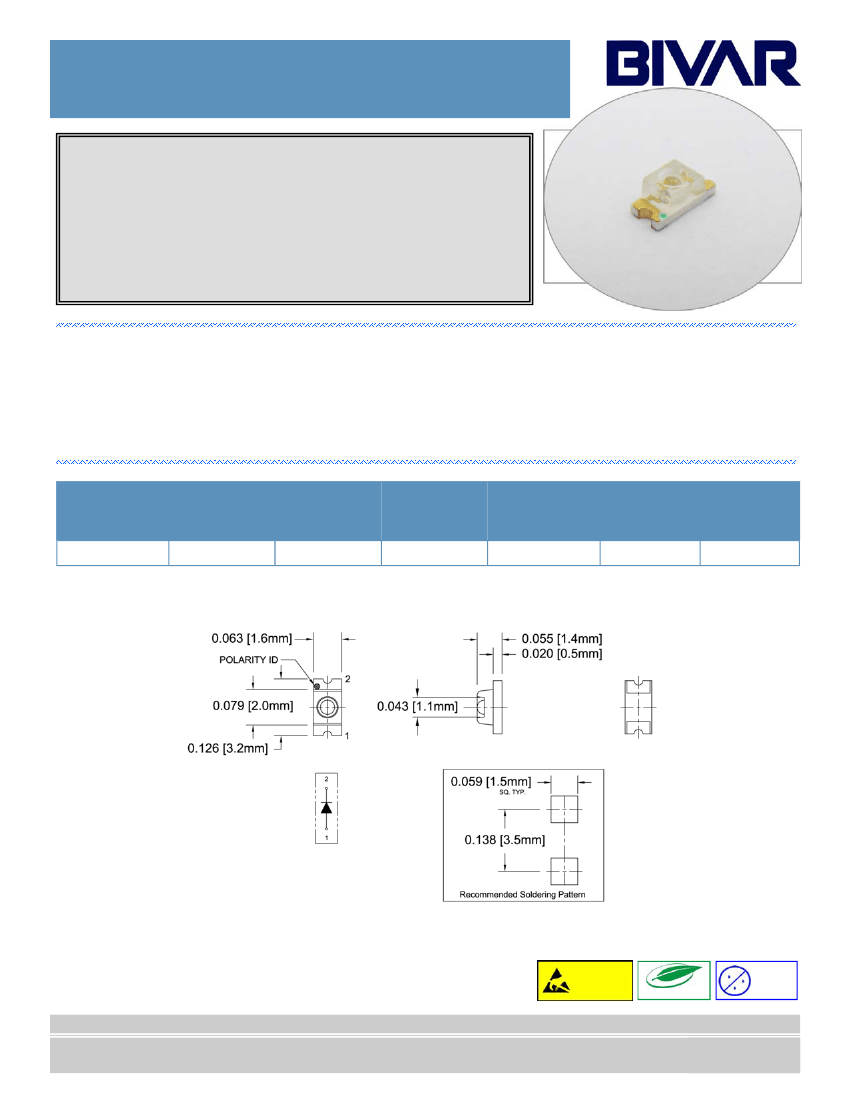

Outline Dimensions
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Level 4
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/09
Page 1 of 5
3mm (T1) Package Discrete LEDs
SURFACE MOUNT LED
AMBER
PURE GREEN, 1206 IL PACKAGE
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
78 mW
30 mA
100 mA
5V
-30 ~ +80°C
-40 ~ +85°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
10
MIN
/
TYP
557
MAX
/
Luminous
Intensity Iv (mcd)
MIN
2.2
TYP
7.2
MAX
/
Viewing
Angle
2
Ө
½
(deg)
TYP
30
Part Number
MIN TYP MAX MIN TYP MAX
SM1206PGC-IL
/
2.0
2.6
/
20
/
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/09
Page 2 of 5
3mm (T1) Package Discrete LEDs
SURFACE MOUNT LED
AMBER
PURE GREEN, 1206 IL PACKAGE
Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/09
Page 3 of 5
3mm (T1) Package Discrete LEDs
SURFACE MOUNT LED
AMBER
PURE GREEN, 1206 IL PACKAGE

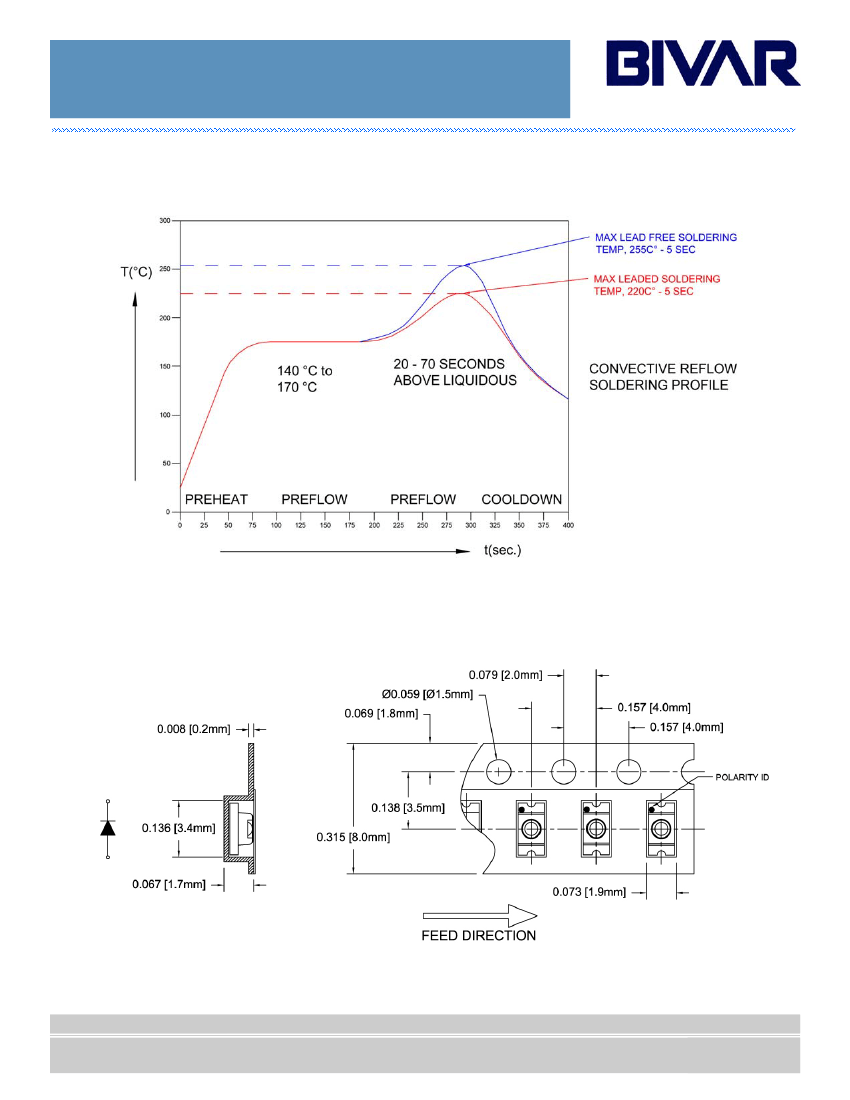

Recommended Soldering Conditions

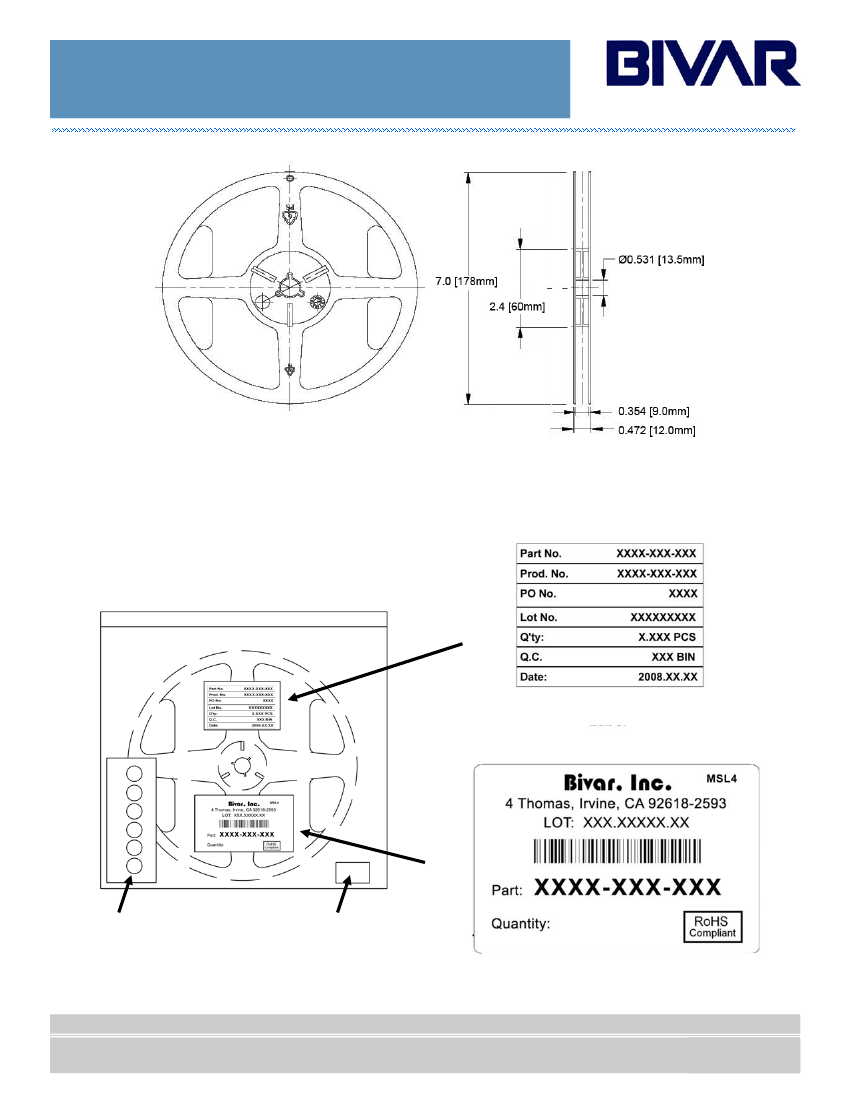

Tape and Reel Dimensions
Note: 3000 pcs/Reel
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision A 03/09
Page 4 of 5
3mm (T1) Package Discrete LEDs
SURFACE MOUNT LED
AMBER
PURE GREEN, 1206 IL PACKAGE
Packaging and Labeling Plan
Note: 1 Reel / Bag
Vacuum and Heat Sealed
Clear AntiStatic Poly Bag
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance unless otherwise noted: X.XXX ± 0.010"
X.X ± 0.1”
Internal Quality Control
X.XXX
Humidity Indicator
Card
Desiccant
X.XXX
Bivar Standard Packaging Label
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision A 03/09
Page 4 of 4
Page 5 of 5
