3mm (T1) Package Discrete LED
3mm (T1) Package Discrete LED
YELLOW, Low Current
TURQUOISE, Bright
BLUE, Low
GREEN, Ultra Ultra
AMBER, 5V Bright
AMBER 5VCurrent Bright
Ultra
GREEN, Super Bright
B
3GX5V-X
♦
♦
♦
♦
♦
♦

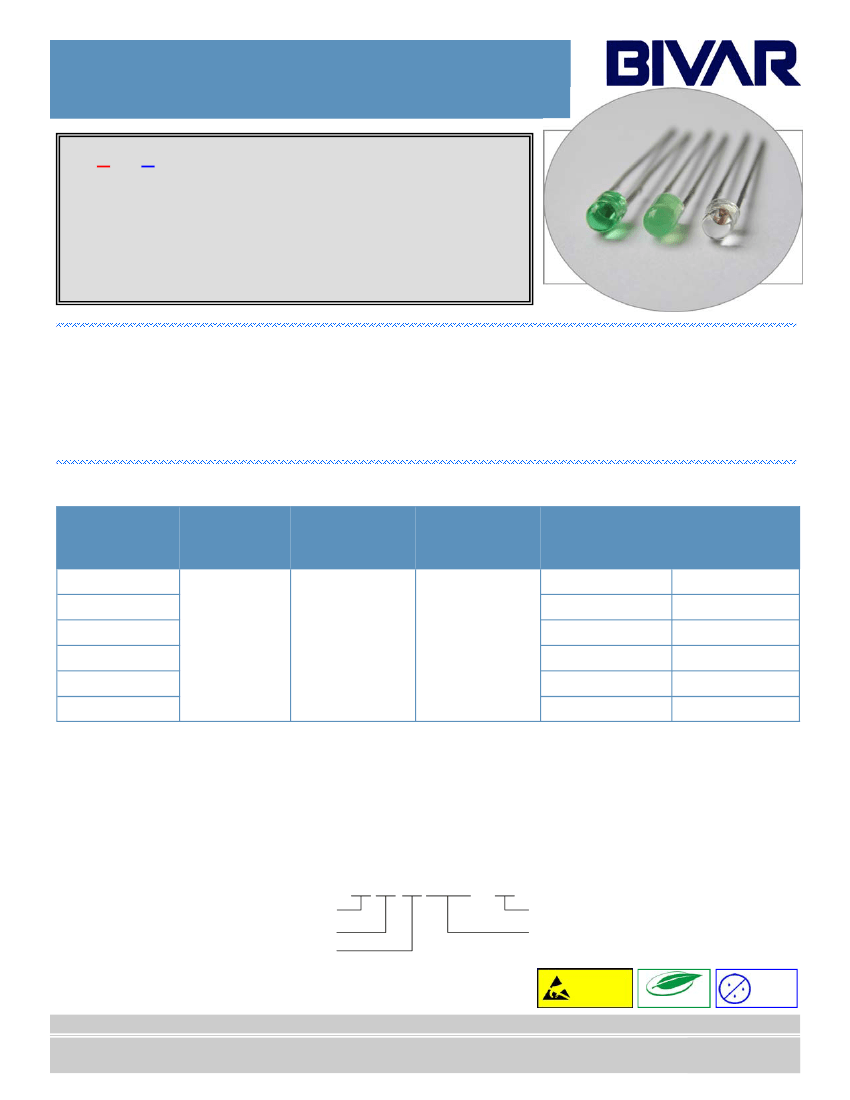

Industry Standard 3mm (T1) Package
RoHS Compliant
Water Clear (C), Diffused (D), and Tinted (T) Lenses
Available in Flange (F) and Shouldered (S) Lead Frame
Styles
5V Operating Voltage
Ideal for Status Indication and Display
Bivar 3mm T1 Package 5V LED is ideal for those applications equipped with regular 5V power supplies
such as servers and computer peripherals. Bivar offers water clear LED lens for maximum light output,
diffused LED lens for uniform light output, and tinted lens to identify the color of the LED. The
Flanged LED is ideal for Panel Mount Clip & Ring assemblies. The Shouldered Lead frame LED is
ideal for vertical spacer assemblies without lead bends and also has a built in strain relief feature
which is ideal for right angle holder assemblies that require lead bends.
Part Number
3GC5V-F
3GD5V-F
3GT5V-F
3GC5V-S
3GD5V-S
3GT5V-S
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
Lens Appearance
Water Clear
Green Diffused
Viewing Angle
20°
35°
20°
30°
40°
30°
Gap/Gap
GREEN
568nm
Green Tinted
Water Clear
Green Diffused
Green Tinted
Part Number Designation
3 X X 5V - X
LED Body, mm
Emitted Color
Lens Appearance
Lead Frame & Body Style
i.e. -F, -S
5V Operating Voltage
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 1 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Bright
TURQUOISE, Ultra
BLUE, Low
GREEN, 5V Bright
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Super Bright
GREEN, Ultra Current
Outline Dimensions

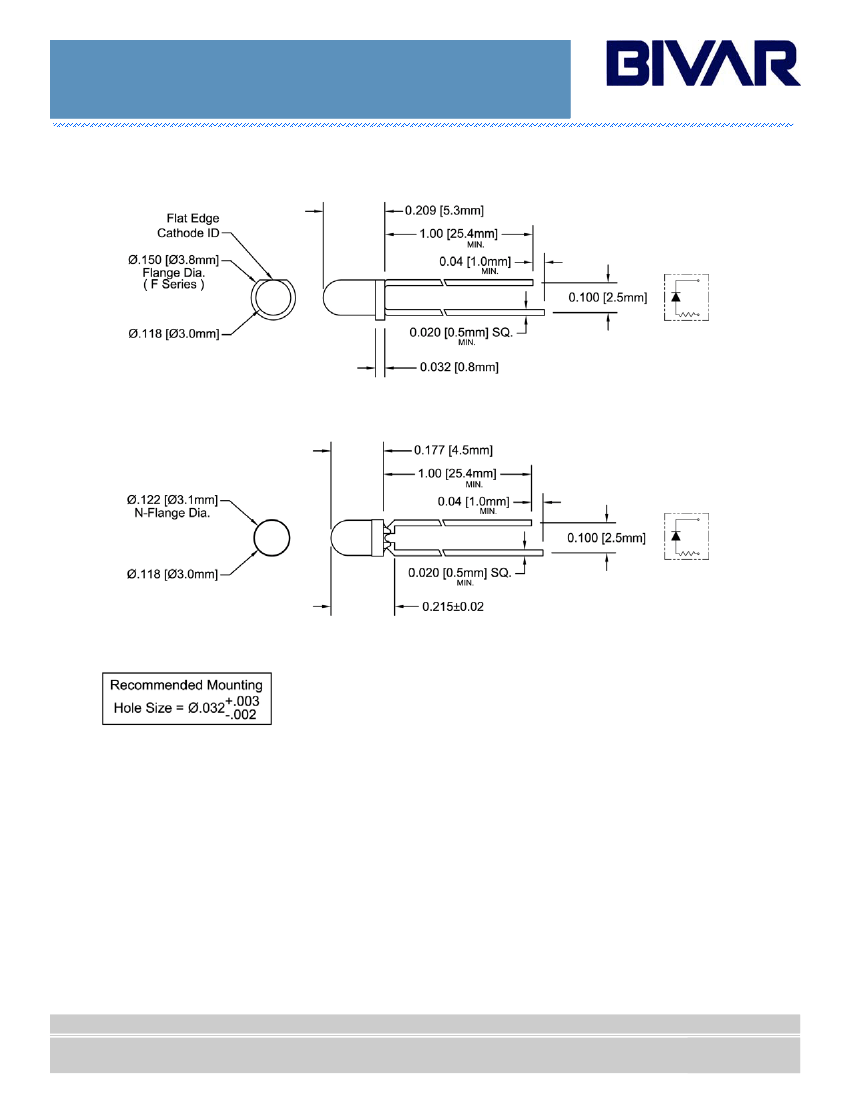

Flanged “3XX5V-F” LED
Shouldered Lead “3XX5V-S” LED
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 2 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Bright
TURQUOISE, Ultra
BLUE, Low
GREEN, 5V Bright
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Super Bright
GREEN, Ultra Current
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
/ mW
8 mA
12 mA
5V
-25 ~ +85°C
-30 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & Vf = 5V unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
MIN
/
/
/
5.0
/
/
/
100
/
/
/
/
/
5.0
/
/
/
100
/
/
TYP
/
/
/
/
/
/
MAX
/
/
/
/
/
/
Luminous
Intensity Iv (mcd)
MIN
/
/
/
/
/
/
TYP
40
25
40
40
25
40
MAX
/
/
/
/
/
/
Viewing
Angle
2
Ө
½
(deg)
TYP
20
35
20
30
40
30
Part Number
MIN TYP MAX MIN TYP MAX
3GC5V-F
3GD5V-F
3GT5V-F
3GC5V-S
3GD5V-S
3GT5V-S
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 3 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Bright
TURQUOISE, Ultra
BLUE, Low
GREEN, 5V Bright
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Super Bright
GREEN, Ultra Current
Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
20°
30°
40°
50°
60°
70°
80°
90°
1.0
20°
30°
35°
0.5
40°
0.0
500
λ(nm)
550
600
650
0.5
0.3
0.1
0.2
0.4
0.6

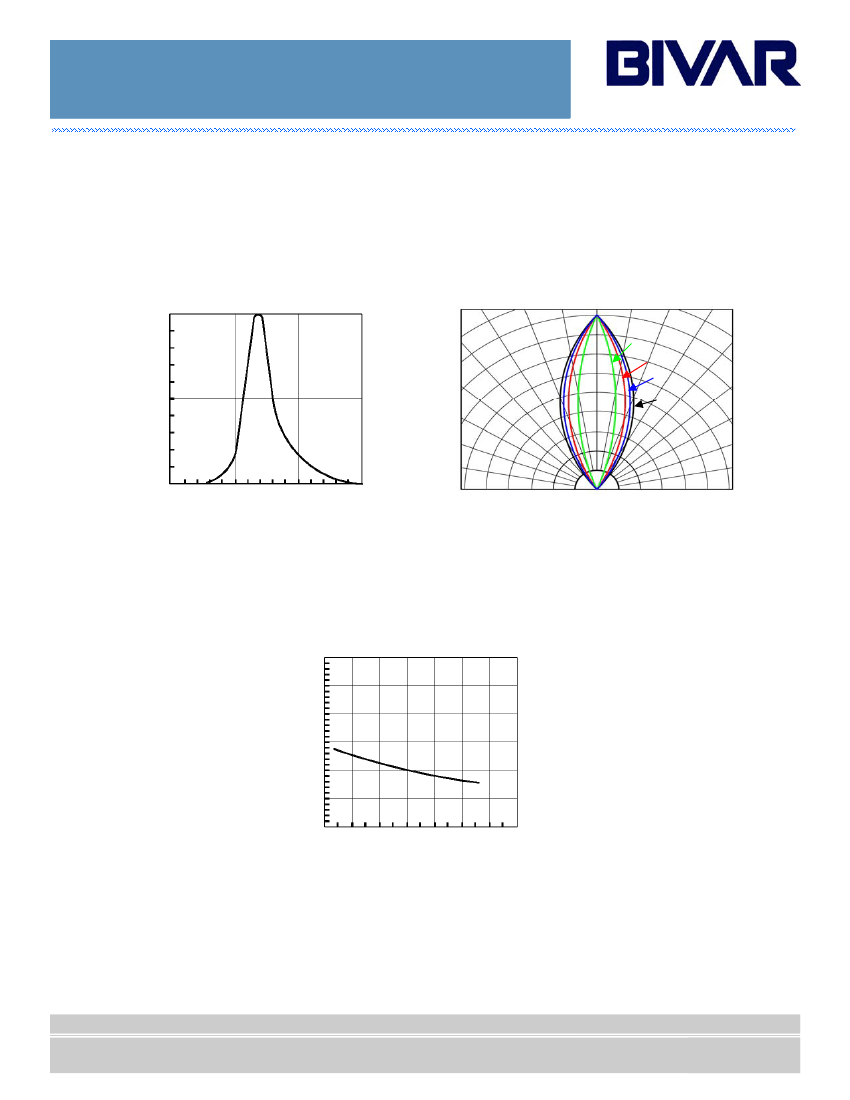

Fig. 1 Relative Luminous Intensity vs. Wavelength
@ 20mA
Fig. 2 Directivity Radiation Diagram
Iv
3.0
2.0
1.0
0.0
-40
0
40
80
T (°C)
Fig. 3 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Revision B 06/15
Page 4 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
YELLOW, Low Bright
TURQUOISE, Ultra
BLUE, Low
GREEN, 5V Bright
AMBER, 5VCurrent Bright
AMBER Low Current
Ultra
Super Bright
GREEN, Ultra Current
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
Anti-Static Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision B 06/15
Page 4 of 4
Page 5 of 5
