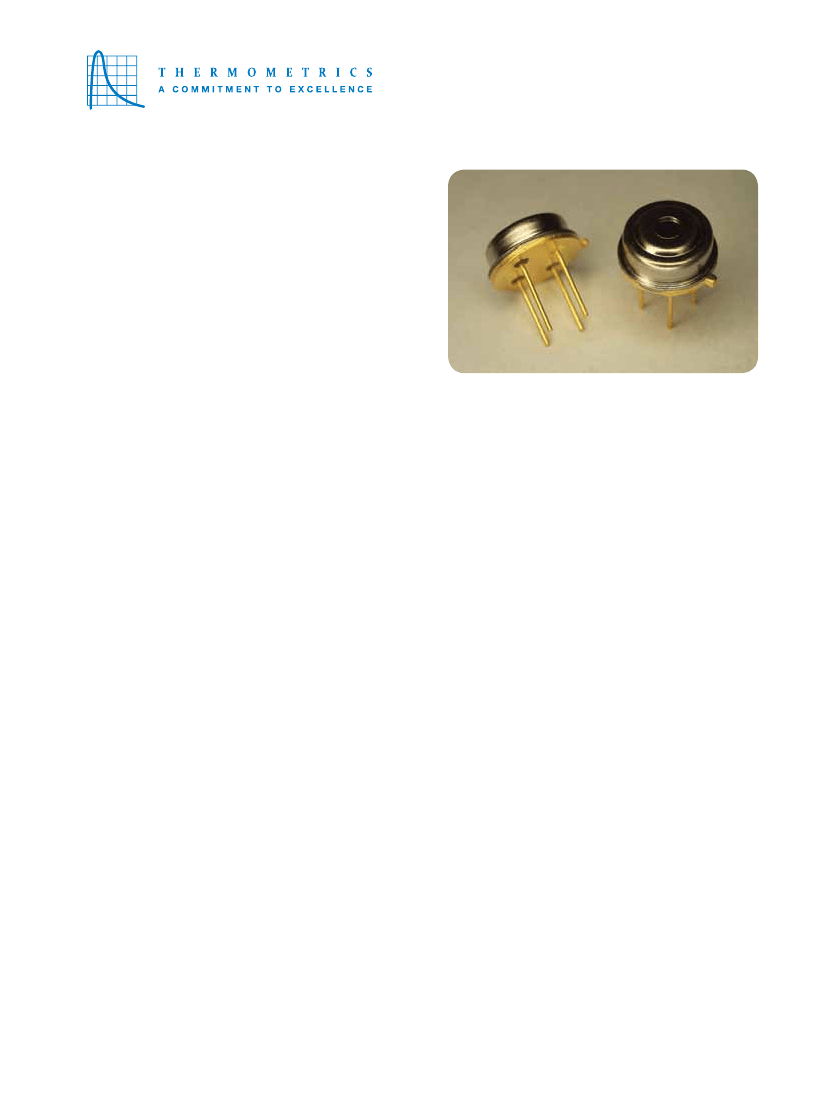

ZTP-115
Thermopile IR Sensor
This thermopile sensor is used for non-contact
surface temperature measuring. The ZTP-115
model consists of thermo-elements, flat IR filter,
a thermistor for temperature compensation and
a hermetically-sealed small-size package. There
is also a variety of filters available to maximize
performance in specific applications
Features
• Non-contact measurement
• Wider surface area measurement
• Small-size sensor package
• Included ambient temperature (thermistor)
sensor for compensation
• High sensitivity
Applications
• Patient monitoring
• Ear & Tympanic thermometers
• Fast response time
• Occupancy detection
• Low cost
• HVAC
• RoHS compliant
• Appliance
Amphenol
Advanced Sensors
Outline of Sensor Packaging and Pin Arrangement (unit: mm)
LEAD LENGTH :
Variable (3.0, 6.7, 13.2mm±0.5mm)
Unit: mm
Pin arrangement:
1. GND Thermistor
2. Thermopile
3. GND Thermopile
4 . Thermistor
Amphenol
Advanced Sensors
www.amphenol-sensors.com
© 2014 Amphenol Corporation. All Rights Reserved. Specifications are subject to change without notice.
Other company names and product names used in this document are the registered trademarks or
trademarks of their respective owners.
AAS-920-549A-03/2014
