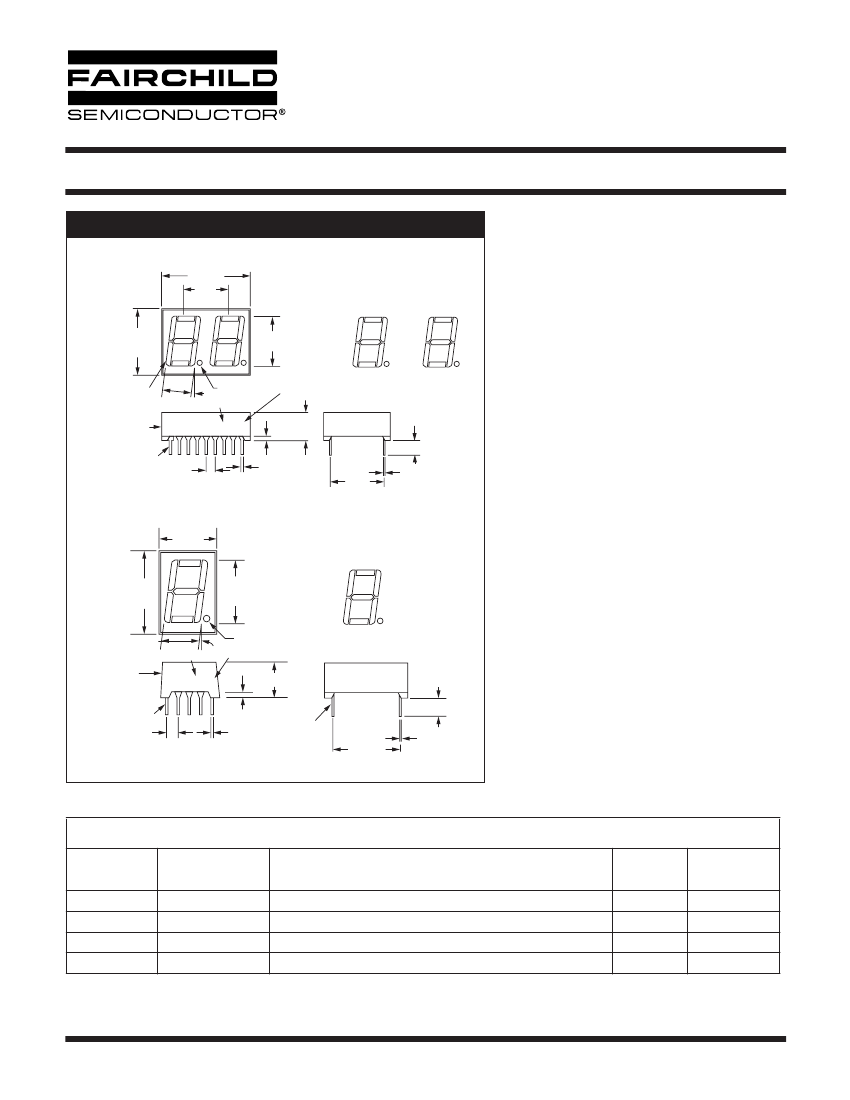

0.560-INCH
SEVEN SEGMENT DISPLAYS
HIGH EFFICIENCY GREEN MAN6400 SERIES
PACKAGE DIMENSIONS
.985"
(25.02 mm)
±.010"
.500"
(12.70 mm)
A
.750"
(19.05 mm)
+.010"
F
.560"
(14.22 mm)
E
.066" DIA
(1.68 mm)
LIGHT
INTENSITY CAT.
.160"
(4.06 mm)
+.015"
G
D
B
C
DP
F
E
A
G
D
B
C
DP
Description
The MAN6400 Series is a family of large digits
which includes double and single digits. The series
features the sculptured font which minimizes “gappi-
ness” at the segment intersections. All models have
right hand decimal points and are available in com-
mon anode or common cathode configuration. This
device has a Grey face and clear segments to
enhance ON and OFF contrast.
DIGIT = 1
PART
IDENTIFICATION
.320"
(8.13 mm)
PART NO.
8°
DATE CODE
XYY Z
Features
• High Efficiency Green nitrogen-doped GaAsP on
GaP
• Large, easy to read, digits
• Common anode or common cathode models
• Fast switching — excellent for multiplexing
• Low power consumption
• Bold solid segments that are highly legible
• Solid state reliability — long operation life
• Rugged plastic construction
• Directly compatible with integrated circuits
• High brightness with high contrast
• Categorized for Luminous Intensity (See Note 5)
• Wide angle viewing...150°
• Low forward voltage
• Two-digit package simplifies alignment and
assembly
.315"
(8.00 mm)
±.010"
.050"
+.004"
-.000"
(1.27 mm)
PIN #1
(NOTE SQUARE .100"
(2.54 mm)
BASE ON
LEAD)
.020"
(0.51 mm)
+.004"
-.000"
.600"
(15.24 mm)
+.015"
.010"
(0.25 mm)
+.007"
-.000"
.480"
(12.20 mm)
±.010"
A
.750"
(19.05 mm)
+.010"
.560"
+0.010"
(14.22 mm)
F
E
G
D
B
C
DP
.320"
(8.13 mm)
PART
IDENTIFICATION
.066" DIA
8° LIGHT INTENSITY CAT.
DATE CODE
PART
NO. XYY Z
.315"
(8.00 mm)
±.010"
.050"
(1.27 mm)
.020"
(0.51 mm)
+.004"
-.000"
.160"
(4.06 mm)
+.015"
Applications
For industrial and consumer applications such as:
•
•
•
•
•
Digital readout displays
Instrument panels
Point of sale equipment
Digital clocks
TV and radios
PIN #1
.100" TYP
(2.54 mm)
PIN #5
.600"
(15.24 mm)
+.015"
.010"
(0.25 mm)
+.007"
-.000"
MODEL NUMBERS
Part Number
MAN6410
MAN6440
MAN6460
MAN6980
Color
High Eff. Green
High Eff. Green
High Eff. Green
High Eff. Green
Description
2 Digit; Common Anode; Rt. Hand Decimal
2 Digit; Common Cathode; Rt. Hand Decimal
Single Digit; Common Anode; Rt. Hand Decimal
Single Digit; Common Cathode; Rt. Hand Decimal
Package
Drawing
A
A
B
B
Pin Out
Specification
A
B
C
D
© 2003 Fairchild Semiconductor Corporation
Page 1 of 6
7/16/03
0.560-INCH
SEVEN SEGMENT DISPLAYS
HIGH EFFICIENCY GREEN MAN6400 SERIES
RECOMMENDED OPTICAL FILTERS
For optimum ON and OFF contrast, one of the following filters or equivalents should be used over the display:
Device Type
Filter
Panelgraphic Green 48
Homalite 100-1440 Green
Panelgraphic Grey 10
Homalite 100-1266 Grey
MAN6400 Series
ELECTRO-OPTICAL CHARACTERISTICS
(Per Diode 25°C Free Air Temperature Unless Otherwise Specified)
Min.
Luminous Intensity, digit average (See Note 1)
Peak emission wavelength
Spectral line half width
Forward voltage
Segment
Decimal point
Dynamic resistance
Segment
Decimal point
Capacitance
Segment
Decimal point
Reverse current
Segment
Decimal point
Ratio I
L
510
Typ.
2200
565
30
2.1
2.1
26
26
35
35
100
100
2:1
2.8
2.8
Max.
Units
µcd
nm
nm
V
V
Ω
Ω
pF
pF
µA
µA
—
Test Conditions
I
F
= 10 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
I
F
= 20 mA
V=0
V=0
V
R
= 3.0V
V
R
= 3.0V
I
F
= 10 mA
ABSOLUTE MAXIMUM RATINGS
MAN64X0
Power dissipation at 25°C ambient
Derate linearly from 50°C
Storage and operating temperature
Continuous forward current
Total
Per segment
Decimal point
Reverse voltage
Per segment
Decimal point
Soldering time at 260°C (See Notes 3 and 4)
600mW
-40°C to +85°C
30 mA
30 mA
6.0 V
6.0 V
5 sec.
© 2003 Fairchild Semiconductor Corporation
Page 2 of 6
7/16/03
0.560-INCH
SEVEN SEGMENT DISPLAYS
HIGH EFFICIENCY GREEN MAN6400 SERIES
TYPICAL THERMAL CHARACTERISTICS
Thermal resistance junction to free air
φ
JA
Wavelength temperature coefficient (case temperature)
Forward voltage temperature coefficient
160°C/W
1.0Å/°C
-2.0 mV/°C
Notes:
1. The digit average Luminous Intensity is obtained by summing the Luminous Intensity of each segment and dividing by the total
number of segments. Intensity will not vary more than ±33.3% between all segments within a digit.
2. The curve in Figure 3 is normalized to the brightness at 25°C to indicate the relative efficiency over the operating temperature
range.
3. Leads of the device immersed to 1/16 inch from the body. Maximum device surface temperature is 140°C.
4. For flux removal, Freon TF, Freon TE, Isoproponal or water may be used up to their boiling points.
5. All displays are categorized for Luminous Intensity. The Intensity category is marked on each part as a suffix letter to the part
number.
ELECTRICAL CONNECTIONS
ELECTRICAL CONNECTIONS
Pin
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
A
MAN6410
Cathode E 1
Cathode D 1
Cathode C 1
Cathode D.P. 1
Cathode E 2
Cathode D 2
Cathode G 2
Cathode C 2
Cathode D.P. 2
Cathode B 2
Cathode A 2
Cathode F 2
Anode Digit 2
Anode Digit 1
Cathode B 1
Cathode A 1
Cathode G 1
Cathode F 1
B
MAN6440
Anode E 1
Anode D 1
Anode C 1
Anode D.P. 1
Anode E 2
Anode D 2
Anode G 2
Anode C 2
Anode D.P. 2
Anode B 2
Anode A 2
Anode F 2
Cathode Digit 2
Cathode Digit 1
Anode B 1
Anode A 1
Anode G 1
Anode F 1
C
MAN6460
Cathode E
Cathode D
Common Anode
Cathode C
Cathode D.P.
Cathode B
Cathode A
Common Anode
Cathode F
Cathode G
D
MAN6480
Anode E
Anode D
Common Cathode
Anode C
Anode D.P.
Anode B
Anode A
Common Cathode
Anode F
Anode G
© 2003 Fairchild Semiconductor Corporation
Page 3 of 6
7/16/03
0.560-INCH
SEVEN SEGMENT DISPLAYS
HIGH EFFICIENCY GREEN MAN6400 SERIES
TYPICAL CHARACTERISTIC CURVES
100
90
80
70
60
50
40
30
20
10
0
1.0
4.0
Normalized at I
F
= 10 mA
3.0
2.0
1.0
(Dotted Line
Indicates
Pulsed Operation
See Figs. 3, 5)
Relative Luminous Intensity
Forward Current I
F
= mA
0
4.0
0
5
10
15
20
25
DC Forward Current – I
F
mA
30
2.0
3.0
Forward Voltage (V
F
) – Volts
Fig. 1 Forward Current vs. Forward Voltage
Fig. 2. Relative Luminous Intensity vs. DC Forward Current
Maximum Peak Current mA
Relative Intensity %
1000
800
600
400
200
100
80
60
40
20
0
10
100
1000
Pulse Duration µs
10000
10
3.
1.
30
10
KH 0 KH 0 KH
0H
0H
z
z
z
z
z
130
120
110
100
90
80
70
-55
-25
0
25
50
75
Temperature – T
A
°C
100
Normalized
at 25°C
Fig. 3 Maximum Peak Current vs. Pulse Duration
Fig. 4 Relative Luminous Intensity vs. Temperature
Relative Efficiency
(I
L
at drive/I
L
at 10mA DC)
4.0
3.0
2.0
1.0
I
F (AVG)
= 20 mA
10 mA
5 mA
2.5 mA
0
2.0
5.0 19
20
% Duty Cycle
50
DC
Fig. 5 Relative Efficiency vs. Duty Cycle
© 2003 Fairchild Semiconductor Corporation
Page 4 of 6
7/16/03
0.560-INCH
SEVEN SEGMENT DISPLAYS
HIGH EFFICIENCY GREEN MAN6400 SERIES
INTERNAL CONNECTIONS
14
FIRST
DIGIT
13
SECOND DIGIT
FIRST
14
DIGIT
13
SECOND DIGIT
E
1
D
2
C
3
B A G F DP E
15 16 17 18 4 5
MAN6410
3
8
D
6
G
7
C
8
B A F DP
10 11 12 9
E
1
D
2
C
3
B A G F DP E
15 16 17 18 4 5
MAN6640
3
D
6
G
7
C
8
B A F DP
10 11 12 9
8
E
1
D
2
C
4
B
6
A
7
F
9
G DP
10 5
E
1
D
2
C
4
B
6
A
7
F
9
G DP
10 5
MAN6460
MAN6480
© 2003 Fairchild Semiconductor Corporation
Page 5 of 6
7/16/03
