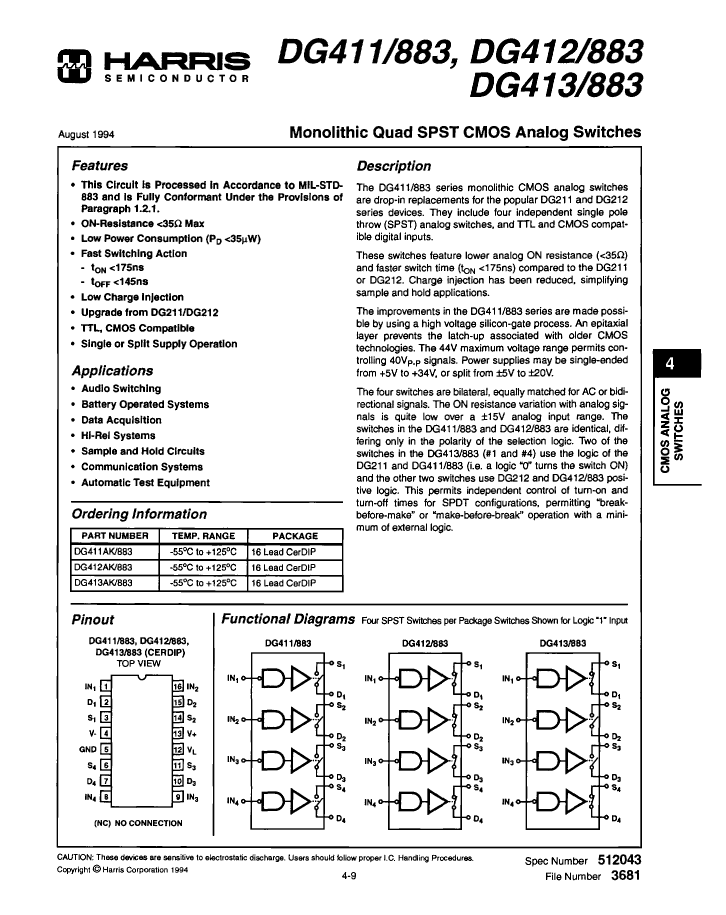

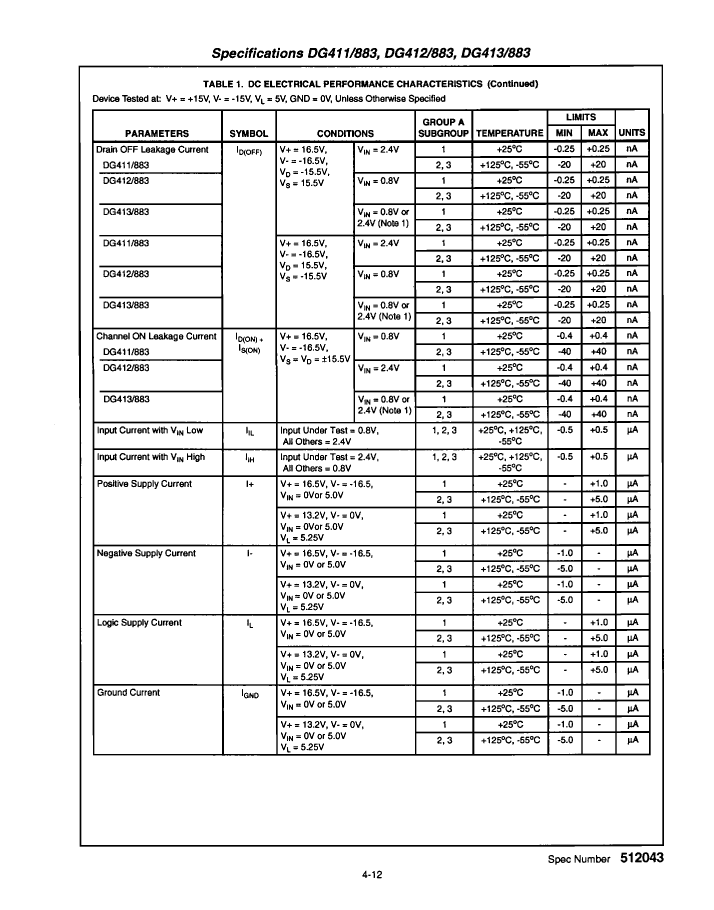

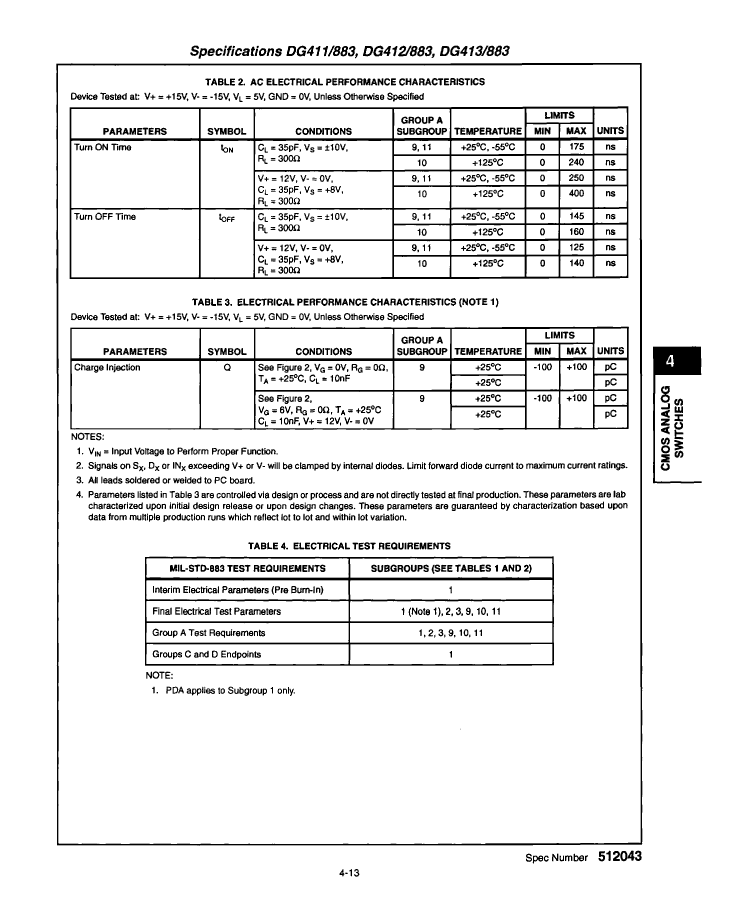

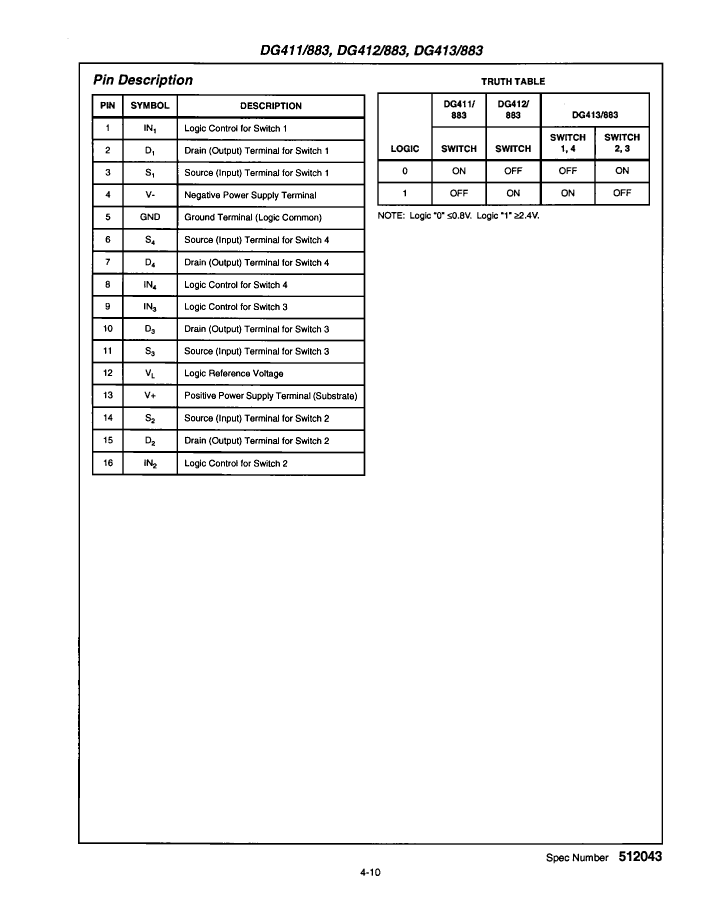

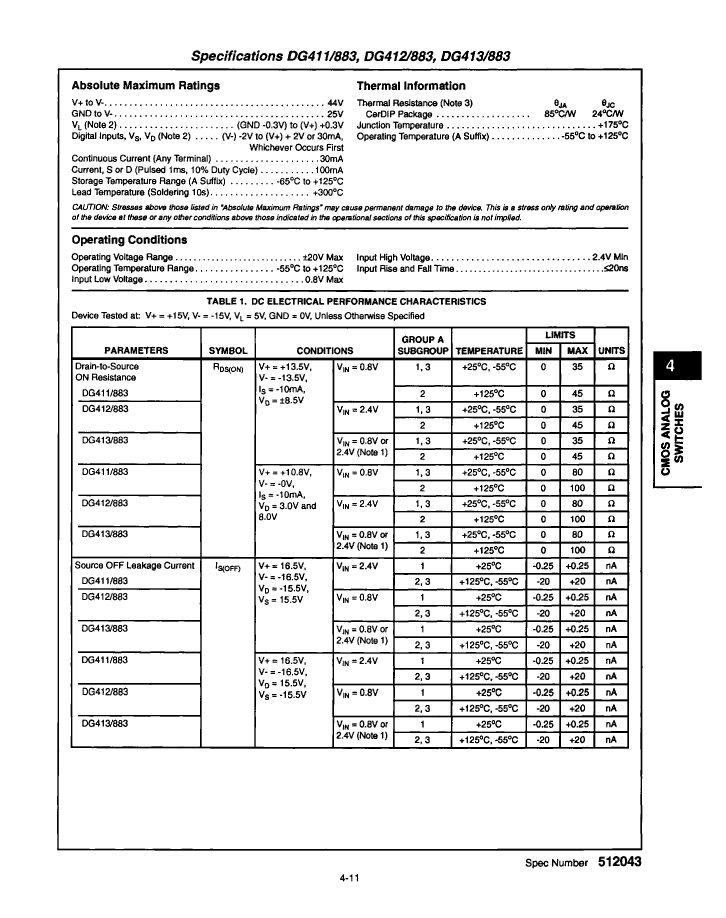

5962-9073103MEA datasheet, PDF

5962-9073103MEA: DescriptionSPST, 4 Func, 1 Channel, CMOS, CDIP16,; CategoryThe signal circuit; File Size200KB，6 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962-9073103MEA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5962-9073103MEA	-	-	View	Buy Now

SPST, 4 Func, 1 Channel, CMOS, CDIP16,

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	16
Maximum on-state resistance (Ron)	35 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum supply current (Isup)	0.005 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	145 ns
Maximum connection time	175 ns
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	5962-9073103MEA	5962-9073101MEA	5962-9073102MEA
Description	SPST, 4 Func, 1 Channel, CMOS, CDIP16,	SPST, 4 Func, 1 Channel, CMOS, CDIP16	SPST, 4 Func, 1 Channel, CMOS, CDIP16,
Maker	Harris	Harris	Harris
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST
JESD-30 code	R-GDIP-T16	R-GDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of channels	1	1	1
Number of functions	4	4	4
Number of terminals	16	16	16
Maximum on-state resistance (Ron)	35 Ω	35 Ω	35 Ω
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883	MIL-STD-883
Maximum supply current (Isup)	0.005 mA	0.005 mA	0.005 mA
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	NO	NO
Maximum disconnect time	145 ns	145 ns	145 ns
Maximum connection time	175 ns	175 ns	175 ns
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Base Number Matches	1	1	1
