3mm (T1) Package Discrete LED
3mm (T1) Package Discrete LED
GREEN
AMBER
GREEN
3GX-X
♦
♦
♦
♦
♦
Industry Standard 3mm (T1) Package
RoHS Compliant
Water Clear (C), Diffused (D), and Tinted (T) Lenses
Available in Flange (F), Standard (Blank), and Shouldered
(S) Lead Frame styles
Ideal for Status Indication and Display

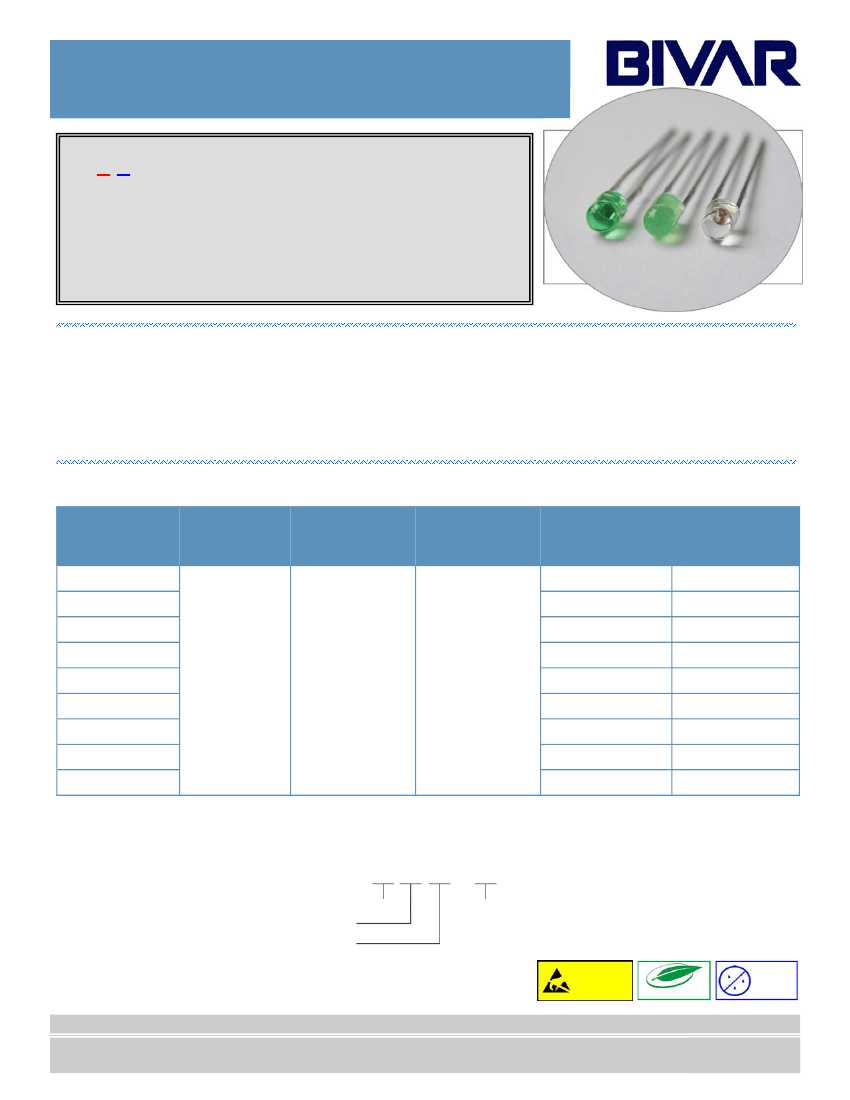

Bivar 3mm T1 Package LED may be used in almost any application. Bivar offers water clear LED lens
for maximum light output, diffused LED lens for uniform light output, and tinted lens to identify the col-
or of the LED. The Flanged LED is ideal for Panel Mount Clip & Ring assemblies, the Standard Lead
frame LED is ideal for vertical spacer assemblies without lead bends, and the Shouldered Lead frame
LED has a built in strain relief feature which is ideal for Right Angle Holder assemblies that require
lead bends. A long lead version is also available with a “-LL” suffix added to the part numbers.
Part Number
3GC-F
3GD-F
3GT-F
3GC
3GD
3GT
3GC-S
3GD-S
3GT-S
Material
Emitted Color
Peak. Wavelength
λp(nm)
TYP.
Lens Appearance
Water Clear
Green Diffused
Green Tinted
Water Clear
Viewing Angle
20°
35°
20°
30°
40°
30°
30°
40°
30°
GaP/GaP
GREEN
568nm
Green Diffused
Green Tinted
Water Clear
Green Diffused
Green Tinted
Part Number Designation
3 X X - X
LED Body, mm
Emitted Color
Lens Appearance
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE DEVICES
Lead Frame & Body Style
i.e. -F, -S, Blank for Standard
RoHS
Compliant
Moisture
Sensitivity
Levels 1
Bivar reserves the right to make changes at any time without notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision C 11/11
Page 1 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
AMBER
GREEN

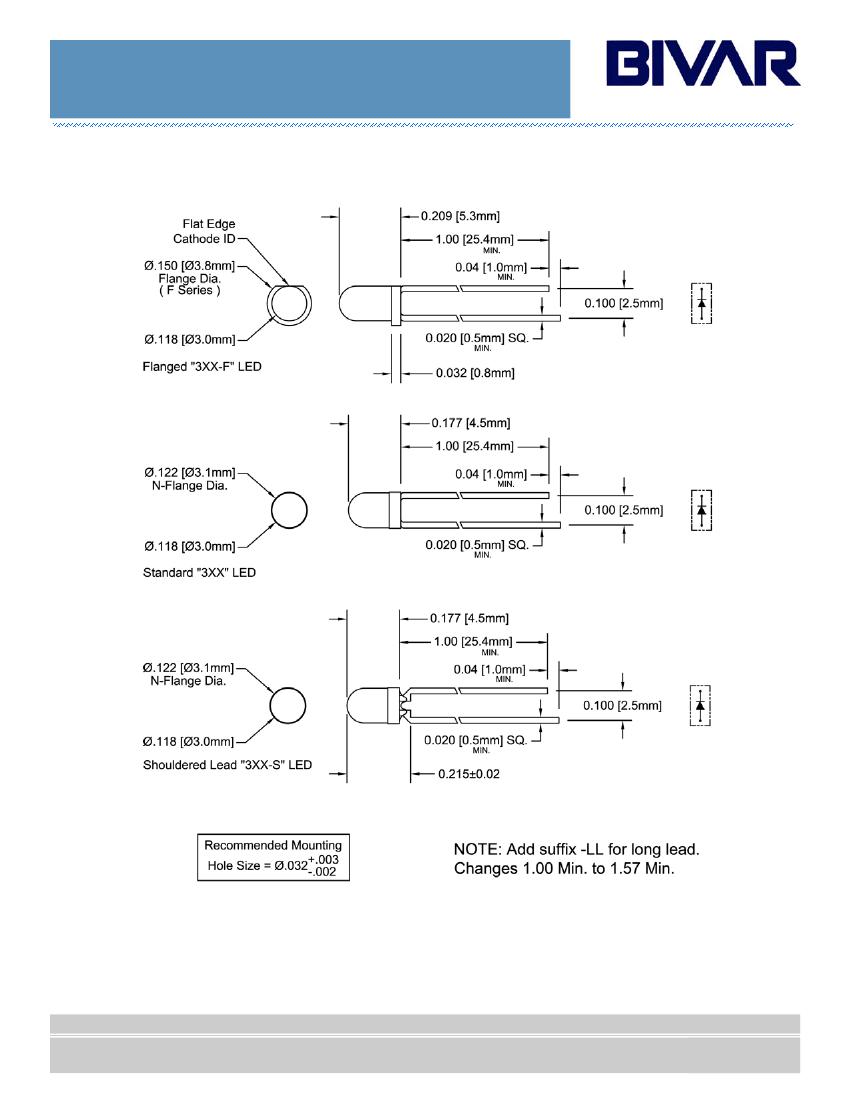

Outline Dimensions
Standard Lead Only
Outline Drawings Notes:
1. All dimensions are in inches [millimeters].
2. Standard tolerance: ±0.010" unless otherwise noted.
3. Tolerance of overall epoxy outline: ±0.020" unless otherwise noted.
4. Epoxy meniscus may extend to 0.060" max.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision C 11/11
Page 2 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
AMBER
GREEN
Absolute Maximum Ratings
T
A
= 25°C unless otherwise noted
Power Dissipation
Forward Current ( DC )
Peak Forward Current
1
Reverse Voltage
Operating Temperature Range
Storage Temperature Range
Lead Soldering Temperature ( 3 mm from the base of the epoxy bulb )
2
Notes: 1. 10% Duty Cycle, Pulse Width
≤
0.1 msec.
80 mW
30 mA
150 mA
5V
-40 ~ +85°C
-40 ~ +100°C
260°C
2. Solder time less than 5 seconds at temperature extreme.
Electrical / Optical Characteristics
T
A
= 25°C & I
F
= 20 mA unless otherwise noted
Forward
Voltage (V)
1
Recommend
Forward
Current (mA)
Reverse
Dominant
Current
Wavelength (nm)
2
(μA)
MAX
MIN
/
/
2.1
2.8
/
20
/
100
/
/
/
/
2.1
2.8
/
20
/
100
/
/
/
/
2.1
2.8
/
20
/
100
/
/
TYP
/
/
/
/
/
/
/
/
/
MAX
/
/
/
/
/
/
/
/
/
Luminous
Intensity Iv (mcd)
MIN
25
15
25
25
15
25
25
15
25
TYP
40
25
40
40
25
40
40
25
40
MAX
80
50
80
80
50
80
80
50
80
Viewing
Angle
2
Ө
½
(deg)
TYP
20
35
20
30
40
30
30
40
30
Part Number
MIN TYP MAX MIN TYP MAX
3GC-F
3GD-F
3GT-F
3GC
3GD
3GT
3GC-S
3GD-S
3GT-S
Notes: 1. Tolerance of forward voltage : ±0.05V.
2. Tolerance of dominant wavelength : ±1.0nm.
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision C 11/11
Page 3 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
AMBER
GREEN

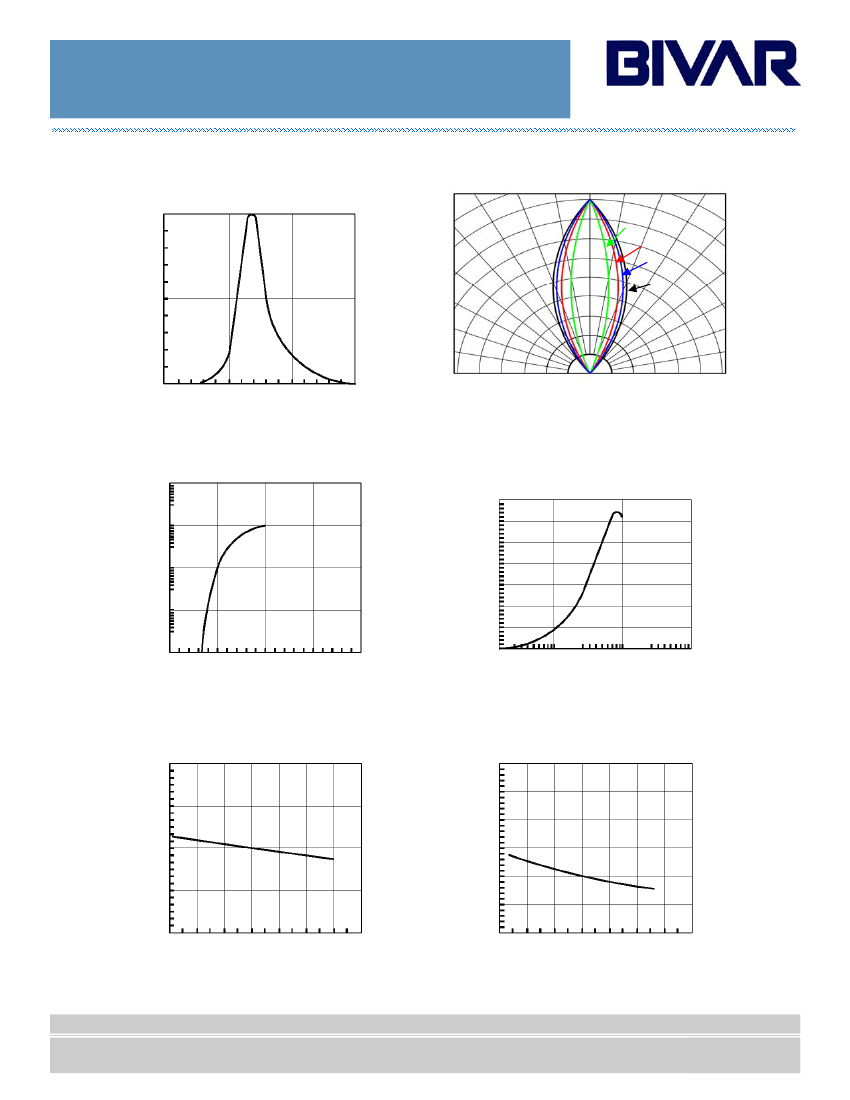

Typical Electrical / Optical Characteristics
T
A
= 25°C unless otherwise noted
Iv
0°
10°
20°
30°
40°
50°
60°
70°
80°
1.0
20°
30°
35°
40°
0.5
0.0
500
λ(nm)
90°
0.5
0.3
0.1
0.2
0.4
0.6
Fig. 2 Directivity Radiation Diagram
550
600
650
Fig. 1 Relative Luminous Intensity vs. Wavelength
@ 20mA
If (mA)
1000
100
10
1
0.1
1.0
Vf (V)
Iv
3.0
2.0
1.0
0.0
If (mA)
2.0
3.0
4.0
5.0
1
10
100
1000
Fig. 3 Forward Current vs. Forward Voltage
Fig. 4 Relative Luminous Intensity vs. Forward Current
Normalize @ 20 mA
Iv
Vf (V)
1.2
1.1
1.0
3.0
2.0
1.0
0.9
0.8
-40
0
40
80
T (°C)
0.0
-40
0
40
80
T (°C)
Fig. 5 Forward Voltage vs. Temperature
Fig. 6 Relative Luminous Intensity vs. Temperature
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Revision C 11/11
Page 4 of 5
3mm (T1) Package Discrete LED
LEDs
3mm (T1) Package Discrete LED
AMBER
GREEN
Recommended Soldering Conditions
Recommended Lead Free Wave Soldering Profile
Preheat Temperature: 100ºC Max.
Preheat Time: 20 ~ 50 Seconds
Peak Temperature: 260ºC Max.
Solder Time Above 217ºC: 5 Seconds Max.
Note: Turn off top heater at preheat to prevent the lamp body directly exposed to the heat source.
Packaging and Labeling Plan
AntiStatic Poly Bag with Desiccant
(500 pcs Max. per Bag)
Bivar reserves the right to Bivar reserves theany time make changes at any time without supply the best product possible.
make changes at right to in order to improve design and to notice.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com
Rev. A 01/16/08
Revision C 11/11
Page 4 of 4
Page 5 of 5
