OPB993L51Z

Description
Optical Switches, Transmissive, Photo IC Output Slotted Opt Switch Photologic
CategoryLED optoelectronic/LED
File Size1018KB,6 Pages
ManufacturerTT Electronics
Environmental Compliance
Download Datasheet Parametric View All

OPB993L51Z Online Shopping

Suppliers Part Number Price MOQ In stock
OPB993L51Z - - View Buy Now

OPB993L51Z Overview

Optical Switches, Transmissive, Photo IC Output Slotted Opt Switch Photologic

OPB993L51Z Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerTT Electronics
Product CategoryOptical Switches, Transmissive, Photo IC Output
RoHSDetails
Slot Width3.18 mm
Aperture Width1.27 mm
If - Forward Current40 mA
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 70 C
PackagingBulk
Height15.63 mm
Length18.48 mm
Output TypeOpen Collector, Inverter
Sensing MethodTransmissive, Slotted
Wavelength890 nm
Width6.35 mm
Fall Time70 ns
High Level Output Current100 uA
Low Level Output Voltage0.4 V
Pd - Power Dissipation300 mW
Rise Time70 ns
Factory Pack Quantity25
Vf - Forward Voltage1.7 V
Vr - Reverse Voltage2 V

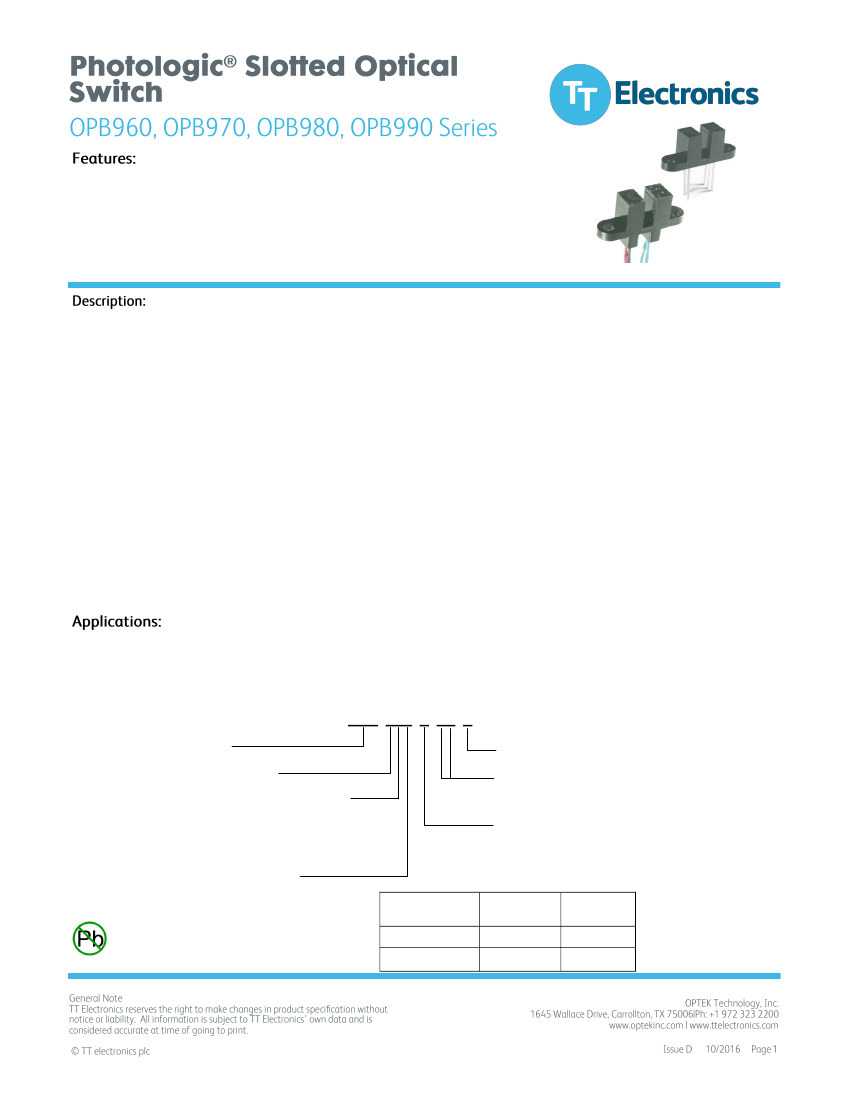

Choice of logic and output driver circuits
Choice of aperture size, covered or open
Wire or PCB leads
Choice of mounting features
Direct TTL, LSTTL, CMOS Interface
The OPB960/ 970/ 980/ 990 series of non-contact Photologic
®
slotted optical switches provides flexibility in meeting
application specific requirements for the design engineer.
Building from a standard housing with a 0.125” (3.18mm) wide slot, the user can specify output logic state, output driver
circuit, aperture width, aperture surface and mounting tab locations. Furthermore, an option of wire or PCB leads allows
electrical interface flexibility.
The device body is an opaque plastic which minimizes sensitivity to both visible and near-infrared external light sources
which may impact operation. Aperture width choices provide different optical resolution for motion sensing. A covered
aperture provides dust protection, while an open aperture provides maximum protection against external light sources.
Electrical operation is over a wide supply voltage range. LED emissions are near-infrared (850—940nm).
Detector digital output logic choices of buffer or inverter with totem-pole or open-collector driver circuit simplify interface
for various electrical requirements.
Custom electrical, wire and cabling services are available.
Contact your local representative or OPTEK for more information. Compliant to EU RoHS Directive 2002/95/EC
Speed and direction
indication
Rotary encoders
Mechanical switch replacement
Mechanical limit indication
Part Number Guide
Printers - Top of form, End of travel, Home position.
Sliding Door Automotive and Lift gate applications
OPB 9XX X XX X
OPTEK Assembly
Photologic Sensor Family
Slot Aperture Surface and Lead Options:
6 —
Covered (apertures not visible), PCB leads
7 —
Open (apertures visible), PCB leads
8 —
Covered (apertures not visible), Wires
9 —
Open (apertures visible), Wires

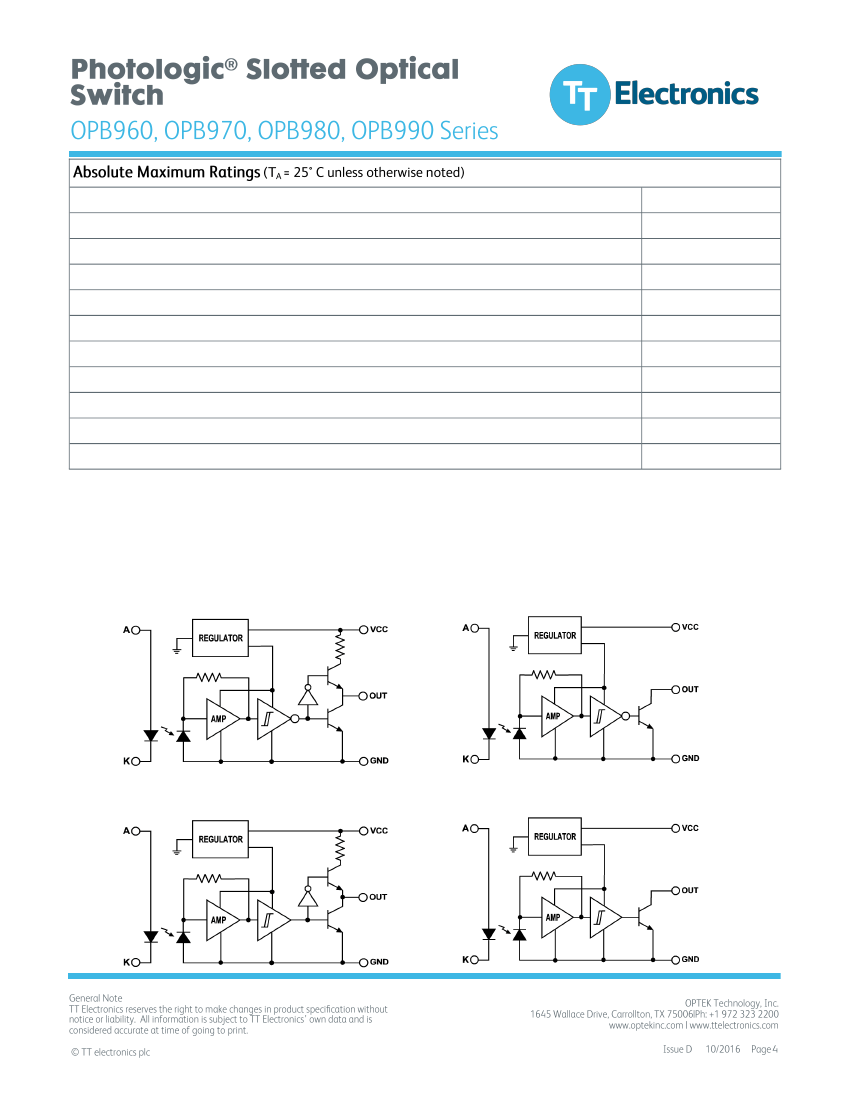

Logic and Output Driver Types:
0 —
Buffer Totem-Pole
1 —
Buffer Open-Collector
2 —
Inverter Totem-Pole
3 —
Inverter Open-Collector
RoHS
®
Z =
Wires only, None for PCB leads
Aperture Width Guide Options:
55, 51, 11 ( See Aperture Width Guide )

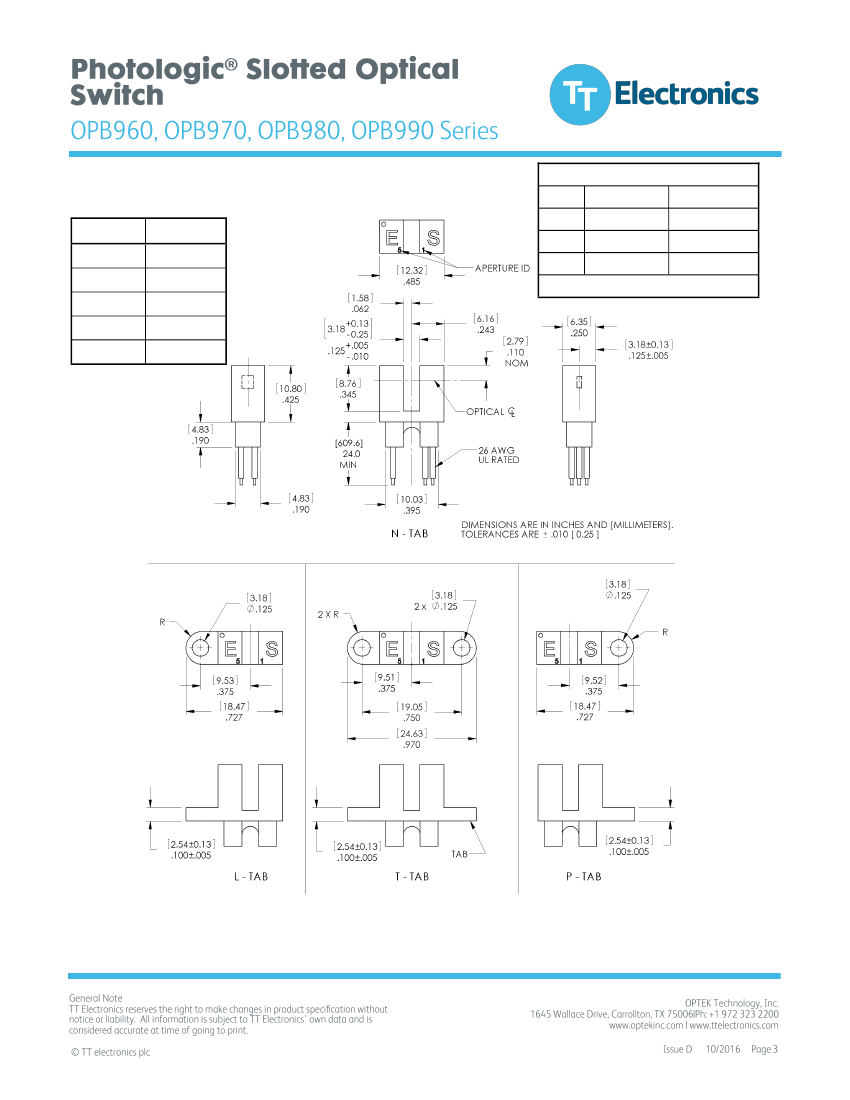

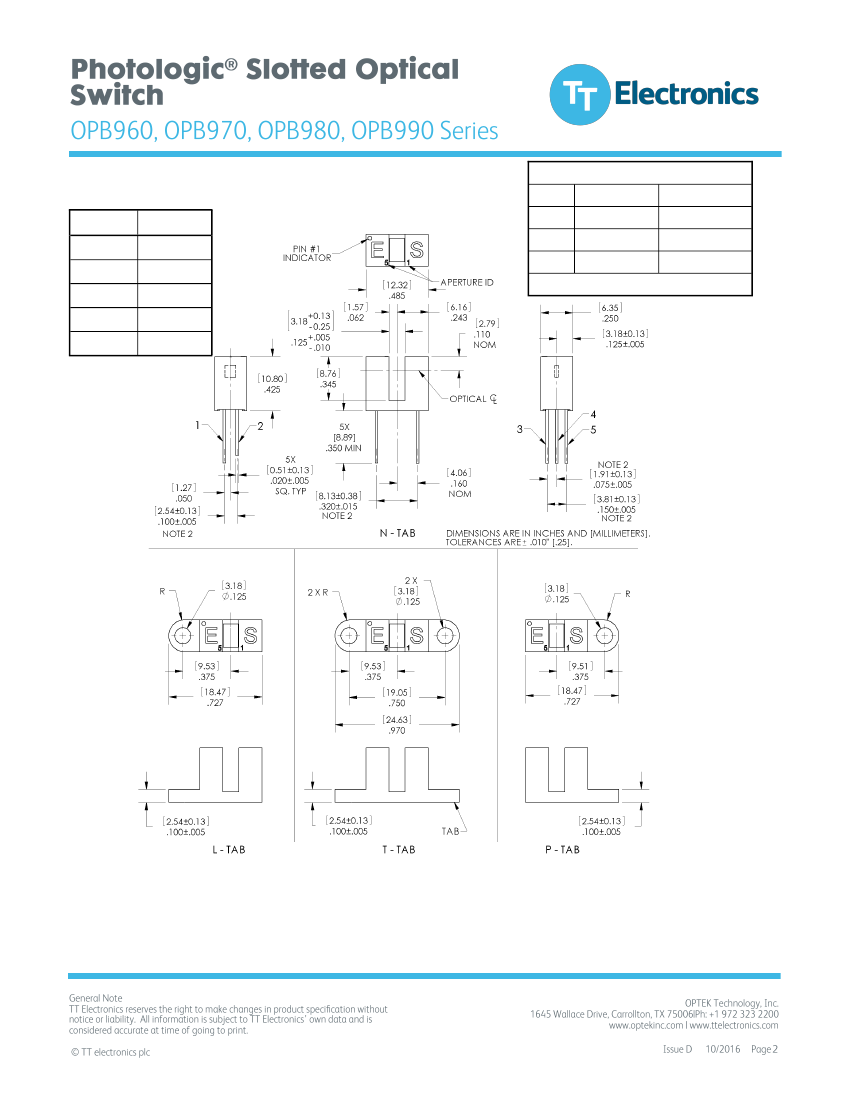

Mounting Tab Location:
L —
Emitter
N —
None
P —
Sensor
T —
Both (two mounting tabs)
Logic Type
Buffer
Inverter
Input
LED
OFF
OFF
Output Log-
ic State
LOW = 0
HIGH = 1
