568-0731-835F

Description
LED Circuit Board Indicators 3mm QUAD LVL R/G,R/Y,R/G,R/G
CategoryLED optoelectronic/LED
File Size102KB,3 Pages
ManufacturerDIALIGHT
Websitehttps://www.dialight.com
Environmental Compliance
Download Datasheet Parametric View All

568-0731-835F Online Shopping

Suppliers Part Number Price MOQ In stock
568-0731-835F - - View Buy Now

568-0731-835F Overview

LED Circuit Board Indicators 3mm QUAD LVL R/G,R/Y,R/G,R/G

568-0731-835F Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerDIALIGHT
Product CategoryLED Circuit Board Indicators
RoHSDetails
PackagingBulk
Factory Pack Quantity5
FEATURES / BENEFITS
Multiple CBIs form horizontal LED arrays on 1.91 mm
(0.075”) center lines.
High Contrast, UL 94 V-0 rated, black housing
Oxygen index: 32%
Polymer content: PBT, 0.949 g
Housing stand-offs facilitate PCB cleaning
Solderability per MIL-STD-202F, method 208F
LEDs are safe for direct viewing per IEC 825-1,
EN 60825-1

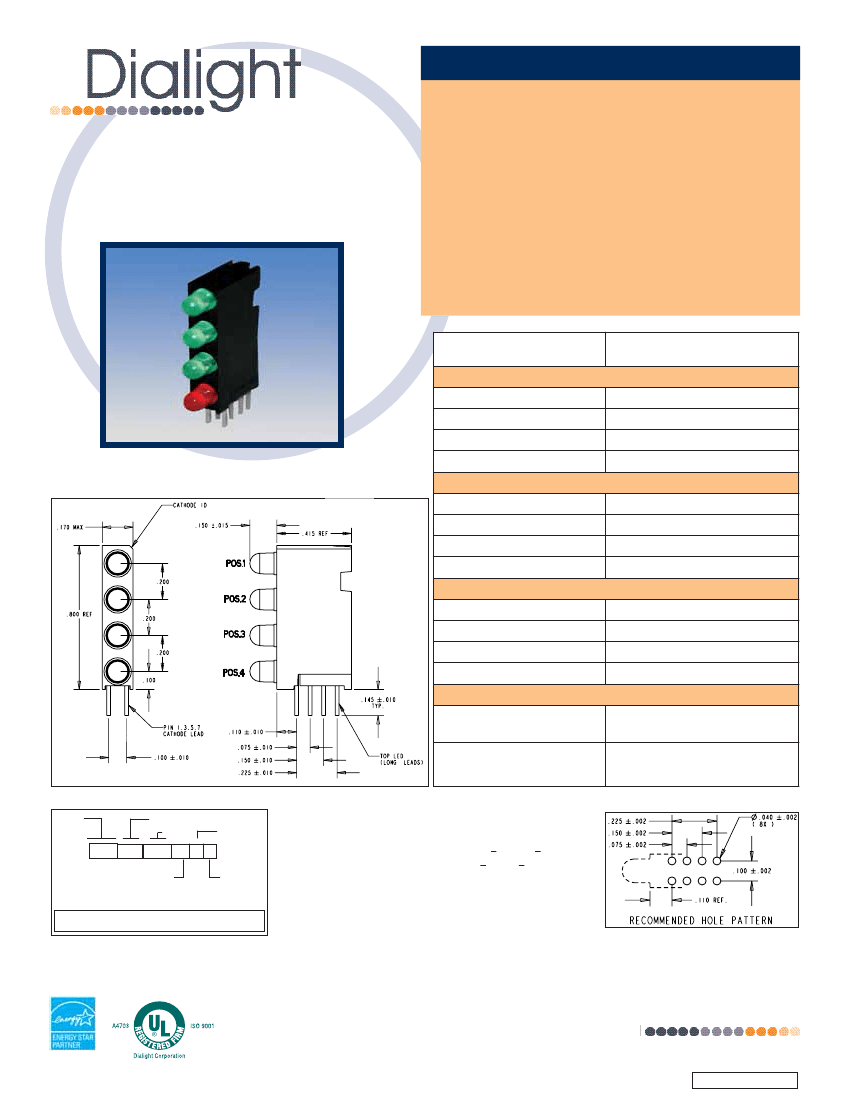

568 Series
3mm LED CBI
®
Circuit Board Indicator
QUAD-LEVEL
PART NUMBER
HIGH EFFICIENCY - LED TYPE 1
568-0101-111
568-0102-222
568-0102-323
568-0103-232
COLOR*
RED/RED/RED/RED
GREEN/GREEN/GREEN/GREEN
GREEN/YELLOW/GREEN/YELLOW
YELLOW/GREEN/YELLOW/GREEN
LOW CURRENT - LED TYPE 2
568-0201-111
568-0202-222
568-0202-323
568-0203-232
RED/RED/RED/RED
GREEN/GREEN/GREEN/GREEN
GREEN/YELLOW/GREEN/YELLOW
YELLOW/GREEN/YELLOW/GREEN
INTEGRAL RESISTOR, 5 VOLTS - LED TYPE 3
568-0301-111
568-0302-222
568-0302-323
568-0303-232
RED/RED/RED/RED
GREEN/GREEN/GREEN/GREEN
GREEN/YELLOW/GREEN/YELLOW
YELLOW/GREEN/YELLOW/GREEN
BI-COLOR - LED TYPE 7
568-0701-111
RED/GREEN-RED/GREEN-
RED/GREEN-RED/GREEN
568-0704-444
YELLOW/GREEN-YELLOW/GREEN-
YELLOW/GREEN-YELLOW/GREEN
PART NUMBER ORDERING CODE
Series
LED Type
LED 1
LED 3
* LED 1, LED 2, LED 3, LED 4
Tolerance note:
As noted, otherwise:
• LED Protrusion: +0.4 mm [+0.016]
• CBI Housing: +0.2mm [+0.008]
Contact factory for information on
custom color combinations.
568 -0x
0x
LED 2
-x x x
LED 4
Color =
0) Blank, 1) Red or Red/Green Bi-Color,
2) Green, 3) Yellow, 4) Yellow/Green Bi-Color
Dialight Corporation
1501 Route 34 South • Farmingdale, NJ 07727 USA
Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com
MDEA568X001_B
