TLUR44K1L2
www.vishay.com
Vishay Semiconductors
Universal LED in Ø 3 mm Tinted Diffused Package
FEATURES
• For DC and pulse operation
• Luminous intensity categorized
• Standard Ø 3 mm (T-1) package
• ESD-withstand voltage: up to 2 kV according to
JESD22-A114-B
19220
PRODUCT GROUP AND PACKAGE DATA
• Product group: LED
• Package: 3 mm
• Product series: standard
• Angle of half intensity: ± 30°
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• General indicating and lighting purposes
PARTS TABLE
PART
TLUR44K1L2
LUMINOUS INTENSITY
at I
F
(mcd)
COLOR
(mA)
MIN.
TYP.
MAX.
Red
7.1
-
18
10
WAVELENGTH
(nm)
MIN.
624
TYP. MAX.
630
636
at I
F
(mA)
10
FORWARD VOLTAGE
(V)
MIN.
-
TYP.
1.9
MAX.
2.6
at I
F
(mA)
10
TECHNOLOGY
GaAsP on GaP
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
TLUR44K1L2
PARAMETER
Reverse voltage
(1)
DC forward current
Surge forward current
Power dissipation
Junction temperature
Operating temperature range
Storage temperature range
Soldering temperature
Thermal resistance junction/ambient
Note
(1)
Driving the LED in reverse direction is suitable for a short term application
t
≤
5 s, 2 mm from body
t
p
≤
10 μs
TEST CONDITION
SYMBOL
V
R
I
F
I
FSM
P
V
T
j
T
amb
T
stg
T
sd
R
thJA
VALUE
6
20
0.5
60
100
-40 to +100
-55 to +100
260
500
UNIT
V
mA
A
mW
°C
°C
°C
°C
K/W
OPTICAL AND ELECTRICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified)
TLUR44K1L2, RED
PARAMETER
Luminous intensity
Dominant wavelength
Peak wavelength
Angle of half intensity
Forward voltage
Reverse voltage
Junction capacitance
TEST CONDITION
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
F
= 10 mA
I
R
= 10 μA
V
R
= 0 V, f = 1 MHz
PART
TLUR44K1L2
SYMBOL
I
V
λ
d
λ
p
ϕ
V
F
V
R
C
j
MIN.
7.1
624
-
-
-
6
-
TYP.
-
630
640
± 30
1.9
15
50
MAX.
18
636
-
-
2.6
-
-
UNIT
mcd
nm
nm
deg
V
V
pF
Rev. 1.2, 14-Oct-14
Document Number: 82398
1
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TLUR44K1L2
www.vishay.com
Vishay Semiconductors
Note
• Luminous intensity is tested at a current pulse duration of 25 ms
and an accuracy of ± 11 %.
The above type numbers represent the order groups which
include only a few brightness groups. Only one group will be
shipped on each reel (there will be no mixing of two groups on
each reel).
In order to ensure availability, single brightness groups will not
be orderable.
In a similar manner for colors where wavelength groups are
measured and binned, single wavelength groups will be shipped
on any one reel.
In order to ensure availability, single wavelength groups will not
be orderable.
LUMINOUS INTENSITY CLASSIFICATION
GROUP
STANDARD
K1
K2
L1
L2
LIGHT INTENSITY (mcd)
MIN.
7.10
9.00
11.20
14.00
MAX.
9.00
11.20
14.00
18.00
TYPICAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
40
35
I
F
- Forward Current (mA)
30
25
20
15
10
5
0
0
17517
1.2
red
1.0
I
rel
- Relative Intensity
10 20 30 40 50 60 70 80 90 100
T
amb
- Ambient Temperature (°C)
0.8
0.6
0.4
0.2
0.0
550
590
630
670
710
750
17521
λ
- Wavelength (nm)

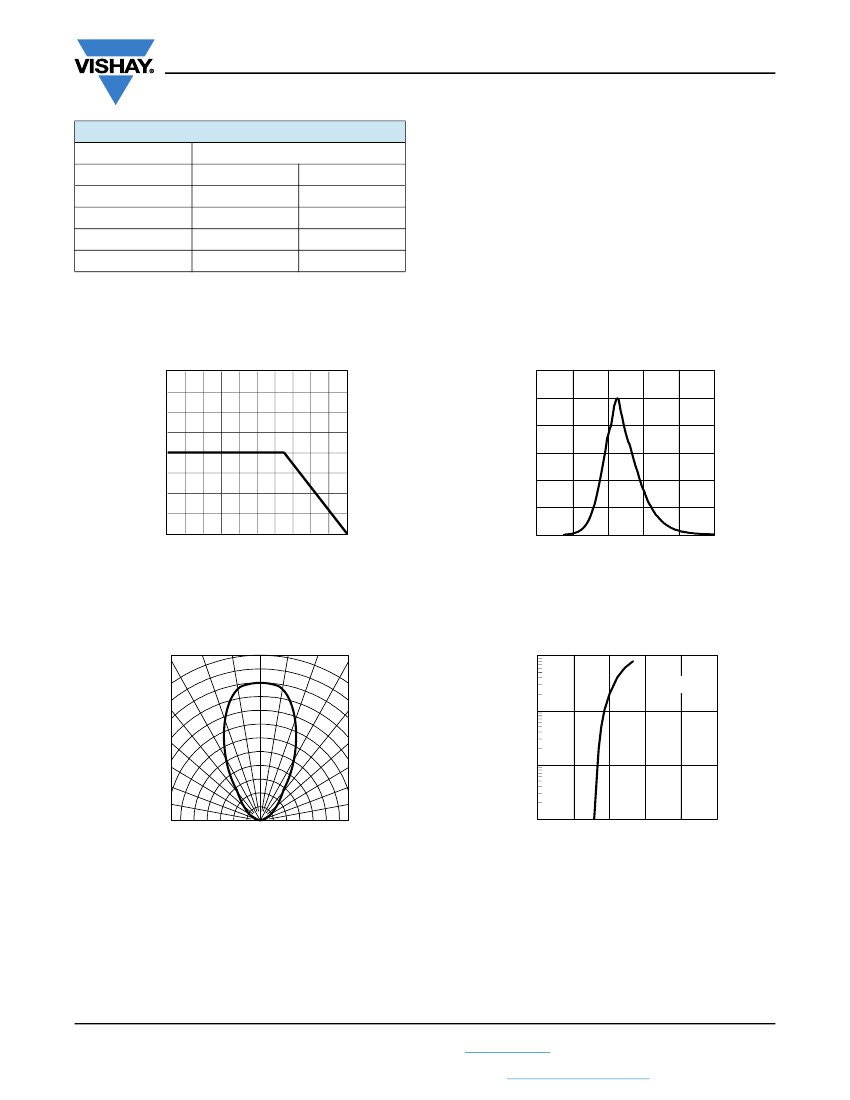

Fig. 1 - Forward Current vs. Ambient Temperature
Fig. 3 - Relative Intensity vs. Wavelength
0°
10°
20°
30°
I
V rel
- Relative Luminous Intensity
100
40°
1.0
0.9
0.8
0.7
50°
60°
70°
80°
I
F
- Forward Current (mA)
super red
10
1
0.1
0.6
95 10042
0.4
0.2
0
0.2
0.4
0.6
16634
0
1
2
3
4
5
V
F
- Forward Voltage (V)
Fig. 2 - Relative Luminous Intensity vs. Angular Displacement
Fig. 4 - Forward Current vs. Forward Voltage
Rev. 1.2, 14-Oct-14
Document Number: 82398
2
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
TLUR44K1L2
www.vishay.com
Vishay Semiconductors
I
V rel
- RelativeLuminous Intensity
10
1.6
red
1.2
I
V rel
- Relative Luminous Intensity
red
1
0.8
0.1
0.4
I
F
= 10 mA
0
0.01
1
95 10076
10
100
0
95 10074
20
40
60
80
100
I
F
- Forward Current (mA)
T
amb
- Ambient Temperature (°C)
Fig. 5 - Relative Luminous Intensity vs. Forward Current
Fig. 6 - Relative Luminous Intensity vs. Ambient Temperature
PACKAGE DIMENSIONS
in millimeters
A
C
Ø 3.2 ± 0.15
R1.4 (sphere)
3.4 ± 0.15
4.4 ± 0.3
(2.5)
< 0.6
34.4 ± 0.5
5.8 ± 0.3
AREA NOT PLANE
Ø 2.9 ± 0.15
+ 0.15
1.5 ± 0.5
+ 0.2
0.5
- 0.1
0.4
- 0.05
technical drawings
according to DIN
specifications
2.54 nom.
Drawing-No.: 6.544-5255.01-4
Issue: 9; 28.07.14
Rev. 1.2, 14-Oct-14
Document Number: 82398
3
For technical questions, contact:
LED@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
