CLD-Ds31 Rev 7G
Product family data sheet
Cree
®
XLamp
®
MX-6S LEDs

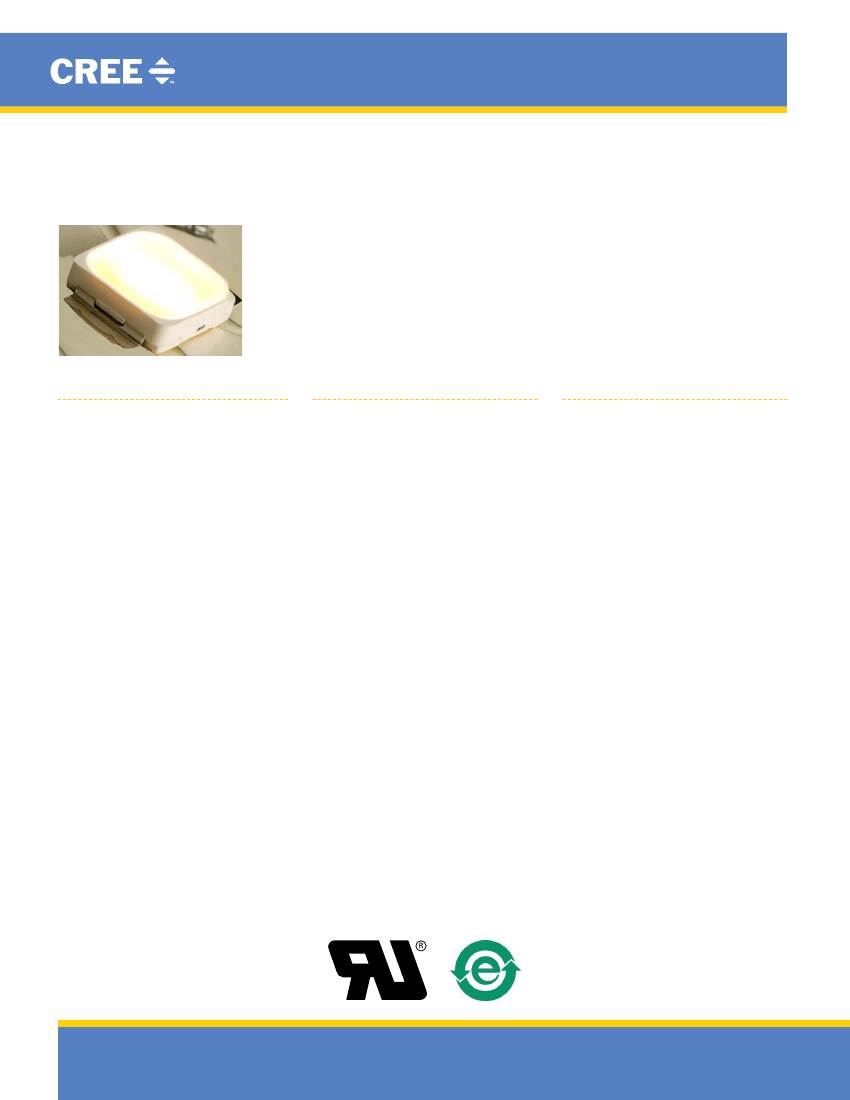

ProDuCt DESCriPtion
The Cree XLamp
®
MX-6s LeD provides
the proven lighting-class performance
and reliability of Cree XLamp LeDs in
a high‑voltage, PLCC configuration. All
members of the MX family of LeDs have
wide viewing angle, uniform light output
without secondary optics, unlimited floor
life, and electrically neutral thermal path.
FEAturES
•
•
•
•
•
•
Available in white (2600 K to 8300 K
CCT)
Wide viewing angle: 120°
20 VDC nominal with voltage binning
available
Electrically neutral thermal path
Qualification at maximum drive
current
RoHS and REACh compliant
UL
®
recognized component
(E349212)
•
tAbLE oF ContEntS
Characteristics
....................................... 2
Flux Characteristics ...............................
3
Relative Spectral Power Distribution .... 4
Relative Flux vs. Junction
Temperature ........................................... 4
electrical Characteristics
.......................
5
Relative Flux vs. Current ........................
5
Typical Spatial Distribution....................
6
Thermal Design
......................................
6
Reflow Soldering Characteristics ..........
7
Notes
...................................................... 8
Mechanical Dimensions
...................... 10
Tape and Reel
.......................................
11
Packaging
............................................. 12
The XLamp MX-6s LeD brings high
performance and quality of light to a
range of lighting applications that require
near‑line‑voltage configuration, including
LED light bulbs, fluorescent retrofits and
retail‑display lighting.
www.CRee.Com/XLAmp
Copyright © 2010-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are
registered trademarks and the Cree logo is a trademark of Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
Cree, Inc.
4600 Silicon Drive
Durham, NC 27703
USA Tel: +1.919.313.5300
XLamp
®
mX-6S LED
ChArACtEriStiCS
Characteristics
Thermal resistance, junction to solder point
Viewing angle (FWHM)
Temperature coefficient of voltage
ESD withstand voltage (HBM per Mil‑Std‑883D)
DC forward current
Forward voltage (@ 60 mA)
LED junction temperature
unit
°C/W
degrees
mV/°C
v
mA
v
°C
20.0
Minimum
typical
5
120
‑20
8000
175
22.0
150
Maximum
Copyright © 2010-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
2
XLamp
®
mX-6S LED
FLuX ChArACtEriStiCS (t
J
= 25 °C)
The following table provides several base order codes for XLamp MX‑6S LEDs. It is important to note that the base order codes listed
here are a subset of the total available order codes for the product family. For more order codes, as well as a complete description of the
order‑code nomenclature, please consult the XLamp MX LED Family Binning and Labeling document.
Minimum Luminous Flux
(lm) @ 60 mA
Group
R4
Cool White
5000 K
8300 K
R3
R3
R2
R3
5000 K
8300 K
R2
R3
R2
R2
2600 K
4300 K
Q5
Q5
Q4
3700 K
Warm White
2600 K
3700 K
4300 K
R2
Q5
Q5
Q4
Flux (lm)
130
122
122
114
122
114
122
114
114
107
107
100
114
107
107
100
MX6SWT‑A1‑0000‑000G51
MX6SWT‑A1‑0000‑000F51
MX6SWT‑A1‑0000‑000FE3
MX6SWT‑A1‑0000‑000EE3
MX6SWT‑H1‑0000‑000F51
MX6SWT‑H1‑0000‑000E51
MX6SWT‑H1‑0000‑000FE3
MX6SWT‑H1‑0000‑000EE3
MX6SWT‑H1‑0000‑000EE5
MX6SWT‑H1‑0000‑000DE5
MX6SWT‑H1‑0000‑000DE7
MX6SWT‑H1‑0000‑000CE7
MX6SWT‑A1‑0000‑000EE5
MX6SWT‑A1‑0000‑000DE5
MX6SWT‑A1‑0000‑000DE7
MX6SWT‑A1‑0000‑000CE7
Color
CCt range
Minimum
Maximum
order Code
80‑CRI White
Notes:
•
Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements and ±2 on
CRI measurements. See the Measurements section (page 8).
•
Typical CRI for Cool White (4300 K – 8300 K CCT) is 75.
•
Typical CRI for Warm White (2600 K – 4000 K CCT) is 80.
•
Minimum CRI for 80‑CRI White is 80.
Copyright © 2010-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
3

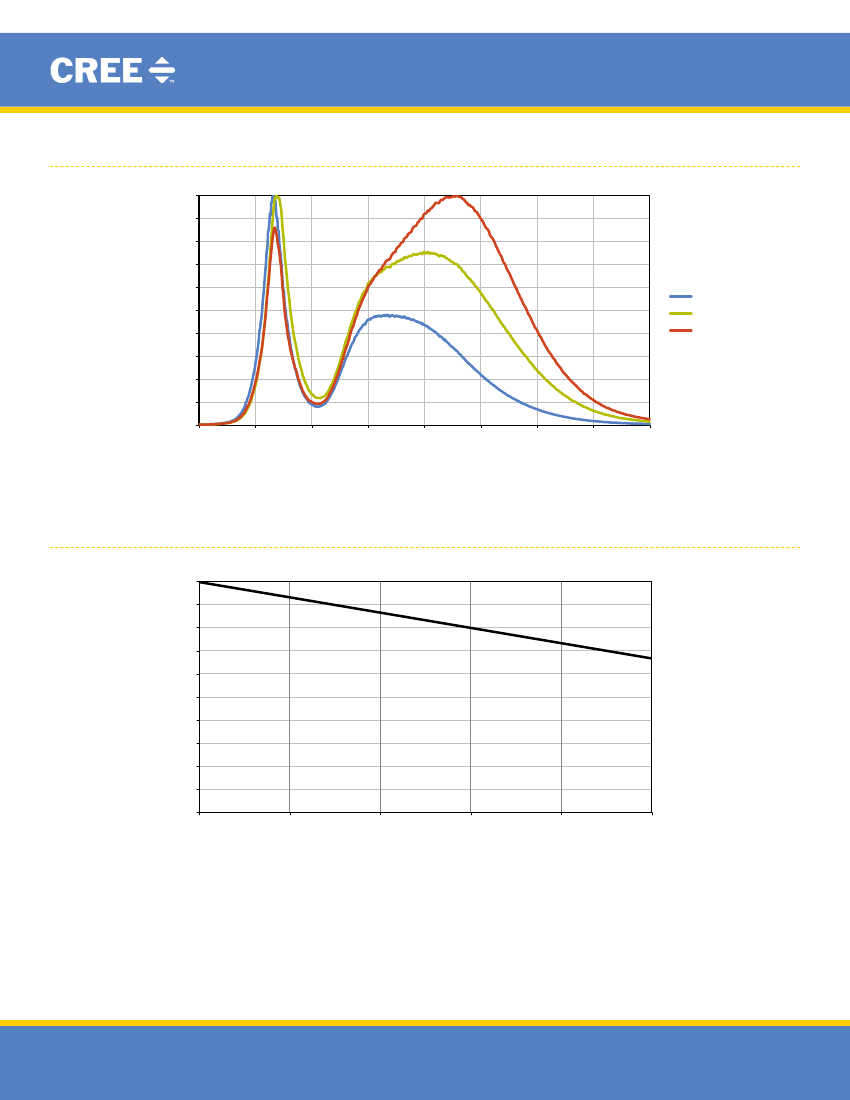

Relative Spectral Power
rELAtivE SPECtrAL PowEr DiStribution
100
90
XLamp
®
mX-6S LED
Relative Radiant Power (%)
80
70
60
50
40
30
20
10
0
5000 K - 8300 K CCT
3500 K - 5000 K CCT
2600 K - 3500 K CCT
380
430
480
530
580
630
680
730
780
Wavelength (nm)
Relative Flux Output vs. Junction Temperature
rELAtivE FLuX vS. JunCtion tEMPErAturE (i
F
= 60 mA)
100%
90%
80%
Relative Luminous Flux
70%
60%
50%
40%
30%
20%
10%
0%
25
50
75
100
125
150
Junction Temperature (ºC)
Copyright © 2010-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
4
XLamp
®
mX-6S LED
ELECtriCAL ChArACtEriStiCS (t
J
= 25 °C)
175
150
Electrical Characteristics (Tj = 25ºC)
Forward Current (mA)
125
100
75
50
25
0
15.00
16.00
17.00
18.00
19.00
20.00
21.00
22.00
23.00
24.00
Forward Voltage (V)
rELAtivE FLuX vS. CurrEnt (t
J
= 25 °C)
250
Relative Intensity vs. Current (Tj = 25ºC)
200
Relative Luminous Flux (%)
150
100
50
0
0
25
50
75
100
125
150
175
Forward Current (mA)
Copyright © 2010-2017 Cree, Inc. All rights reserved. The information in this document is subject to change without notice. Cree
®
and XLamp
®
are registered trademarks and the Cree logo is a trademark of
Cree, Inc. UL
®
and the UR logo are registered trademarks of UL LLC.
5
