EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet

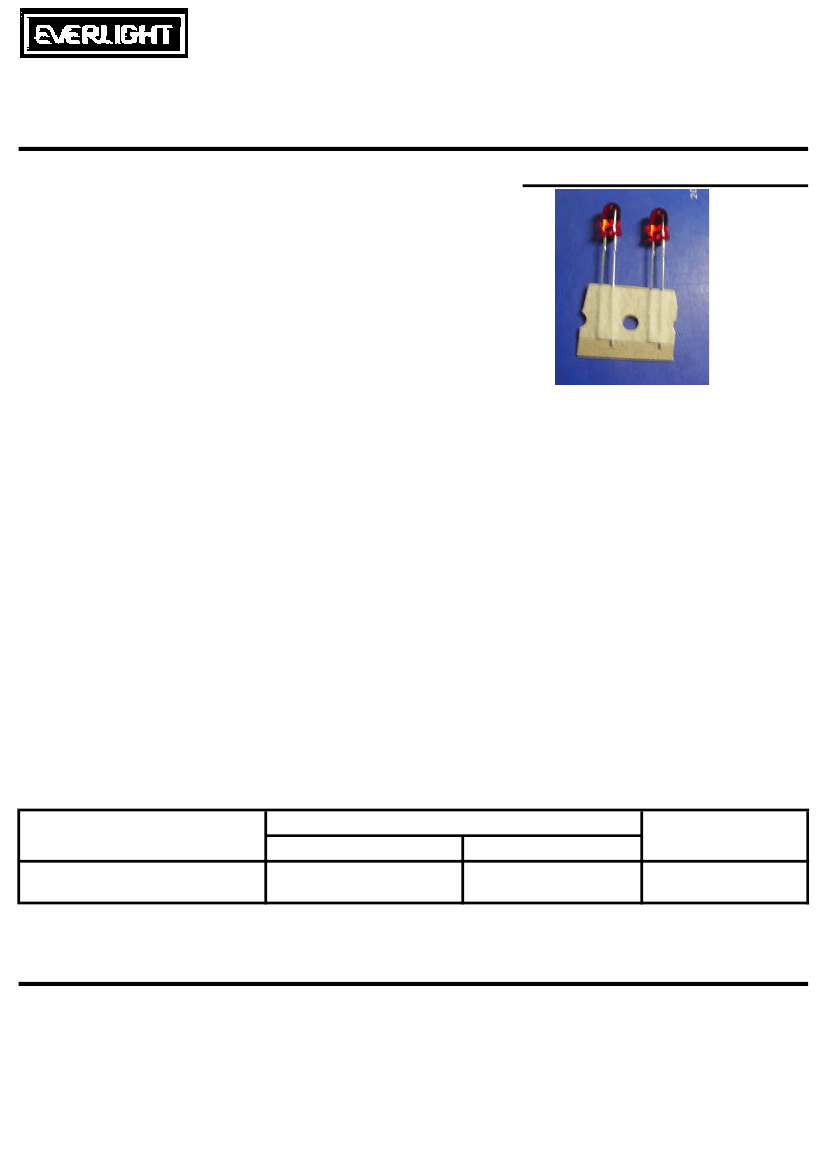

5.0mm Round Type LED For Tapping
`
333-2SURT/S530-A3/TR1-4
█
Features :
●
●
●
●
Long life feature.
Low power consumption.
High emiting efficiency.
Most radial lead plastic LED lamp
acailable packed in ape and reel.
Reel package simplifies handling and teating.
Pb free
1.The 333 lamps are made with AlGaInp diodes,
which emit Hyper Red
2.Automatically insertablle
with radial lead insertion equipmine.
●
●
█
Descriptions :
●
●
█
Applications :
●
●
●
●
●
●
●
●
●
Audio equipment
Monitor
Sign board
Computer peripheral
Air condition
Home appliance
Satellite receiver
Burglar alarm
Stop light
PART NO.
Chip
Material
AlGaInP
Emitted Color
Hyper Red
Lens Color
Red Trans
333-2SURT/S530-A3
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDT1-033-101
http : //www.everlight.com
Prepared date:
2005/7/5
Rev.:
1
Page: 1 of 8
Yuan guangxiu
Prepared by:
BG0505029,R0502143
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
5.0mm Round Type LED For Tapping
333-2SURT/S530-A3/TR1-4
Package Dimensions
▓
Notes:
1.All dimensions are in millimeters, tolerance is 0.25mm except being specified
2.Lead spacing is measured where the lead emerge from the package
3.Protuded resin under flange is 1.5 mm(0.059”) Max LED.
█ Absolute Maximum Ratings at Ta = 25℃
Parameter
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Reverse Voltage
Symbol
I
F
Topr
Tstg
Tsol
ESD
Pd
V
R
Rating
25
-40 to +85
-40 to +100
260
±
5
2000
60
5
Unit
mA
℃
℃
℃
V
mW
V
Note:
*1:Soldering time ≦ 5 seconds.
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDT1-033-101
http : //www.everlight.com
Prepared date:
2005/7/5
Rev.: 1
Prepared by:
Page:
2 of 8
Yuan guangxiu
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
5.0mm Round Type LED For Tapping
333-2SURT/S530-A3/TR1-4
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Symbol
V
F
I
R
Iv
2θ1/2
λp
λd
△λ
Condition
IF=
V
R
=
IF=
IF=
IF=
IF=
IF=
20
5
20
20
20
20
20
mA
V
mA
mA
mA
mA
mA
Min.
／
／
100
／
／
／
／
Typ.
2.0
／
200
15
632
624
20
Max.
2.4
10
／
／
／
／
／
Unit
V
μA
mcd
deg
nm
nm
nm
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDT1-033-101
http : //www.everlight.com
Prepared date:
2005/7/5
Rev.:
Prepared by:
1
Page: 3 of 8
Yuan guangxiu
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
5.0mm Round Type LED For Tapping
333-2SURT/S530-A3/TR1-4
█

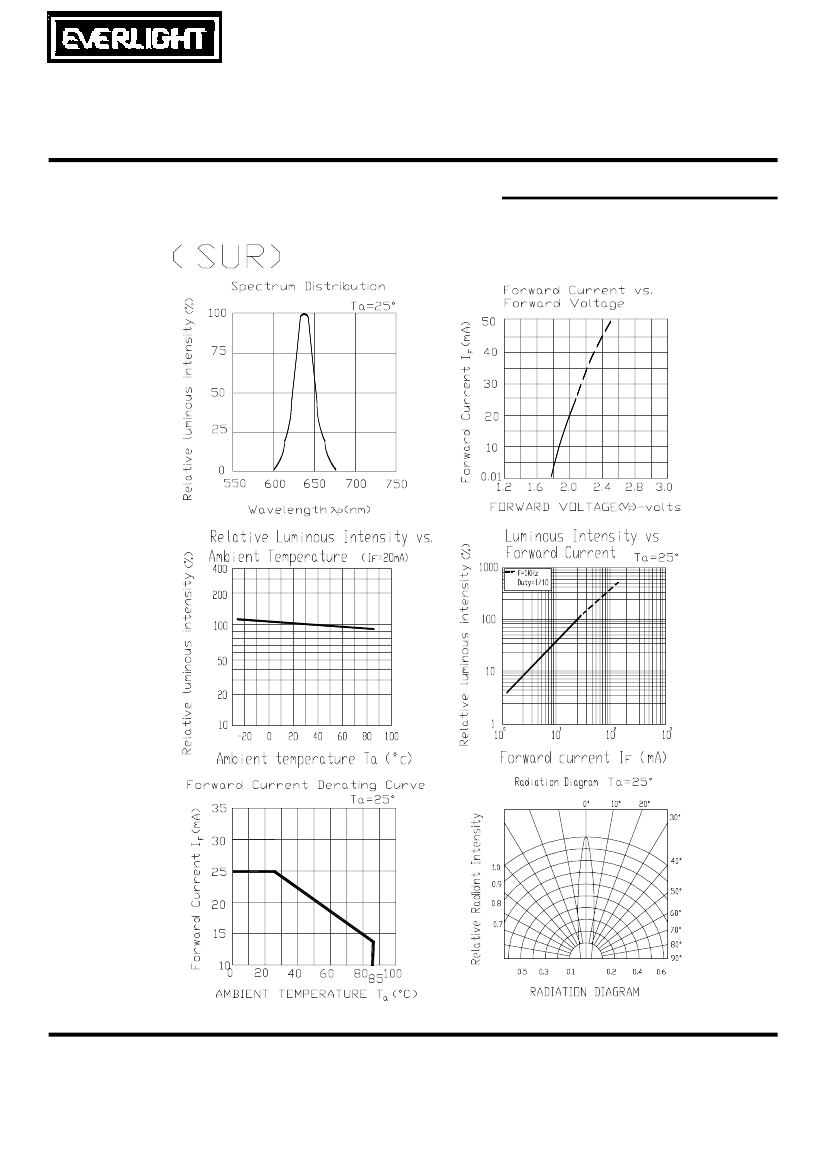

Typical Electro-Optical Characteristic Curves:
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number : CDT1-033-101
http : //www.everlight.com
Prepared date:
2005/7/5
REV.:
1
Page: 4 of 8
Prepared by: Yuan guangxiu
EVERLIGHT ELECTRONICS CO.,LTD.
Technical Data Sheet
5.0mm Round Type LED For Tapping
333-2SURT/S530-A3/TR1-4
Taping Dimensions
▓
Notes:
1.All dimensions are in millimeters, tolerance is 0.25mm except being specified
2.Lead spacing is measured where the lead emerge from the package
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
CDT1-033-101
http : //www.everlight.com
Prepared date:
2005/7/5
REV.:
1
Page: 5 of 8
Yuan guangxiu
Prepared by:
