20.32mm (0.8INCH) 16 SEGMENT SINGLE
DIGIT
Part Number: PSC08-11EWA
High Efficiency Red
Features
0.8 inch character height.
Low current operation.
High contrast and light output.
Common cathode and common anode available.
Easy mounting on P.C. boards or sockets.
Mechanically rugged.
Standard : gray face, white segment.
RoHS compliant.
Description
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.

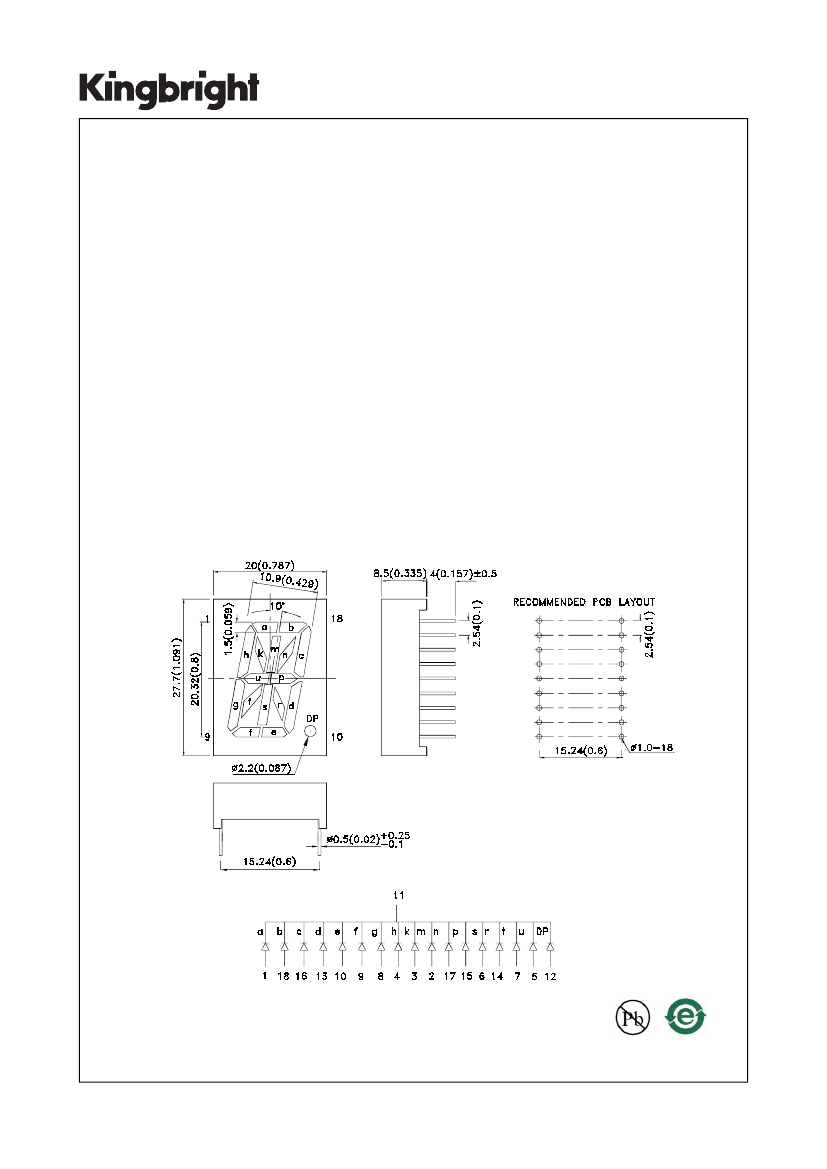

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAD2396
APPROVED: WYNEC
REV NO: V.11A
CHECKED: Joe Lee
DATE: OCT/26/2012
DRAWN: C.H.HAN
PAGE: 1 OF 6
ERP: 1311000123
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
3600
PSC08-11EWA
High Efficiency Red (GaAsP/GaP)
White Diffused
*900
Notes:
1. Luminous intensity/ luminous Flux: +/-15%.
* Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Description
Typ.
7700
*2100
Common Cathode,
Rt. Hand Decimal.
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
High Efficiency Red
High Efficiency Red
High Efficiency Red
High Efficiency Red
High Efficiency Red
High Efficiency Red
627
625
45
15
2.0
2.5
10
Typ.
*627
*617
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1.Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
* Wavelength value is traceable to the CIE127-2007 compliant national standards.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature[2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
High Efficiency Red
75
30
160
5
-40°C To +85°C
260°C For 3-5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAD2396
APPROVED: WYNEC
REV NO: V.11A
CHECKED: Joe Lee
DATE: OCT/26/2012
DRAWN: C.H.HAN
PAGE: 2 OF 6
ERP: 1311000123
