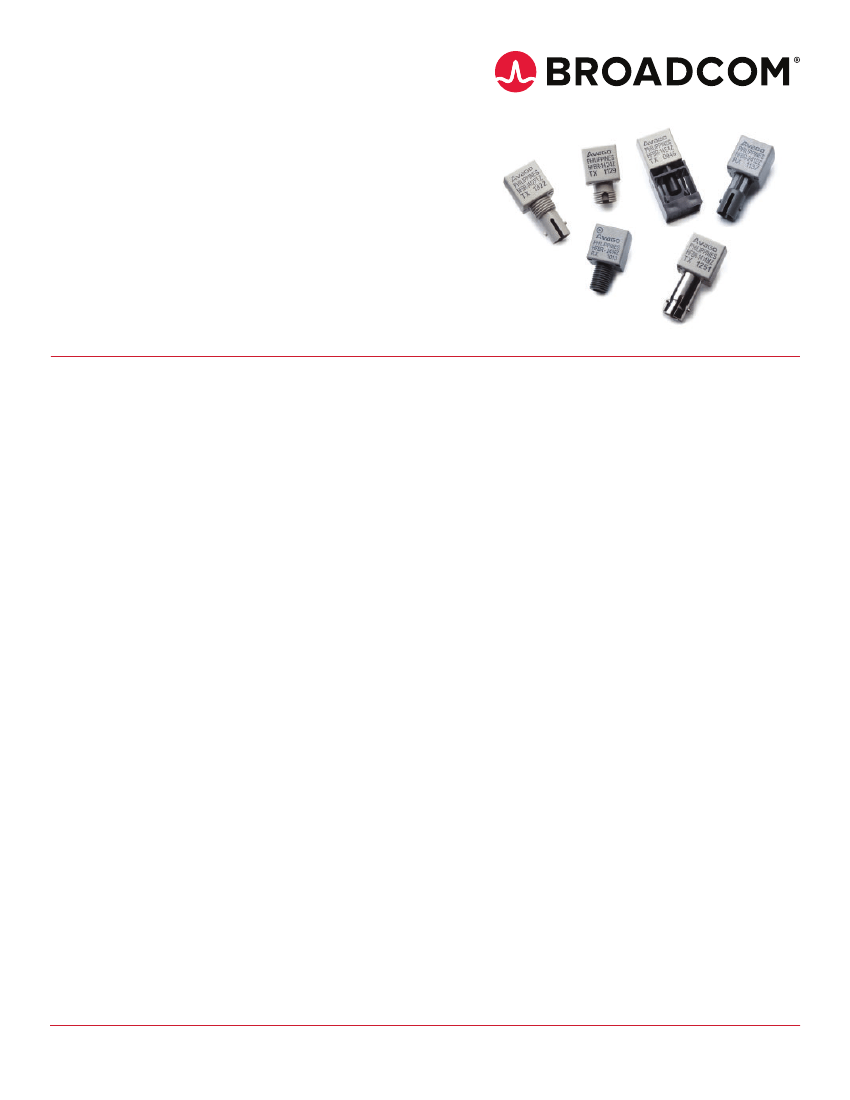

The 820 nm Miniature Link Series of components is designed
to provide cost-effective, high-performance fiber optic
communication links for information systems and industrial
applications with link distances of several kilometers. With the
HFBR-24x6Z, the 125 MHz analog receiver, data rates of up to
160 MBaud can be attained.
Transmitters and receivers are directly compatible with
popular “industry-standard” connectors: ST, SMA, SC, and FC.
They are completely specified with multiple fiber sizes;
including 50/125 μm, 62.5/125 μm, 100/140 μm, and 200 μm.
Products are available in various options. For example,
transmitters with the improved protection option P show an
increased ESD resistance to the pins. This HFBR-141xPxZ
integrated solution is realized by including a Zener diode
parallel to the LED.
The HFBR-14x4Z high-power transmitter and HFBR-24x6Z
125 MHz receiver pair up to provide a duplex solution
optimized for 100BASE-SX. 100BASE-SX is a Fast Ethernet
Standard (100 Mb/s) at 850 nm on multimode fiber.
Evaluation kits are available for ST products, including
transmitter, receiver, eval board, and technical literature.
Features
RoHS compliant
Low-cost transmitters and receivers
Choice of ST, SMA, SC, or FC ports
820 nm wavelength technology
Signal rates up to 160 MBaud
Link distances up to several kilometers
Compatible with 50/125 μm, 62.5/125 μm, 100/140 μm, and
200 μm Plastic-Clad Silica (PCS) Fiber
Repeatable ST connections within 0.2 dB typical
Unique optical port design for efficient coupling
Pick and place, and wave solderable
No board-mounting hardware required
Wide operating temperature range –40°C to +85°C
Conductive port option
Applications
100BASE-SX Fast Ethernet on 850 nm
Media/fiber conversion, switches, routers, hubs, and NICs on
100BASE-SX
Local area networks
Computer-to-peripheral links and computer monitor links
Digital cross connect links
Central office switch/PBX links
Video links
Modems and multiplexers
Suitable for Tempest systems
Industrial control links
Broadcom
-1-
HFBR-14xxZ and HFBR-24xxZ Series
Data Sheet
Part Number Guide
A/HFBR - x 4 x x aa Z
1
2
4
Transmitter
P
Receiver
T
820 nm Transmitter and
Receiver products
SMA, housed
ST, housed
FC, housed
SC, housed
C
M
2
4
2
5
6
8
9
Threaded port option
Conductive port receiver option
Metal port option
TX, standard power
TX, high power
RX, 5 MBaud, TTL output
TX, high light output power
RX, 125 MHz, Analog Output
RX, DC to 50 MBaud, Digital Output
RX, 100 KBaud to 50 MBaud, Digital Output
Protection improved option
RoHS Compliant
0
1
2
E
Available Options
HFBR-1402Z
HFBR-1412Z
HFBR-1415PMZ
HFBR-2406Z
HFBR-2416TZ
AFBR-2408Z
AFBR-2419TZ
HFBR-1404Z
HFBR-1414PTZ
HFBR-1415TZ
HFBR-2412TCZ
HFBR-2416Z
AFBR-2418Z
AFBR-2419MZ
HFBR-1412PTZ
HFBR-1414PZ
HFBR-1415Z
HFBR-2412TZ
HFBR-2422Z
AFBR-2418TZ
HFBR-1412PZ
HFBR-1414MZ
HFBR-1424Z
HFBR-2412Z
HFBR-24E2Z
AFBR-2418MZ
HFBR-1412TMZ
HFBR-1414TZ
HFBR-14E4Z
HFBR-2416MZ
HFBR-24E6Z
AFBR-2409Z
AFBR-2419Z
HFBR-1412TZ
HFBR-1414Z
HFBR-2402Z
HFBR-2416TCZ
Note: For better readability of the electrical and optical specifications, all available options (P, T, C, and M) are covered by the HFBR-x4xxZ product name; exceptions
are explicitly noted.
Note: AFBR-24x8xZ receivers are designed for data rates from DC up to 50 MBaud. AFBR-24x9xZ supports transmissions from 100 KBaud up to 50 MBaud. Refer to
the separate data sheets for details about these digital optical receivers providing CMOS/TTL output logic.
Link Selection Guide
For additional information about specific links, see the individual link descriptions. The HFBR-1415Z can be used for increased
power budget or for lower driving current for the same Data Rates and Link Distances.
Data Rate
(MBaud)
1
DC to 5
20
20 to 32
DC to 50
0.1 to 50
20 to 55
20 to 125
20 to 155
20 to 160
Distance (m)
1500
2700
2200
2000
1000
1400
700
600
500
Transmitter
HFBR-14x2Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
Receiver
HFBR-24x2Z
HFBR-24x6Z
HFBR-24x6Z
AFBR-24x8xZ
AFBR-24x9xZ
HFBR-24x6Z
HFBR-24x6Z
HFBR-24x6Z
HFBR-24x6Z
Fiber Size (μm)
62.5/125
62.5/125
62.5/125
62.5/125
62.5/125
62.5/125
62.5/125
62.5/125
62.5/125
Evaluation Kit
HFBR-0410Z
HFBR-0416Z
HFBR-0416Z
AFBR-0549Z
AFBR-0550Z
HFBR-0416Z
HFBR-0416Z
HFBR-0416Z
HFBR-0416Z
1. The data rate range in the table refers to the evaluation kit documentation. For an analog receiver, like the HFBR-24x6Z, the data rate range depends on the
receiver circuit used.
Broadcom
-2-
HFBR-14xxZ and HFBR-24xxZ Series
Data Sheet
Options
In addition to the various port styles available for the HFBR-0400Z series products, there are also several extra options that can be
ordered. To order an option, simply place the corresponding option number at the end of the part number. See page 2 for
available options.
Option P (Protection improved option)
Designed to withstand electrostatic discharge (ESD) of 2 kV (HBM) to the pins
Available on TX with non-conductive ST and non-conductive threaded ST ports
Option T (Threaded Port Option)
Allows ST style port components to be panel mounted
Compatible with all current makes of ST multimode connectors
Mechanical dimensions are compliant with MIL-STD- 83522/13
Maximum wall thickness when using nuts and washers from the HFBR-4411Z hardware kit is 2.8 mm (0.11 inch)
Available on all ST ports
Option C (Conductive Port Receiver Option)
Designed to withstand electrostatic discharge (ESD) of 25 kV to the optical port
Significantly reduces effect of electromagnetic interference (EMI) on receiver sensitivity
Allows designer to separate the signal and conductive port grounds
Recommended for use in noisy environments
Available on threaded ST port style receivers only
The conductive port is connected to Pins 1, 4, 5, and 8 through the Port Grounding Path Insert
Option M (Metal Port Option)
Nickel plated aluminum connector receptacle
Designed to withstand electrostatic discharge (ESD) of 15 kV to the optical port
Significantly reduces effect of electromagnetic interference (EMI) on receiver sensitivity
Allows designer to separate the signal and metal port grounds
Recommended for use in very noisy environments
Available on ST and threaded ST ports
The metal port is connected to Pins 1, 4, 5, and 8 through the Port Grounding Path Insert
Broadcom
-3-
HFBR-14xxZ and HFBR-24xxZ Series
Data Sheet
Applications Support Guide
This section gives the designer information necessary to use the 820 nm Miniature Link Series components to make a functional
optical transmission link.
Broadcom offers evaluation kits for hands-on experience with fiber optic products as well as a wide range of application notes
complete with circuit diagrams and board layouts.
Furthermore, Broadcom’s application support group is always ready to assist with any design consideration.
Application Literature
Title
Application Note 1065
Application Note 1121
Application Note 1122
Application Note 1123
Application Note 1137
Description
Complete Solutions for IEEE 802.5J Fiberoptic Token Ring
DC to 32 MBaud Fiberoptic Solutions
2 to 70 MBaud Fiberoptic Solutions
20 to 160 MBaud Fiberoptic Solutions
Generic Printed Circuit Layout Rules
Evaluation Kits
Broadcom offers fiber optic kits that facilitate a simple means to evaluate and experience our products. These fiber optic kits
contain all the components and tools required for customers to quickly evaluate and access the value of our products within their
respective applications.
HFBR-0410Z ST Evaluation Kit: DC to 5 MBaud 820 nm Fiber Optic Eval Kit
