556-3805-304F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 556-3805-304F

Preview

556-3805-304F: DescriptionLED Panel Mount Indicators Dome Blue 125VAC 9.5mA 180fL; CategoryLED optoelectronic/LED photoelectric; File Size111KB，2 Pages; ManufacturerDIALIGHT; Websitehttps://www.dialight.com; Environmental Compliance

Download Datasheet Parametric View All

556-3805-304F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	556-3805-304F	-	-	View	Buy Now

556-3805-304F Overview

LED Panel Mount Indicators Dome Blue 125VAC 9.5mA 180fL

556-3805-304F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
color	BLUE
Configuration	SINGLE
Maximum forward current	0.0095 A
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
method of packing	BULK
shape	ROUND
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

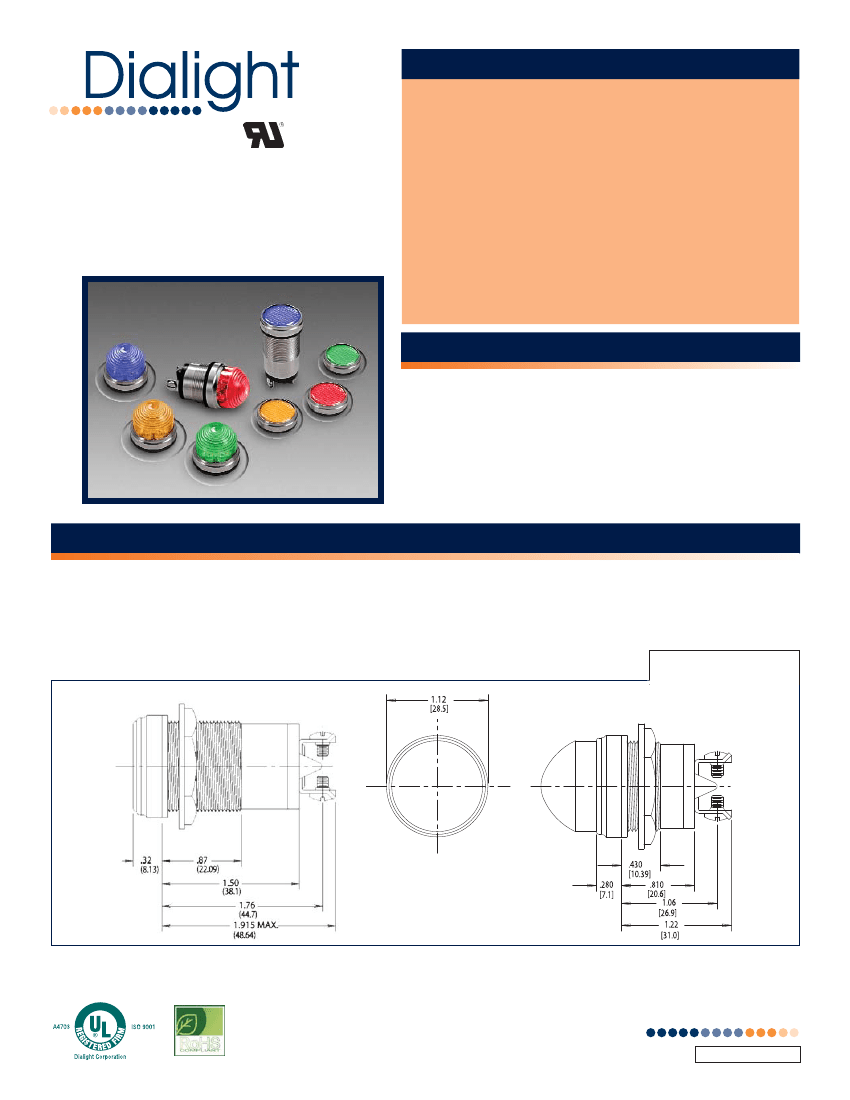

FEATURES / BENEFITS

p

Daylight viewable

556 Series

High Intensity LED

Panel Mount Indicators

for 1” Mounting Hole

Watertight - NEMA4X IP66

p

Safety standards - UL and NEMA

p

Tamperproof / Designed for high durability

p

Long life, lasting up to 100k hours

p

Uniform illumination - multi-LED construction

p

Lens options:

Low profile flat

Wide angle domed

APPLICATIONS

The 556 Series LED Panel Mount Indicators incorporate both InGaN

and AlInGaP technologies to offer higher intensities. This is a highly

durable package, designed to withstand outdoor applications

susceptible to rain, dust and sunlight.

• Instrument panels

• Lane control

• Safety applications

• Display lighting

• Vending, gaming

• Transportation - rail, bus, airline

... and many more!

SPECIFICATIONS

p

Available in red, yellow, green, blue, white, orange and cyan

p

Voltage range of 12 to 125 VDC, 125 and 230 VAC

p

Watertight seal from front of panel meets NEMA 4X IP66

Maximum Mounting Torque - 40 in./lb.

p

Housing material: Nickel plated brass

p

Lens material: Polycarbonate 94 - VO

FLAT LENS

p

UL recognized - File #E156890

Front mounting in 1” clearance hole

Operating temperature: -30

o

C to +85

o

C

Storage temperature: -40

o

C to +100

o

C

Dimensions in inches [mm]

All measurements are typical

Polarity marking indicated on housing

near positive supply terminal

DOMED LENS

Max. panel thickness:

Flat .600”

Dome .187”

Please see back of page for part numbers and additional specifications.

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEL556X001_F
