XNOVA Cube
TM
MP-1919
Product Datasheet
MP-1919
XNOVA Cube
TM
SMD LED
Features:
Table of Contents
Technology Overview . . . . . .2
Product Selection Table . . . .3
Operating Characteristics . .4
Chromaticity Binning . . . . . . .5
Chromaticity Diagram . . . . . .6
Characteristic Graphs . . 7 & 8
Ordering Information . . . . . .9
Product Dimensions . . . . . . 10
Solder Pad Pattern . . . . . . . 10
Dimensions of Tape . . . . . . 11
Reel Dimensions . . . . . . . . . 12
Reel Packaging . . . . . . . . . . . 12
Box Packaging . . . . . . . . . . . 13
•
•
•
•
•
•
•
•
•
•
Wide viewing angle: 170 degrees
Hot lumen color targeted
1.63W maximum operating input power
Compact: 1.9mm x 1.9mm
High efficacy: up to 143 lumens per watt
Wide color selection: 2700K-5000K
6V input
Compatible with automatic placement equipment
Compatible with infrared reflow solder process
RoHs and REACH compliant
Applications
•
Replacement lamps
•
Panel lighting
•
Down lights
•
Cove lighting
•
Architectural lighting
•
Channel lighting
1
PDS-002447 Rev 03
© 2014 Luminus Devices, Inc. - All Rights Reserved
XNOVA Cube
TM
MP-1919
Product Datasheet
Technology Overview
Luminus XNOVA Cube™ LEDs are lighting class solutions designed for high performance general lighting applications . These state-of-
the-art LEDs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall
quality . The XNOVA Cube™ is a unique LED that provides the benefits of a wide emission angle within a compact footprint . The 1 .9mm x
1 .9mm package emits into a 170 degree viewing angle, enabling designers with new degrees of freedom to solve many of today’s most
challenging lighting problems . The very wide viewing angle promotes Energy Star compliance for replacement lamps, and results in
increased mixing and uniformity for linear and area lighting . The miniature package size with high lumen density creates a “point source”
of light that provides flexibility to develop innovative optical solutions . Additionally, the XNOVA Cube advances the hallmark
characteristics of the XNOVA family, including high efficacy and color fidelity . XNOVA LEDs – the right choice for color quality, efficacy
and reliability .
Reliability
The XNOVA Cube is one of the most reliable light sources in the
world today . Having passed a rigorous suite of environmental
and mechanical stress tests, including mechanical shock,
vibration, temperature cycling and humidity, it is fully qualified
for use in a wide range of high performance and high efficacy
lighting applications .
REACH & RoHS Compliance
The XNOVA Cube LED is compliant to the Restriction of
Hazardous Substances Directive or RoHS . The restricted
materials including lead, mercury cadmium hexavalent
chromium, polybrominated biphenyls (PBB) and
polybrominated diphenyl ether (PBDE) are not used .
Understanding XNova™ LED Test Specifications
Every XNOVA LED is fully tested to ensure it meets the high quality standards customers have come to expect from Luminus products .
Testing Temperature
XNOVA Cube MP-1919 LEDs are tested at 25°C and binned so that the resultant chromaticity is along the blackbody locus at typical
operating conditions .
2
PDS-002447 Rev 03
© 2014 Luminus Devices, Inc. - All Rights Reserved
XNOVA Cube
TM
MP-1919
Product Datasheet
Product Selection Table
Test condition = 150 mA, 25C
Nominal CCT
2700K
Minimum CRI
80
90
80
90
80
90
80
90
80
90
Ordering Part Number
MP-1919-2100-27-80
MP-1919-2100-27-90
MP-1919-2100-30-80
MP-1919-2100-30-90
MP-1919-2100-35-80
MP-1919-2100-35-90
MP-1919-2100-40-80
MP-1919-2100-40-90
MP-1919-2100-50-80
MP-1919-2100-50-90
Minimum Flux
(Lumens)
94
75
100
81
100
87
107
87
107
87
Typical Flux
(Lumens)
101
79
107
91
111
95
115
100
117
100
3000K
3500K
4000K
5000K
Nominal CCT
2700K
Minimum CRI
80
90
80
90
80
90
80
90
80
90
Ordering Part Number
MP-1919-2101-27-80
MP-1919-2101-27-90
MP-1919-2101-30-80
MP-1919-2101-30-90
MP-1919-2101-35-80
MP-1919-2101-35-90
MP-1919-2101-40-80
MP-1919-2101-40-90
MP-1919-2101-50-80
MP-1919-2101-50-90
Minimum Flux
(Lumens)
100
81
107
87
107
94
114
94
114
94
Typical Flux
(Lumens)
108
84
114
97
118
102
122
105
124
105
3000K
3500K
4000K
5000K
3
PDS-002447 Rev 03
© 2014 Luminus Devices, Inc. - All Rights Reserved
XNOVA Cube
TM
MP-1919
Product Datasheet
1919 Mid Power Operating Characteristics
Optical and Electrical Characteristics(Ta=250C)
Parameter
Forward Voltage
Reverse Current
Viewing Angle
Thermal Resistance
Electrostatic Discharge
Note 1:
Note 2:
Note 3:
Symbol
V
f
I
r
2θ1/2
Rth
j-sp
ESD
Minimum
Typical
6 .2
170
8
Maximum
6 .9
10
Unit
V
uA
º
ºC/W
V
Condition
IF=150mA
VR=5V
IF=150mA
IF=150mA
1000
To prevent damage refer to operating conditions and derating curves for appropriate maximum operating conditions
Maximum operating case temperature combined with maximum drive current defines the total maximum operating condition for the device. To
prevent damage, please follow derating curves for all operating conditions.
XNOVA Cube are designed for operation up to an absolute maximum forward drive current as specified below. Product lifetime data is specified at
typical forward drive currents. Sustained operation at absolute maximum currents will result in a reduction of device lifetime compared to typical
forward drive currents. Actual device lifetimes will also depend on case temperature. Refer to the current vs. case temperature derating curves for
further information.
Caution must be taken not to stare at the light emitted from these LEDs. Under special circumstances, the high intensity could damage the eye.
Note 4:
Absolute Maximum Ratings (Ta=250C)
Parameter
Forward Current
Pulse Forward Current
Power Dissipation
Reverse Voltage
Operating Temperature
Storage Temperature
Junction Temperature
Soldering Temperature
*IFP condition with Pulse: Width
≤100μs
Duty cycle
≤1/10
Symbol
I
f
I
fp
p
d
V
r
T
opr
T
sTg
T
j
T
sld
Rating
240
300
1,632
5
-40~+80
-40~+80
115
230 °C or 260 °C for 10 sec
Unit
mA
mA
mW
V
°C
°C
°C
4
PDS-002447 Rev 03
© 2014 Luminus Devices, Inc. - All Rights Reserved
XNOVA Cube
TM
MP-1919
Product Datasheet

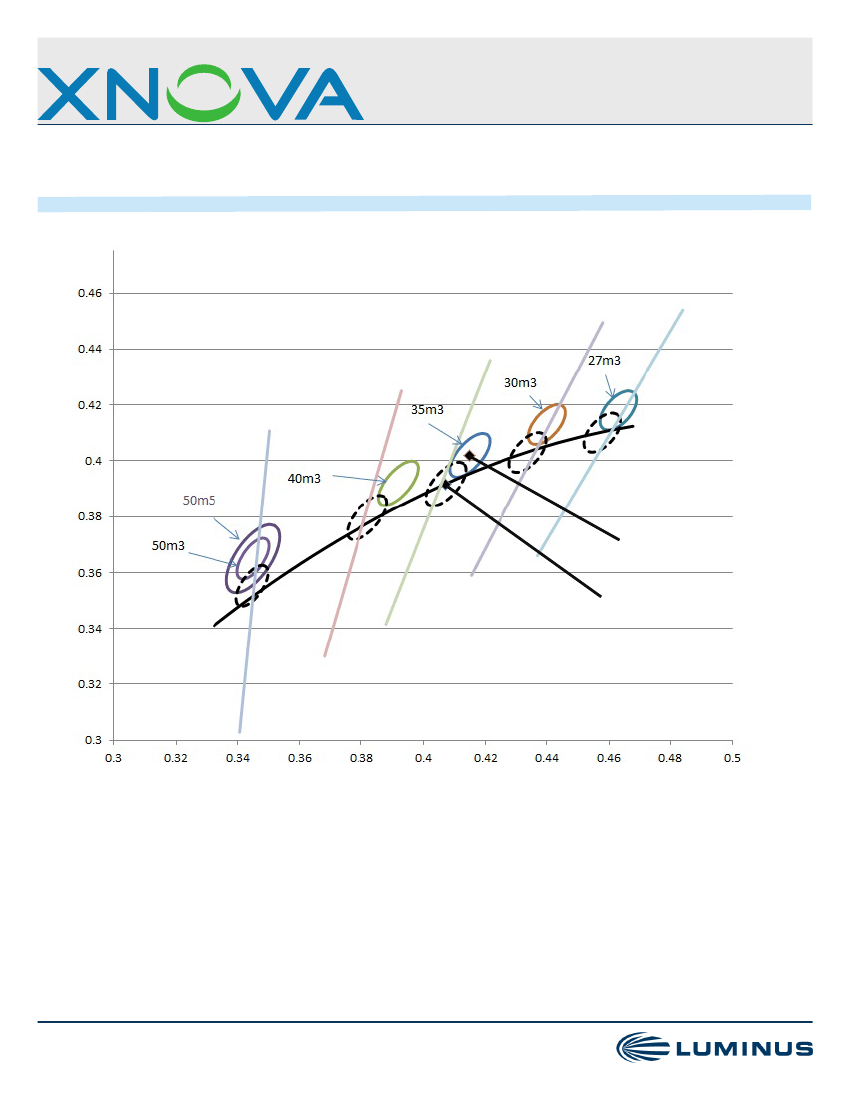

Chromaticity Binning
Chromaticity
Coordinates at 25°C
Chromaticity
Coordinates at 65°C
Chromaticity Binning
The chart above shows the typical chromaticity shift from 25°C to 65°C . XNOVA Cube MP-1919 LEDs are tested at 25°C and
binned so that the resultant chromaticity is along the blackbody locus at typical operating conditions .
*Notes:
m3 denotes a 3-step MacAdam ellipse, m5 denotes a 5-Step MacAdam ellipse .
Luminus maintains a +/- 0 .01 tolerance on chromaticity (CIEx and CIEy) measurements .
5
PDS-002447 Rev 03
© 2014 Luminus Devices, Inc. - All Rights Reserved
