10 SEGMENT BAR GRAPH ARRAY
Part Number: DC10SURKWA
Hyper Red
Features
Suitable for level indicators.
Low current operation.
Excellent on/off contrast.
End stackable.
Mechanically rugged.
Standard : gray face, white segment.
RoHS compliant.
Description
The Hyper Red source color devices are made with Al-
GaInP on GaAs substrate Light Emitting Diode.

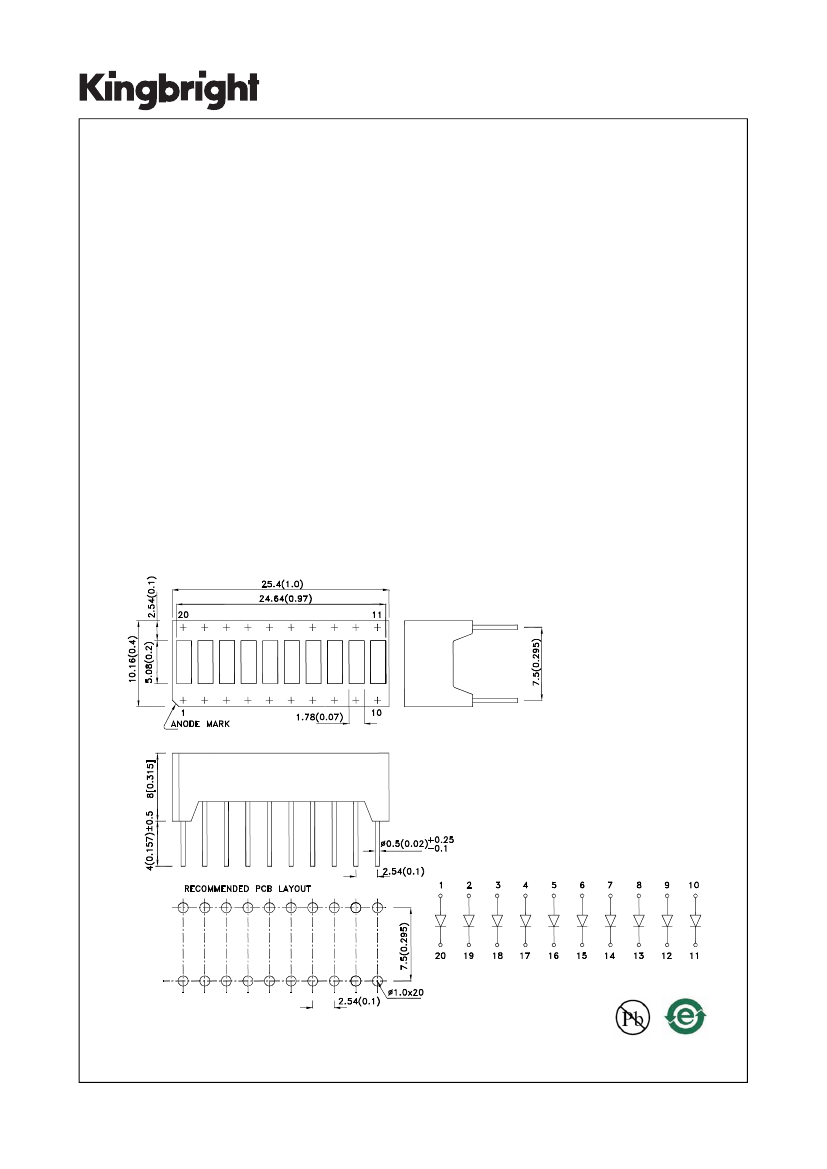

Package Dimensions& Internal Circuit Diagram
Notes:
1. All dimensions are in millimeters (inches), Tolerance is ±0.25(0.01")unless otherwise noted.
2. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice.
SPEC NO: DSAG2247
APPROVED: WYNEC
REV NO: V.5A
CHECKED: Joe Lee
DATE: APR/06/2015
DRAWN: L.Q.Xie
PAGE: 1 OF 6
ERP: 1331000338
Selection Guide
Part No.
Dice
Lens Type
Iv (ucd) [1]
@ 10mA
Min.
31000
DC10SURKWA
Hyper Red (AlGaInP)
White Diffused
*9000
Note:
1. Luminous intensity / luminous Flux: +/-15%.
* Luminous intensity value is traceable to the CIE127-2007 compliant national standards.
Description
Typ.
100000
*25000
10 Segments
Bar graph-Display
Electrical / Optical Characteristics at TA=25°C
Symbol
λpeak
λD
[1]
Δλ1/2
C
V
F
[2]
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Hyper Red
Typ.
645
630
28
35
1.95
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
=5V
Notes:
1. Wavelength: +/-1nm.
2. Forward Voltage: +/-0.1V.
3. Wavelength value is traceable to the CIE127-2007 compliant national standards.
4. Excess driving current and/or operating temperature higher than recommended conditions may result in severe light degradation or
premature failure.
Absolute Maximum Ratings at TA=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating / Storage Temperature
Lead Solder Temperature[2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
Hyper Red
75
30
185
5
-40°C To +85°C
260°C For 3-5 Seconds
Units
mW
mA
mA
V
SPEC NO: DSAG2247
APPROVED: WYNEC
REV NO: V.5A
CHECKED: Joe Lee
DATE: APR/06/2015
DRAWN: L.Q.Xie
PAGE: 2 OF 6
ERP: 1331000338

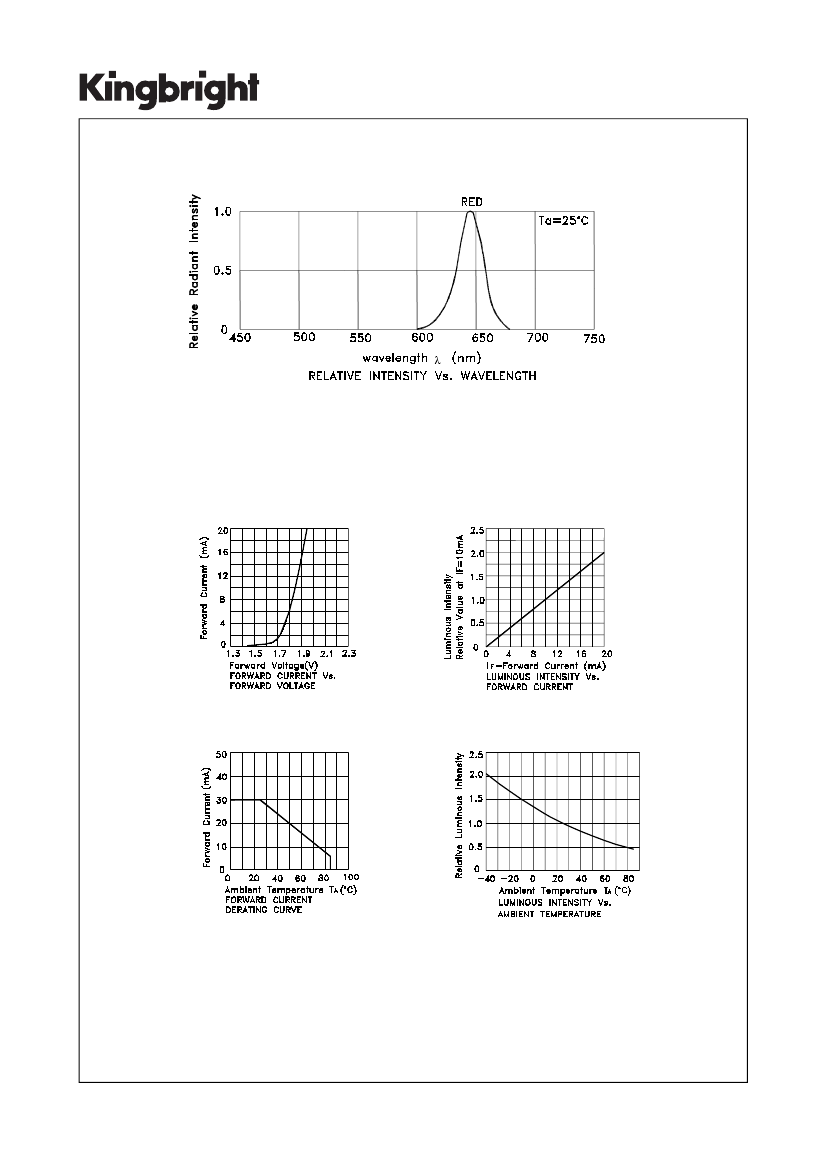

Hyper Red
DC10SURKWA
SPEC NO: DSAG2247
APPROVED: WYNEC
REV NO: V.5A
CHECKED: Joe Lee
DATE: APR/06/2015
DRAWN: L.Q.Xie
PAGE: 3 OF 6
ERP: 1331000338

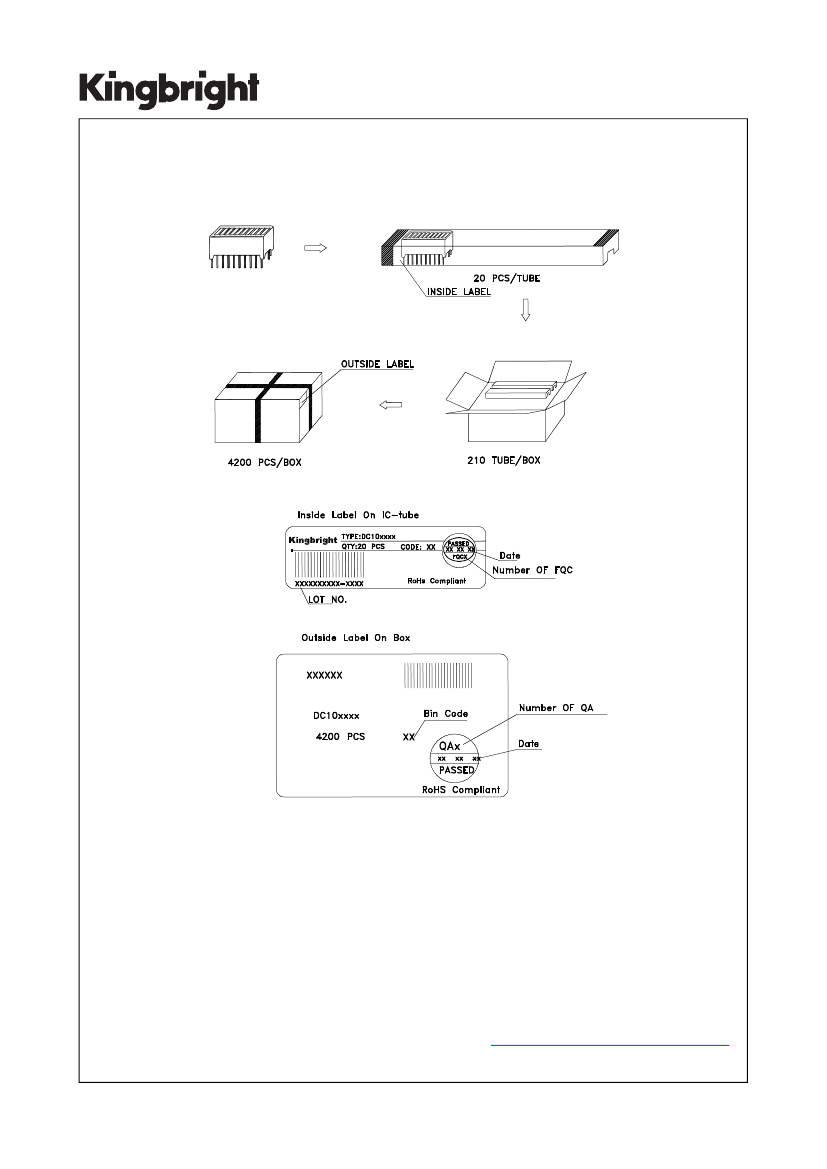

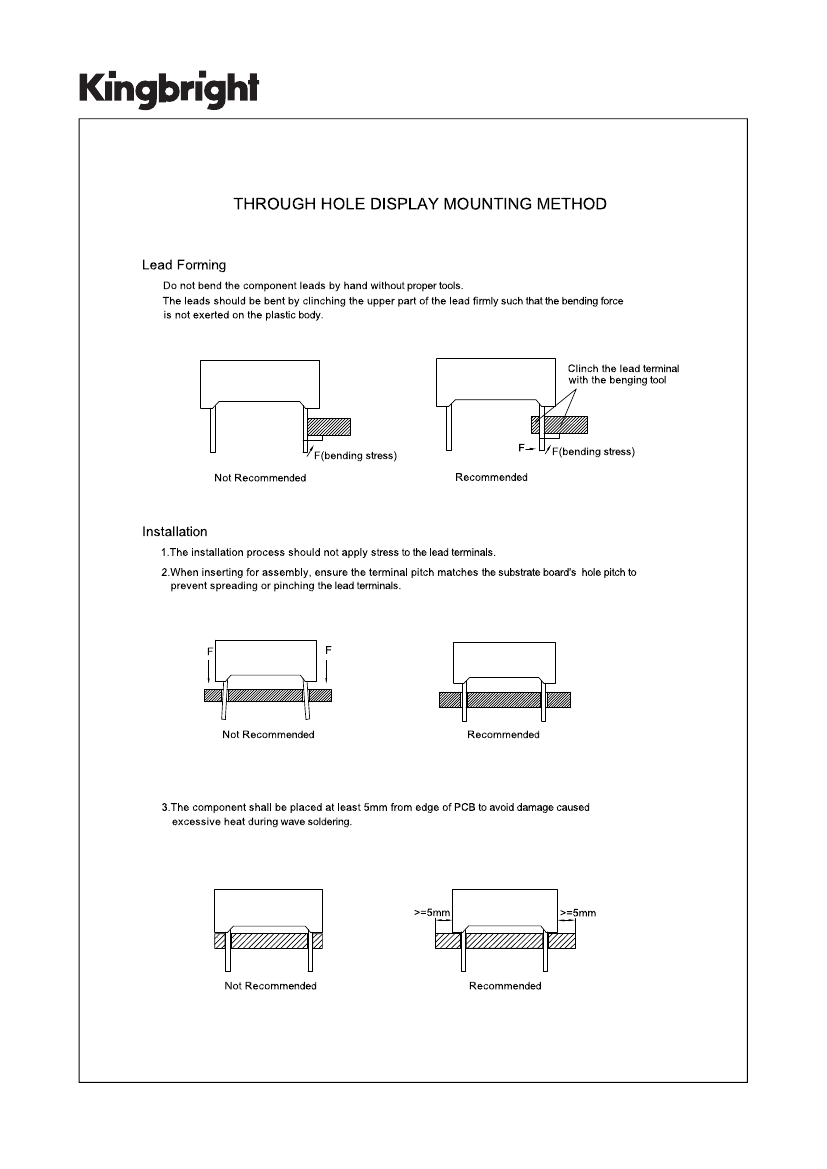

PACKING & LABEL SPECIFICATIONS
DC10SURKWA
Terms and conditions for the usage of this document
1. The information included in this document reflects representative usage scenarios and is intended for technical reference only.
2. The part number, type, and specifications mentioned in this document are subject to future change and improvement without
notice. Before production usage customer should refer to the latest datasheet for the updated specifications.
3. When using the products referenced in this document, please make sure the product is being operated within the environmental
and electrical limits specified in the datasheet. If customer usage exceeds the specified limits, Kingbright will not be responsible
for any subsequent issues.
4. The information in this document applies to typical usage in consumer electronics applications. If customer's application has
special reliability requirements or have life-threatening liabilities, such as automotive or medical usage, please consult with
Kingbright representative for further assistance.
5. The contents and information of this document may not be reproduced or re-transmitted without permission by Kingbright.
6. All design applications should refer to Kingbright application notes available at
http://www.KingbrightUSA.com/ApplicationNotes
