Overview
AVR programmer & SPI interface
Introduction

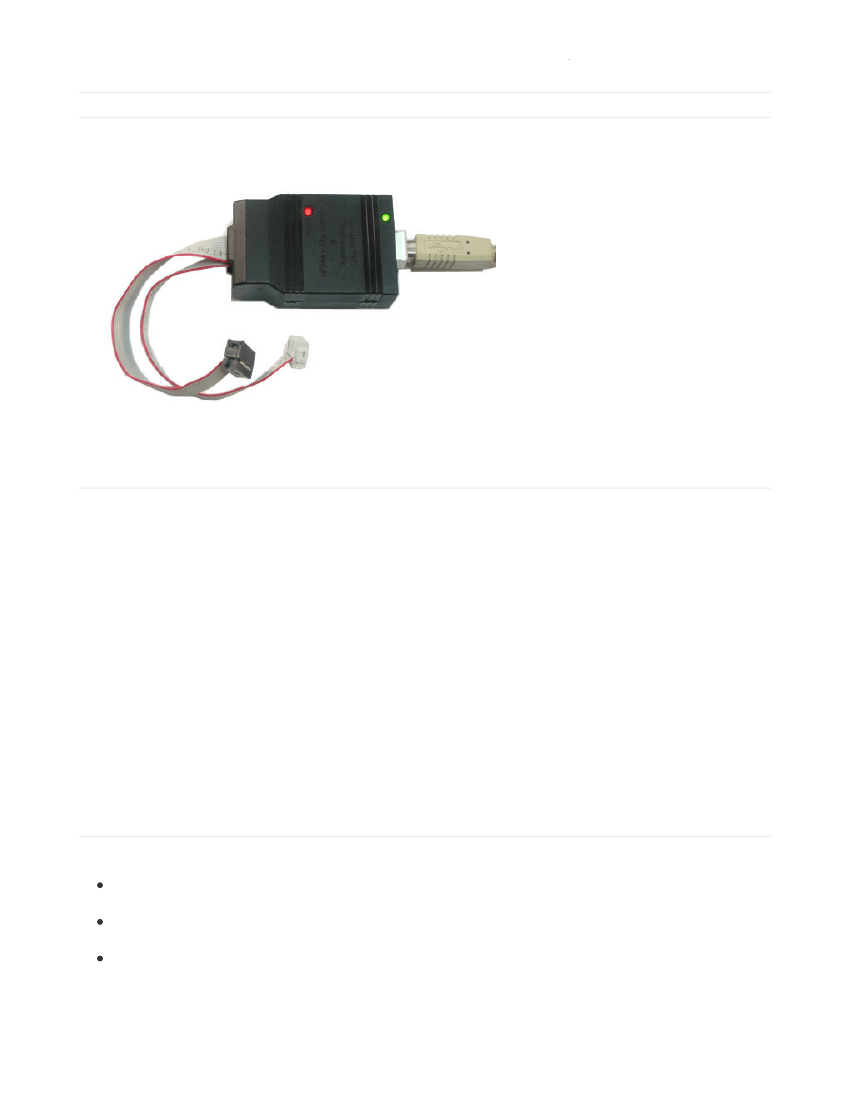

This is documentation for a simple open-source USB AVR programmer and SPI interface. It is
low
cost
(https://adafru.it/cf1),
easy to make
(https://adafru.it/cf2),
works great with
avrdude
(https://adafru.it/cf3),
is
AVRStudio-compatible
(https://adafru.it/cf4)
and tested under Windows, Linux and MacOS X. Perfect for students and
beginners, or as a backup programmer.
The project is based off of the
USBtiny code & design
(https://adafru.it/cf5).
The main improvements are: adjusting the
code to allow it to act as a
SpokePOV
(https://adafru.it/cf6)
interface, adding lowlevel bitbang commands, and addition
of a "USB good" LED. Other changes are new VID/PID (to make it official), removing some of the commands, and
moving around the pins a bit.
You can build this design using the
schematic and firmware
(https://adafru.it/cf7),
or buy a kit from the
Adafruit
webshop
(https://adafru.it/aK1).
Having a full kit available solves the "chicken & egg" problem of purchasing or building
a USB programmer that then needs a programmer of some sort to 'kick start'. (See
USBasp
(https://adafru.it/aNU),
AVRdoper
(https://adafru.it/cf8),
USBprog
(https://adafru.it/cf9))
All the firmware code is distributed under the GPL, the hardware design layout files are
CC 2.5 Attrib./Share-
alike
(https://adafru.it/c37).
What's so great about it?
Easy to make
Ultra low cost: programmer is $16 in parts, less than half the price of the AVRISP v2 ! (Kits are $22 and
available
from the adafruit shop
(https://adafru.it/aK1).)
Kit comes with both 6-pin and 10-pin AVR-standard connectors and cables. Almost no programmers that are not
from Atmel have both! (Including the AVRISP v2)
Easy to build: All through-hole parts, all common and available from large distributors.
Easy to use
© Adafruit Industries
https://learn.adafruit.com/usbtinyisp
Page 4 of 88
AVRdude compatible -
support for usbtiny added in v5.5!
(https://adafru.it/cf3)
USB drivers available for Windows
(https://adafru.it/cf7)
using libusb, no drivers needed for Mac OS X or Linux.
Durable off-the-shelf enclosure
High speed! Max clock rate is 400KHz. Write speed:1Kb/s, read speed: 2Kb/s. (Atmega8 takes 8s to write, 4s to
read/verify)
2 LEDs to indicate "USB/Power good" and "Busy"
I/O is buffered to allow programming of 2V-6V targets (v2)
Works with any AVR ISP chip with 64K of flash (or less) - does not work with Atmega1281/1280/2561/2560
Easy to power
Powered off of 5V USB bus at less than 100mA to allow it to be used with unpowered USB hubs
Easily accessable jumper to power target project off of USB (target must be 5V tolerant, of course)
Remove the jumper and it will self-power but buffer the I/O to match the target device. (v2)
Easy to extend
Easily interfaced with libusb
Existing firmware allows for fast SPI interfacing using USB
Bit-bang commands provide 8 bits of I/O control (including LED) for open-ended project ideas
