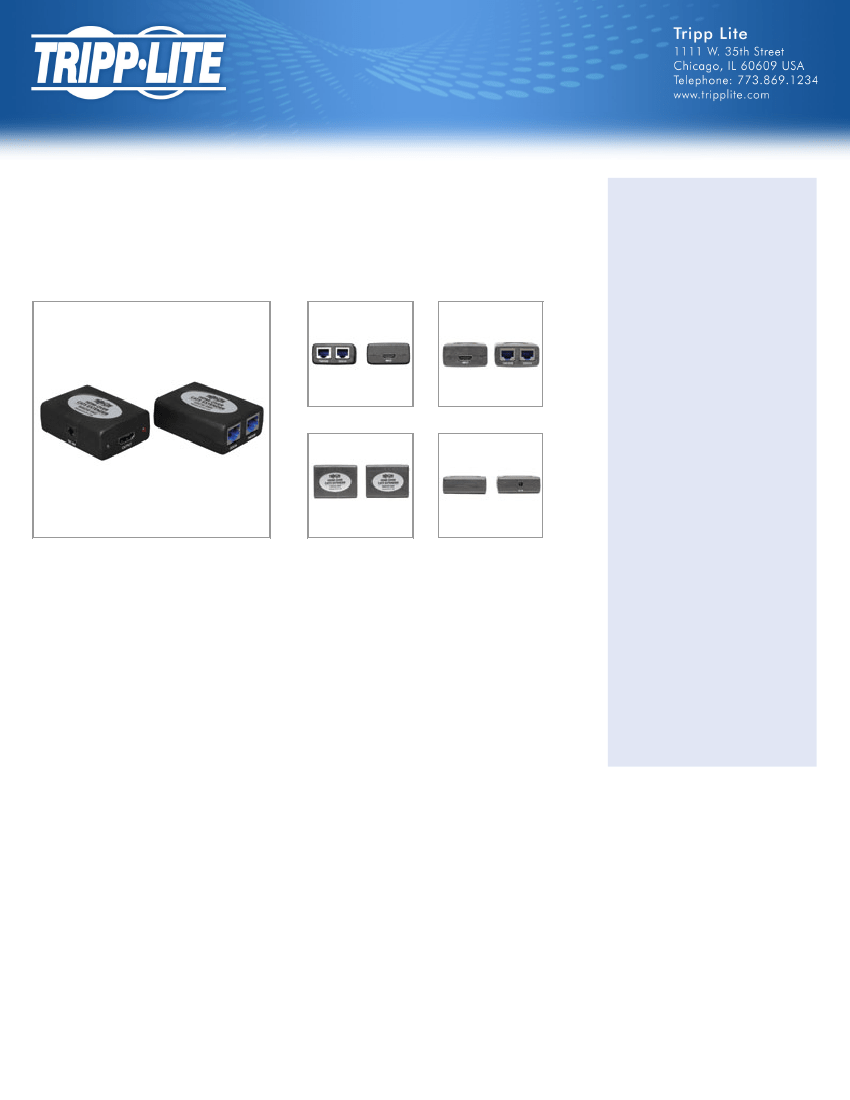

HDMI over Dual Cat5/6 Extender Kit, In-Line
Transmitter/Receiver, Video and Audio,
1920x1200 1080/24p, Up to 150-ft.
MODEL NUMBER:
B125-150
Highlights
q
Extends a 1080p @ 24Hz (or
1920 x 1200) signal up to 150 ft.
using 24Awg, Solid Wire Cat6*
cabling (Tripp Lite N202-Series)
q
Extends a 3D signal up to 125 ft.
using 24Awg, Solid Wire Cat6*
cabling (Tripp Lite N202-Series)
q
Supports 24-bit True Color (8-
bits per channel)
q
Supports DTS-HD, Dolby True
HD and 7.1 Channel Surround
Sound Audio
q
Supports HDCP, EDID and DDC
Package Includes
Description
q
HDMI Extender Local
Transmitter Unit
q
q
HDMI Extender Remote
Receiver Unit
When using 24Awg, Solid Wire Cat6 cable, a 1080p @ 24Hz (or 1920 x 1200) signal can be extended
up to 150 ft. from the source.
q
External Power Supply with
NEMA 1-15P Plug (Input: 100-
240V, 50/60Hz, 0.4A; Output:
9V, 1.5A, 4.5 ft.)
q
When using 24Awg, Solid Wire Cat6 cable, a 3D signal can be extended up to 125 ft.
When using 24Awg, Solid Wire Cat5 cable, a 1080p @ 24Hz (or 1920 x 1200) signal can be extended
up to 100 ft. from the source.
q
q
When using 24Awg, Solid Wire Cat5 cable, a 3D signal can be extended up to 75 ft.
q
Owner's Manual
Features
q
Extends a 1080p @ 24Hz (or 1920 x 1200) signal up to 150 ft. using 24Awg, Solid Wire Cat6 cabling
(Tripp Lite N202-Series)
q
Extends a 1080p @ 24Hz (or 1920 x 1200) signal up to 100 ft. using 24Awg, Solid Wire Cat5 cabling
Extends a 3D signal up to 125 ft. using 24Awg, Solid Wire Cat6 cabling, or up to 75 ft. using 24Awg,
Solid Wire Cat5 cabling
q
q
Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
Supports HDCP, EDID and DDC
Supports 24-bit True Color (8-bits per channel)
q
q
1/3
q
Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor
Supports Lip-Sync Pass Through, and CEC pass through
Green LED on the remote unit will illuminate to indicate that power is being received
The Red LED on the remote unit will illuminate only if a working signal is NOT being received. The unit
is functioning properly when the Red LED is not illuminated
q
q
q
q
Compliant with the Federal Trade Agreements Act ( TAA ) for GSA schedule purchases
Specifications
MODEL TEXT
Key Benefit
Transmit a HDMI signal up to 150ft, 1080p @ 24Hz using two Cat6 patch cables.
OVERVIEW
AC Adapter
Input: 100-240V, 50/60Hz, 0.4A; Output: 9V, 1.5A, 4.5 ft.
PHYSICAL
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Color
Remote Unit: 2.375"W x 1.75"D x 0.75"H
Source Unit: 2.375"W x 1.75"D x 0.75"H
Black
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 720P Range (ft)
150
150
150
150
150
150
150
150
150
150
CONNECTIONS
Ports
Side A - Connector 1
Side A - Connector 2
1
HDMI (FEMALE)
(2) RJ45 (FEMALE)
