856-19662 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Module/solution> 856-19662

856-19662: DescriptionEthernet Modules IE-MINIFIBERLINX-II TX/FX-CWDM-SM1390-SC; CategoryModule/solution; File Size2MB，54 Pages; ManufacturerB+B SmartWorx; Environmental Compliance

Download Datasheet Parametric View All

856-19662 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	856-19662	-	-	View	Buy Now

856-19662 Overview

Ethernet Modules IE-MINIFIBERLINX-II TX/FX-CWDM-SM1390-SC

856-19662 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	B+B SmartWorx
Product Category	Ethernet Modules
RoHS	Details
Factory Pack Quantity	1

Preview

Download Datasheet

View All

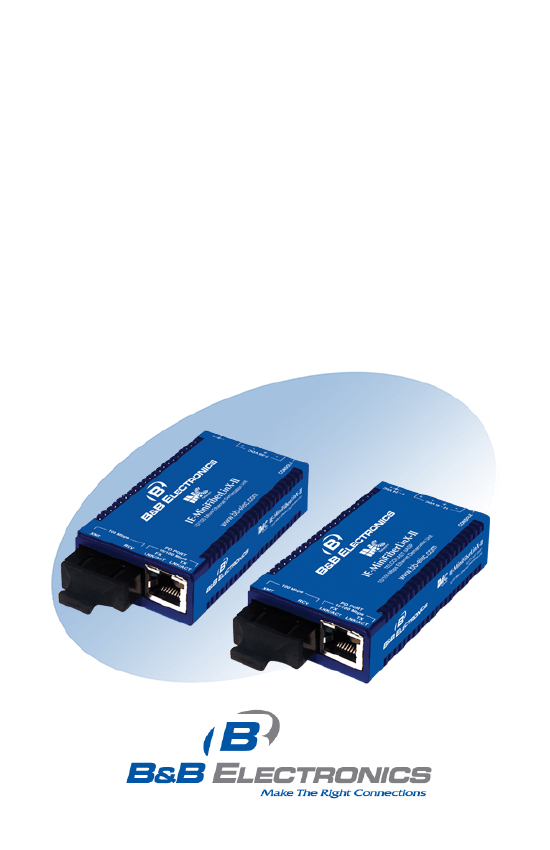

IE-MiniFiberLinX-II

(Non-Telco, Telco

and Telco/Last Gasp)

Operation Manual

FCC Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A computing device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which the user will be required to correct the interference at his own expense.

Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

The use of non-shielded I/O cables may not guarantee compliance with FCC RFI limits. This digital apparatus does not exceed the Class A

limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of the Canadian Department of

Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de classe A

prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des Communications du Canada.

Limited Lifetime Warranty

Effective for products of B&B Electronics shipped on or after May 1, 2013, B&B Electronics warrants that each such

product shall be free from defects in material and workmanship for its lifetime. This limited lifetime warranty is applicable

solely to the original user and is not transferable.

This warranty is expressly conditioned upon proper storage, installation, connection, operation and maintenance of

products in accordance with their written specifications.

Pursuant to the warranty, within the warranty period, B&B Electronics, at its option will:

1. Replace the product with a functional equivalent;

2. Repair the product; or

3. Provide a partial refund of purchase price based on a depreciated value.

Products of other manufacturers sold by B&B Electronics are not subject to any warranty or indemnity offered by B&B

Electronics, but may be subject to the warranties of the other manufacturers.

Notwithstanding the foregoing, under no circumstances shall B&B Electronics have any warranty obligations or any other

liability for: (i) any defects resulting from wear and tear, accident, improper use by the buyer or use by any third party

except in accordance with the written instructions or advice of the B&B Electronics or the manufacturer of the products,

including without limitation surge and overvoltage conditions that exceed specified ratings, (ii) any products which have

been adjusted, modified or repaired by any party other than B&B Electronics or (iii) any descriptions, illustrations, figures

as to performance, drawings and particulars of weights and dimensions contained in the B&B Electronics’ catalogs, price

lists, marketing materials or elsewhere since they are merely intended to represent a general idea of the products and do

not form part of this price quote and do not constitute a warranty of any kind, whether express or implied, as to any of the

B&B Electronics’ products.

THE REPAIR OR REPLACEMENT OF THE DEFECTIVE ITEMS IN ACCORDANCE WITH THE EXPRESS WARRANTY SET

FORTH ABOVE IS B&B ELECTRONIC’ SOLE OBLIGATION UNDER THIS WARRANTY. THE WARRANTY CONTAINED

IN THIS SECTION SHALL EXTEND TO THE ORIGINAL USER ONLY, IS IN LIEU OF ANY AND ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, AND ALL SUCH WARRANTIES AND INDEMNITIES ARE EXPRESSLY DISCLAIMED,

INCLUDING WITHOUT LIMITATION (I) THE IMPLIED WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND

OF MERCHANTABILITY AND (II) ANY WARRANTY THAT THE PRODUCTS ARE DO NOT INFRINGE OR VIOLATE THE

INTELLECTUAL PROPERTY RIGHTS OF ANY THIRD PARTY. IN NO EVENT SHALL B&B ELECTRONICS BE LIABLE FOR

LOSS OF BUSINESS, LOSS OF USE OR OF DATA INTERRUPTION OF BUSINESS, LOST PROFITS OR GOODWILL OR

OTHER SPECIAL, INCIDENTAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES. B&B ELECTRONIC SHALL

DISREGARD AND NOT BE BOUND BY ANY REPRESENTATIONS, WARRANTIES OR INDEMNITIES MADE BY ANY

OTHER PERSON, INCLUDING WITHOUT LIMITATION EMPLOYEES, DISTRIBUTORS, RESELLERS OR DEALERS OF

B&B ELECTRONIC WHICH ARE INCONSISTENT WITH THE WARRANTY, SET FORTH ABOVE.

Table of Contents

FCC Radio Frequency Interference Statement ..................................................... ii

Limited Lifetime Warranty ................................................................................... ii

About the IE-MiniFiberLinX-II Non-Telco, Telco and with Telco/Last Gasp ......... 1

iView² Management Software .............................................................................. 2

Installation............................................................................................................ 2

DIN Rail Mounting ............................................................................................... 3

Mini-Serial Port .................................................................................................... 3

LED Operation ..................................................................................................... 5

Powering Options ................................................................................................ 5

Features and Configuration .................................................................................. 6

Auto Negotiation, Duplex Mode and Speed ........................................................ 6

Assigning IP Information..................................................................................... 10

Configuration ..................................................................................................... 10

Software Configuration ...................................................................................... 11

Main Configuration Screen ................................................................................ 12

Removing Trap Destinations .............................................................................. 14

System Description ............................................................................................ 28

Using iView

....................................................................................................... 30

Configuration File Save/Restore Function ........................................................... 33

Uploading a Saved Configuration File through iConfig ...................................... 36

Uploading a Saved Configuration File through TFTP .......................................... 37

Product Applications .......................................................................................... 40

Modes of Operation........................................................................................... 41

Troubleshooting ................................................................................................. 44

IE-MiniFiberLinX-II Modes of Operations ........................................................... 45

Specifications ..................................................................................................... 46

Fiber Optic Cleaning Guidelines ........................................................................ 48

Electrostatic Discharge Precautions .................................................................... 49

Safety Certifications............................................................................................ 50

iii

About the IE-MiniFiberLinX-II Non-Telco, Telco and with Telco/Last

Gasp

The IE-MiniFiberLinX-II is an optical demarcation network interface device

(CPE),

allowing fiber network operators to connect to and manage remote network

segments. Advanced networking capabilities allow operators to easily observe both

end points and the fiber link between them as a single management entity, rather

than as separate networks. No host management traffic is visible to the remote or

customer network nor is access to the customer network required, guaranteeing end-

to-end data integrity. The IE-MiniFiberLinX-II offers 802.3ah OAM (passive).

Management is also available via the copper port; see Mode One for configuration

instructions.

NOTE

Unless noted otherwise, all reference to the IE-MiniFiberLinX-II in this manual are also

applicable to the IE-MiniFiberLinX-II with: Non-Telco, Telco and Telco/Last Gasp.

The IE-MiniFiberLinX-II includes one 100 Mbps fiber port (OPTICS), one 10/100

twisted pair data port (DATA), and one auxiliary Craft port for serial configuration

(with the included adapter). The twisted pair port can Auto Negotiate or be set

manually for 10 or 100 Mbps, and half or full-duplex. The optics port operates at

100 Mbps, full duplex mode only. Powering options include AC and DC power as

well as Power over Ethernet, functioning as a Powered Device (PD) compliant with

802.3af. Models offering Telco do NOT support PoE.

The IE-MiniFiberLinX-II is 802.1Q VLAN compatible, supporting a full-range of VLAN

IDs, and offering Q-in-Q tagging and a 2-tier queue for differential prioritization

(802.1p). The IE-MiniFiberLinX-II also includes the LinkLoss and FiberAlert as well as

LinkFault Pass Through (LFPT) features for troubleshooting, loopback testing

functionality, bi-directional bandwidth control, and optional protection against

Broadcast storms. B&B Electronics offers a Graphical User Interface (GUI) based

element management system called iView², which runs on SNMP.

Single-strand fiber versions of the IE-MiniFiberLinX-II allow two wavelengths to share

one fiber strand — Full-Duplex data travels on different wavelengths for example,

1310 nm and 1550 nm — doubling the capacity of fiber.

The IE-MiniFiberLinX-II with Telco/Last Gasp provides support for the Last Gasp

feature. This feature alerts the end user if power to the device fails. A Trap can be

sent to indicate the down condition if Last Gasp is enabled via the CLI. Refer to the

Unit Control Settings section on page 28.

The IE-MiniFiberLinX-II w/Telco and Telco/Last Gasp, provides support for Telco

environments,

±48

VDC. As a result, they cannot support PoE, and cannot function as

a PD device.
