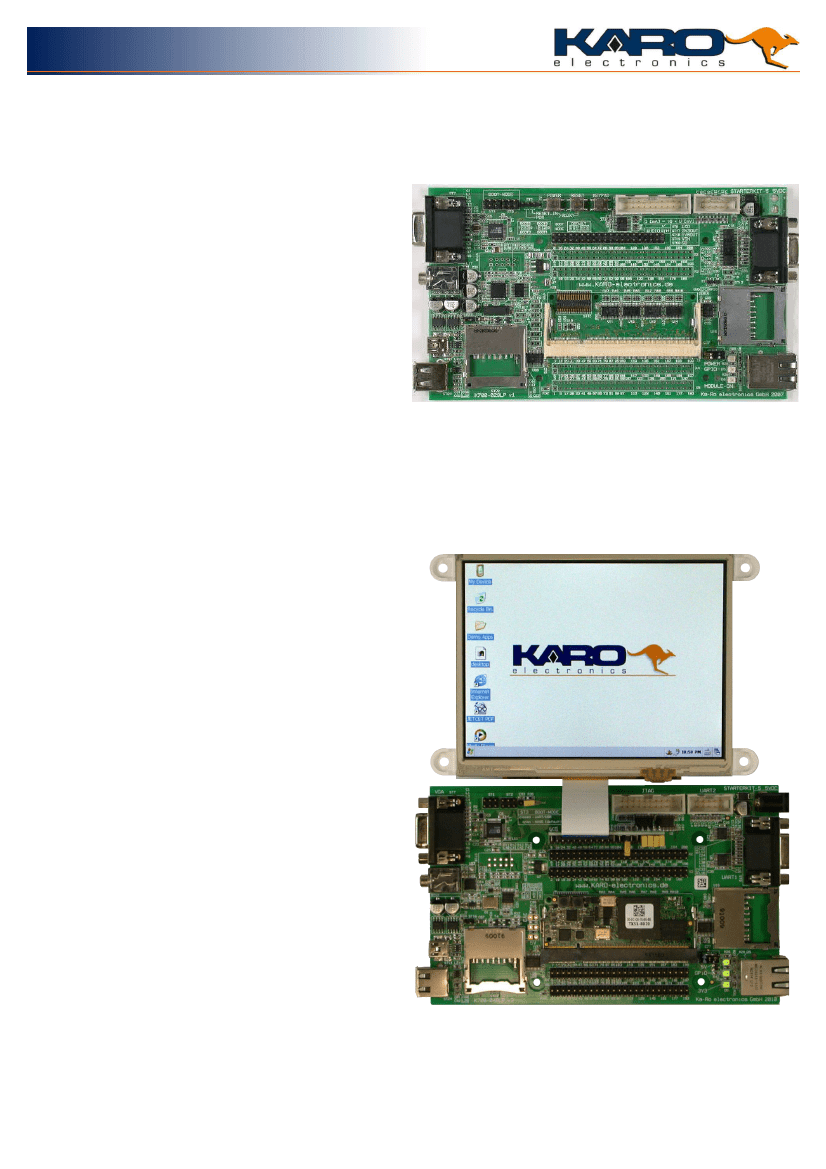

Starter-Kit V
STARTER-KIT V
The Starter-Kit V is a ready-to-use development
system for building applications based on the TX
embedded processor boards.
•
•
•
•
•
•
•
•
•
•
•
DIMM200 TX socket
Two SD-card sockets
USB 2.0 OTG and USB 2.0 Host connector
D-SUB 15 VGA connector
40pin LCD flat cable header
3.5mm headphone connector
JTAG interface
SGTL5000 audio codec
TSC2007 touchscreen controller
RS232 on 10pin flat cable and SUB-D
header
All pins of the TX socket are connected to
daughter board slot for easy application
design-in
10/100 Mbit/s Ethernet
5VDC Power Supply by USB-OTG or power
jack.
100mm x 160mm
Schematics of the base board are included
for reference.
•
•
•
•
DISPLAY OPTIONS
The optional display comes with an FFC cable and
a small adapter PCB which can be plugged directly
onto the Starter-Kit 40pin LCD header.
Option 1: 5,7“ VGA Resistive Touch
•
5,7 inch TFT display
•
640 x 480 dots
•
White LED backlight
•
Resistive Touchsceen
Option 2: 5,7“ VGA PolyTouch™
•
5,7 inch TFT display
•
640 x 480 dots
•
White LED backlight
•
Capacitive Touchsceen
Option 3: LVDS Display & SATA Adapter
•
Supports Freescale's 10.1” 1024x768 (XGA)
display with capacitive touch (not included)
Ka-Ro electronics GmbH - Pascalstr. 22, D-52076 Aachen, Germany - Tel.: +49 2408 1402-0 (FAX -10)
www.karo-electronics.de
