For longer extension distances, use a
B126-1A0
or
B126-1A0-WP-1
active receiver to:
Extend a 1080p (60Hz) signal up to 150 ft.
Extend a 1080i (60Hz) signal up to 200 ft.
Extend a 3D signal up to 125 ft.
Highlights
Perfect for digital signs, trade
shows and retail settings
Supports high-definition video
For shorter distances, use a
B126-1P0
passive receiver to:
Extend a 1080p (60Hz) signal up to 50 ft.
Extend a 1080i (60Hz) signal up to 100 ft.
resolutions up to 1080p (60 Hz)
Supports stereo and 7.1-channel
surround sound audio
Works with all operating systems
Further extend the signal range or add more displays by using a Tripp Lite
B126-110
Remote Repeater
unit to:
Add up to three repeaters on each channel of the B126-002 for a total of 4 displays per channel (a receiver
should be the last unit in a channel)
Extend a 1080p (60Hz) signal up to 125 ft. for each repeater added into a channel
Extend a 1080i (60Hz) signal up to 175 ft. for each repeater added into a channel
Extend a 3D signal up to 100 ft. for each repeater added into a channel
and HDMI video sources
Plug and play—no software or
drivers to install
System Requirements
For international use, the
B110-INT power supply can be
purchased separately; it features
plugs for the UK, Europe, and
Australia

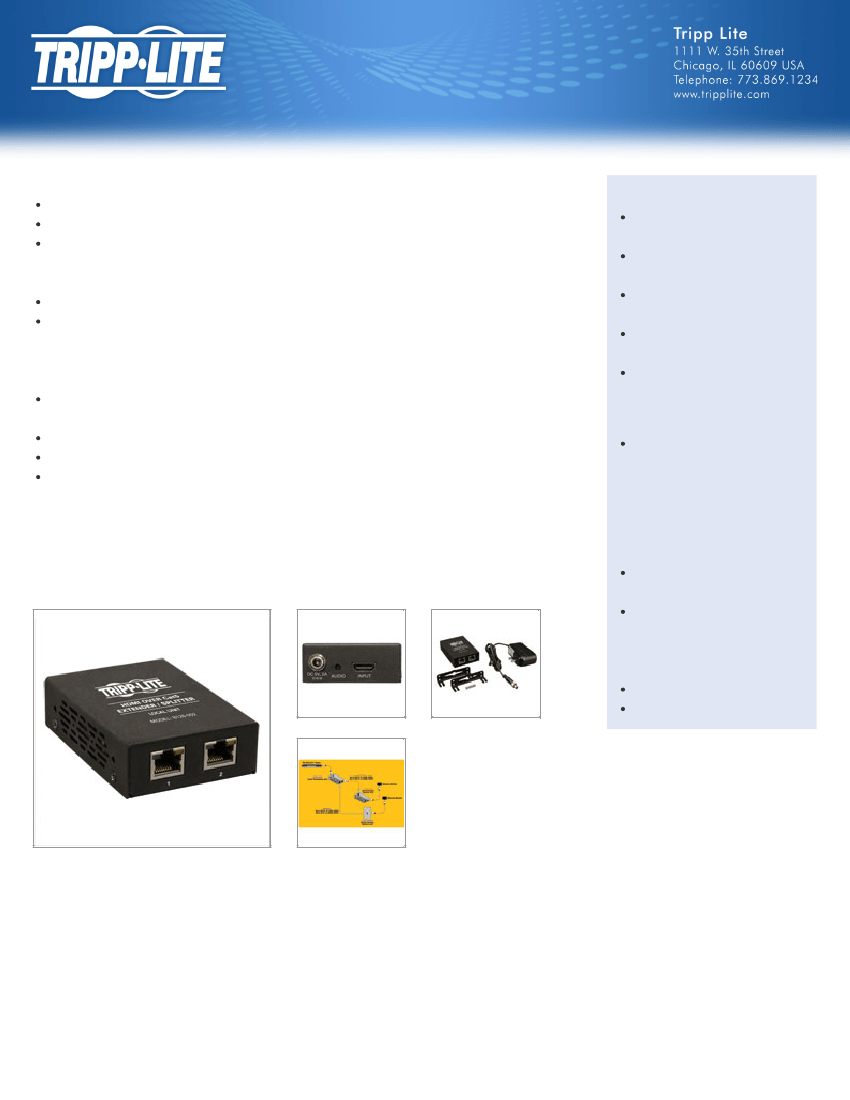

2-Port HDMI over Cat5/Cat6 Extender/Splitter,
Box-Style Transmitter for Video and Audio, 1080p @
60 Hz, Up to 150-ft., TAA
MODEL NUMBER:
B126-002
Package Includes
B126-002 2-Port HDMI over
Cat5/Cat6 Extender/Splitter
External Power Supply with
NEMA 1-15P Plug (Input:
100–240V, 50/60 Hz, 0.5A;
Output: 5V, 2A, 5 ft.)
Mounting hardware
Owner’s Manual
Description
The B126-002 2-Port HDMI over Cat5/Cat6 Extender/Splitter works with Tripp Lite B126-Series remote receivers to split a single HDMI audio/video signal into
two separate signals. It’s ideal for digital signs, trade shows, presentations, retail settings and other applications where the video source is located farther than
conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable (see Tripp Lite’s P568-Series) to connect to the source
and Cat5e/6 cable to transmit to the remote monitors (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series).
When used with Tripp Lite’s
B126-1A0
or
B126-1A0-WP-1
active remote receivers, the Extender/Splitter can extend a 1080i (60 Hz) signal up to 200 ft., a
1080p signal (60 Hz) up to 150 ft. and a 3D signal up to 125 ft. With a
B126-1P0
or
B126-1P0-WP-1
passive remote receiver, it can extend a 1080i (60 Hz)
signal up to 100 ft. and a 1080p (60 Hz) signal up to 50 ft. Add up to three
B126-110
remote repeaters to each channel to fully extend the signal range or add
1/3
more displays.
In addition to crystal-clear video, the B126-002 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Easy to set up with no
software or drivers to install. Mounts to a wall, rack or pole using the included hardware.
Features
Extends High-Definition Signals
Extends a 1080i (60 Hz) signal up to 175 ft., a 1080p (60 Hz) signal up to 125 ft. and a 3D signal up to 100 ft. with each optional Tripp Lite
B126-110
remote repeater
Extends a 1080i (60 Hz) signal up to 200 ft., a 1080p (60 Hz) signal up to 150 ft. and a 3D signal up to 125 ft. with Tripp Lite
B126-1A0
or
B126-1A0-WP-1
active remote receiver
Extends a 1080i (60 Hz) signal up to 100 ft. and a 1080p (60 Hz) signal up to 50 ft. with Tripp Lite
B126-1P0
or
B126-1P0-WP-1
passive remote receiver
Add up to 3 remote repeaters on each channel for maximum signal range
Connects to next link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
Supports the Latest Video and Audio Resolutions
Works with all operating systems and HDMI video sources
Supports HD resolutions up to 1080p (60 Hz)
Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
Supports 24-bit True Color (8 bits per channel) and HDCP
Easy to Set Up and Use
Plug-and-play engineering—no software or drivers to download and install
Connects quickly to source with HDMI cable, such as Tripp Lite’s P568-Series
LEDs indicate at a glance when the unit is receiving power and an HDMI signal from the source
Included mounting hardware lets you install the unit on a wall, rack or pole
TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
PHYSICAL
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Included Mounting Accessories
Color
1 x 2.5 x 3.6
2.54 x 6.35 x 9.14
Yes
Black
ENVIRONMENTAL
2/3
Operating Temperature Range
Storage Temperature Range
Relative Humidity
0 to 40 C (32 to 104 F)
-20 to 60 C (-4 to 140 F)
20 to 90%
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 720P Range (ft)
200
200
200
200
150
200
200
200
200
200
CONNECTIONS
Ports
Side A - Connector 1
Side A - Connector 2
Side B - Connector 1
2
HDMI (FEMALE)
3.5MM (FEMALE)
(2) RJ45 (FEMALE)
WARRANTY
Product Warranty Period (Worldwide)
1-year limited warranty
© 2017 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
