intel® Desktop board DZ75ML-45K
Optimized for Intel® -K Processors!

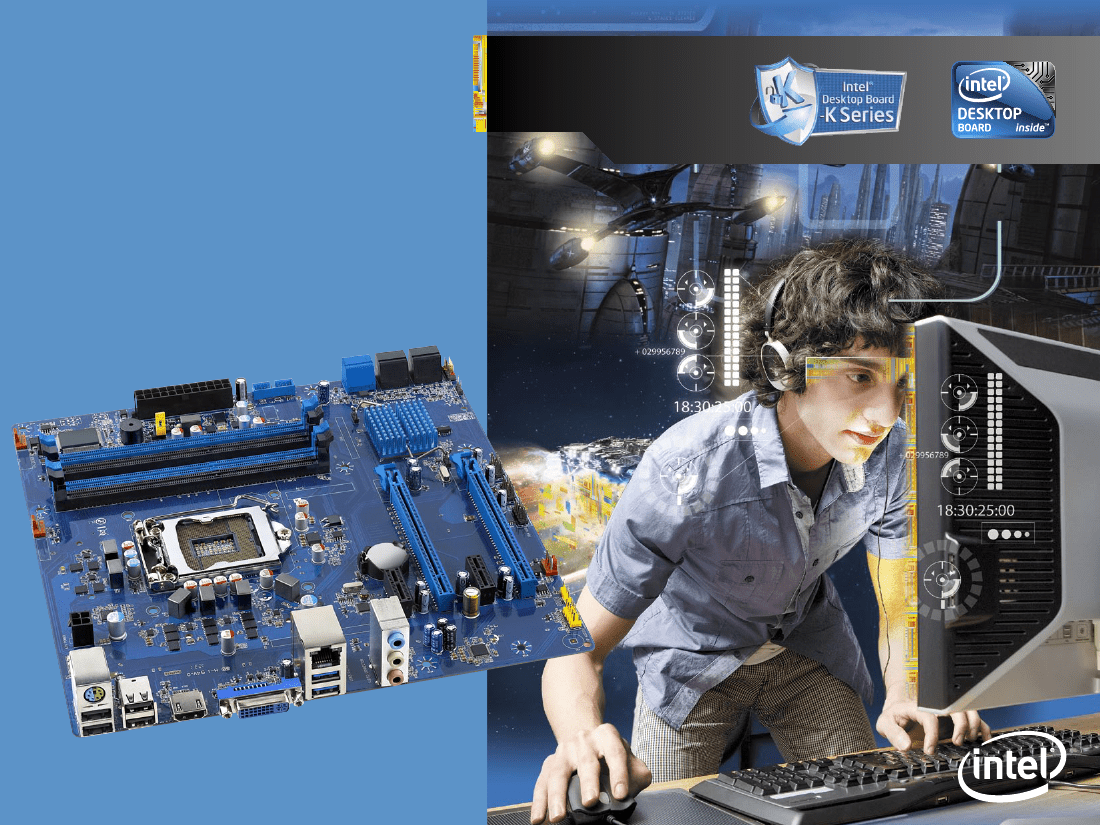

Introducing the Intel® Desktop Board DZ75ML-45K. Optimized for Intel® -K processors
and equipped with full capability Intel® Visual BIOS for maximum overclocking performance
and best experience.
Supports the 2
nd
and 3
rd
generation intel®
core™ processors in the LGA1155 package
Once again with the introduction of the Intel®
Desktop Board DZ75ML-45K Intel is offering
a great board at a very attractive price point
for gamers and overclockers. In combination
with the new Intel® Visual BIOS, this board will
surely satisfy all of the needs of the perfor-
mance enthusiasts. As a member of the newly
introduced -K Series Intel® Desktop Boards,
the DZ75ML-45K is optimized to take full
advantage of the Intel® -K processors. Combi-
nation of very sophisticated power delivery
design and ease of performance tuning and
overclocking of the Core, Graphics, and memory
offered by the Intel® Visual BIOS make the
DZ75ML-45K an ideal board for the Intel®
-K processors. Intel® -K Series Desktop Board
PLUS Intel® -K processor EQUALS performance.
iNTeL® ViSuAL bioS Advanced overclocking
The new Intel® Visual BIOS offers graphical
interface and animated controls which allow
you to configure settings faster and take full
advantage of your Intel® -K processors. Intel®
Visual BIOS allows easy overclocking of Core,
Graphics, and Memory. Intel Visual BIOS oper-
ates by your choice of touch screen, keys,
or mouse. All controls are literally at your fin-
gertips, in a format you can visualize. When
your quest for ultimate performance takes you
to extremes, choose the Intel® Desktop Board
DZ75ML-45K here and Intel® Visual BIOS.
2
power and responsiveness for the Hottest
New Games
The advanced power and overclocking
1
capa-
bilities of the DZ75ML-45K board coupled with
other significant technologies such as Intel®
Fast Boot technology and Intel® Power Super-
visor technology make this the board of choice
for cost conscious gamers and media creation
enthusiasts alike. Intel® Fast Boot Technology
reduces system boot times to mere seconds
while the Intel® Power Supervisor technology
actively monitors the system power to ensure
system protection. Other premium features
include GPU Virtualization Software with
Lucid* MVP, HDMI and DVI-I video connectors,
one PCIe* 3.0 x16 connector for external
graphics and a second PCIe x16 (x4 electrical)
to support CrossFireX* dual graphics.
DZ75ML-45K solution includes:
• ATX compliant I/O shield
• SATA cables
• Board and back panel I/O layout
stickers
• Quick reference guide
• Intel® Express Installer
capability
utilities
productivity
Antivirus
Gpu Virtualization
Software included
• Intel® Integrator Tool Kit
• Intel® Desktop Utilities
• Splashtop* Remote Desktop
• McAfee* Antivirus Plus
• Lucid* Virtu MVP Software
intel® Desktop board DZ75ML-45K

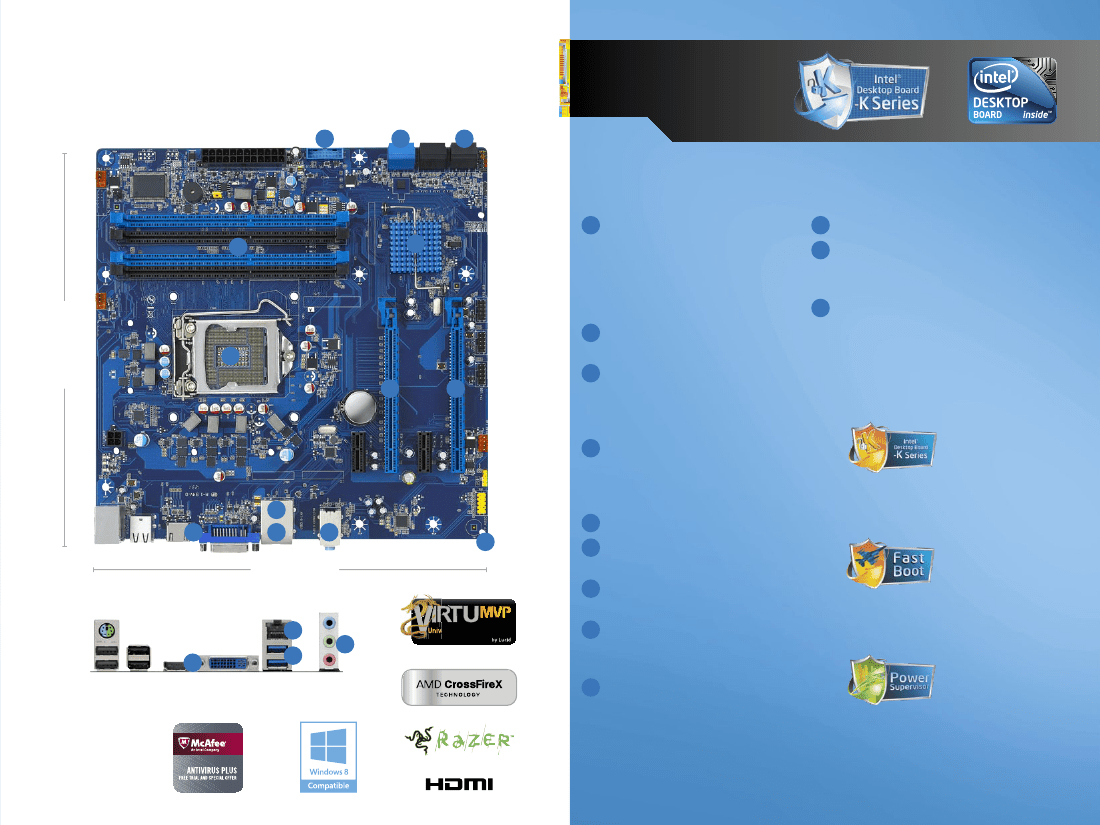

Features and Benefits
4
8
7
1
Support for the intel® core™ i7 processor
3
2
in the LGA 1155 package. optimized
for the intel® -K processors.
Features
Intel® Turbo Boost Technology
2
, Intel®
Hyper-Threading Technology
3
for exceptional performance and scalability.
2
intel® Z75 express chipset:
Features
Overclocking
1
Support.
5
6
3
Four DiMM slots:
Designed to support
overclocked
1
DDR3 2400MHz + O.C.
4
memory, delivering up to 32 GB/s
memory bandwidth.
4
Four Super-Speed uSb 3.0 ports
(2 external, 2 via internal header),
ten uSb 2.0 ports
(4 external,
6 via internal headers).
9
5
pci express 3.0* ×16 slot.
12
6
pci express* x16 (x4 electrical)
and 2 pci express* x1 connectors.
7
Two SATA 6.0 Gb/s ports, four SATA
3.0 Gb/s ports.
11
10
4
9
Universal.GPU.Virtualization
10
HDMi* and DVi-i Video connectors.
11
intel® Gigabit ethernet LAN:
Features
onboard 10/100/1000 Mb/s Ethernet LAN
connectivity.
12
microATX (9.6” × 9.6”) Form Factor.
9.6” (24,38 cm)
1
11
10
4
opTiMiZeD For iNTeL®-K proceSSorS
Intel® Desktop Board optimized for Intel®
-K processors for maximum overclocking
1
performance and best experience.
9.6” (24.38 cm)
8
intel® rapid Storage Technology:
Performance and reliability with support
for RAID 0, 1, 5, 10.
9
8 channel (5.1+2) intel® High
D
efinitionAudio
5
Enables high-quality
integrated audio that rivals the perfor-
mance of high-end discrete solutions.
iNTeL® FAST booT TecHNoLoGY
Go from system off to Windows*
in mere seconds.
poWer SuperViSor
Active monitoring of power ensures
system protection.
3
intel® Desktop board DZ75ML-45K
Technical Specifications
proceSSor
processor Support
• Optimized for Intel® -K processors. Supports 2
nd
and 3
rd
Generation Intel® Core™, and other Intel® processors
in the LGA1155 package
cHipSeT
intel® Z75 express chipset
• Intel® Z75 PCH
• Intel® Rapid Storage Manager (RAID 0, 1, 5, 10)
peripHerAL coNNecTiViTY
• Two SATA 6.0 Gb/s ports
• Four SATA 3.0 Gb/s ports
• Four SuperSpeed USB 3.0 ports with 5.0 Gb/s link speed
(two back panel and two via internal headers)
• Ten Hi-Speed USB 2.0 ports (four back panel ports
and six ports via internal headers)
SYSTeM bioS
• 64 Mb Flash EEPROM with Intel® Platform
• Innovation Framework for EFI Plug and Play
• Advanced configuration and power interface
• V3.0b, SMBIOS2.5
• Intel® Express BIOS update support
HArDWAre MANAGeMeNT FeATureS
• Processor fan speed control
• Front and rear system chassis fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• ACPI-compliant power management support
iNTeL® pro 10/100/1000 NeTWorK coNNecTioN
• Low-power design
eXpANSioN cApAbiLiTieS
• One PCI Express* 3.0 x16 connector
• One PCI Express* 2.0 x16 connector (x4 Electrical)
• Two PCI Express* 2.0 x1 connector
AuDio
• 5.1 + 2 Intel® High Definition Audio
5
• Three stack analog audio ports plus internal S/PDIF
headers
ViDeo
• HDMI* and DVI-I Video connectors for Intel® processors
with Intel® HD Graphics
SYSTeM MeMorY
Memory capacity
• Four 240-pin DIMM connectors supporting up to four
double-sided DIMMs
• Maximum system memory up to 32 GB
6
using 8 GB
doublesided DIMMs
Memory Types
• DDR3 2400MHz + O.C. SDRAM memory support
• Non-ECC Memory
• Dual- or single-channel operation support
Memory Voltage
• Memory voltage control from 1.2 V to 1.8 V
• 1.5 V standard JEDEC voltage
JuMperS AND FroNT pANeL coNNecTorS
Jumpers
• Jumper access for BIOS maintenance mode
Front panel connectors
• Reset, HD LED, Power LEDs, power on/off
• Front-panel audio header
other connectors
• Chassis intrusion detect header
MecHANicAL
board Style
• microATX
board Size
• 9.6” x 9.6” (24.38 cm x 24.38 cm)
baseboard power requirements
• ATX 12 V
eNViroNMeNT
operating Temperature
• 0° C to +55° C
Storage Temperature
• –20° C to +70° C
reGuLATioNS AND SAFeTY STANDArDS
united States
UL 60950-1
canada
CAN/CSA-C22.2 No. 60950-1
europe
(Low Voltage Directive 2006/95/EC)
EN 60950-1
international
IEC 60950-1
eMc reGuLATioNS (cLASS b)
united States
FCC CFR Title 47, Chapter I, Part 15, Subparts A/B
canada
ICES-003
europe
(EMC Directive 2004/108/EC)
EN 55022 and EN 55024
Australia/New Zealand
EN 55022
Japan
VCCI V-3, V-4
South Korea
KN-22 and KN-24
Taiwan
CNS 13438
international
CISPR 22
eNViroNMeNTAL coMpLiANce
europe
Europe RoHS (Directive 2002/95/EC)
WEEE (Directive 2002/96/EC)
china
China RoHS
1 Warning: Altering clock frequency and/or voltage may (i) reduce system stability
and useful life of the system and processor; (ii) cause the processor and other
system components to fail; (iii) cause reductions in system performance; (iv) cause
additional damage; and (v) affect system data integrity. Intel has not tested,
and does not warranty, the operation of the processor beyond its specifications.
2 Intel® Turbo Boost Technology requires a PC with a processor with Intel Turbo
Boost Technology capability. Intel Turbo Boost Technology performance varies
depending on hardware, software, and overall system configuration. Check with
your PC manufacturer on whether your system delivers Intel Turbo Boost Technology.
See www.intel.com/technology/turboboost for more information.
3 Intel® Hyper-Threading Technology requires a computer system with a procesor
supporting HT Technology and an HT Technology-enabled chipset, BIOS,
and operating system. Performance will vary depending on the specific hardware
and software you use. For more information including details on which processors
support HT Technology, see www.intel.com/info/hyperthreading.
4 Maximum peak memory bandwidth requires four DDR 3 modules to be populated
in each of the blue memory slots. DDR 3 2400 memory support on this
motherboard requires advanced knowledge of BIOS and memory tuning; individual
results may vary. For specific supported memory for this motherboard, please
visit www.intel.com/products/motherboard/ for more details.
5 Intel® High Definition Audio requires a system with an appropriate Intel® chipset
and a motherboard with an appropriate codec and the necessary drivers installed.
System sound quality will vary depending on actual implementation, controller,
codec, drivers, and speakers. For more information about Intel® HD Audio, refer
to www.intel.com/design/chipsets/hdaudio.html.
6 System resources and hardware (such as PCI and PCI Express*) require physical
memory address locations that can reduce available addressable system memory.
This could result in a reduction of as much as 1 GB or more of physical addressable
memory being available to the operating system and applications, depending
on the system configuration and operating system.
INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL®
PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE,
TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT.
EXCEPT AS PROVIDED IN INTEL’S TERMS AND CONDITIONS OF SALE FOR SUCH
PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER, AND INTEL DISCLAIMS
ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL
PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR
A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT,
COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY RIGHT.
Intel products are not intended for use in medical, life-saving, or life sustaining
applications. Intel may make changes to specifications and product descriptions
at any time, without notice.
All products, dates, and figures specified are preliminary based on current expec-
tations, and are subject to change without notice. Availability in different channels
may vary.
Actual Intel® Desktop Board may differ from the image shown.
* Other names and brands may be claimed as the property of others.
Copyright© 2012 Intel Corporation 09/12/FB/MED/PDF 327986-001US
For ordering information, visit
www.intel.com
For the most current product information, visit
www.intel.com/go/idb
