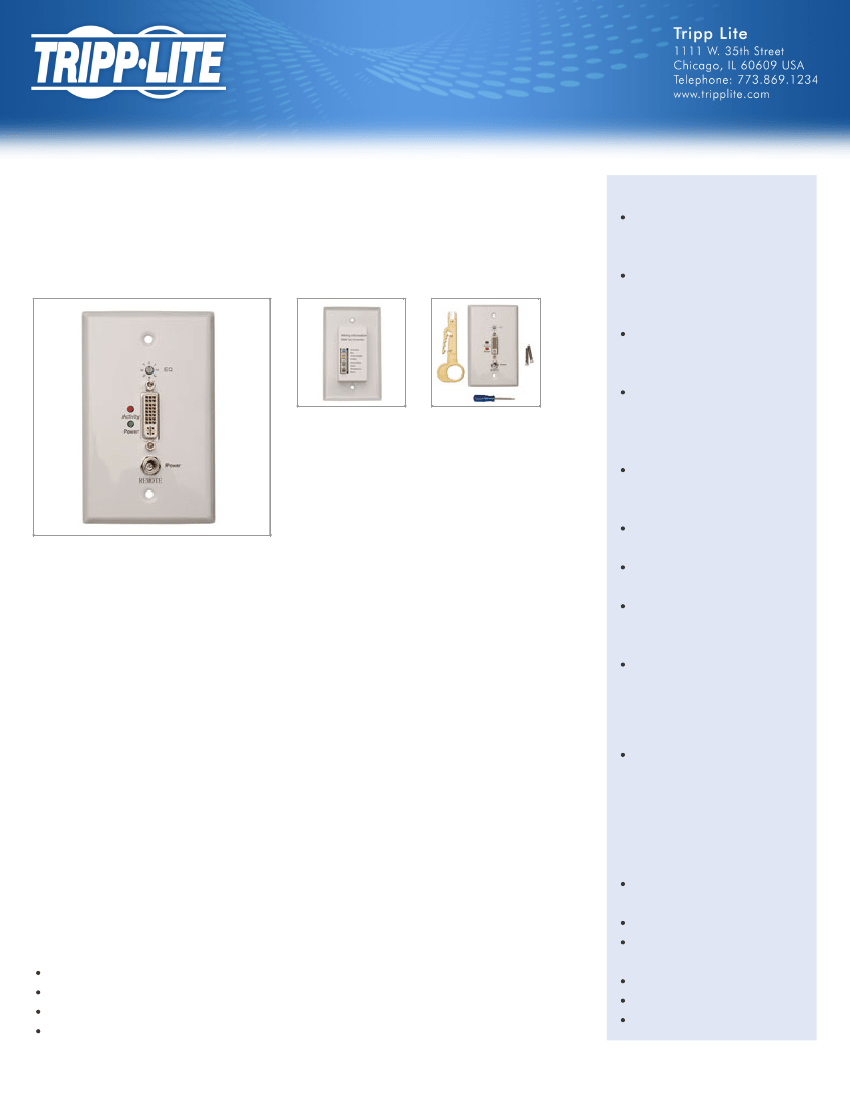

DVI over Cat5/Cat6 Active Extender, Wallplate
Remote Video Receiver, 1920x1080 at 60Hz, Up to
200-ft.
MODEL NUMBER:
B140-1A0-WP
Highlights
For use with
B140-002
or
B140-004
extender/splitter
transmitter units
Supports DVI-D Single-Link video
resolutions up to 1920 x 1080 @
60Hz
Extends a 1920 x 1080 @ 60Hz
signal up to 150 ft., or a 1024 x
768 @ 60Hz signal up to 200 ft.
Use 24AWG, Solid Wire Cat5e/6
cable, such as Tripp Lite's
N202-Series, to achieve
maximum distance and resolution
Can further expand the range
and number of monitors by
adding
B140-110
repeaters
Compatible with all operating
systems
Description
The B140-1A0-WP is a receiver wallplate that is used with the
B140-002
and
B140-004
extender/splitter
transmitter units, and it transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch
cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's
N202-Series). The B140-1A0-WP is compatible with all operating systems, and is plug and play, with no software
or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the
Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Plug and play, no software or
drivers required
Features a built-in Equalization
control for adjustment of the
video image
Compliant with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases
Installation is simple. Connect a
B140-002
or
B140-004
transmitter (not included) to a DVI source using a Tripp
Lite P561-Series DVI cable (not included). Connect the B140-1A0-WP to a display using a Tripp Lite P561-Series
DVI cable (not included). Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a
single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source, or a 1024 x
768 @ 60Hz signal up to 200 ft.
System Requirements
For international use, the
B110-INT power supply can be
purchased separately; it features
plugs for the UK, Europe, and
Australia
Further expand the range and number of monitors by using a
B140-110
repeater unit. Add up to four remote
units (three repeaters and one active receiver) to each channel of the
B140-002
or
B140-004,
for a total of 4
displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can
be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can
be extended up to 175 ft.
Package Includes
B140-1A0-WP DVI Over Cat5
Active Extender Remote Wallplate
Wallplate mounting hardware
Screwdriver for adjustment of
Equalization
110 punchdown tool
Wallplate screws
External Power Supply with
NEMA 1-15P Plug (Input:
Features
Transmit a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable
For use with
B140-002
or
B140-004
extender/splitter transmitter units
Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
Extends a 1920 x 1080 @ 60Hz signal up to 150 ft., or a 1024 x 768 @ 60Hz signal up to 200 ft.
1/2
NEMA 1-15P Plug (Input:
Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and
resolution
Features a built-in Equalization control for adjustment of the video image
Further expand the range and number of monitors by using a
B140-110
repeater unit
Add up to four remote units (three repeaters and one active receiver) to each channel of the
B140-002
or
B140-004,
for a total of 4 displays per channel.
(An active receiver should be the last unit in a channel)
A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be
extended up to 175 ft.
HDCP compatible
Compatible with all operating systems
Plug and play; no software or drivers required
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
100-240V, 50/60Hz, 0.5A;
Output: 5V, 2A, 5 ft.)
Owner's manual
Specifications
OVERVIEW
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.
PHYSICAL
Unit Dimensions (hwd / in.)
Unit Dimensions (hwd / cm)
Included Mounting Accessories
4.5 x 2.75 x 1
11.43 x 6.99 x 2.54
Yes
CONNECTIONS
Ports
Side A - Connector 1
Side B - Connector 1
1
110 IDC
DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
WARRANTY
Product Warranty Period (Worldwide)
1-year limited warranty
© 2017 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
