RoHS Recast Compliant
SATA-Disk Module 5A
SDM5A 7P/180D Slim2 Product Specifications
January 18, 2016
Version 1.0
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
SATA-Disk Module 5A
APSDMxxxGX2AN-CTX
Features:
Standard Serial ATA 3.1 Revision
–
Serial ATA 3.1 Revision compliance
–
SATA 6.0 Gbps interface
–
ATA-8 command set
–
Backward compatible with SATA 1.5/3.0
Gbps
Capacity
–
1, 2, 4, 8, 16 GB
Performance*
–
Burst read/write: 600 MB/sec
Standard Type:
–
Sustained read: up to 34 MB/sec
–
Sustained write: up to 55 MB/sec
Flash Management
–
Built-in hardware ECC
–
Static/dynamic wear-leveling
–
Flash bad-block management
–
S.M.A.R.T.
–
Power failure management
–
ATA secure erase
NAND Flash Type:
SLC
MTBF:
>2,000,000 hours
Temperature Range
–
Operating:
Standard: 0°C to 70°C
Extended: -40°C to 85°C
–
Storage: -40°C to 100°C
Supply Voltage
–
5.0 V
±
5%
Power Consumption*
Standard Type:
–
Active mode: 165 mA
–
Idle mode: 65 mA
Connector Type
–
7-pin SATA signal connector
–
Power segment: power cable connector for
option
Form Factor
–
SATA Disk Module: 7-pin/180 degree slim2
–
Dimensions (without housing):
17.0x40.0x6.1, unit: mm
–
Dimensions (with housing): 19.8x41.4x7.5,
unit: mm
Shock & Vibration**
–
Shock:1,500 G
–
Vibration: 15 G
RoHS Recast Compliant
–
Complies with 2011/65/EU standard
*Varies from capacities. The values for performances and power consumptions presented are typical and may vary depending on flash configurations
or platform settings. The term idle refers to the standby state of the device.
**Non-operating
1
© 2016 Apacer Technology Inc.
Rev. 1.0
SATA-Disk Module 5A
APSDMxxxGX2AN-CTX
Table of Contents
1. GENERAL DESCRIPTIONS .................................................................................................. 3
2. PIN ASSIGNMENTS ............................................................................................................... 3
3. PRODUCT SPECIFICATIONS .............................................................................................. 5
3.1 C
APACITY
............................................................................................................................................................. 5
3.2 P
ERFORMANCE
.....................................................................................................................................................5
3.3 E
NVIRONMENTAL
S
PECIFICATIONS
.......................................................................................................................5
3.4 M
EAN
T
IME
B
ETWEEN
F
AILURES
(MTBF) ...........................................................................................................6
3.5 C
ERTIFICATION AND
C
OMPLIANCE
.......................................................................................................................6
4. FLASH MANAGEMENT ........................................................................................................ 7
4.1 E
RROR
C
ORRECTION
/D
ETECTION
.........................................................................................................................7
4.2 B
AD
B
LOCK
M
ANAGEMENT
.................................................................................................................................7
4.3 W
EAR
L
EVELING
..................................................................................................................................................7
4.4 P
OWER
F
AILURE
M
ANAGEMENT
........................................................................................................................... 7
4.5 ATA S
ECURE
E
RASE
............................................................................................................................................7
4.6 SATA P
OWER
M
ANAGEMENT
.............................................................................................................................. 8
5. SOFTWARE INTERFACE ..................................................................................................... 9
5.1 C
OMMAND
S
ET
.....................................................................................................................................................9
5.2 S.M.A.R.T............................................................................................................................................................ 9
6. ELECTRICAL SPECIFICATIONS ..................................................................................... 11
7. PHYSICAL CHARACTERISTICS ...................................................................................... 12
7.1 W
ITH
H
OUSING
................................................................................................................................................... 12
7.2 W
ITHOUT
H
OUSING
............................................................................................................................................ 13
8. PRODUCT ORDERING INFORMATION ......................................................................... 14
8.1 P
RODUCT
C
ODE
D
ESIGNATIONS
......................................................................................................................... 14
8.2 V
ALID
C
OMBINATIONS
....................................................................................................................................... 15
2
© 2016 Apacer Technology Inc.
Rev. 1.0
SATA-Disk Module 5A
APSDMxxxGX2AN-CTX
1. General Descriptions
Apacer’s SDM5A (SATA Disk Module 5A) is our next generation disk-on-module (DOM) series that offers
elevated speed boost and higher error correction capabilities. Built with SATA 6.0 Gb/s interface, SDM5A
delivers higher performance in data transfer than its previous SDM selections, reaching up to 34 MB/s in
read and 55 MB/s in write.
With its SATA interface compliance and compact size, this high-speed disk module defines an ideal
balance of performance, capacities, reliability and cost. SDM5A comes in moderate capacities that are
suitable to boot industrial applications and light operating systems for specific operations, while with some
extra memory space for data storage. The architectural nature of SATA disk module provides higher
resistance to external environmental influences and better flexibility for motherboard space.
Regarding data reliability, SDM5A is built in with powerful ECC engine that can correct up to 40 bits per
1KB data. In addition, the controller unit of this DOM device supports wear-leveling, SMART and power
failure management for data integrity. With its trustable reliability, performance and cost effectiveness,
Apacer’s SDM5A is definitely the ideal storage or cache solution for embedded and industrial computers,
servers and thin clients.
2. Pin Assignments
7P/180D Slim2 w/o Housing
Power Pin 1
Power cable connector (optional)
Power Pin 1
Signal Pin 1
3
© 2016 Apacer Technology Inc.
Rev. 1.0
SATA-Disk Module 5A
APSDMxxxGX2AN-CTX

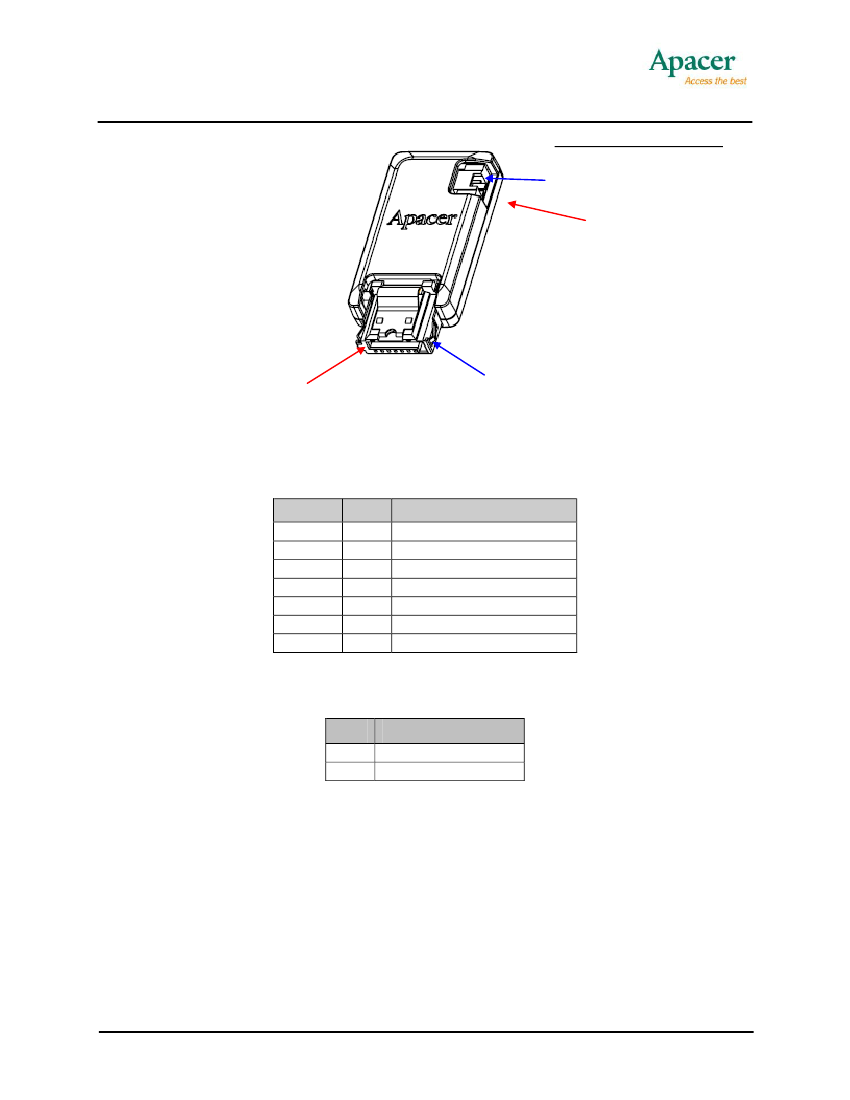

7P/180D Slim2 W/ Housing
Power pin 1
Power cable
connector
(optional)
Power Pin 1
Signal Pin 1
Table 2-1
Signal Segment
Pin
S1
S2
S3
S4
S5
S6
S7
Type
GND
RxP
RxN
GND
TxN
TxP
GND
Description
+ Differential Receive Signal
- Differential Receive Signal
- Differential Transmit Signal
+ Differential Transmit Signal
Table 2-2
Power Segment
Pin
P1
P2
Signal/Description
VCC (5V)
GND
4
© 2016 Apacer Technology Inc.
Rev. 1.0
