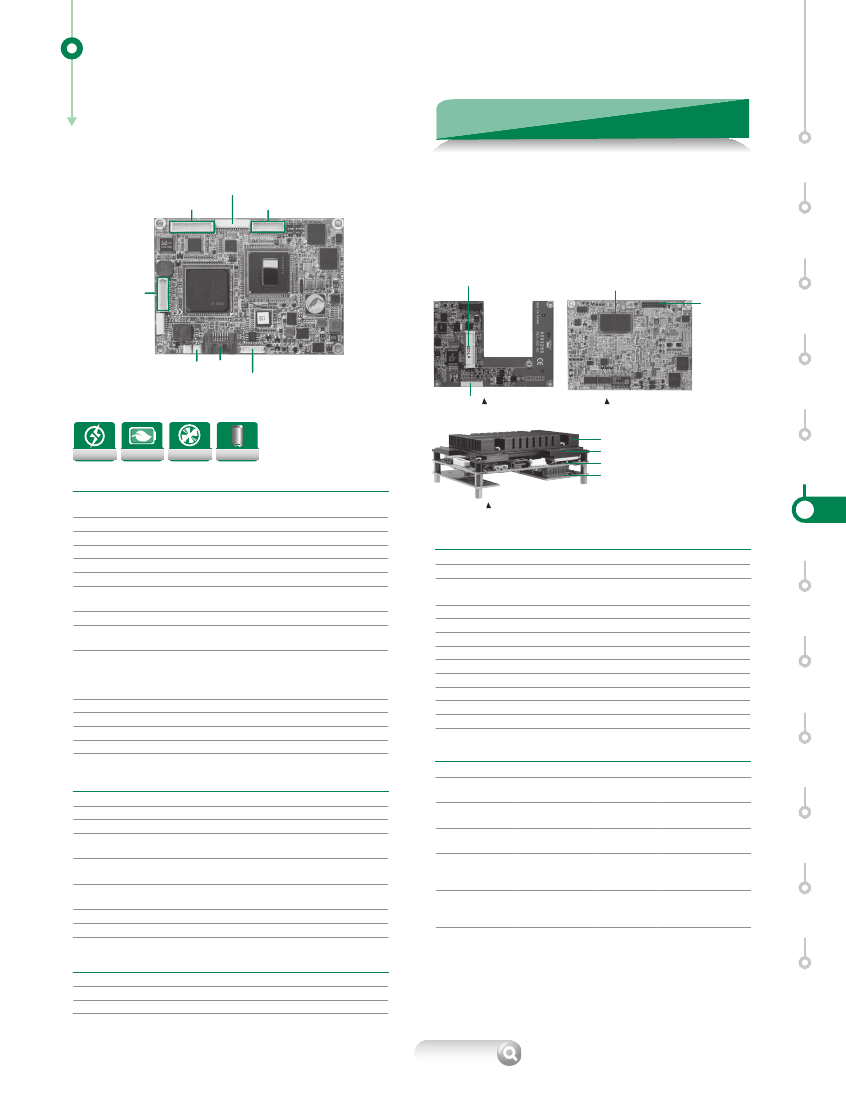

PICO822
Pico-ITX SBC with Intel® Atom™ E620T/
E680T, LVDS, SATA, LAN and SSD
Features
●
Ultra low power Intel® Atom™ E620T/ E680T
●
4 USB 2.0 ports and 1 client USB 2.0 port
●
2 COM
●
LVDS LCD and backlight brightness control
●
One 10/100/1000 Mbps Ethernet
●
Onboard SATA SSD (optional)
PCI Express
Mini card
Onboard SATA SSD (optional)
Expansion
connector (PCIe
x1, USB, UART
Tx/Rx, SMBus, DC
input, SDVO)
Embedded
SBCs
>EPIC
SBC
Services
and Solutions
Ethernet
COM 1/2 + Audio + DIO
LVDS
System
on
Modules
USB 2.0 1/2/3/4 +
USB client
+5V @ 1A power output
SATA
+12V power input
VGA
AX93268
Rear view
Embedded
SBCs
>3.5" Capa
Heatsink
AiRD
Low Power
Fanless
Full Solid
Cap Design
System
CPU
System Memory
Chipset
BIOS
SSD
Watchdog Timer
Expansion Interface
Battery
Power Input
Power Requirements
Intel® Atom™ processor E620T 600 MHz/ E680T 1.6 GHz
single core onboard
1 GB DDR2-800 onboard
Intel® EG20T
AMI UEFI BIOS
SATA SSD 8 GB/16 GB/32 GB (optional)
255 levels, 1~255 sec.
1 x SDVO, 1 x PCIe x1, 1 x UART, 1 x SMBus, 1 x USB
(through expansion connector)
Lithium 3V/ 225mAH
Customed connector via power cable
+12V DC-in only
Intel® Atom™ E620T 600 MHz, 1 GB DDR2
Max. RMS: +12V @ 1.8A
Intel® Atom™ E680T 1.6 GHz, 1 GB DDR2
Max. RMS: +12V @ 2.1A
100 x 72 mm
1.6 mm
Refer to ordering information
10% ~ 95% relative humidity, non-condensing
Assembly view
Heatspreader
PICO822
AX93268
Embedded
SBCs
>Nano-ITX
3
Embedded
SBCs
>Pico-ITX
Packing List
Standard
Quick installation guide, user's manual/utility CD and accessories
Accessories
Part Number
594H8222700E
594H8223000E
594H8222810E
594H8220200E
594H8220600E
59406308010E
5078H822100E
5078H822010E
Size
Board Thickness
Operating Temperature
Relative Humidity
Description
Ethernet cable w/ RJ45 L=150 mm
Cable for COM, audio L=300 mm
USB cable w/o USB client L=180 mm
DC-IN power cable L=190 mm
SATA power cable L=150 mm
SATA cable
Heatsink
Heatspreader
Qty
1
1
1
1
1
1
1
1
Embedded
SBCs
>PC/104
Industrial
Motherboards
Ordering Information
Standard
Model
Operation
Temperature
-20°C ~ +70°C
(-4°F ~ +158°F)
-20°C ~ +70°C
(-4°F ~ +158°F)
0°C ~ +60°C
(32°F ~ 140°F)
0°C ~ +60°C
(32°F ~ 140°F)
PCI Express
Mini Card
N/A
N/A
1
Display Board
AX93221 24bit LVDS
to DVI-D
AX93221 24bit LVDS
to DVI-D
AX93268 VGA
I/O
MIO
SATA
Hardware Monitoring
Ethernet
Audio
USB
SMBus
Digital I/O
2 x RS-232
1 x SATA-300
Detect CPU/System temperature and voltage
1 port as 10/100/1000Mbps supports Wake-on-LAN
RPL/PXE Boot ROM with Realtek RTL8111E
HD Codec audio as Mic-in/Line-in/Line-out with
Realtek ALC886
4 x USB 2.0
1 x client USB 2.0
System Management Bus for advanced monitoring/control
8 channels IN/OUT
Slot CPU
Cards
PICO822LGA-E620T
(P/N: E38H822101)
PICO822LGA-E680T
(P/N: E38H822105)
PICO822LGA-E620T
w/AX93268
(P/N: E38H822107)
PICO822LGA-E680T
w/AX93268
(P/N: E38H822108)
ARM
Embedded
Boards
1
AX93268 VGA
Accessories
Display
Chipset
Memory Size
Display Interface
Intel® GMA 600 graphics core
256 MB
1 x LVDS; 18/24-bit single channel
Appendix
Updated June 01, 2016.
* All specifications and photos are subject to change without notice.
ax io m tek .c om
© 2016 Axiomtek Co., Ltd. All rights reserved.
