RoHS Recast Compliant
SATA-Disk Module 5
SDM5 7P/180D Low Profile Product Specifications
April 15, 2015
Version 1.5
Apacer Technology Inc.
1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C
Tel: +886-2-2267-8000
www.apacer.com
Fax: +886-2-2267-2261
SATA-Disk Module 5
APSDMxxxxX3AX-ATXX
Features:
Standard Serial ATA 3.1 Revision
–
SATA 6.0 Gbps interface
–
ATA-8 command set
–
Backward compatible with SATA 1.5/3.0
Gbps
Capacities
–
Standard Type: 1, 2, 4, 8, 16 GB
–
High-speed Type: 8, 16, 32 GB
(available in cable-less type only)
Performance*
–
Burst read/write: 600 MB/sec
Standard Type:
–
Sustained read: up to 42 MB/sec
–
Sustained write: up to 41 MB/sec
High-speed Type:
–
Sustained read: up to 290 MB/sec
–
Sustained write: up to 265 MB/sec
Flash Management
–
Built-in hardware ECC, enabling up to
40-bit correction per 1K bytes
–
Static/dynamic wear-leveling
–
Flash bad-block management
–
S.M.A.R.T.
–
Power Failure Management
–
ATA Secure Erase
–
TRIM
NAND Flash Type:
SLC
Temperature ranges
–
Operating:
Standard: 0°C to 70°C
Extended: -40°C to 85°C
–
Storage: -40°C to 100°C
Supply voltage
–
5.0 V
±
5%
Power consumption (typical)*
Standard Type:
–
Active mode: 130 mA
–
Idle mode: 95 mA
High-speed Type:
–
Active mode: 275 mA
–
Idle mode: 85 mA
Connector type
–
7-pin SATA signal connector
Form factor
–
SATA Disk Module: 7-pin/180 degree
–
Dimensions (without housing):
30.00x27.80x8.20, unit: mm**
30.00x27.80x7.40, unit: mm***
–
Dimensions (with housing):
32.50x29.40x8.53, unit: mm
Shock & Vibration****
–
Shock:1500 G
–
Vibration: 15 G
MTBF:
>2,000,000 hours
RoHS Recast compliant
–
Complies with 2011/65/EU standard
*Varies from capacities. The values for performances and power consumptions presented are typical and may vary depending on flash configurations
or platform settings. The term idle refers to the standby state of the device.
**Standard type
***High-speed type
****Non-operating
1
© 2015 Apacer Technology Inc.
Rev. 1.5
SATA-Disk Module 5
APSDMxxxxX3AX-ATXX
Table of Contents
1. GENERAL DESCRIPTIONS .................................................................................................. 3
2. PIN ASSIGNMENTS ............................................................................................................... 3
3. PRODUCT SPECIFICATIONS .............................................................................................. 5
3.1 C
APACITY
............................................................................................................................................................. 5
3.2 P
ERFORMANCE
.....................................................................................................................................................5
3.3 E
NVIRONMENTAL
S
PECIFICATIONS
.......................................................................................................................6
3.4 M
EAN
T
IME
B
ETWEEN
F
AILURES
(MTBF) ...........................................................................................................6
3.5 C
ERTIFICATION AND
C
OMPLIANCE
.......................................................................................................................6
4. FLASH MANAGEMENT ....................................................................................................... 7
4.1 E
RROR
C
ORRECTION
/D
ETECTION
.........................................................................................................................7
4.2 B
AD
B
LOCK
M
ANAGEMENT
.................................................................................................................................7
4.3 W
EAR
L
EVELING
..................................................................................................................................................7
4.4 P
OWER
F
AILURE
M
ANAGEMENT
........................................................................................................................... 7
4.5 ATA S
ECURE
E
RASE
............................................................................................................................................7
4.6 TRIM ...................................................................................................................................................................8
4.7 SATA P
OWER
M
ANAGEMENT
.............................................................................................................................. 8
5. SOFTWARE INTERFACE .................................................................................................... 9
5.1 C
OMMAND
S
ET
.....................................................................................................................................................9
5.2 S.M.A.R.T............................................................................................................................................................ 9
6. ELECTRICAL SPECIFICATION ...................................................................................... 11
7. PHYSICAL CHARACTERISTICS ..................................................................................... 12
7.1 S
TANDARD
......................................................................................................................................................... 12
7.1.1 W/O Housing .............................................................................................................................................. 12
7.1.2 With Housing .............................................................................................................................................. 13
7.2 H
IGH
-
SPEED
....................................................................................................................................................... 14
7.2.1 W/O Housing .............................................................................................................................................. 14
7.2.2 W/Housing .................................................................................................................................................. 15
8. PRODUCT ORDERING INFORMATION ........................................................................ 16
8.1 P
RODUCT
C
ODE
D
ESIGNATIONS
........................................................................................................................ 16
8.2 V
ALID
C
OMBINATIONS
...................................................................................................................................... 17
2
© 2015 Apacer Technology Inc.
Rev. 1.5
SATA-Disk Module 5
APSDMxxxxX3AX-ATXX
1. General Descriptions
Apacer’s SDM5 (SATA Disk Module 5) is our next generation disk-on-module (DOM) series that offers
elevated speed boost and higher error correction capabilities. Built with SATA 6 Gb/s interface, SDM5
delivers exceptional performance in data transfer.
With its SATA interface compliance and compact size, this high-speed disk module defines an ideal
balance of performance, capacities, reliability and cost. SDM5 is effective in boot industrial applications
and light operating systems for specific operations, while with some extra memory space for data storage.
The architectural nature of SATA disk module provides higher resistance to external environmental
influences and better flexibility for motherboard space.
Regarding data reliability, SDM5 is built in with powerful ECC engine that can correct up to 40-bit per 1KB
data. In addition, the controller unit of this DOM device supports wear-leveling, SMART and power failure
management for data integrity. Wit its trustable reliability, performance and cost effectiveness, Apacer’s
SDM5 is definitely the ideal storage or cache solution for embedded and industrial computers, servers
and thin clients.
2. Pin Assignments

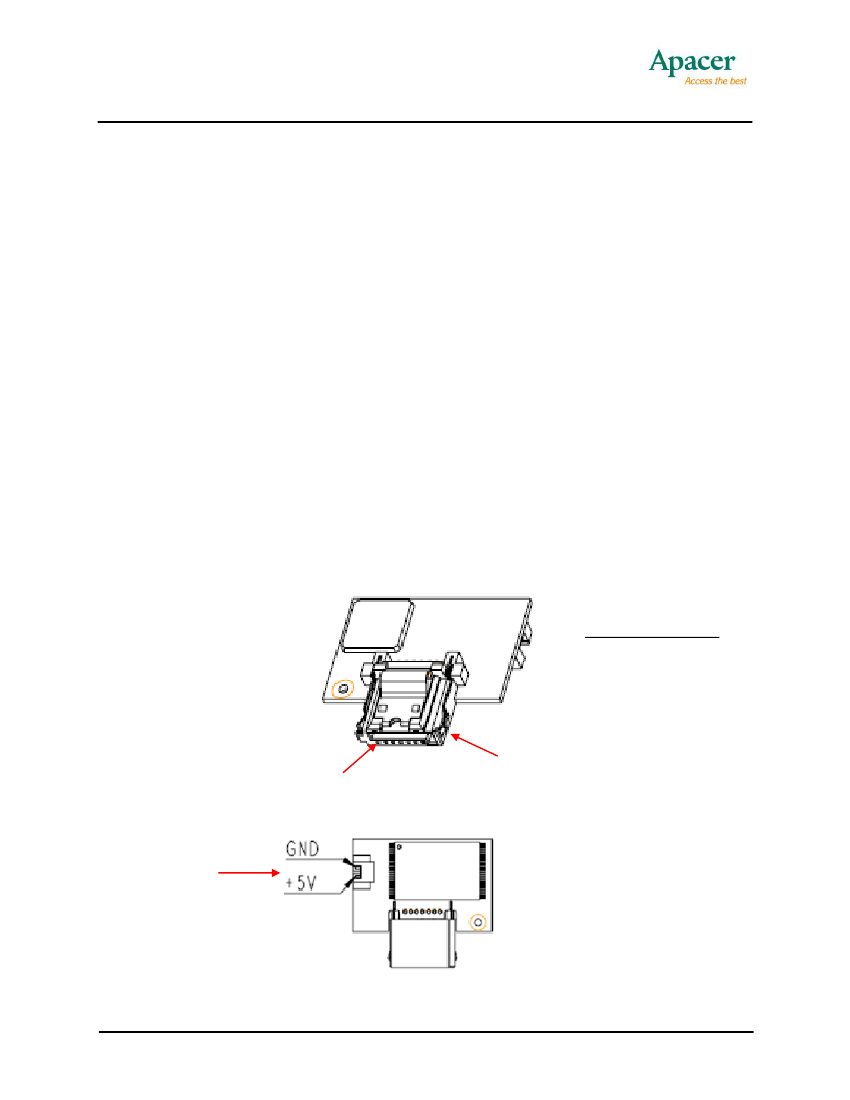

7P/180D w/o Housing
Power Pin1 (Vcc)
Signal Pin 1
Power cable
connector (optional)
3
© 2015 Apacer Technology Inc.
Rev. 1.5
SATA-Disk Module 5
APSDMxxxxX3AX-ATXX

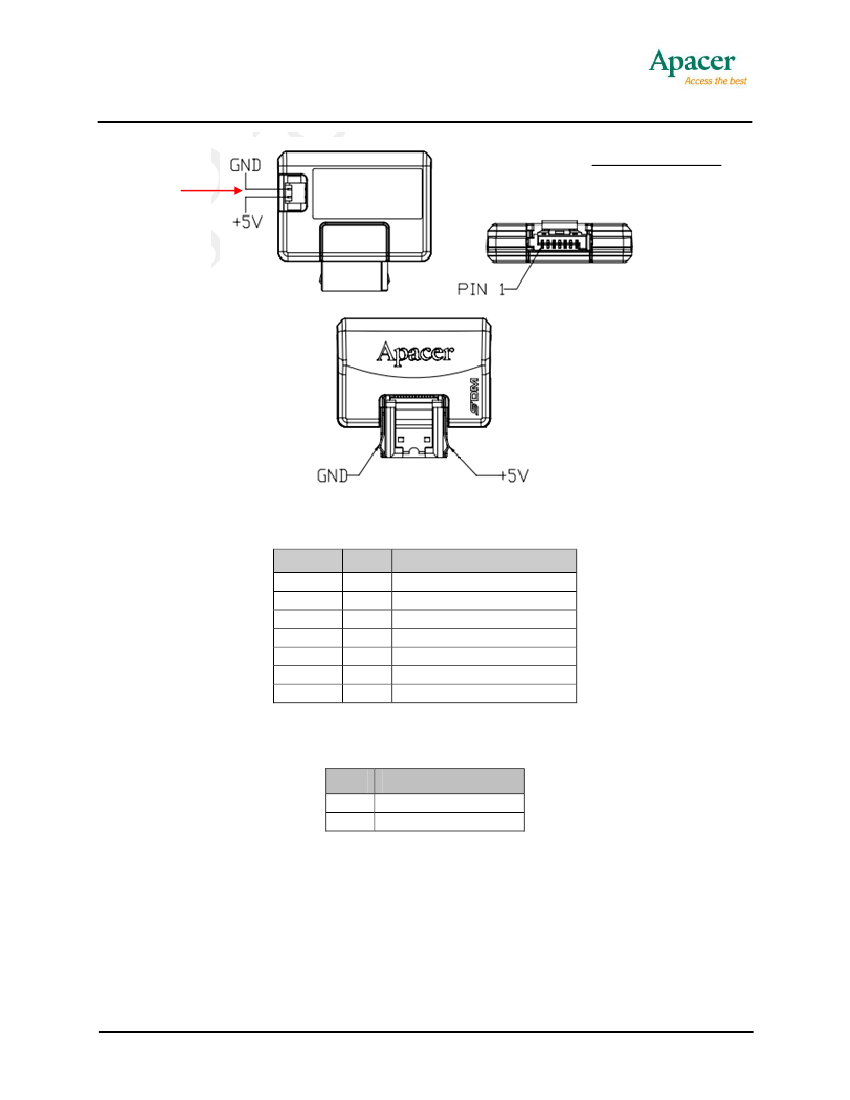

7P/180D W/ Housing
Power cable
connector
(optional)
Table 1-3:
Signal segment
Pin
S1
S2
S3
S4
S5
S6
S7
Type
GND
RxP
RxN
GND
TxN
TxP
GND
Description
+ Differential Receive Signal
- Differential Receive Signal
- Differential Transmit Signal
+ Differential Transmit Signal
Table 1-4:
Power segment
Pin
P1
P2
Signal/Description
VCC (5V)
GND
4
© 2015 Apacer Technology Inc.
Rev. 1.5
