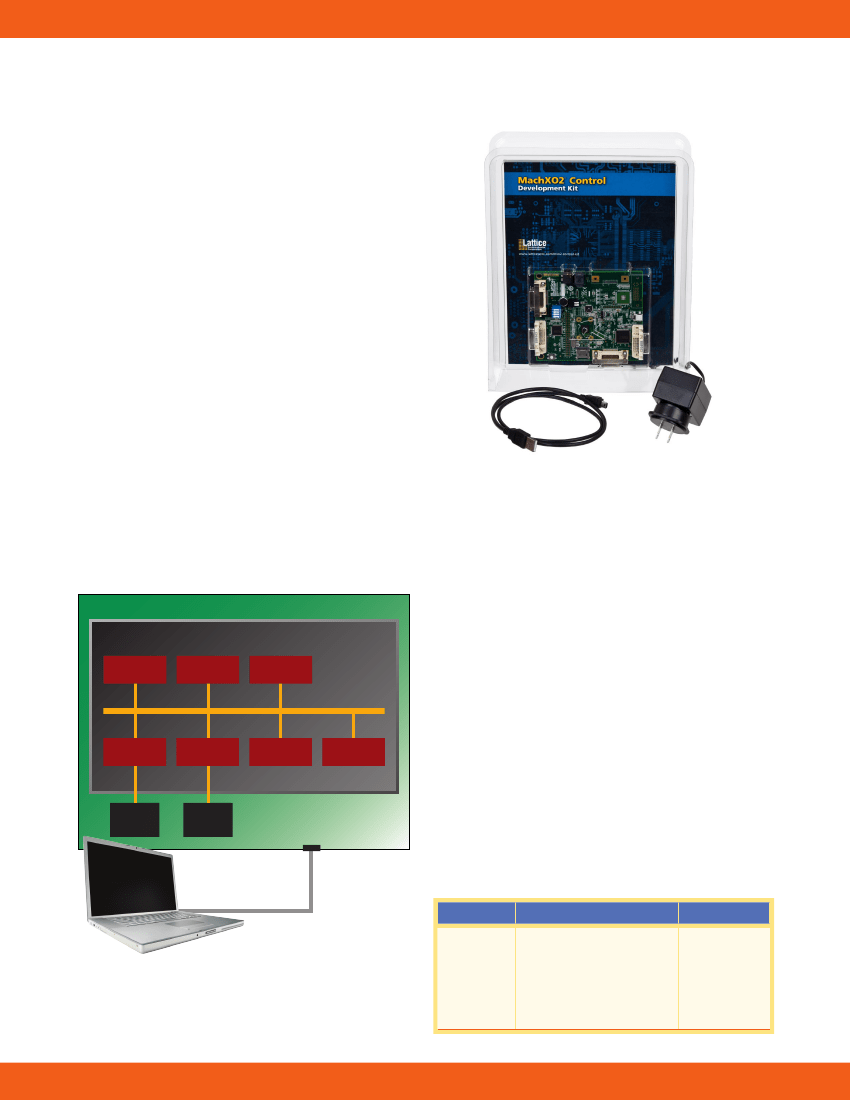

MachXO2 Control
Development Kit
Complete Development Platform for System Control Applications
The MachXO2™ Control Development Kit provides a
full featured development platform to prototype typical
board control functions such as temperature and current
monitoring, power supply sequencing and data logging.
This kit features a MachXO2 LCMXO2-1200HC device, a
Power Manager II ispPAC-POWR1014A, 128Mbit LPDDR
memory, 4Mbit SPI Flash and a microSD Flash card socket.
L A T T I C E
D E V E L O P M E N T
K I T
Control SoC Design Accelerates Time-to-
Market
Using the preloaded Control system-on-chip (SoC) design
provided with the development kit, you can test within
minutes board control functions based on power supply
sequencing, reset distribution, power supply monitoring and
data logging using the Power Manager II POWR1014A and
8-bit LatticeMico8™ microcontroller.
You can then build your own designs using the free
downloadable reference design source code, implementing
these features in less than an hour. For more information go
to www.latticesemi.com/ip.
Other downloadable demonstration applications for the
Control Development Kit include a Display Interface design.
Key Features
MachXO2 Control Eval Board Block
Diagram
MachXO2 Control Evaluation Board
Lattice MachXO2 PLD
LatticeMico8
Microcontroller
UART
Timer / Counter
WISHBONE Bus
Soft ADC
Master SPI
Embedded Block
RAM
LEDs &
Switches
Analog
Signal
SPI Flash
MachXO2 PLD: LCMXO2-1200HC-MG132CR1
Power Manager II ispPAC-POWR1014A
128Mbit LPDDR Memory
4Mbit SPI Flash
Current and Voltage Sensor Circuits
microSD Memory Card Socket
Audio Output Channel
Expansion Header for JTAG, SPI, I
2
C and PLD I/Os
LEDs & Switches
RS-232/USB Interface
JTAG Interface
SPI Interface
I
2
C Interface
Programmed via Standard USB Cable
QuickSTART Guide
Marked for CE, China RoHS Environment-Friendly
Use Period (EFUP) and Waste Electrical and
Electronic Equipment (WEEE) Directives
PC Host
RS-232/USB
Ordering Information
Product
Description
Ordering Part #
MachXO2 Control Evaluation
MachXO2
Board with LCMXO2-1200HC-
Control
MG132CR1 device, USB cable,
LCMXO2-
Development
AC adaptor (international
1200HC-C-EVN
Kit
plugs), QuickSTART Guide, and
demonstration design
Power Supply Sequencing &
Reset Distribution
Monitor multiple power supply voltage and current levels, dis-
tribute reset signals and sequence power supplies in conjunction
with the Power Manager II and LatticeMico8 microcontroller.
Additional Information
Documentation including reference design source, sub-system
descriptions, and schematics are available at www.latticesemi.
com/mxo2-control-kit.
Data Logging
Monitor and keep a log of power supply voltage using the
MachXO2 PLD and SPI Flash memory. Use the Power Manager II
POWR1014A device to maximize system reliability by monitor-
ing devices on a PCB for marginal power supply failures.
Easy-to-Use Lattice
Software
FREE
Lattice Diamond design
tool offers a comprehensive
design environment for the
MachXO2 architecture and other select PLD families. Featur-
ing design exploration, ease of use, improved design flow, and
numerous other enhancements, Diamond is the next genera-
tion replacement for ispLEVER. The combination of new and
enhanced features allows you to complete designs faster, easier,
and with better results than ever before.
Accelerate Boundary Scan Testing Using
BSCAN Linker
Using MachXO2 PLDs, leverage BSCAN1 and BSCAN2 reference
designs to partition complex JTAG chains on a printed circuit
board. Simplify board layout, detect and isolate faults more ef-
ficiently and cost effectively with zero risk.
Reference Design Portfolio
Lattice offers an expanding portfolio of IP cores and reference
designs targeted for system applications. The reference designs,
source codes and documentation can be downloaded for free
from the Lattice website. For more information, go to
www.latticesemi.com/ip.
Interface to microSD Flash Memory
microSD Flash memory is commonly found in system control
designs to provide simple plug memory. You can use a free
Lattice SD Flash reference design to interface MachXO2 to
microSD Flash.

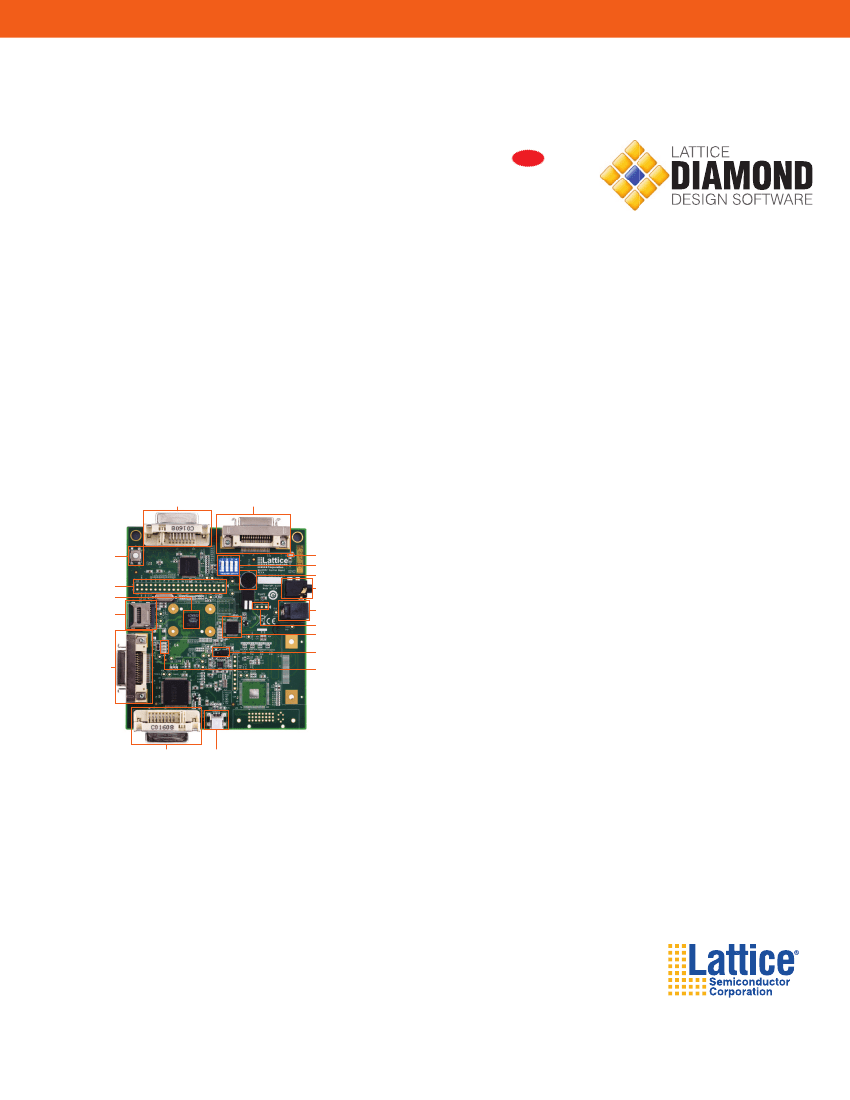

MachXO2 Control Eval Board Top View
DVI
Video Output
7:1 LVDS
Video Output
GSR Push-button
5V Power Indicator
MachXO2 DIP Switches
Electret Microphone
Speaker/Headphone Jack
AC-DC Adapter Jack
ADC Input (J9: Pin 2)
POWR1014A
JTAG Device Select (J6),
MachXO2 Position Shown
MachXO2 LED Field
2x20 GPIO Header
MachXO2-1200
microSD Socket
7:1 LVDS
Video Source
(Channel Link)
DVI Video Source USB 2.0
Interface Socket
Applications Support
1-800-LATTICE (528-8423)
(503) 268-8001
techsupport@latticesemi.com
www.latticesemi.com
Copyright © 2011 Lattice Semiconductor Corporation. Lattice Semiconductor, L (stylized) Lattice Semiconductor Corp., and Lattice (design), ispDOWNLOAD,
Lattice Diamond, ispVM, LatticeMico8 and MachXO2 are either registered trademarks or trademarks of Lattice Semiconductor Corporation in the United States
and/or other countries. Other product names used in this publication are for identification purposes only and may be trademarks of their respective companies.
April 2011
Order #: I0219
