Installation Accessories for PPC
Advantech Panel Computers can fit
perfectly in a variety of applications
•
•
•
•
•
•
•
•
•
Point of information (POI) kiosks
Point of care system solutions
High-level point of sale (POS) systems
Factory and machinery automation
Hospitality management
Instrumentation and control
Store and service automation
Banking and finance
Transportation and navigation

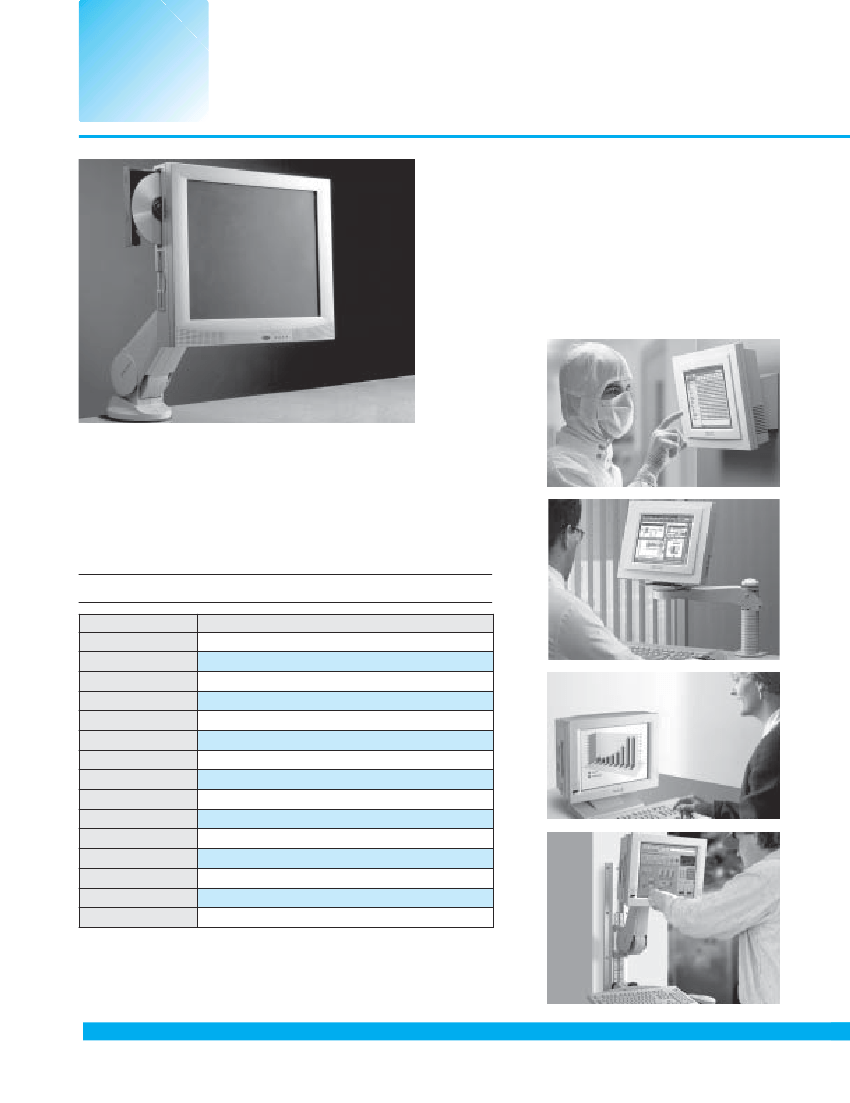

Introduction
Advantech's Panel Computers are the most powerful all-in-one LCD computers available on
the market. They have been designed to be slim and compact, to enable them to be installed
into all kinds of work environments and applications. The Panel Computers can be wall mounted,
panel mounted or simply placed on a desktop with an elegant stand or a swingarm stand.
Integrated mounting holes and features make any kind of mounting option a breeze.
Ordering Information
Part No.
PPC-S153 WL-MT
PPC-S153 STAND
PPC-150 SWINARM
PPC-S123 WL-MT
PPC-120 SWINARM
PPC-120 STAND
PPC-120 WALL-MT
PPC-100 SWINARM
PPC-100 STAND
PPC-100 WALL-MT
PPC-A84 UNIARM
PPC-L126 WL-MT
PPC-L126 STAND
PPC-ARM-A01
PPC-ARM-A02
Description
Wall mount kit for PPC-S153 series
Stand kit for PPC-S153 series
Swing arm kit for PPC-153/150 series
Wall mount kit for PPC-S123 series
Swing arm kit for PPC-123/120 series
Stand for PPC-153/150 and PPC-123/120 series
Wall mount kit for PPC-153/150 and PPC-123/120 series
Swing arm kit for PPC-100/103/105
Stand kit for PPC-100/103/105
Wall mount kit for PPC-100/103/105
Universal arm for PPC-A84T/A120T series
Wall Mount Kit for PPC-L126T
Desktop Stand for PPC-L126T
VESA standard ARM for PPC series
PPC-ARM-A01 with adaptor for PPC-153/123
Note: All specifications are subject to change without notice.
12-22
General Purpose Panel Computers
General Purpose Panel Computers

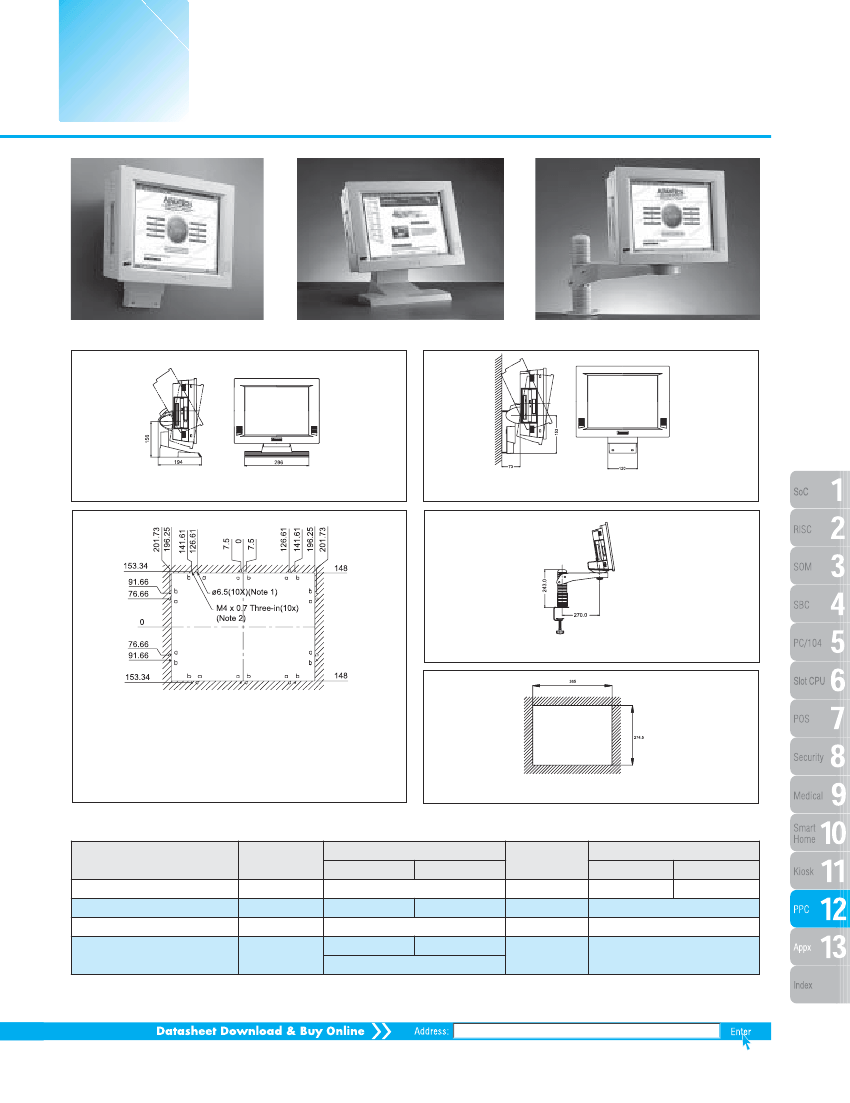

Installation Accessories – PPC-153/123 Series
Dimensions
Desktop stand (PPC-153/123
)
Unit: mm
Wall mount (PPC-153/123)
Unit: mm
Swing arm (PPC-153/123)
Unit: mm
Notes:
1. For rear mount: (a)
Screw goes thru the hole on the wall and join the Nut on PPC.
2. For Front mount: (b)
Screw goes thru the hole on PPC and join the Nut on the wall.
panel mount cutout (PPC-153)
Panel mount cutout (PPC-123)
Unit: mm
Unit: mm
PPC-153/123 Series
Swing Arm
Desktop Stand
PPC-153
Dimensions(mm)(WxHxD)
Weight (kg)
Rotation Range
Part No.
286x156x194
1.8
-10º~+30º
PPC-120 STAND
PPC-ARM-A02
4.3
-10º~+10º
PPC-150 SWINARM PPC-120 SWINARM
PPC-123
120x153x73
4.05
1.5
-10º~+25º
PPC-120
WALL-MT
270x243(RxH)
Wall Mount Kit
PPC-153
293x296*
0.1
N/A
included in standard purchase of
PPC-153/123 series
PPC-123
356x275*
Panel Mount Kit
*:Cut-out dimensions
#:"+"means counter-clockwise rotation angle;"-"means clockwise rotation angle
www.advantech.com/ecg/
12-23

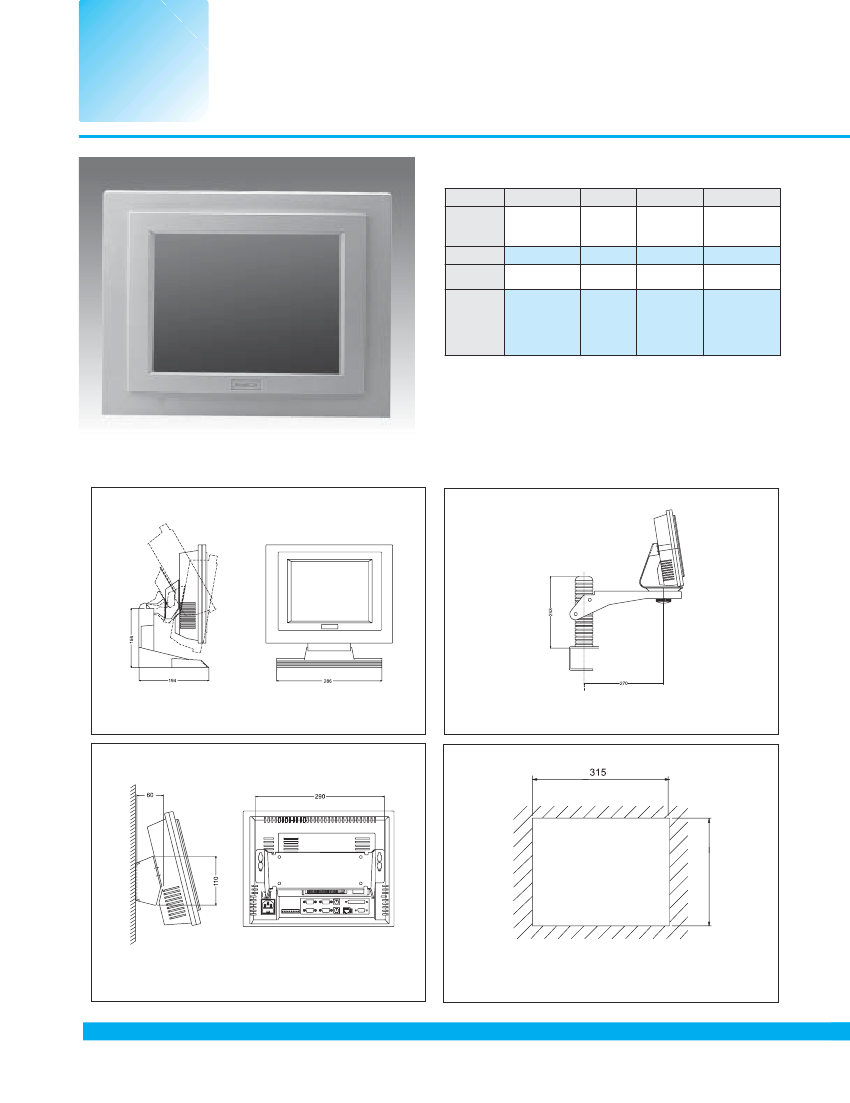

Installation Accessories – PPC-103/105 Series
PPC-103/105 Series
Desktop Stand Swing Arm Wall Mount Kit Panel Mount Kit
Dimensions
270 x 243
(mm)
286 x 156 x 194
290 x 110 x 60
315 x 247*
(R x H)
(W x H x D)
Weight (kg)
Rotation
Range
2.0
-10 ° ~+30 °
3.4
-10 ° ~+10 °
0.3
N/A
0.1
N/A
Included in
standard
purchase of
PPC-103/105
series
Part No.
PPC-100
STAND
PPC-100
SWINARM
PPC-100
WALL-MT
*:Cut-out dimensions
#:"+"means counter-clockwise rotation angle;"-"means clockwise rotation angle
Dimensions
Desktop stand (PPC-103/105)
Unit: mm
Swing arm (PPC-103/105)
Unit: mm
Wall mount (PPC-103/105)
Panel mount cut-out (PPC-103/105)
Unit: mm
Unit: mm
Note: All specifications are subject to change without notice.
12-24
General Purpose Panel Computers
General Purpose Panel Computers

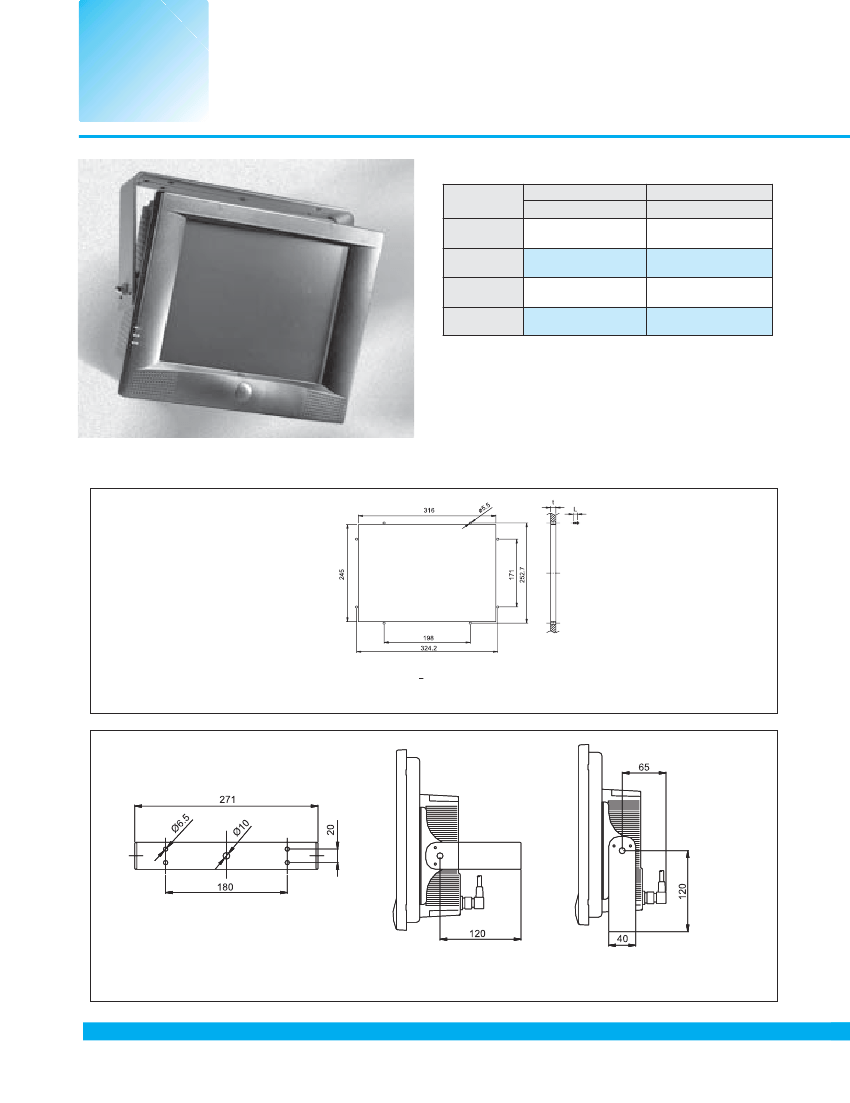

Installation Accessories – PPC-A120
PPC-A120
Universal Arm
PPC-A120
Dimensions (mm)
(W x H xD)
Weight (kg)
Rotation Range
Part No.
271 X 120
0.9
180°
PPC-A84 UNIARM
Panel Mount Kit
PPC-A120
316 x 245*
0.1
N/A
Included in standard
purchase of PPC-A120
*:Cut-out dimensions
Dimensions
Cutout
Srew: M4xL L=(t+7+)1mm t=wall thickness
Panel mount cutout (PPC-A120)
Unit: mm
Universal arm (PPC-A120)
Unit: mm
Note: All specifications are subject to change without notice.
12-26
General Purpose Panel Computers
General Purpose Panel Computers
