To connect the DVI source to the local transmitter unit, Tripp Lite P561 Series DVI Cable is needed.
(sold separately)
Highlights
q
Extends a 1920 x 1080 @ 60Hz
DVI Single-Link signal up to 50
ft., or a 1024 x 768 @ 60Hz
signal up to 100ft.
q
To connect the the Display to the remote receiver unit, Tripp Lite P561 Series DVI Cable is needed.
(sold separately)

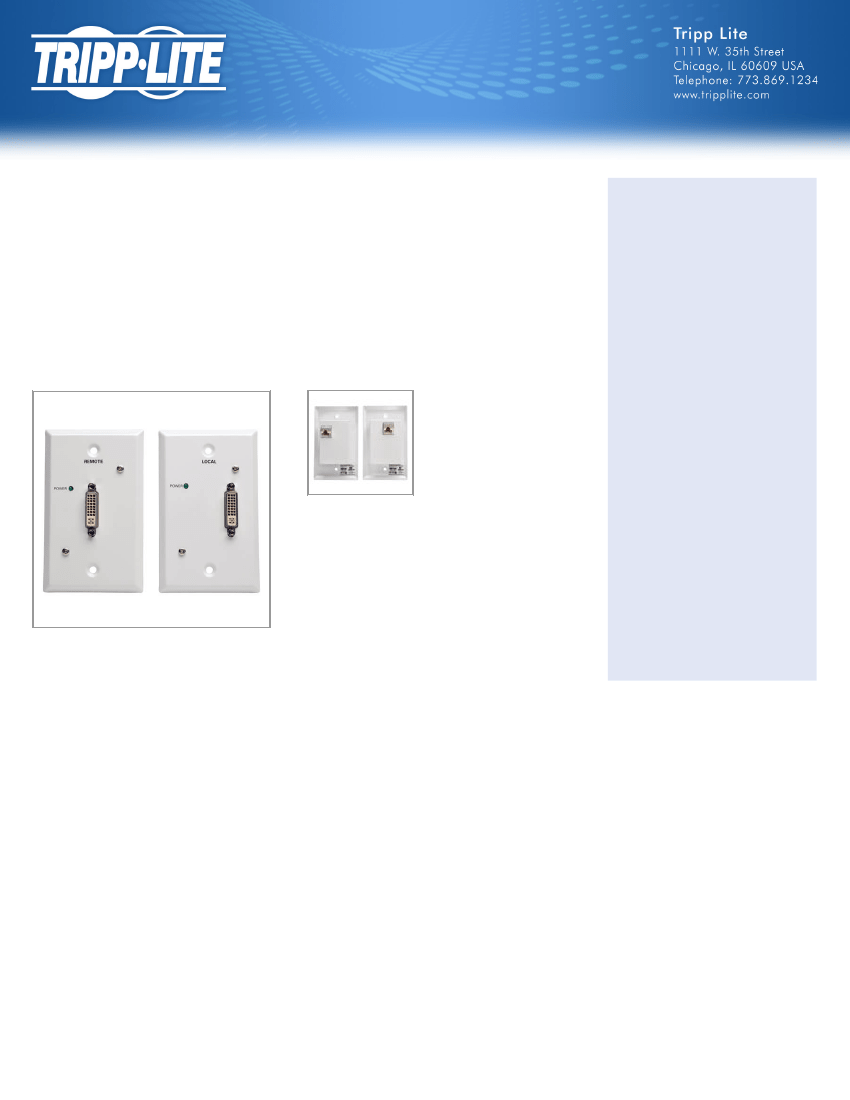

DVI over Cat5/Cat6 Passive Extender Wallplate
Kit, Transmitter and Receiver, 1920x1080 60Hz,
Up to 100-ft., TAA
MODEL NUMBER:
B140-1P1-WP-1
q
Wallplate local and remote units
with RJ-45 connectors are ideal
for permanent mounting and
easy wiring of Cat5/6 cabling
q
Plug and play, no external
power, software or drivers
required
q
Compliant with the Federal
Trade Agreements Act (TAA) for
GSA Schedule purchases
Package Includes
q
B140-1P1-WP-1 local wallplate
B140-1P1-WP-1 remote
wallplate
q
q
Wallplate screws
Owner’s manual
Perfect for digital signage, video conferencing and meeting rooms that need a remote display located up
to 100 ft. from a DVI video source with support of 1080p for Full HD video quality
q
Description
Do you need to locate digital display in a conference room, auditorium or classroom a long distance from
a DVI source (e.g., DVD recorder) and still want to get an HD quality video experience? Then Tripp Lite's
DVI over Cat5/6 Passive Extender Wallplate Kit is the solution for you! Using a simple-to-install kit,
containing local transmitter and remote receiver units, it can flawlessly transmit a 1920 x 1080 @ 60Hz
DVI Single-Link signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100ft. with single, 24AWG Solid
Wire Cat5e/6 patch cable (Tripp Lite's N202 Series). The wallplate mounting configuration is perfect for
permanent installations. For quick and convenient wiring, the wallplate’s RJ45 female jacks are rear-facing
and fit standard Cat5/6 connections. It's compatible with all operating systems, and requires no external
power, software or drivers. It’s compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule
purchases, and is backed by a 1-year warranty.
Features
q
Maximum Extension Distance:
Extends a 1920 x 1080 @ 60Hz signal up to 50 ft., or a 1024 x 768 @
60Hz signal up to 100 ft.
q
Components:
Local (transmitter) and remote (receiver) units are mounted in a wallplate configuration.
(Cabling is sold separately)
q
Wallplate Connectors:
Front-facing DVI port/display connectors; rear-facing RJ45 Female jacks for
1/3
quick and easy connection to standard Cat5/6 cabling. (110 punchdown connections are not required.)
q
Recommended Cabling:
Tripp Lite 24AWG, Solid Wire Cat5e/6 cabling for maximum distance and
resolution (Tripp Lite's N202 Series)
q
Compatibility:
HDCP; all operating systems
Power:
Plug and play, with no external power, software or drivers required
LED Indicator:
When the DVI source power is energized, the green wallplate LED will illuminate
Compliance:
Federal Trade Agreements Act (TAA) for GSA Schedule purchases
q
q
q
Specifications
OVERVIEW
UPC Code
037332163028
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Color
2.20 x 8.40 x 6.50
5.59 x 21.34 x 16.51
0.70
0.32
White
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 720P Range (ft)
100
100
100
50
50
100
100
100
100
100
CONNECTIONS
Ports
Side A - Connector 1
Side A - Connector 2
1
DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
RJ45 (FEMALE)
2/3
Side B - Connector 1
Side B - Connector 2
DVI-I DUAL-LINK (FEMALE) (WIRED TO DVI-D SINGLE-LINK)
RJ45 (FEMALE)
FEATURES & SPECIFICATIONS
Technology
DVI
WARRANTY
Product Warranty Period
(Worldwide)
1-year limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
3/3
