MAX 10 FPGA Development Kit
Home
>
Design Tools & Services
>
Development Kits/Cables
>
MAX 10 FPGA Development Kit
The Altera
®
MAX
®
10 FPGA Development Kit provides a full featured design platform built around a 50 K logic elements
(LEs) MAX 10 FPGA, optimized for system level integration with on-die analog-to-digital converter (ADC), dual-
configuration flash, and DDR3 memory interface support. The board features on-board USB-Blaster
TM
II, high-speed
mezannine card (HSMC) and PMOD expansion, high-definition multimedia interface (HDMI) output, and dual Ethernet for
industrial Ethernet applications. The MAX 10 FPGA Development Kit provides the perfect system-level prototyping
solution for industrial, automotive, consumer, and many other market applications.
Ordering Information
Development Kit Contents
Documentation
Related Links
With this development board, you can:
Develop designs for the 10M50D, F484 package FPGA
Measure the performance of the MAX 10 FPGA analog-to-digital block conversion
Interface MAX 10 FPGAs to DDR3 memory at 300 MHz performance
Run embedded Linux using the Nios
®
II processor
Interface to daughtercards and peripherals using HSMC and PMOD connectors
Measure FPGA power (V
CC_CORE
and V
CC_IO
) using the power monitor graphical user interface (GUI)
Reuse the kit’s PCB board and schematic as a model for your design
Ordering Information
Table 1. MAX 10 FPGA Development Kit Ordering Code and Pricing Information
Ordering Code
Price
Ordering Information
DK-DEV-10M50-A
Open for pre-orders. Contact your
local Altera distributor
to place your pre-
order.
Development Kit Contents
The MAX 10 FPGA Development Kit includes the following:
RoHS- and CE-compliant MAX 10 FPGA Development board
Featured devices
MAX 10 FPGA (10M50D, dual supply, F484 package)
Enpirion
®
EN2342QI
4 A PowerSoC Voltage-Mode Synchronous Step-Down Converter with
Integrated Inductor
Enpirion EN6337QI
3 A High-Efficiency PowerSoC DC-DC Step-Down Converters with Integrated
Inductor
Enpirion EP5358xUI
600 mA PowerSoC DC-DC Step-Down Converters with Integrated Inductor
MAX II CPLD – EPM1270M256C4N (On-board USB Blaster II)
Programming and Configuration
Embedded USB-Blaster II (JTAG)
Optional JTAG direct via 10-pin header
Memory devices
64Mx16 1 Gb DDR3 SDRAM with soft memory controller
128Mx8 1 Gb DDR3 SDRAM with soft memory controller
512Mb QSPI Flash
Communication ports
Two Gigabit Ethernet (GbE) RJ-45 ports
One mini-USB2.0 UART
One HDMI video output
One universal HSMC connector (see
HSMC expansion cards)
Two 12-pin PMOD connectors (see
PMOD expansion cards)
Analog
Two MAX 10 FPGA ADC SMA inputs
2x10 ADC header
Potentiometer input to ADC
One external 16 bit digital-to-analog converter (DAC) device with SMA output
Clocking
25 MHz single-ended, external oscillator clock source
Silicon labs clock generator with programmable frequency GUI
Switches, push buttons, jumpers, and status LEDs
Mini-USB cable for on-board USB-Blaster II
2A Power Supply and cord
Free
Quartus
®
II Web Edition design software
(download software and license from website)
Complete documentation
User manual, bill of materials, schematic, and board files
Back to Top

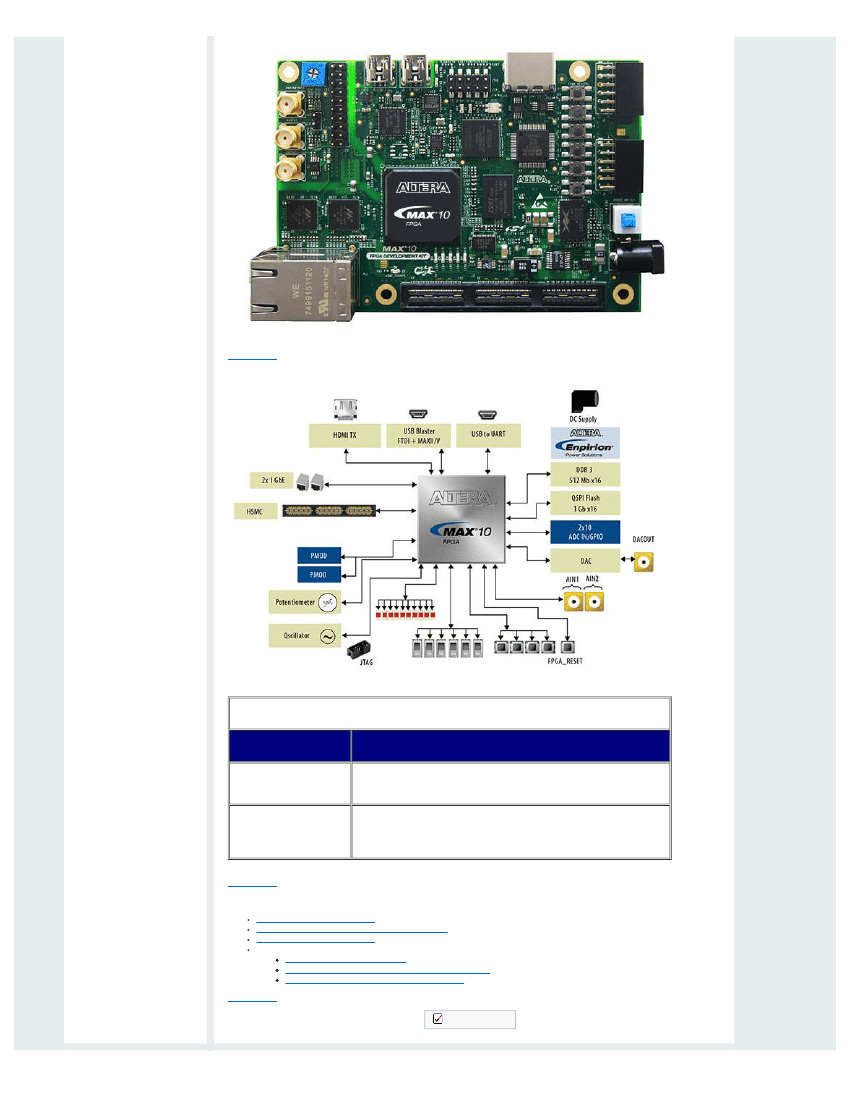

Figure 1. MAX 10 FPGA Development Board
MAX 10 FPGA Development Kit
Back to Top
Figure 2. MAX 10 FPGA Development Board Block Diagram
Documentation
Table 2. MAX 10 FPGA Development Kit Documents (Available Soon)
Document
User Guide
Description
Information about the MAX 10 FPGA Development Kit hardware and board
setup including how to use included software.
Complete kit document
installation
(Windows PC only)
Full installation of all files, including the user manual, BOM, layout, PCB,
schematics, and other documents or files.
Back to Top
Related Links
MAX 10 FPGA training videos
Design Store - MAX 10 FPGA reference designs
MAX 10 FPGA documentation
Online training:
Basics of Programmable Logic
The Quartus II Software Design Series Foundation
The Quartus II Software Interactive Tutorial
Back to Top
Rate This Page
Please give us feedback
