1SD1548AI UL
Data Sheet
1SD1548AI UL Single-Channel
High-Power SCALE Driver Core
Description
The SCALE driver 1SD1548AI UL from CONCEPT is based on a chip set that was
developed specifically for the reliable driving and safe operation of IGBTs and power
MOSFETs.

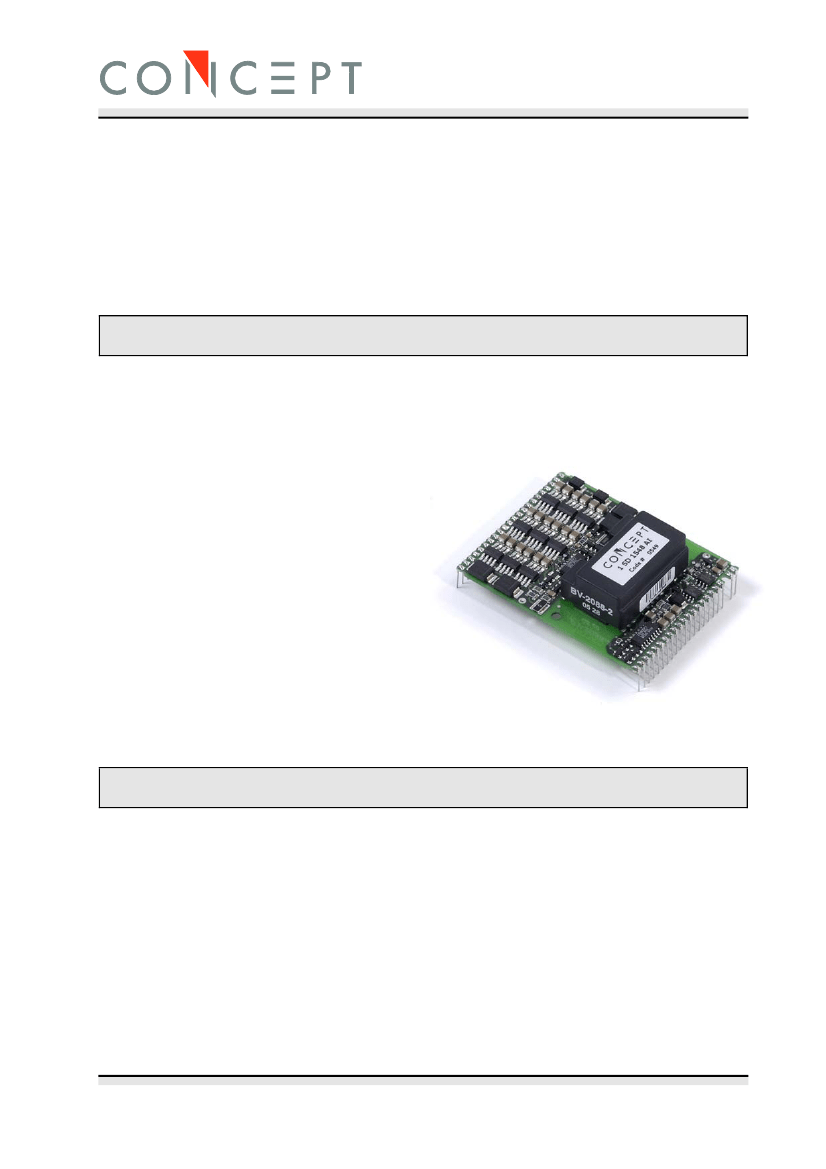

The SCALE driver 1SD1548AI UL
features a high gate current of
±48A
and a high power of 15W. It has been
specially
developed
for
high-
frequency applications (e.g. resonant
converters) with a high gate-power
requirement or for high gate-current
driving applications (e.g. parallel
connection of high-power IGBT
modules).
Product Highlights
Applications
[
Suitable for 1200V and 1700V IGBTs
[
Short-circuit and over-current protection
[
Extremely reliable, long service life
[
High gate current of
±48A
[
Electrical insulation of 4000V
[
Electrically insulated status acknowledgement
[
Monitoring of power supply and self-monitoring
[
Switching frequency DC to 150kHz
[
Duty cycle: 0... 100%
[
High dv/dt immunity, typical >100kV/μs
[
Complete with built-in 15W DC/DC converter
[
UL compliant
AC
[
Inverters
[
Motor drive technology
[
Traction
[
Railroad power supplies
[
Converters
[
Power engineering
[
Switched-mode power supplies
[
Radiology and laser technology
[
DC/DC converters
[
Research
[
RF generators and converters
Page 1
IGBT-Driver.com
1SD1548AI UL
Data Sheet
Pin Designation
Pin Des.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
VDD
VDD
VDD
SO
VL
In
GND
GND
GND
GND
GND
GND
GND
VDC
VDC
VDC
VDC
VDC
VDC
Free
VDC
VDC
Function
+15V for electronic input side
+15V for electronic input side
+15V for electronic input side
Status output
Logic level/Reset
Input
Ground
Ground
Ground
Ground
Ground
Ground
Ground
+15V for DC/DC converter
+15V for DC/DC converter
+15V for DC/DC converter
+15V for DC/DC converter
+15V for DC/DC converter
+15V for DC/DC converter
+15V for DC/DC converter
+15V for DC/DC converter
Pin Des.
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
VPOS
COM
VNEG
E
G
E
G
E
G
AC
Rth
C
LS
E
G
E
G
E
G
VPOS
COM
VNEG
Function
Blocking capacitor +15V
Common
Blocking capacitor -15V
Emitter
Gate
Emitter
Gate
Emitter
Gate
Enhanced active clamping
Reference resistor
Collector sense
Local status
Emitter
Gate
Emitter
Gate
Emitter
Gate
Blocking capacitor +15V
Common
Blocking capacitor -15V
Notes:
1) Pins with the designation “Free” are not physically present.
2) E (Emitter) is directly connected to COM (same potential).
3) AC should be connected to VNEG if not used (normal case)
PCB Layout / Dimensions
Details of circuit board layout

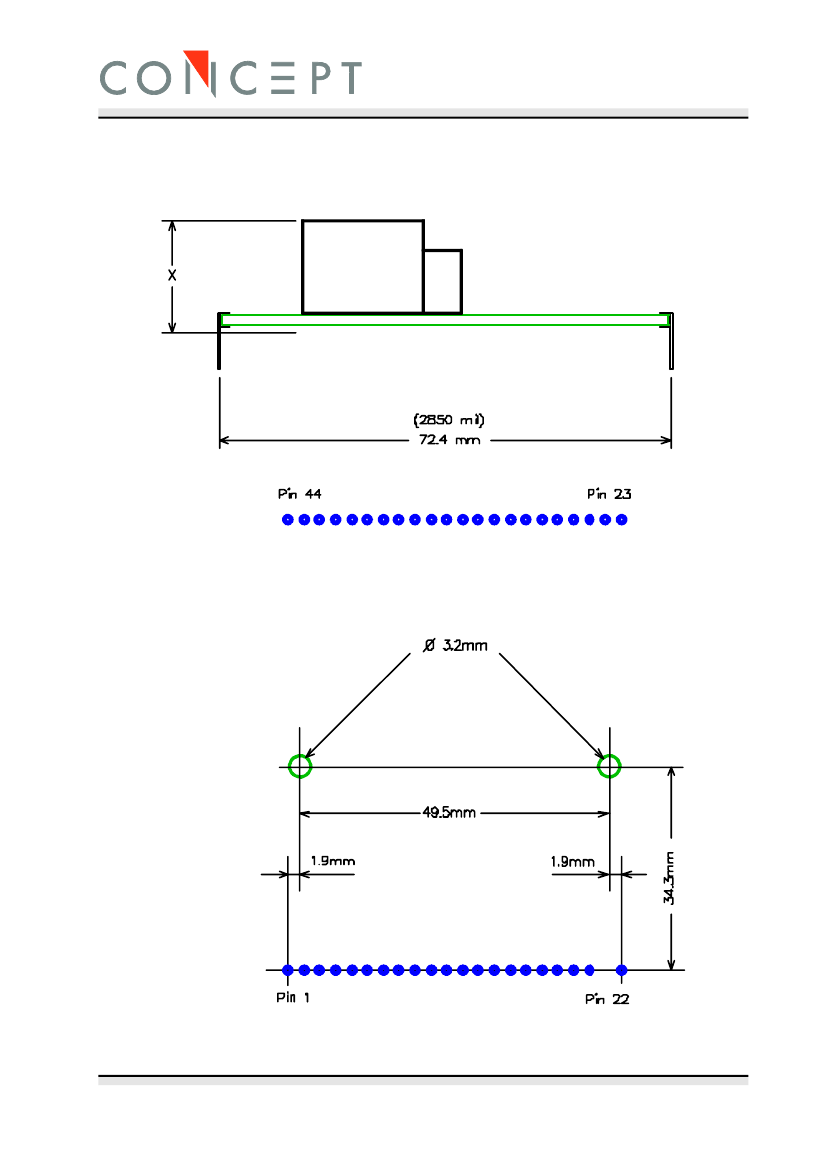

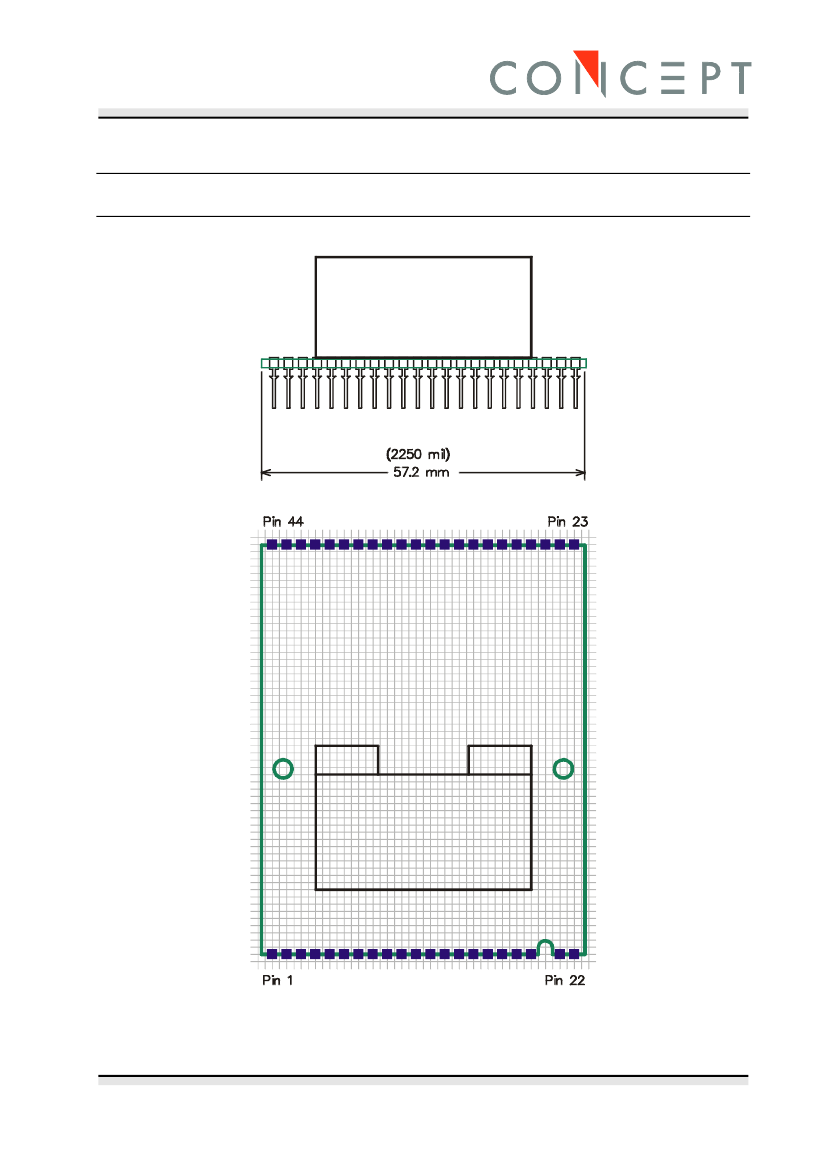

Grid of the aspect drawing on page 4 below: 1.27mm (50mil)
Recommended diameter of solder pad: Ø 1.52mm
Recommended diameter of drill holes: Ø 1.1mm
