Datasheet> All Categories > Module/solution> IPC-7120-00CE

Preview

IPC-7120-00CE: DescriptionModules Accessories compact wall mount chassis for uATX/ATX M/B w/o power supply Cost Down Version; CategoryModule/solution; File Size995KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric View All

IPC-7120-00CE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IPC-7120-00CE	-	-	View	Buy Now

IPC-7120-00CE Overview

Modules Accessories compact wall mount chassis for uATX/ATX M/B w/o power supply Cost Down Version

IPC-7120-00CE Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Advantech
Product Category	Modules Accessories
RoHS	Details
Product	Desktop/Wallmount Chassis
For Use With	ATX/MicroATX Motherboard
Description/Function	Without power supply, with ATX switch
Dimensions	380 mm x 316.5 mm x 164 mm
Maximum Operating Temperature	+ 40 C
Minimum Operating Temperature	0 C
Factory Pack Quantity	1

Preview

Download Datasheet

View All

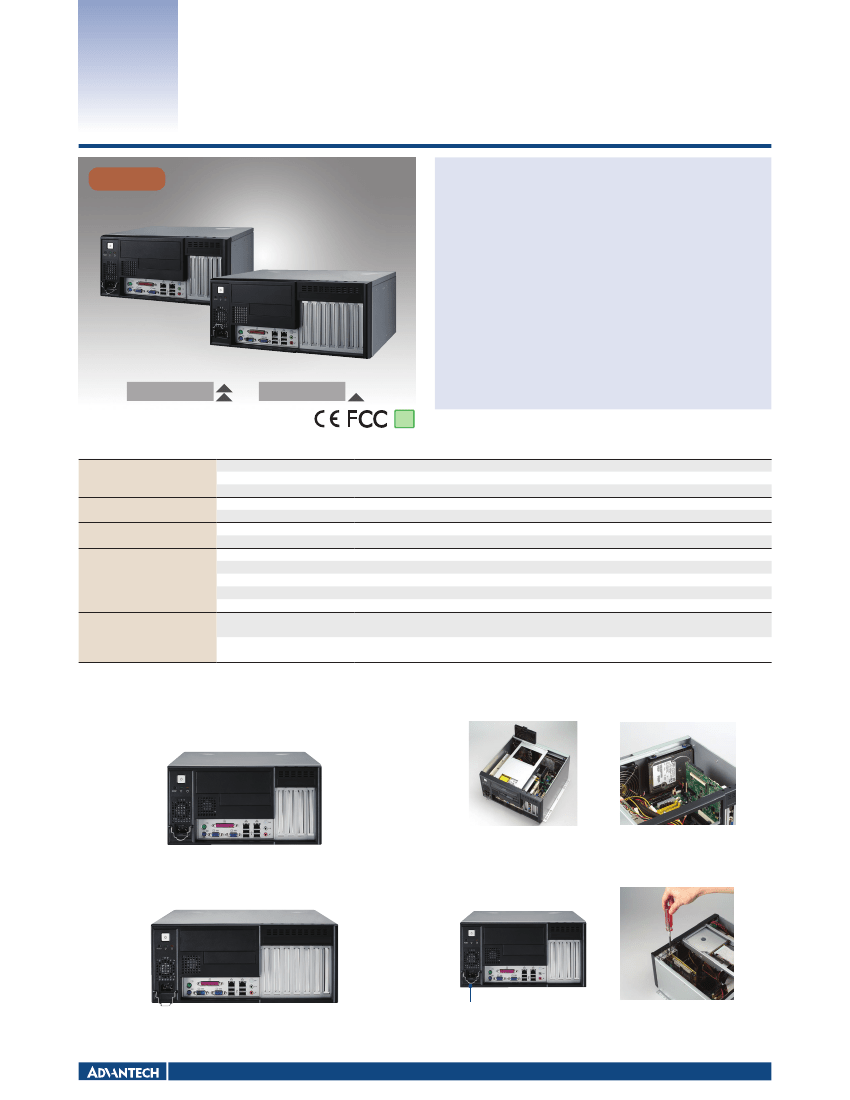

IPC-5120/7120

Revision

Desktop/Wallmount Chassis with front I/O

Interfaces for ATX/mATX Motherboard

Features

With front I/O interface and four to seven expansion slots

Shockproof drive bay for one 5.25" ODD and two 3.5" HDDs

LED indicators for power status and HDD activity

Support four to seven half-size add-on cards

IPC-5120

IPC-7120

RoHS

COMPLIANT

2002/95/EC

Specifications

Drive Bay

Cooling

Miscellaneous

5.25"

3.5"

Fans

Air Filter

LED Indicators

Control

Temperature

Humidity

Vibration (5 ~ 500 Hz)

Shock

Dimensions (W x H x D)

Weight

External

Internal

1

-

1

1 (12 cm / 85 CFM) + 1 (4 cm / 10 CFM)

Yes

Power status and HDD activity

Power switch and system reset button

Operating

Non-Operating

0 ~ 40° C (32 ~ 104° F)

-20 ~ 60° C (-4 ~ 140° F)

10 ~ 85% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

1 Grms

2G

10 G (with 11 ms duration, half sine wave)

30 G

IPC-5120: 320 x 164 x 316.5 mm (12.6" x 6.5" x 12.5")

IPC-7120: 380 x 164 x 316.5 mm (15" x 6.5" x 12.5")

IPC-5120: 6.54 kg (14.42 lb)

IPC-7120: 7.01 kg (15.45 lb)

Environment

Physical Characteristics

Front View

IPC-5120

Inside View

Easy-to-maintain fan

filter

Shock-resistant drive

bay for holding an

internal 3.5" HDD

IPC-7120

Plug ring-lock securely

fastens the power cord

User-friendly mechanical

design for installing an

add-on card

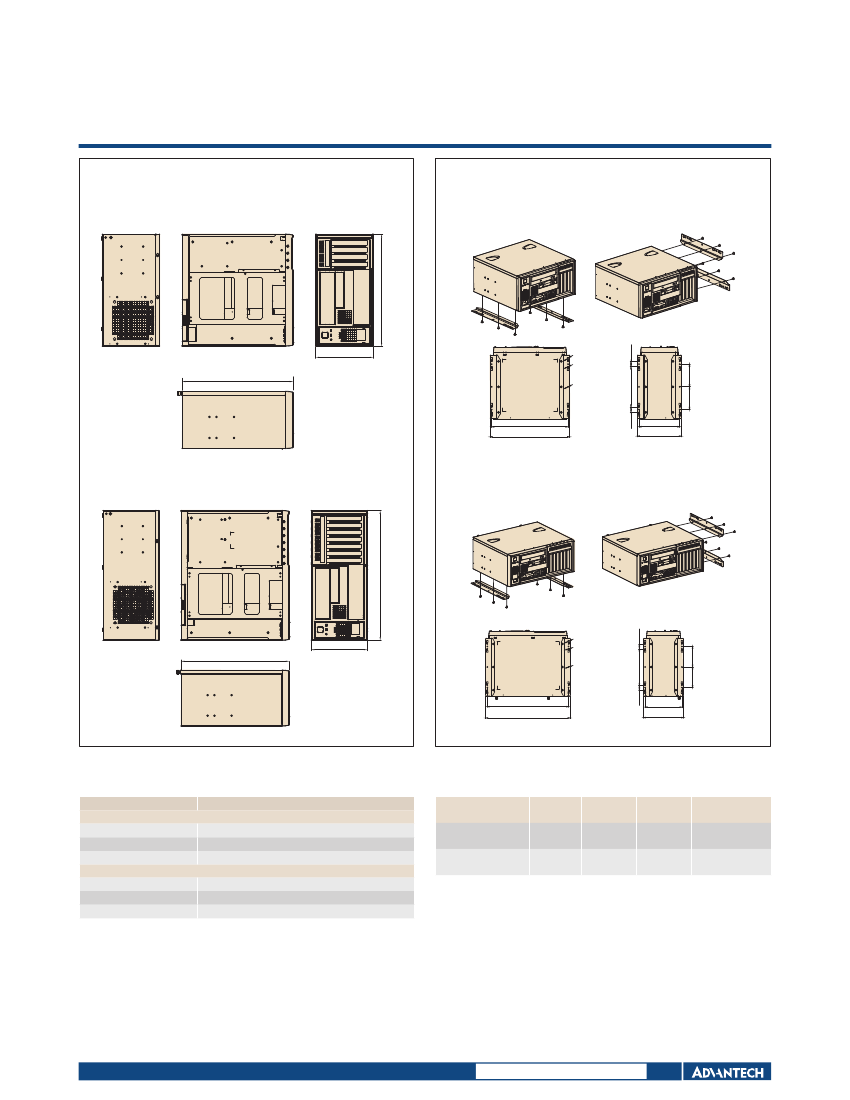

Industrial Chassis

All product specifications are subject to change without notice

Last updated : 7-May-2015
