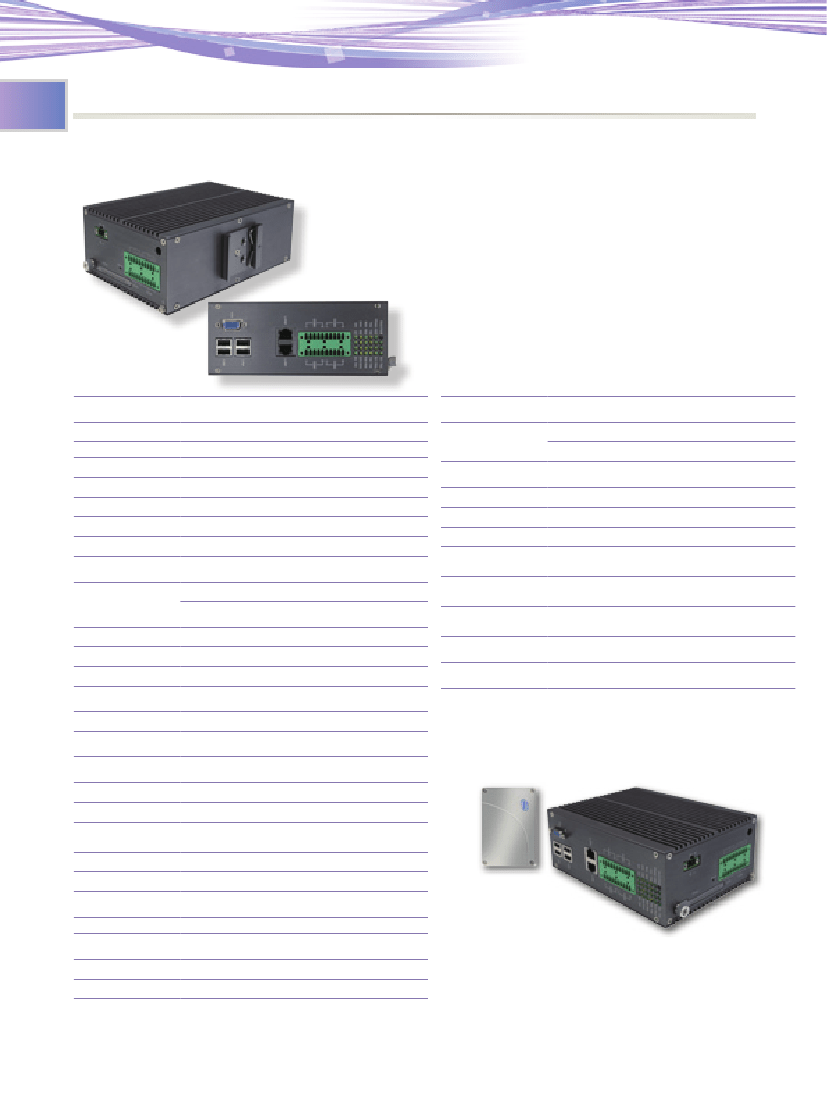

ARES-5423
Programmable Embedded Controller with Intel® Atom™
D2550 Platform
Features
• Less
Cable, Fanless Design
• Rich
I/O on the Panel with 6 x COM, DIO, 4 x USB.
• LED
Indicator on the Panel with Power/HDD/COM/DIO
• CFast
Socket, Outside Accessible
• Support
Din-Rail Mounting
• Rugged
Design for Shock/Vibration Protection
• Easy
Installation/Maintenance
System
CPU
Memory
Chipset
Graphics
ATA
LAN Chipset
Watchdog Timer
Soldered onboard Intel
®
Atom™ D2550 1.86GHz processor
Soldered onboard 2GB DDR3 SDRAM
Intel NM10
Integrated Intel
®
GMA3650
1 x Serial ATA port at 300MB/s HDD transfer rate
2 x Realtek 8111 GbE controllers
1~255 levels reset
®
Storage
Type
1 x 2.5" drive bay for HDD/SSD
1 x CFast socket, outside accessible
Mechanical
Construction
Mounting
Weight
Dimensions
(W x D x H)
Whole Aluminum chassis
Din rail mounting
1.7 kg (3.74 lb) (Barebone)
170 x 127 x 70 mm (6.69" x 4.9" x 2.7")
I/O
Serial Port
USB Port
LAN
Video Port
Selectable Port
LED Indicator
Expansion Bus
2 x RS-232 ports, all are 1x10-pin terminal block
4 x RS-232/485 selectable ports, all are 2x10-pin
terminal block
4 x USB 2.0 ports
2 x RJ-45 ports
1 x DB-15 female connector for Analog RGB
1 x 8-bit digital I/O, 4 in/4 out, all are 1x10-pin terminal
block
PW/HDD/COM/DIO
1 x Mini-card slot interconnected with SIM card socket
for optional WiFi or HSUPA module
OS Support
Windows XP Embedded / Windows XP Professional / Windows Embedded 7 Pro-
fessional / Windows Embedded 7 Standard
Ordering Information
ARES-5423
Barebone system w/ Atom™ D2550 CPU, 2GB DRAM,
CFast
Environmental
Operating Temp.
Storage Temp.
Operating
Humidity
Vibration
Shock
Certification
Power Input
-10 ~ 55°C (14 ~ 131°F), ambient w/ air flow
-40 ~ 80°C (-40 ~ 176°F)
10 ~ 95% @ 55°C (non-condensing)
5~500Hz, 3 Grms Random
Operating 40G (11ms), Non-operating 80G with CF/SSD
Qualification
CE, FCC Class A
Power Requirement
DC 9~36V input (w/ 2-pin DC input terminal block)
Power Consumption
25W
58
All specifications are subject to change without notice.

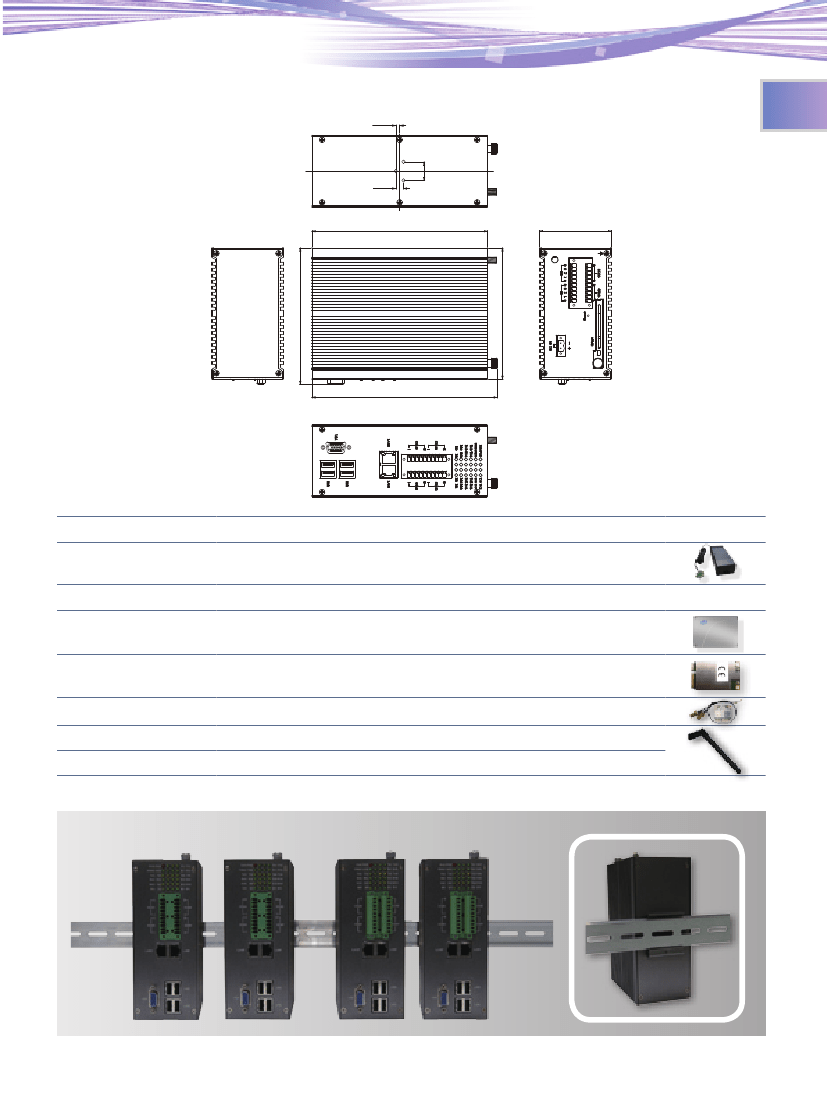

Dimensions
3.75
18
7.5
170
70
131.97
179
127
Unit: mm
Optional Accessories
PAC-B065W-1
19V/3.4A 65W AC/DC adapter kit
Optional Configuration (CTOS* Kit)
SSD-25040
HSPA-SI1400
WIFI-IN1300
ANT-D11
ANT-H11
Intel
®
2.5” 40GB SATAII SSD kit
HSUPA 3.75G module kit & internal wiring
Intel
®
Centrino
®
Advanced-N 6205 WiFi module w/ 20cm internal wiring
1 x WiFi Dual-band 2.4G/5G antenna
1 x 2dBi HSUPA antenna
*CTOS means Configure-to-Order Service.
» Example of ARES-5423 mounted on DIN rail
All specifications are subject to change without notice.
59
