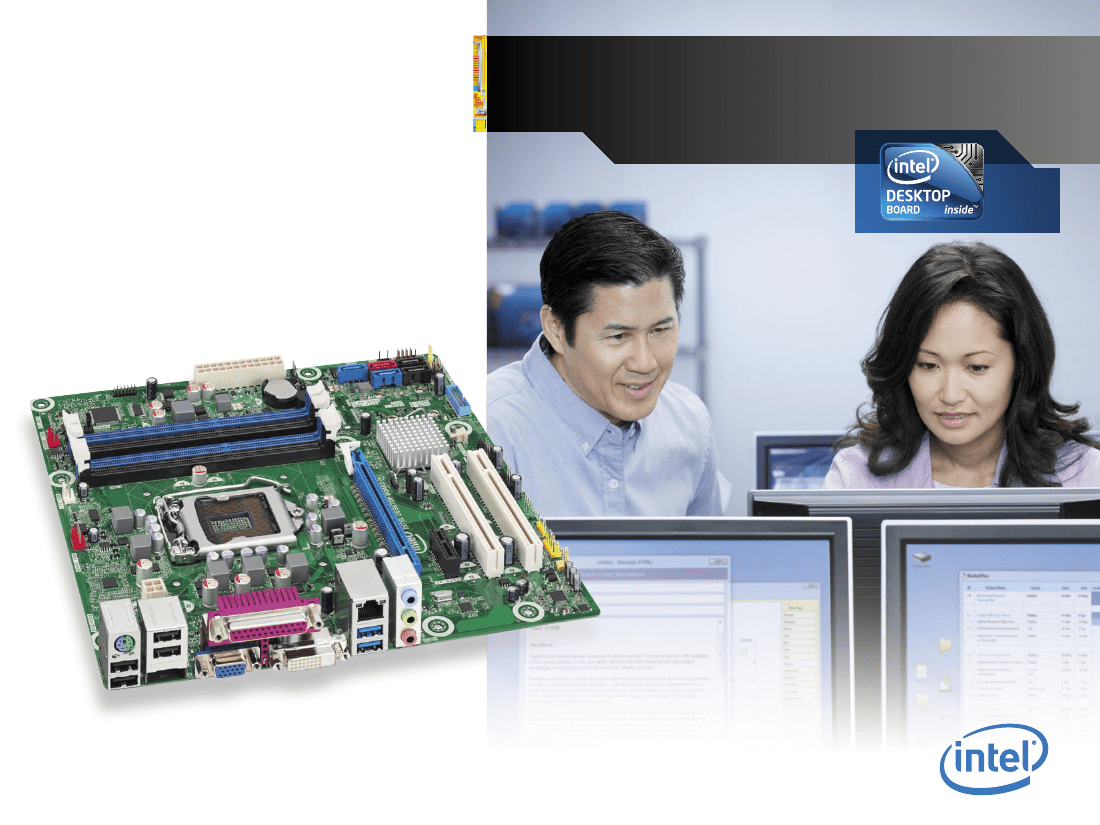

intel® Desktop board DQ77CP
Executive Series
The intel® Desktop board DQ77CP solution includes:
• ATX 2.2 compliant I/O shield
• SATA data cables
• Board and back panel I/O layout stickers
• Integration guide
• TPM Quick reference guide
• Intel® Express Installer driver and software DVD
CAPAbiLiTY
utilities
Productivity
SoFTWAre iNCLuDeD
• Intel® Integrator Toolkit
• Splashtop* Remote Desktop
• Laplink* PCmover* Express
• RealVNC* Viewer Plus
• McAfee* Antivirus Plus (60 days license)
• ESET* Smart Security 5 (45 days license)
built for business
Driven by today’s sophisticated and competi-
tive business environment, PC effectiveness
and efficiency is crucial to operations success.
The Intel® Desktop Board DQ77CP is designed
and engineered to provide businesses a stable
and reliable platform that enhances office
productivity. It comes with better remote man-
ageability and data security features. Based
on the new Intel® Q77 Express Chipset
with built-in Intel® Active Management Tech-
nology 8.0, the Intel® Desktop Board DQ77CP
supports 2
nd
and 3
rd
gen Intel® Core™ vPro™
processors in the latest LGA1155 package
– bringing you unprecedented business PC
performance. The 3
rd
gen Intel® Core proces-
sors also feature optimized Intel® Turbo Boost
Technology
1
and enhanced Intel® Hyper-
Threading Technology
2
, which provide smarter
performance and a seamless visual experience.
Besides essential features, extensive expand-
ability options are available on the Intel® Desktop
Board DQ77CP, including 1 eSATA port, 4 USB3.0
and 1 PCI Express 3.0 x16 graphic connector.
It is also one of the few boards that come with
legacy connectivity such as Parallel Port, PS/2
Port and Serial Header. The Intel® Desktop
Board DQ77CP supports Intel® Identity Protec-
tion and Intel® Anti-Theft Technology to further
safeguard businesses.
Seamless PC remote Manageability
Uniquely powered by Intel® vPro™ technology,
the Intel® Desktop Board DQ77CP is equipped
with improved KVM Remote Control manage-
ability, enabling remote access and control
of a PC, even when the PC is in OOB (Out-Of-
Band) state. Desk-side troubleshooting is tre-
mendously reduced with KVM Remote Control,
saving both time and money.
Data Security Features
Protect sensitive office data with RAID built
into the Intel® Q77 Express Chipset, with mul-
tiple configurations to support RAID 0, 1, 5
and 10. Encryption and signature keys are
protected from software-based attacks with
onboard Trusted Platform Module (TPM). Also
included in the Intel® Desktop Board DQ77CP
are the award-winning antivirus software
McAfee* Antivirus Plus and ESET* Smart
Security 5 with 60-day and 45-day license
respectively.
Multiple Operating System Certifications
The Intel® Desktop Board DQ77CP is certified
with Windows* 7, RedHat* and SUSE* Linux*.
Product Stability
Intel® Desktop Board DQ77CP comes under
Intel® Stable Image Platform Program (SIPP)
and Intel® Extended Life Program (XLP).
Security
2

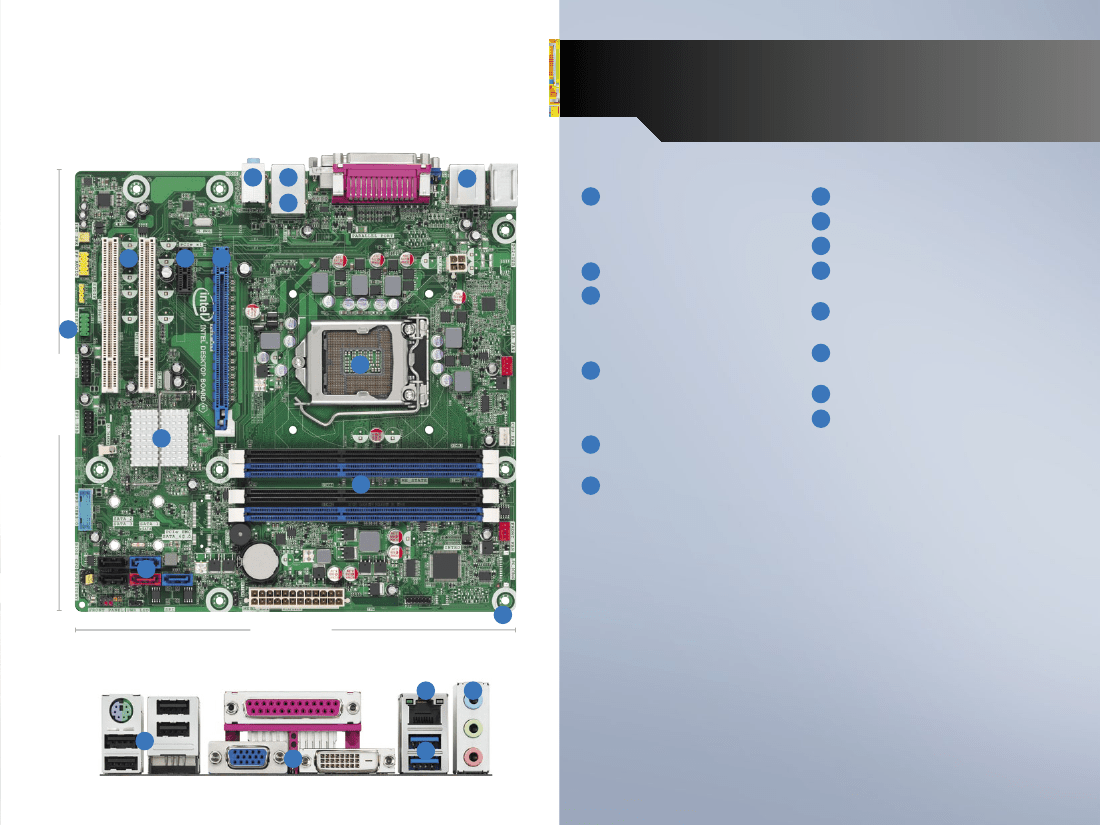

intel® Desktop board DQ77CP
Technical Specifications
Executive Series
AuDio
• Eight-channel Intel® High Definition Audio
2
codec
JuMPerS AND FroNT-PANeL CoNNeCTorS
Jumpers
• Single configuration jumper design
• Jumper access for BIOS maintenance mode
Front-Panel Connectors
• Reset, HDD LED, Power LEDs, power on/off
• Front-panel Hi-Speed USB 2.0 headers
• Front-panel audio header
MeCHANiCAL
board Style
• MicroATX 2.2-compliant
board Size
• 9.6” x 9.6” (24.38 cm x 24.38 cm)
baseboard Power requirements
• ATX 12 V
eNViroNMeNT
operating Temperature
• 0°C to +55°C
Storage Temperature
• -20°C to +70°C
reGuLATioNS AND SAFeTY STANDArDS
united States and Canada
CSA / UL 60950-1, First Edition (Binational Standard)
europe
(Low Voltage Directive 2006/95/EC)
EN 60950-1
international
IEC 60950-1
eMC reGuLATioNS (tested in representative chassis)
united States
FCC 47 CFR Part 15, Subpart B
Canada
ICES-003 Class B
europe
(EMC Directive 2004/108/EC)
EN 55022 and EN 55024
Australia / New Zealand
EN 55022 Class B
Japan
VCCI V-3, V-4 Class B
South korea
KN-22 and KN-24
Taiwan
CNS 13438 Class B
international
CISPR 22 Class B
eNViroNMeNTAL CoMPLiANCe
europe
Europe RoHS (Directive 2002/95/EC)
China
China RoHS (MII Order # 39)
ProCeSSor
Processor Support
• Intel® Core™ i7 and Intel® Core™ i5 processors and other
Intel® processors in the LGA1155 package.
• Supports Intel® 64 architecture
5
CHiPSeT
intel® Q77 express Chipset
• Intel® Q77 Platform Controller Hub (PCH)
PeriPHerAL CoNNeCTiViTY
• 5 SATA ports (2 SATA 6.0 Gb/s headers;
2 SATA 3.0 Gb/s headers; 1 eSATA header)
• Integrated 10/100/1000 Network Connection
• 4 Super-Speed USB 3.0 ports (2 back panel ports;
2 internal headers)
• 8 Hi-Speed USB 2.0 ports (4 back panel ports;
4 internal headers)
SYSTeM bioS
• 96 Mb Flash EEPROM with Intel® Platform Innovation
Framework for EFI Plug and Play
• Advanced configuration and power interface V3.0b,
SMBIOS2.5
• Intel® Express BIOS update support
SYSTeM MeMorY
Memory Capacity
• Two 240-pin DIMM connectors supporting up to two
double-sided DIMMs (32 GB
4
max)
Memory Types
• DDR3 1600
3
/ 1333 SDRAM memory support
• Non-ECC Memory
Memory Modes
• Dual- or single-channel operation support
Memory Voltage
• 1.2 V to 1.8 V
HArDWAre MANAGeMeNT FeATureS
• Processor fan speed control
• System chassis fan speed control
• Voltage and temperature sensing
• Fan sensor inputs used to monitor fan activity
• ACPI-compliant power management control
iNTeL® Pro 10/100/1000 NeTWork CoNNeCTioN
• Low-power design
eXPANSioN CAPAbiLiTieS
• Two PCI bus add-in card connector
• One PCI Express* 2.0 x1 bus add-in card connector
• One PCI Express 3.0 x16 graphics connector
HeADerS
• One serial port header
• S/PDIF audio header
1 Intel® Turbo Boost Technology – maximum single-core turbo frequency (GHz). Intel
turbo Boost Technology requires a PC with a processor with Intel Turbo boost
Technology capability. Intel Turbo Boost Technology performance varies depending
on hardware, software, and overall system configuration. Check with your PC
manufacturer on whether your system delivers Intel Turbo Boost Technology. See
www.intel.com/technology/tuboboost for more information
2 Intel® High Definition Audio requires a system with an appropriate Intel® chipset
and a motherboard with an appropriate codec and the necessary drivers installed.
System sound quality will vary depending on actual implementation, controller,
codec, drivers, and speakers. For more information about Intel® HD Audio, refer to
www.intel.com/design/chipsets/hdaudio.htm
3 WARNING: Altering PC memory frequency, voltage and/or latency may: (i) reduce
system stability and useful life of the system, memory and processor; (ii) cause
the processor and other system components to fail; (iii) cause reductions in system
performance; (iv) cause additional heat or other damage; and (v) affect system
data integrity. Intel has not tested, and does not warranty, the operation of the
memory beyond its specifications. Intel assumes no responsibility that the memory,
including if used with altered clock frequencies and/or voltages, will be fit for any
particular purpose. Check with memory manufacturer for warranty and additional
details.
4 System resources and hardware (such as PCI and PCI Express*) require physical
memory address locations that can reduce available addressable system memory.
This could result in a reduction of as much as 1 GB or more of physical addressable
memory being available to the operating system and applications, depending on
the system configuration and operating system.
5 64-bit computing on Intel® architecture requires a computer system with a processor,
chipset, BIOS, operating system, device drivers, and applications enabled for Intel®
64 architecture. Processors will not operate (including 32-bit operation) without
an Intel 64 architecture-enabled BIOS. Performance will vary depending on your
hardware and software configurations. See http://developer.intel.com/technology/
intel64/index.htm for more information.
6 Intel® Hyper-Threading Technology requires a computer system with a processor
supporting HT Technology and an HT Technology-enabled chipset, BIOS, and
operating system. Performance will vary depending on the specific hardware and
software you use. See www.intel.com/info/hyperthreading for more information.
