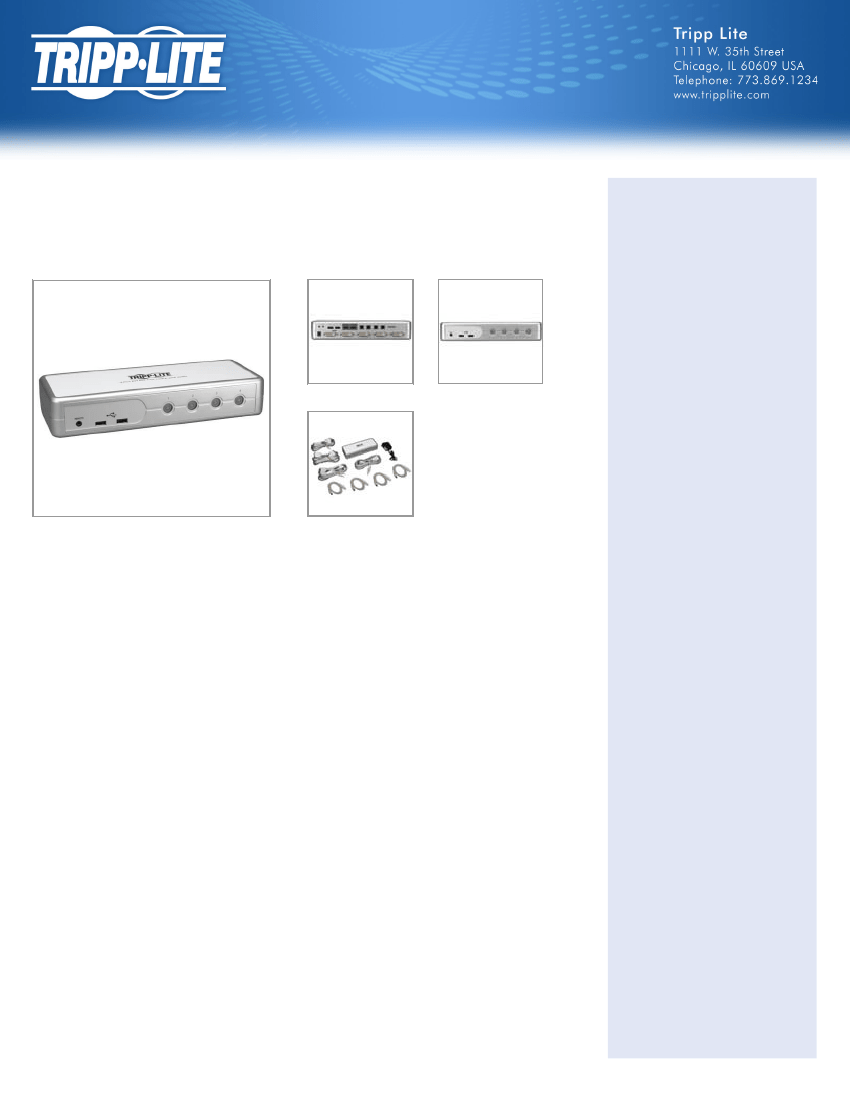

4-Port DVI/USB KVM Switch with Audio and
Cables
MODEL NUMBER:
B004-DUA4-K-R
Highlights
q
Control 4 computers with a
single DVI monitor, USB
keyboard and USB mouse
q
Switch ports via keyboard
hotkeys or pushbuttons
q
Allows for the sharing of audio
components between systems;
listen to music from one
computer while accessing
another
q
Features two USB 2.0 ports for
the sharing of USB peripherals
(e.g. flash drives, printers, etc.)
between the connected
computers
Description
The B004-DUA4-K-R is a 4-Port DVI/USB KVM Switch with audio and USB 2.0 peripheral sharing. It
allows you to access, control, boot and reboot four computers from a single USB keyboard, USB mouse,
and monitor. Switching between connected computers is quick and simple using keyboard hotkeys or
pushbuttons. An independent audio/mic and USB peripheral switching function allows for an uninterrupted
experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports,
while you listen to audio from and access another computer; all at the same time.
q
(x4) 6ft USB cables and (x4) 6ft
DVI + Audio KVM cable kits
included
q
Full time DDC support provides
the necessary EDID information
for optimal video performance
on Windows 7 and other
The B004-DUA4-K-R uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200)
or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for
conversion to an analog monitor. Whichever you use, full time DDC support provides the necessary EDID
information required for optimal video performance on Windows 7 and other operating systems.
Compatible with all major operating systems.
q
operating systems
Compatible with all major
operating systems
System Requirements
q
KVM Console: A DVI monitor,
USB keyboard, and USB mouse
Features
q
Fast, easy switching via keyboard hotkeys or pushbuttons
Plug-and-play setup - no software required
Hot-swap capability allows easy addition or removal of computers without powering down the switch or
other computers
q
Computers: DVI-I port (P118-
000 DVI-I to DVI-D Adapter is
required for computers with DVI-
D ports), and USB Port
q
q
q
Speaker and microphone connections allow for the sharing of audio components between systems
Supports 2-Channel Stereo Audio
Independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A
computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen
to audio from and access another computer; all at the same time.
q
Audio (Optional): A microphone
and speakers with 3.5mm Mini-
Stereo connectors and a
computer with 3.5mm Mini-
Stereo ports
q
q
q
Uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to
1/4
2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to
an analog monitor.
q
q
Compatible with all major
operating systems
To connect to a HDMI monitor, a DVI to HDMI adapter such as Tripp Lite's P132-000 is required (Audio
is not supported when converting from DVI to HDMI).
Package Includes
q
B004-DUA4-K-R
(x4) 6 ft. DVI-I + 3.5mm Audio
Cable kits
q
Full time DDC support provides the necessary EDID information for optimal video performance on
q
Windows 7 and other operating systems
q
Supports Microsoft® IntelliMouse® and the scrolling wheel on most mice
q
(x4) 6 ft. USB A-B device cables
Owner's Manual
External Power Supply with
NEMA 1-15P Plug (Input: 100-
240V, 50/60Hz, 0.4A Output:
5V, 3A)
q
(x4) 6ft USB cables and (x4) 6ft DVI + Audio KVM cable kits included
q
q
Compatible with all major operating systems
q
Specifications
OVERVIEW
UPC Code
AC Adapter
Max CPU
037332167903
Input: 100-240V, 50/60Hz, 0.8A Output: 5V, 3A
4
INPUT
Voltage Compatibility (VAC)
External Power Supply Input Specs
(V / Hz / A)
External Power Supply Output
Specs (V / A)
External Power Supply Cord Length
(ft.)
External Power Supply DC Barrel
Connector Specs
External Power Supply Plug(s)
External Power Supply Certifications
100; 110; 120; 127; 200; 208; 220; 230; 240
100-240V / 50/60Hz / 0.8A
5V / 3A
6
OD: 5.5 x 2.5 x 10mm, Positive Pin, Negative Sleeve
NEMA 1-15P North America; CEE 7/16 Schuko; BS 1363 UK; AS/NZS 3112 Australia
CE; FCC; UL; cUL; TUV; GS; BS; RCM; CB
USER INTERFACE, ALERTS & CONTROLS
LED Indicators
Blue (Selected PC)
PHYSICAL
Shipping Dimensions (hwd / in.)
5.00 x 10.00 x 12.60
2/4
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
Unit Packaging Type
Unit Dimensions (hwd / in.)
Unit Weight (lbs.)
Unit Weight (kg)
Material of Construction
Color
12.70 x 25.40 x 32.00
6.50
2.95
Box
1.9 x 10.2 x 4
1.2
0.54
ABS
Silver
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Relative Humidity
BTUs
Power Consumption (Watts)
32 to 104 F (0 to 40 C)
-4 to 140 F (-20 to 60 C)
0%-90% RH, Non-Condensing
27.3 BTU/Hr
8
COMMUNICATIONS
IP Remote Access
No
CONNECTIONS
Ports
PC/Server Connections
Side A - Connector 1
Side A - Connector 2
Side B - Connector 1
Side B - Connector 2
Side B - Connector 3
Computer Keyboard and Mouse
Interface
Computer Monitor Interface
Console Keyboard and Mouse
Interface
Console Monitor Interface
Connector Plating
4
DVI; USB
(4) DVI-I (FEMALE)
(4) USB B (FEMALE)
DVI-I (FEMALE)
(2) USB A (FEMALE)
(2) 3.5MM (FEMALE)
USB
DVI-I Single-Link
USB
DVI-I Single-Link
Nickel
FEATURES & SPECIFICATIONS
Number of Users
1
3/4
NIAP-Certified Secure
Port Selection
Max Supported Video Resolution
USB Hub Ports
Number of USB Hub Ports
USB Specification
Driver Required
Cat5 KVM Switch
Technology
No
Pushbutton; Hotkey
1920 x 1200 (Digital), 2048 x 1536 (Analog)
Yes
2
USB 2.0 (up to 480 Mbps)
No
No
USB 2.0 (High Speed); DVI; USB; Stereo Audio
CERTIFICATIONS
Certifications
Tested to CE, FCC, RoHS, REACH
WARRANTY
Product Warranty Period
(Worldwide)
3-year limited warranty
© 2018 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
4/4
