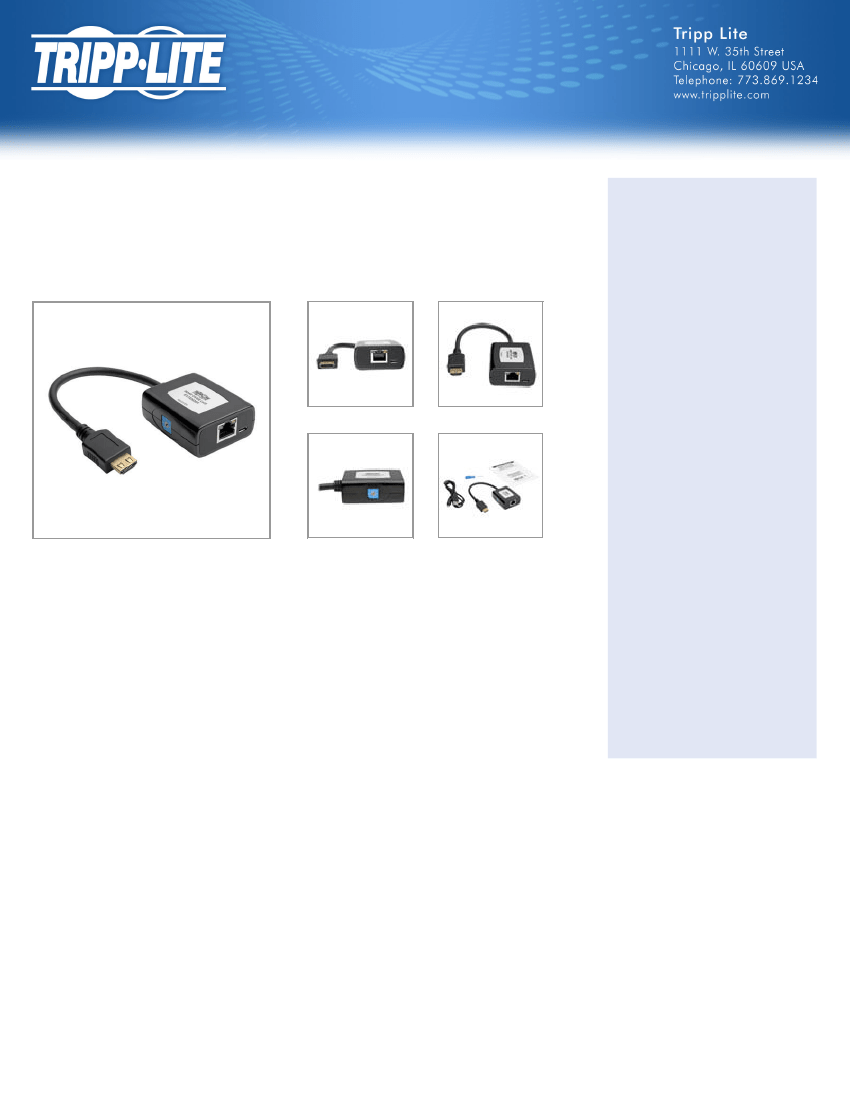

HDMI over Cat5/Cat6 Active Extender, Pigtail-
Style Receiver for Video and Audio, 1080p @ 60
Hz, USB Powered, TAA
MODEL NUMBER:
B126-1A0-U
Highlights
q
Supports high-definition video
resolutions up to 1080p (@ 60
Hz)
q
Supports stereo audio and
HDCP
q
Works with all operating
systems and HDMI sources
q
Built-in cable includes latching
HDMI connector for a more
secure connection
q
Plug and play—no software,
drivers or external power supply
q
Built-in equalization control lets
you adjust monitor image
System Requirements
Works with Tripp Lite’s B126-Series transmitters to extend an HDMI audio/video signal via Cat5e/6 cable
to an HDMI display up to 125 ft. Ideal for digital signs, schools, retail settings and trade show
presentations.
q
Display with HDMI port
Package Includes
q
B126-1A0-U Receiver unit
USB Micro-B to USB-A cable, 3
ft.
Description
The B126-1A0-U HDMI over Cat5/Cat6 Active Extender works with Tripp Lite’s B126-002 or B126-004
transmitter to extend an HDMI audio/video signal to an HDMI projector, monitor or television. It’s ideal for
q
q
digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications
where the video source is located farther than conventional cables allow. A latching HDMI connector on
the built-in cable provides a more secure connection
q
Screwdriver for adjusting
equalization
Owner’s manual
The receiver’s built-in HDMI cable connects to the display. Cat5e/6 cable connects the receiver to the
B126-Series transmitter (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s
N202-Series). Power is supplied by the included USB Micro-B to USB-A cable, which connects between
the receiver and a USB port on the display or a USB wall charger.
The B126-1A0-U can extend a 1080p (@ 60 Hz) signal up to 125 feet with full, rich stereo. Built-in RJ45
LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets
you fine-tune the image quality at the display. Easy to set up with no software or drivers to install. Works
with all operating systems and HDMI sources.
Features
Extends HDMI Audio/Video Signals to an HDMI Display
q
Extends a 1080p (@ 60 Hz) signal up to 125 ft.
Ideal for digital signs, trade shows, presentations, classrooms, churches and retail settings
Built-in cable includes latching HDMI connector for a more secure connection
1/3
q
q
q
Connects to transmitter with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable,
such as Tripp Lite’s N202-Series)
q
Supports stereo audio and HDCP
Built-in equalization control lets you adjust the image
q
Easy to Set Up and Use
q
Plug-and-play engineering—no software, drivers or external power supply
Powered via included USB cable
Connects quickly to display with built-in HDMI cable
LEDs indicate when units are receiving power and a signal from the source
Works with all operating systems and HDMI sources
q
q
q
q
TAA-Compliant
q
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
OVERVIEW
UPC Code
037332190253
PHYSICAL
Shipping Dimensions (hwd / in.)
Shipping Dimensions (hwd / cm)
Shipping Weight (lbs.)
Shipping Weight (kg)
1.30 x 6.14 x 4.80
3.30 x 15.60 x 12.19
0.25
0.11
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 720P Range (ft)
125
125
125
125
125
125
125
125
125
125
