Silicon Bilateral Voltage Triggered Switch
n
Features
l
l
l
K Series
SIDAC
n
General Description
The sidac is a silicon bilateral voltage
triggered switch with greater power-handling
capabilities than standard diacs. Upon
application of a voltage exceeding the sidac
breakover voltage point, the sidac switches on
through a negative resistance region to a low
on-state voltage. Conduction continues until
the current is interrupted or drops below the
minimum holding current of the device.
CERAMATE offers a voltage range of 95 V to
330 V in DO-15 package.
CERAMATE’s sidacs feature glass passivated
junctions to ensure a rugged and dependable
device capable of withstanding harsh
environments.
Variations of devices covered in this data
sheet are available for custom design
applications. Consult the factory for more
information.
AC circuit oriented
Glass-passivated junctions
High surge current capability
n
Applications
l
l
l
l
l
l
l
l
l
High voltage lamp ignitors
Natural gas ignitors
Gas oil ignitors
High voltage power supplies
Xenon ignitors
Over voltage protector
Pulse generators
Fluorescent lighting ignitors
HID surge current capability
n
Electrical Characteristics
V
BO
Breakover Voltage
Part No
(Instantaneous
clamping voltage)
MIN (V)
MAX (V)
V
DRM
Blocking
Voltage
MIN (V)
I
DRM
Peak
Off-state
Current at
V
DRM
MAX (µA)
I
T
I
H
V
TM
Peak
On-state
Voltage I
T
=1A
MAX (V)
Continuous
On-state
Holding
DC or RMS Current
Current
MAX (A)
MAX (mA)
K105
K110
K120
K130
K140
K150
K200
K220
K240
K250
K300
95
104
110
120
130
140
190
205
220
240
270
113
118
125
138
146
170
215
230
250
280
330
75
85
90
95
105
115
150
165
175
190
215
10
10
10
10
10
10
10
10
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
100
100
100
100
100
100
100
100
100
100
100
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
* All specs and applications shown above subject to change without prior notice.
1F-5 NO.66 SEC.2 NAN-KAN RD ., LUCHU , TAOYUAN, TAIWAN
Email: server@ceramate.com.tw
Tel:886-3-3214525
Http: www.ceramate.com.tw
Page 1 of 2
Rev 1.1 Sep. 9,2002
Fax:886-3-3521052
Silicon Bilateral Voltage Triggered Switch
I
PP
Series
Peak pulse current, T
J
<150º C
(10×160µs)
Max (A)
K
60
(10×560µs)
Max (A)
35
(10×1000µs)
Max (A)
35
60Hz (A)
20
50Hz (A)
16.7
TYPICAL (A/µs)
100
K Series
SIDAC
I
TSM
Peak one
Cycle(sinusoidal) Surge
Current
di/dt
Critical Rate of
Rise of On-state
Current
n

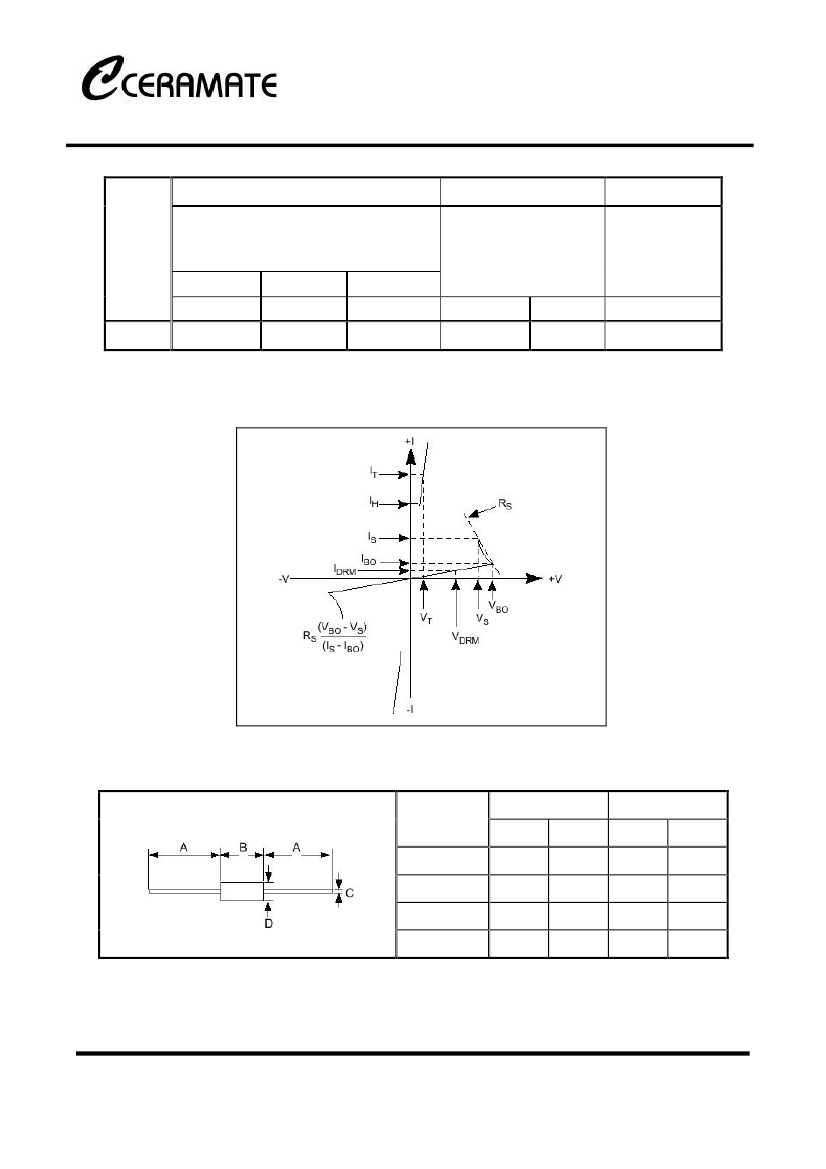

V-I Characteristics
n
Package Dimensions
K Series / DO-15
Ref
A
B
C
D
Inches
Min
1.0
0.22
0.028
0.10
0.30
0.035
0.15
Max
Millimeters
Min
25.4
5.60
0.70
2.60
7.60
0.90
3.80
Max
* All specs and applications shown above subject to change without prior notice.
1F-5 NO.66 SEC.2 NAN-KAN RD ., LUCHU , TAOYUAN, TAIWAN
Email: server@ceramate.com.tw
Tel:886-3-3214525
Http: www.ceramate.com.tw
Page 2 of 2
Rev 1.1 Sep. 9,2002
Fax:886-3-3521052
