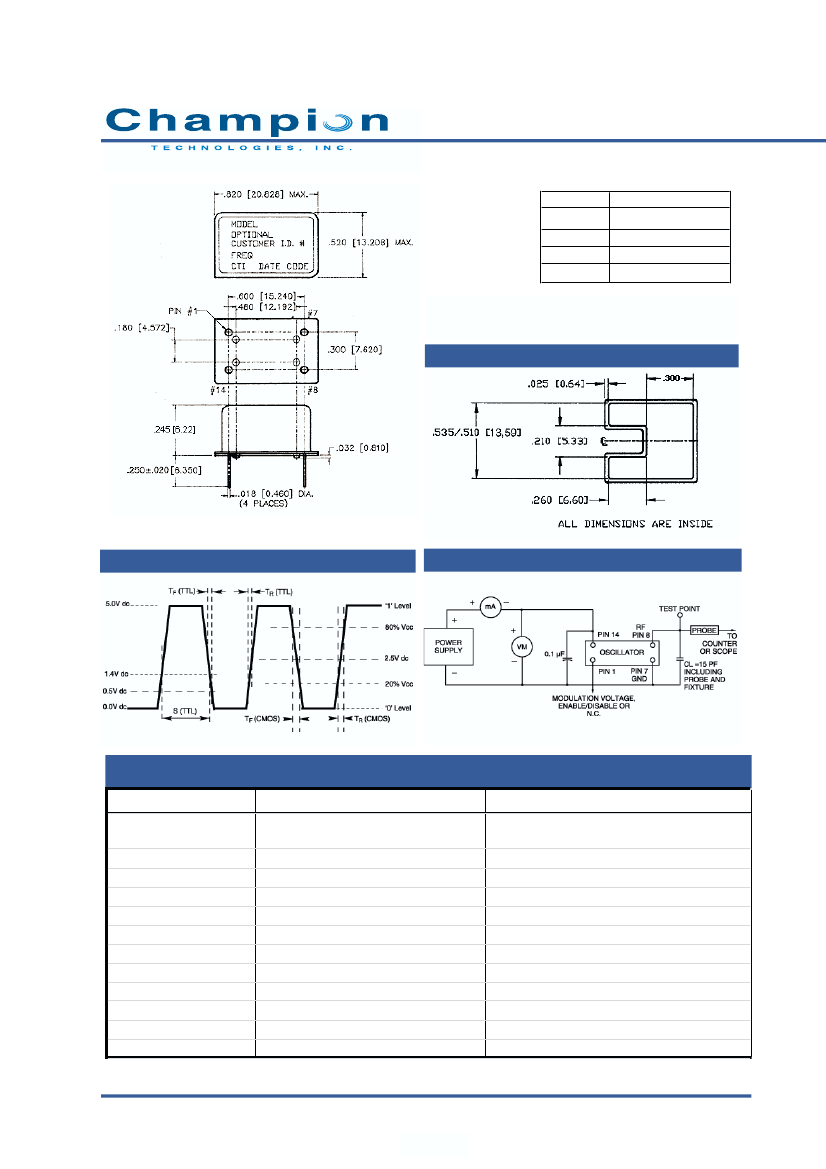

K1300 Series
5V Crystal Clock Oscillators
!
!
!
!
!
!
TTL/CMOS Compatible
Tri-State Feature for Auto Test Systems
Fast Rise and Fall Times
70 to 120 MHz Frequency Range
Tight Symmetry (45/55%) Available
±100ppm Stability Standard
±50ppm Stability Available - K1350
ax.
mM
8m
20,
ax.
mM
2m
13,
HZ
E
00
K13
00.000
M E COD
T
1
TI DA
C
m
2m
6,2
x.
Ma
PIN 1
E L E C T R I C A L S P E C I F I C AT I O N S
MODEL
Frequency Range (MHz)
Frequency Stability (ppm)
Overall (Typical)
0°C to 70°C
Temperature Range (°C)
Operating
Storage
Supply Voltage (V)
Output TTL
Input Current (mA)
Symmetry (%)
TR and TF (ns)
Fanout
Output CMOS
Input Current (mA)
Symmetry (%)
TR and TF (ns)
Start up Time (ms)
TTL
CMOS
<10
<45
100 max
40/60 @ 0.5VCC
5 (20% -80 % VCC)
50 -80 max
40/60 @ 1.4V
5 (0.5V to 2.5V)
10
0°C to +70°C
-55°C to +125°C
+5.0 ±5%
Inclusive of calibration, temperature, voltage, load, shock,vibration, aging
±100
±50
K1300
70 to 120
K1350
PA R T N U M B E R I N G G U I D E
K13XXXX -
Specify Frequency
“Blank” = TTL Output
“C” = CMOS Output
“Blank” = 40/60% Symmetry
“S” = 45/55% Symmetry (Available to 100MHz.
“00” = ±100ppm Stability
“50” = ±50ppm
2553 N. Edgington Street, Franklin Park, IL 60131
"
Phone: 847.451.1000
"
Fax: 847.451.7585
800-888-1499 or www.champtech.com
1
K1300 Series
5V Crystal Clock Oscillators
PIN
1
2
3
4
FUNCTION
Tri-State*
Ground
Output
+ VCC
* Input tied internally to +5V. External input if any, should not
be less than +3V and not greater than +3.8V for TTL version.
For CMOS models, enable with either an open circuit or +5V.
SHIPPING TUBE CROSS SECTION
OUTPUT WAVEFORM
TEST CIRCUIT DIAGRAM
MECHANICAL AND ENVIRONMENTAL SPECIFICATIONS
TEST METHODS
Temperature Cycle
Mechanical Shock
Vibration
Humidity Steady State
Thermal Shock
Electrostatic Discharge
Solderability
Hermeticity
Resistance to Soldering
Lead Integrity
Marking Permanence
Life Test
REFERENCE PROCEDURES
MIL-STD-833, Mtd 1010, Cond. B
MIL-STD-883, Mtd 2002, Cond. B
MIL-STD 883, Mtd 2007, Cond. B
MIL-STD-202, Mtd 103
MIL-STD-883, Mtd 1011.7 Cond. B
MIL-STD-883, Mtd 3015 Class II
MIL-STD-883, Mtd 2022.2
MIL-STD-883, Mtd 1014.8, Cond. A1
DESCRIPTION
-55°C to +125°C; Air-to-Air; 100 cycles; 10
min. dwell
1500 g’s
20-2000 Hz; 0.06 inch; 15g’s; 3 planes
40°C; 90%-95% R.H.; 56 days
100°C to 0°C; Water-to-Water; 15 cycles
2 KV to 4 KV Threshold
Solder dip; Meniscograph Criteria
Mass spectro. 2 x 10-8 atmos. CC/sec He
MIL-STD-202, Mtd 210D, Cond. J
235°C; 30 seconds
MIL-STD-883, Mtd 2004.5, Cond. A, B1 Lead tension & bend stress
MIL-STD-883, Mtd 2015.8
MIL-STD-883, Mtd 1005.6
Resistance to solvents
125
°C, powered, 1000 hours minimum
2553 N. Edgington Street, Franklin Park, IL 60131
"
Phone: 847.451.1000
"
Fax: 847.451.7585
800-888-1499 or www.champtech.com
2
