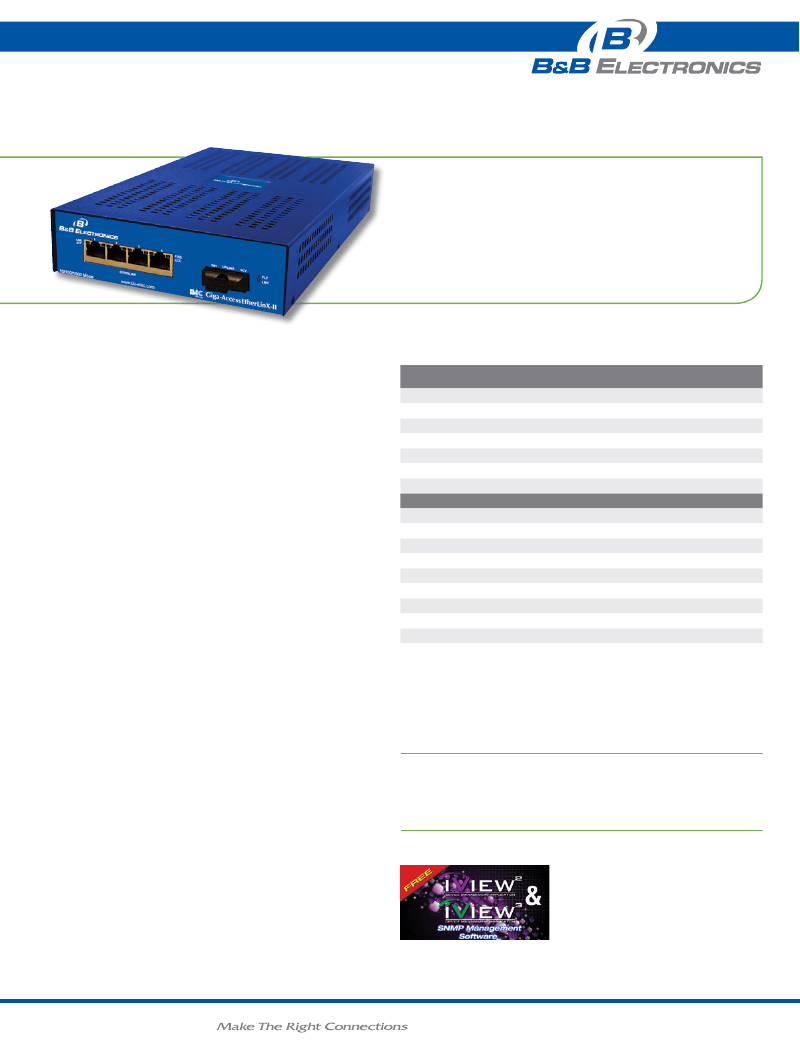

10/100/1000 mbps managed multi-port
optical demarcation device
Giga-AccessEtherLinX-II DC Version
product FEaturEs
•
•
•
•
•
•
802.1Q VLAN-tags on per-port basis, based on DiffServ or PRI values
SNMP Manageable
QoS - 802.1p-based packet prioritization
Per-port bi-directional Bandwidth control
VLAN-tagging and Q-in-Q (double-tagging) segregates customer traffic
Up and running in less then five minutes
The Giga-AccessEtherLinX-II enables service providers to offer
differentiated “Transparent LAN” services to multi-tenant building
and business customers without the need for costly remote routers.
Residing at the customer premises, the Giga-AccessEtherLinX-II
provides a VLAN-based, Layer 2 entry point to the last mile fiber
network to support trunking, differentiating and separating customer
traffic. Featuring SNMP management with per-port 802.1Q VLAN,
802.1p QoS, traffic prioritization, bandwidth control and multicast
pruning/snooping (using IGMP v1, v2), the Giga-AccessEtherLinX-II
is perfect for a wide range of Fiber-to-the-Home, Fiber-to-the-Curb
and Fiber-to-the-Business (FTTx) services, and is an ideal solution
for delivering Ethernet-based services to customers quickly and cost
effectively. Designed with a small footprint, the Giga-AccessEtherLinX-
II facilitates easy installation inside the premises. It features four
10/100/1000 twisted pair Ethernet downlink ports (for connecting
users/LANs), with either a 1000Base-FX fiber or SFP uplink port, and is
powered from an internal AC or DC power supply.
The Giga-AccessEtherLinX-II accepts traffic containing VLAN tags on
the Uplink port and directs that traffic to the twisted pair downlink
ports based on the VLAN ID. In addition to assigning 802.1Q VLAN-tags
on a per-port basis, users can also “Qualify” the different VLAN TAGS
to assign based on the DiffServ or PRI value of the incoming frame.
Traffic priority for each port is supported with a hi/low prioritization
queues. The Giga-AccessEtherLinX-II includes per port bi-directional
bandwidth control, and supports IGMP multicast pruning which ensures
only the necessary amount of IP multicast packets are bridged.
ordErIng InFormatIon
Model
FiBer range
FiBer
nuMBer
Ports
giga-accessetherlinx-ii dC
852-32302 SFP
1
Various
852-32303
SX-MM850-SC
1
550 m
1
15 km
852-32304
LX-SM1310-SC
852-32305
LX-SM1310/PLUS-SC
1
40 km
852-32306
LX-SM1550/PLUS-SC
1
80 km
852-32307
LX-SM1550/XLONG-SC
1
100 km
single strand FiBer *
852-32310
SSLX-SM1310-SC
1
15 km
852-32311
SSLX-SM1550-SC
1
15 km
852-32312
SSBX-SM1310-SC
1
10 km
852-32313
SSBX-SM1490-SC
1
10 km
852-32314
SSLX-SM1310/PLUS-SC
1
40 km
852-32315
SSLX-SM1550/PLUS-SC
1
40 km
852-32316
SSBX-SM1310/PLUS-SC
1
30 km
852-32317
SSBX-SM1490/PLUS-SC
1
30 km
852-32318
SSLX-SM1490/LONG-SC
1
70 km
852-32319
SSLX-SM1550/LONG-SC
1
70 km
ethernet
Ports
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
ethernet
ConneCtor
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
RJ45
* These products have single-strand fiber technology. Deploy in pairs or connect another compatible
B&B IMC LLC single-strand fiber product.
Giga-AccessEtherLinX-II DC also available in CWDM Fiber.
Call for details.
accEssorIEs
895-39226
- Rackmount Bracket
895-39949
- Rackmount Shelf
iView: Windows 2000/XP/Vista/Win7
www
.
bb
-
elec
.
com
|
Giga-AccessEtherLinX-II DC Version_3713ds
10/100/1000 mbps managed
multi-port optical
demarcation device
Giga-AccessEtherLinX-II DC Version

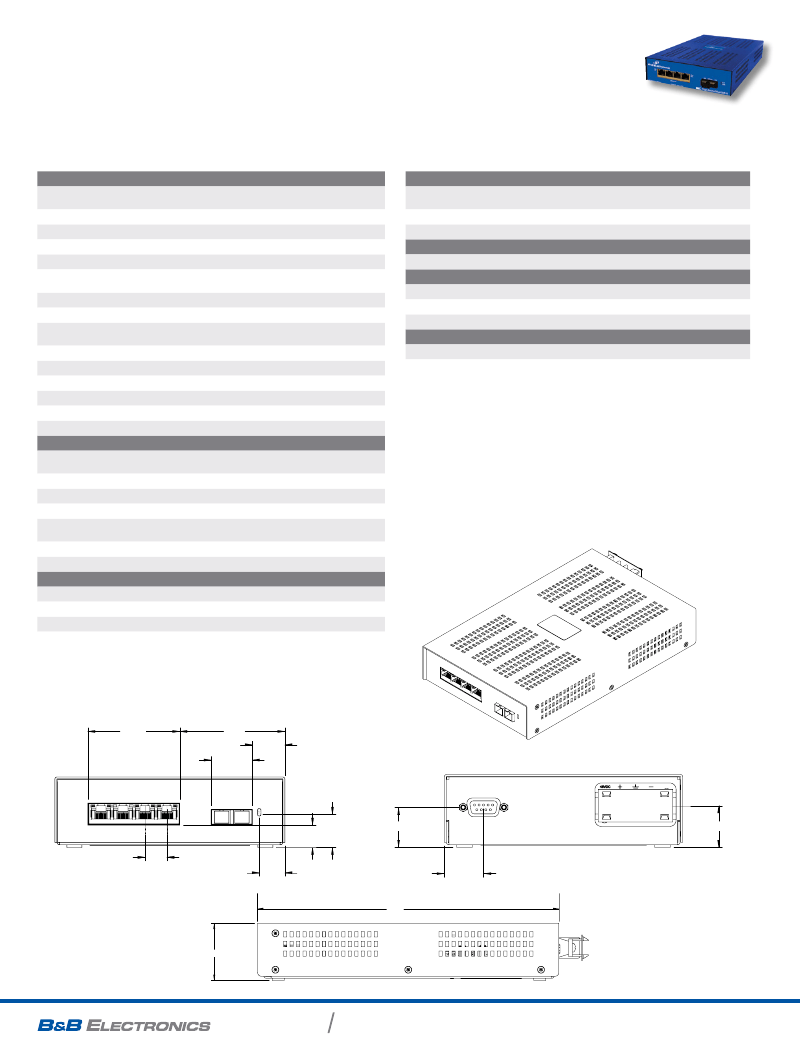

SpecificationS
General
Monitors (remote) status without a physical presence or separate “IP” connection
through UMA
Maintains security; all management traffic can remain isolated from the data traffic
Read/write IEEE 802.1Q VLAN-tags
Q-in-Q (double-tagging) to further segregate customer VLAN traffic
Can assign different TAGS based on DiffServ or PRI values of incoming frames.
QoS: IEEE 802.1p-based or DSCP packet prioritization
(2 queues [high/low] with 8 levels of priority)
VLAN Tag-based on DSCP or priority of incoming frame (“traffic grooming”)
Layer 2 packet switching, store and forward operation
Forwarding rate: 14,881 pps for 10 Mbps; 148,810 pps for 100 Mbps; 1,488,100
pps for 1000 Mbps
Includes per-port bi-directional bandwidth control
AutoCross for MDI/MDIX
Features Auto Negotiation and Selective Advertising
MTU: Supports packets up to 9600 bytes
Supports Half- and Full-Duplex operation
Supports IEEE 802.3x Flow Control
ManaGeMent
Includes GUI-based iView² software, featuring
iConfig utility for rapid IP configuration
SNMP V1 and V2c compatible
Includes DHCP client for IP address assignment
Features TFTP client for remote upgrades
Supports Telnet - Includes DB-9 connector for
serial configuration
Includes per port loopback test modes
Includes diagnostic LEDs
ethernet Protocols suPPorted
802.3 10Base-T twisted pair
802.3u 100Base-TX twisted pair
802.3ab 1000Base-T twisted pair
802.3z 1000Base-LX or SX fiber
mEchanIcal dIagram
(dimensions in inches)
Mechanical
Dimensions
Enclosure
Shipping Weight
Power rating
100-240V AC, 50/60Hz, 0.5/0.25A
environMental
Operating Temperature
+32° to 122° F (0° to +50° C)
Storage Temperature
-13° to +158°F (-25° to +70°C)
Operating Humidity
5 to 95% Non-condensing
regulatory aPProvals
FCC Class B
UL/cUL, CE, CB
1.64” H x 5.64” W x8.95” D
(4.2 cm x 14.3 cm x 22.7 cm)
Metal
1.6 lbs. (0.6 kg)
2.300
2.63
.82
1.030
.56
.550
3X
.64
.83
.97
1.01
.95
9.30
1.76
