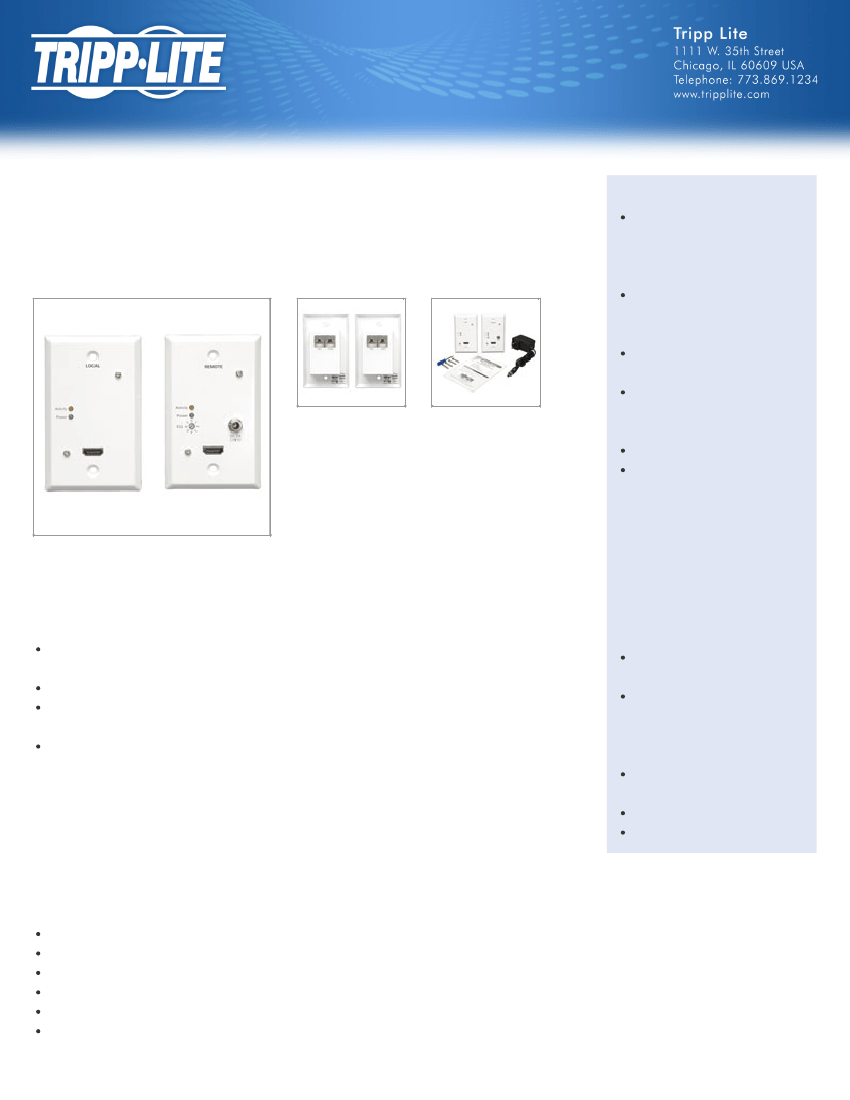

HDMI over Dual Cat5/6 Extender Kit, Wallplate
Transmitter/Receiver, Video and Audio, 1920x1200
1080p/60p, Up to 125-ft., TAA
MODEL NUMBER:
B125-101-60-WP
Highlights
Extends a 1080p @ 60Hz (or
1920 x 1200) signal up to 125 ft.
using 24Awg, Solid Wire Cat6*
cabling (Tripp Lite N202-Series)
Extends a 3D signal up to 100 ft.
using 24Awg, Solid Wire Cat6*
cabling (Tripp Lite N202-Series)
Supports 24-bit True Color (8-bits
per channel)
Supports DTS-HD, Dolby True
HD and 7.1 Channel Surround
Sound Audio
Supports HDCP, EDID and DDC
Compliant with the Federal Trade
Agreements Act (TAA) for GSA
Schedule purchases
Description
Tripp Lite's HDMI Over Dual Cat5 Extender Wallplate Kit is the perfect solution for those who need to extend a
HDMI signal over a long distance over two Cat5/6 cables.
*When using Cat5 cable, the
maximum extension distance is
reduced by 50 ft.
Package Includes
When using 24Awg, Solid Wire Cat6 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to
125 ft. from the source.
When using 24Awg, Solid Wire Cat6 cable, a 3D signal can be extended up to 100 ft.
When using 24Awg, Solid Wire Cat5 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to
75 ft. from the source.
When using 24Awg, Solid Wire Cat5 cable, a 3D signal can be extended up to 50 ft.
Local Transmitter and Receiver
Units
External Power Supply with
NEMA 1-15P Plug( Input:
100-240V, 50/60Hz, 0.5A;
Output: 5V, 2A )
Screwdriver for Equalization
Simply run two Cat5/6 cables between the local transmitter and remote receiver units, and plug in standard Tripp
Lite HDMI cables to the HDMI source and the display.
adjustment
Wallplate screws
Owners Manual
The B125-101-60-WP comes with both local transmitter and remote receiver wallplates. DTS-HD, Dolby True
HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8-bits per channel) is supported.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 125 ft. using 24Awg, Solid Wire Cat6 cabling (Tripp Lite N202-Series)
Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 75 ft. using 24Awg, Solid Wire Cat5 cabling
Extends a 3D signal up to 100 ft. using 24Awg, Solid Wire Cat6 cabling, or up to 50 ft. using 24Awg, Solid Wire Cat5 cabling
Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
Supports HDCP, EDID and DDC
Supports 24-bit True Color (8-bits per channel)
1/3
Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor
Equalization control dial for skew compensation
Supports Lip-Sync Pass Through, and CEC pass through
Green LED indicate power being received
Orange LED indicates signal connection
Compliant with the Federal Trade Agreements Act ( TAA ) for GSA schedule purchases
Specifications
OVERVIEW
AC Adapter
Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 720P Range (ft)
125
125
125
125
125
125
125
125
125
125
CONNECTIONS
Ports
Side A - Connector 1
Side A - Connector 2
Side B - Connector 1
Side B - Connector 2
1
HDMI (FEMALE)
(2) RJ45 (FEMALE)
HDMI (FEMALE)
(2) RJ45 (FEMALE)
WARRANTY
Product Warranty Period (Worldwide)
1-year limited warranty
© 2017 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
