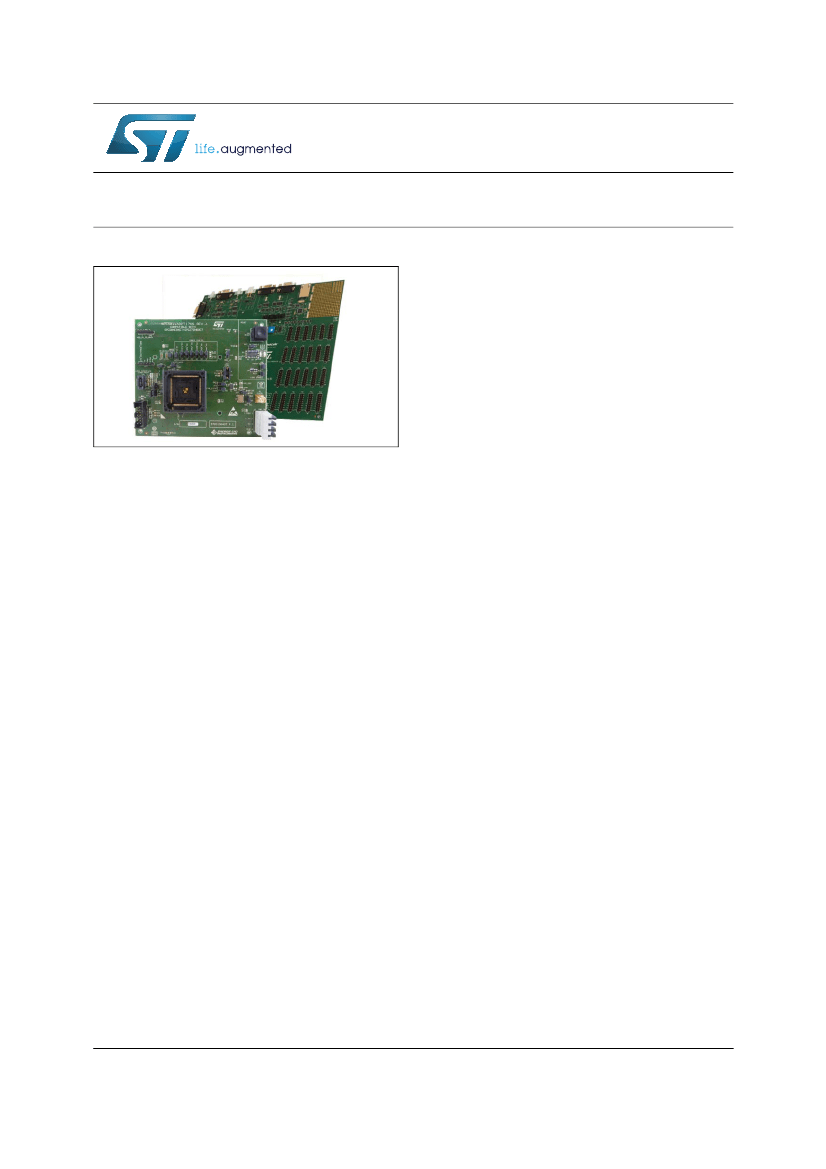

SPC58XXADPT176S
SPC58XXADPT176S microcontroller premium evaluation board for
SPC58EE84L7, SPC58NE84L7 and SPC58ENXXL7
Data brief
One potentiometer for analog voltage input and
four user switches and 4 user LEDs, freely
connectable
SPC58XXADPT176S:
Open top MCU socket
Flexible MCU clocking options
40 MHz crystal EVB clock circuit
8 MHz EVB clock oscillator circuit
external clock via SMA connector
User reset switch with reset status LEDs
14-pin standard JTAG connector
10-pin header connector for JTAG/LFAST
LVDS interface
10-pin header connector for SIPI interface
Minimodule dimension: 127 mm X 114.3 mm
Max Top components height 19.4 mm
PCB thickness 1.6mm
Max Bottom components height 3.5 mm
Features
SPC57XXMB:
SPC58x modular evaluation system
Single 12 V external power supply
Four on-board regulators:
– 5.0 V, 3.3 V and 1.25 V switching regulators
– 5 V linear regulator for the ADC supplies
and references
Master power switch and regulator status LEDs
Two 240-way high-density expansion
connectors for MCU daughter cards
All MCU signals readily accessible at a port-
ordered group of 0.1" pitch headers
RS232/SCI physical interface and standard
DB9 female connector
Two FlexRAY channels interface with a DB9
connector (for both transceivers) and two
alternative connectors
LINFlexD interface with two different style
connectors
Two high speed CAN channels and two female
standard DB9 connectors
Ethernet interface with a standard RJ45
Ethernet connector
Description
The SPC58XXADPT176S Premium Evaluation
Boards System supports the 32-bit
SPC58EE84L7, SPC58NE84L7 and
SPC58ENXXL7 STMicroelectronics' automotive
microcontrollers. The complete system consists of
an SPC57XXMB motherboard and an
SPC58XXADPT176S daughter card which plugs
into the motherboard. Different daughter cards
are available for evaluating the whole family of
devices in all supported packages. All daughter
cards are similar in design and concept. The
evaluation system (motherboard and daughter
card) allows full access to the CPU, all of the
CPU's I/O signals, and the motherboard
peripherals (such as CAN, SCI, LIN and
FlexRAY). The daughter card itself can be used
as a standalone unit when access to the I/O pins
or peripherals is not needed.
November 2017
DocID031258 Rev 1
1/4
www.st.com
For further information contact your local STMicroelectronics sales office.
