PCM-9343FG-S6A1E datasheet, PDF

Datasheet> All Categories > Module/solution> PCM-9343FG-S6A1E

PCM-9343FG-S6A1E: DescriptionSingle Board Computers 3.5 "SBC, DM&P Vortex86DX 1GHz w/ graphic, 256MB onboard memory, dual LAN; CategoryModule/solution; File Size656KB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PCM-9343FG-S6A1E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PCM-9343FG-S6A1E	-	-	View	Buy Now

PCM-9343FG-S6A1E Overview

Single Board Computers 3.5 "SBC, DM&P Vortex86DX 1GHz w/ graphic, 256MB onboard memory, dual LAN

PCM-9343FG-S6A1E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Advantech
Product Category	Single Board Computers
RoHS	Details
Form Factor	3.5 in
Processor Brand	DMP Electronics
Processor Type	DM&P Vortex86DX
Frequency	800 MHz
Memory Size	512 MB
Interface Type	Ethernet, I2C, PS/2, Serial, SPI, USB, VGA
Operating Supply Voltage	5 V
Maximum Operating Temperature	+ 60 C
Dimensions	146 mm x 102 mm
Description/Function	DM&P Vortex86DX 800 MHz 3.5 in SBC, ultra low power, onboard memory, dual ethernet, PC/104
Memory Type	DDR2, L2 Cache
Battery Backup Switching	Backup Battery
Cache Memory	256 kB
Chipsets	SMI SM712
Core	DM&P; Vortex86DX
Minimum Operating Temperature	0 C
Processor Series	DM&P Vortex86DX
Factory Pack Quantity	1

Preview

Download Datasheet

View All

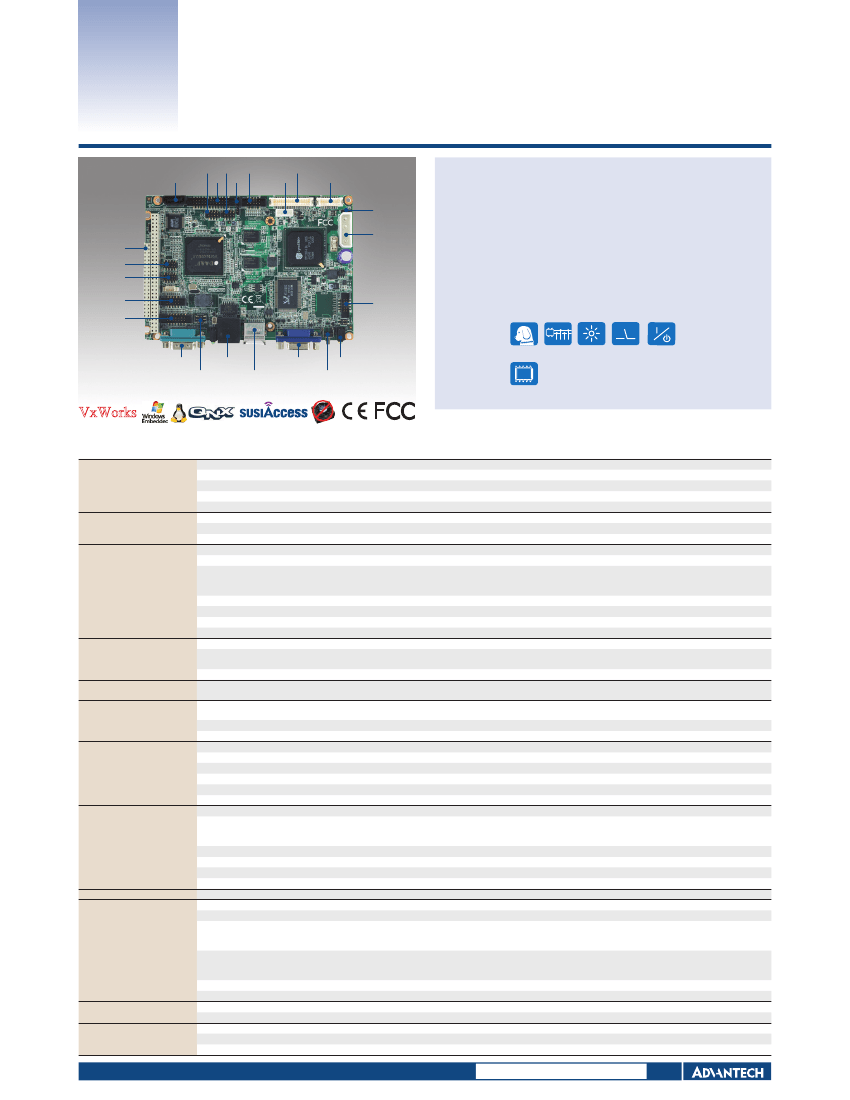

PCM-9343

SATA

USB23 USB01 COM3

LCD

LPT JTAG Inverter Power

24-bit LVDS

PC/104

GPIO01

GPIO02

COM4

COM2

DM&P Vortex86DX 800MHz 3.5" SBC, Ultra Low

Power, Onboard Memory, Dual Ethernet, CF, PC/104

Features

LVDS Power

Select

AT Power

DM&P Vortex86DX, onboard DDR2 memory up to 512 MB

Display type: VGA, 18/24-bit LVDS, 18/24-bit TTL

Supports Floating Point Unit, total power consumption 4 ~ 6 Watts, supports

extended temperature to -40 ~ 85° C

Dual Ethernet: 10/100 Ethernet1 and 10/100 Ethernet2, supports PC/104

(8-bit/16-bit ISA) expansion

Ethernet2

Supports SUSIAccess and Embedded Software APIs

Software APIs:

Watchdog

Brightness

GPIO Backlight On/Off

COM1

Ethernet1

VGA

IDE & Power LED

COM2

PS/2

232/422/485 Jumper

Utilities:

BIOS flash

VxWorks

Specifications

Processor System

CPU

Frequency

L2 Cache

System Chipset

BIOS

Technology

Max. Capacity

Onboard memory

Chipset

VRAM

Graphics Engine

Display

LVDS

VGA

TTL LCD

Dual Display

Speed

Controller

Connector

WatchDog Timer

CompactFlash

Storage

SATA

SPI Flash

Serial

Ethernet

PS/2 KB/Mouse

VGA

IDE&PWR LED

Reset Button

USB

Serial

Internal I/O

Ethernet

Parallel (LPT)

GPIO

PC/104 Slot

Power Type

Power Supply Voltage

Power Consumption (Typical)

Power

Power Consumption

(Max, test in HCT)

Power Management

Battery

Operational

Non-Operational

Dimensions (L x W)

Weight

Total Height

DM&P Vortex86DX 800 MHz, supports floating Point Unit (FPU)

800 MHz

256 KB

DM&P Vortex86DX + SMI SM712

Award integrated 16 Mbit ROM in SOC

DDR2 333 MHz SDRAM on board

512 MB

Onboard 256 MB or 512 MB

SMI SM712 2D graphics chip

4 MB internal memory

62.5 MHz single clock/cycle engine (EM+)

86 MHz single clock/cycle engine (EM4+)

Designed to accelerate DirectDraw

Supports single channel 18/24-bit LVDS LCD Panel to 1024 x 768 (1280 x 1024 supported by request)

Supports up to 1024 x 768 @ 85 Hz

Supports up to 1024 x 768 @ 24-bit TFT LCD Panel

VGA + TTL, VGA + LVDS

10/100 Mbps

Ethernet1: 10/100 Mbps on DM&P Vortex86DX

Ethernet2: 10/100 Mbps on Realtek RTL8110SC

RJ-45 on Ethernet1, box header on Ethernet2

Internal: 2 sets,

32.768 KHz frequency source to count a 24-bit counter so the time range is from 30.5μ sec to 512 sec with resolution 30.5μ sec

CompactFlash type I/II (Primary Master IDE Channel)

Supports 2 channels Ultra-DMA 100

1 x SATA (Max. Data Transfer Rate 150 MB/s)

Optional onboard 4MB SPI Flash Disk (Supported by request)

1 (COM1 supports RS-232) (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV) (COM1 supports console mode)

1 (10/100 Mbps Ethernet1)

4 x USB 2.0

3 COM (COM2, COM3, COM4) (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

COM2 supports RS-232/422/485 (Supports RS-485 auto flow control), COM2 supports console mode

COM3/COM4 supports RS-232

1 (10/100 Mbps Ethernet2)

16-bit GPIO

PC/104 Expansion (8/16-Bit ISA)

Single +5V boot up, ± 5% (+12V option for LCD, ISA)

PCM-9343EL: 0.44 A @ 5 V (2.2 W)

PCM-9343EF: 0.81 A @ 5 V (4.05 W)

PCM-9343EFG: 1.02 A @ 5 V (5.1 W)

PCM-9343EL: 0.75 A @ 5 V (3.75 W)

PCM-9343EF: 1.09 A @ 5 V (5.45 W)

PCM-9343EFG: 1.04 A @ 5 V (5.2 W)

APM

Lithium 3 V / 210 mAH

0 ~ 60° C (32 ~ 140° F) (Operating humidity: 40° C @ 95% RH non-condensing)

-40° C ~ 85° C and 60° C @ 95% RH non-condensing

146 x 102 mm (5.7" x 4")

0.64 kg (1.41 lb), weight of total package

23.7 mm

Memory

Ethernet

Rear I/O

Expansion

Environment

Physical Characteristics

Online Download

www.advantech.com/products

All product specifications are subject to change without notice

Last updated : 15-Jan-2014

PCM-9343FG-S6A1E Related Products

	PCM-9343FG-S6A1E	PCM-9343FGZ-S6A1E
Description	Single Board Computers 3.5 "SBC, DM&P Vortex86DX 1GHz w/ graphic, 256MB onboard memory, dual LAN	Single Board Computers 3.5 "SBC, DM&P Vortex86DX w/ graphic, 256MB onboard memory, -20 to 80C
Product Attribute	Attribute Value	Attribute Value
Manufacturer	Advantech	Advantech
Product Category	Single Board Computers	Single Board Computers
RoHS	Details	Details
Form Factor	3.5 in	3.5 in
Processor Brand	DMP Electronics	DMP Electronics
Processor Type	DM&P Vortex86DX	DM&P Vortex86DX
Frequency	800 MHz	800 MHz
Memory Size	512 MB	512 MB
Interface Type	Ethernet, I2C, PS/2, Serial, SPI, USB, VGA	Ethernet, I2C, Serial, SPI, USB
Operating Supply Voltage	5 V	5 V
Maximum Operating Temperature	+ 60 C	+ 80 C
Dimensions	146 mm x 102 mm	146 mm x 102 mm
Description/Function	DM&P Vortex86DX 800 MHz 3.5 in SBC, ultra low power, onboard memory, dual ethernet, PC/104	DM&P Vortex86DX 800 MHz 3.5 in SBC, ultra low power, onboard memory, dual ethernet, PC/104
Memory Type	DDR2, L2 Cache	DDR2
Battery Backup Switching	Backup Battery	Backup Battery
Cache Memory	256 kB	256 kB
Core	DM&P; Vortex86DX	DM&P; Vortex86DX
Minimum Operating Temperature	0 C	- 20 C
Processor Series	DM&P Vortex86DX	DM&P Vortex86DX
Factory Pack Quantity	1	1
