Data Sheet
Features
•
•
•
•
•
•
•
For WiBro and WiMAX applications
Usable bandwidth 10 MHz
High attenuation
Balanced operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
Part Number 856638
456 MHz SAW Filter
•
Package

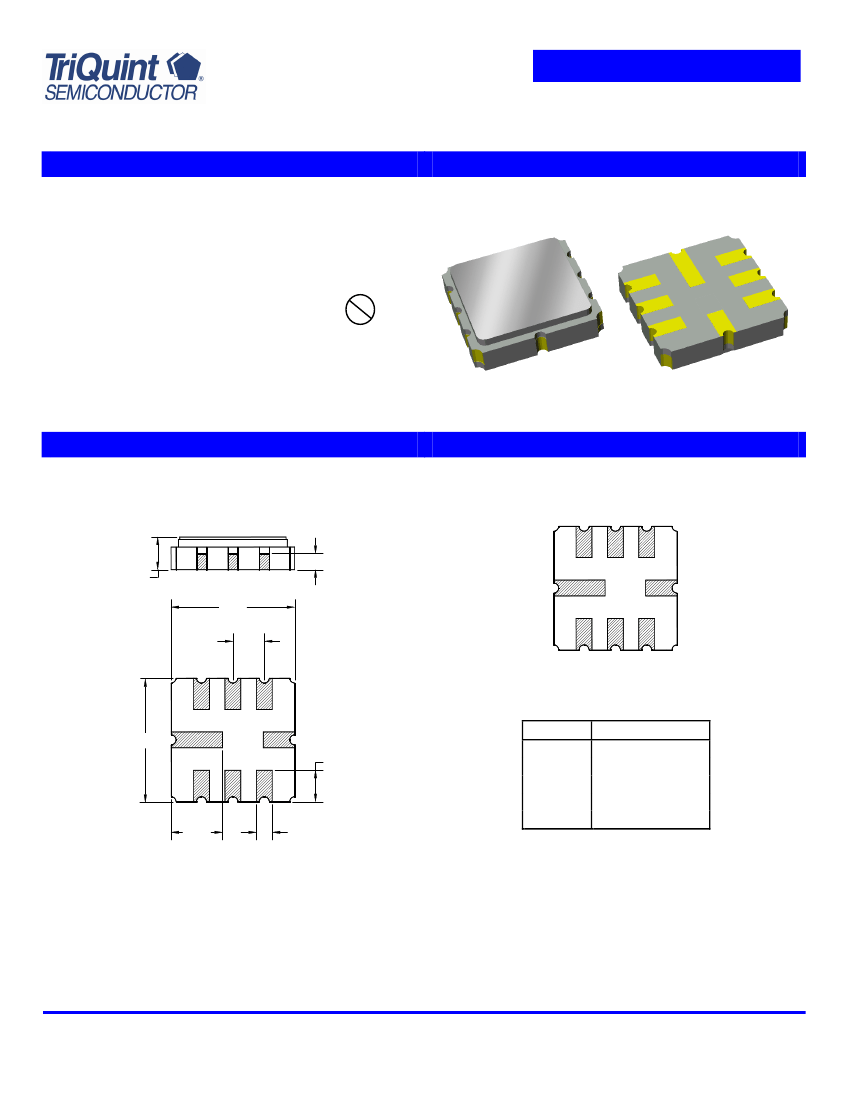

Surface Mount 5.00 x 5.00 x 1.32 mm
SMP-20
Pin Configuration
Bottom View
1
2
3
1.32 NOM.
1.52 MAX.
5.00
1.27
0.66
8
4
7
6
5
5.00
1.27
Pin No.
1
2
5
6
3,4,7,8
Description
Input
Input return
Output
Output return
Case ground
2.08
0.64
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width +0.15/-0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev A
08-07 TriQuint Semiconductor, Inc. ©
Page 1 of 6
Data Sheet
Operating Temperature Range:
(2)
-20 to +60
o
C
Part Number 856638
456 MHz SAW Filter
Target Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
451 - 461 MHz
Amplitude Variation
451 - 461 MHz
30 dB Bandwidth
(4)
Relative Attenuation
(4)
10 - 256 MHz
256 - 360 MHz
360 - 421 MHz
(5)
421 - 440 MHz
472.4 - 491 MHz
491 - 552 MHz
(5)
552 - 656 MHz
656 - 946 MHz
Absolute Group Delay at Center Frequency
Group Delay Variation
451 - 461 MHz
Input/Output Return Loss
451 - 461 MHz
Optimal Source Impedance (Balanced)
(6)
Optimal Load Impedance (Balanced)
(6)
Notes:
Minimum
-
-
-
-
45
40
45
37
39
45
40
45
-
-
9
-
-
Typical
456
8.3
0.4
20.1
70
65
50
40
42
50
55
60
0.43
35
14
200
200
Maximum
-
9.5
1.25
20.55
-
-
-
-
-
-
-
-
0.45
65
-
-
-
Unit
MHz
dB
dB
MHz
dB
dB
dB
dB
dB
dB
dB
dB
µsec
ns
dB
Ω
Ω
1. All specifications are based on TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Referenced to minimum insertion loss
5. The rejection “floor” in specified ranges allows for 100KHz wide spurious responses at a max peak of 40dB below minimum
insertion loss
6. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
3nH
1
5
6pF
2
3,4,7,8
6
18nH
200Ω
Ω
18nH
200Ω
Balanced
Input
200Ω
Ω
15nH
3nH
200Ω
Balanced
Output
Subject to change or obsolescence without notice
Rev A
08-07 TriQuint Semiconductor, Inc. ©
Page 2 of 6
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
o
C
Part Number 856638
456 MHz SAW Filter
Target Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
451 - 461 MHz
Amplitude Variation
451 - 461 MHz
30 dB Bandwidth
(4)
Relative Attenuation
(4)
10 - 256 MHz
256 - 360 MHz
360 - 421 MHz
(5)
421 - 440 MHz
472.4 - 491 MHz
491 - 552 MHz
(5)
552 - 656 MHz
656 - 946 MHz
Absolute Group Delay at Center Frequency
Group Delay Variation
451 - 461 MHz
Input/Output Return Loss
451 - 461 MHz
Optimal Source Impedance (Balanced)
(6)
Optimal Load Impedance (Balanced)
(6)
Notes:
Minimum
-
-
-
-
45
40
45
37
38
45
40
45
-
-
8
-
-
Typical
456
8.3
0.4
20.1
70
65
50
40
42
50
55
60
0.43
35
14
200
200
Maximum
-
9.75
1.25
20.6
-
-
-
-
-
-
-
-
0.45
70
-
-
-
Unit
MHz
dB
dB
MHz
dB
dB
dB
dB
dB
dB
dB
dB
µsec
ns
dB
Ω
Ω
1. All specifications are based on TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Referenced to minimum insertion loss
5. The rejection “floor” in specified ranges allows for 100KHz wide spurious responses at a max peak of 40dB below minimum
insertion loss
6. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
3nH
1
5
6pF
2
3,4,7,8
6
18nH
200Ω
Ω
18nH
200Ω
Balanced
Input
200Ω
Ω
15nH
3nH
200Ω
Balanced
Output
Subject to change or obsolescence without notice
Rev A
08-07 TriQuint Semiconductor, Inc. ©
Page 3 of 6
Data Sheet
Part Number 856638
456 MHz SAW Filter

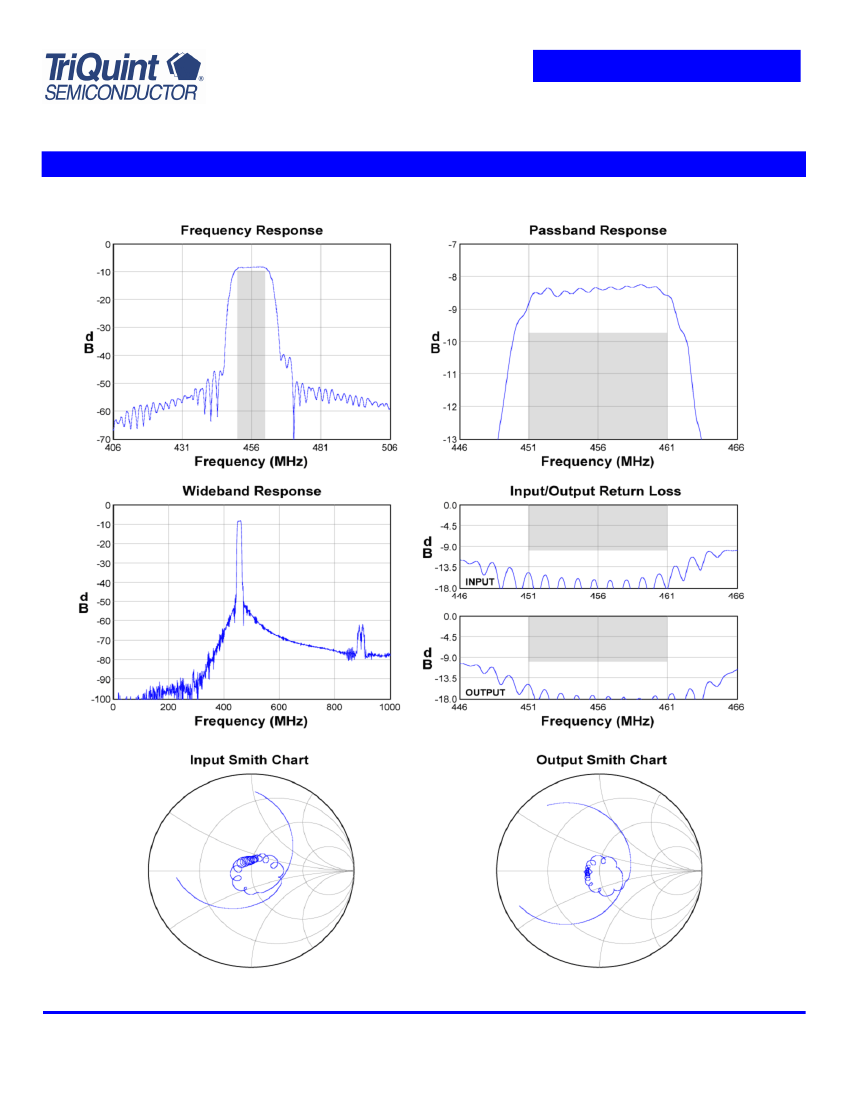

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev A
08-07 TriQuint Semiconductor, Inc. ©
Page 4 of 6
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
3nH
1
5
18nH
Part Number 856638
456 MHz SAW Filter

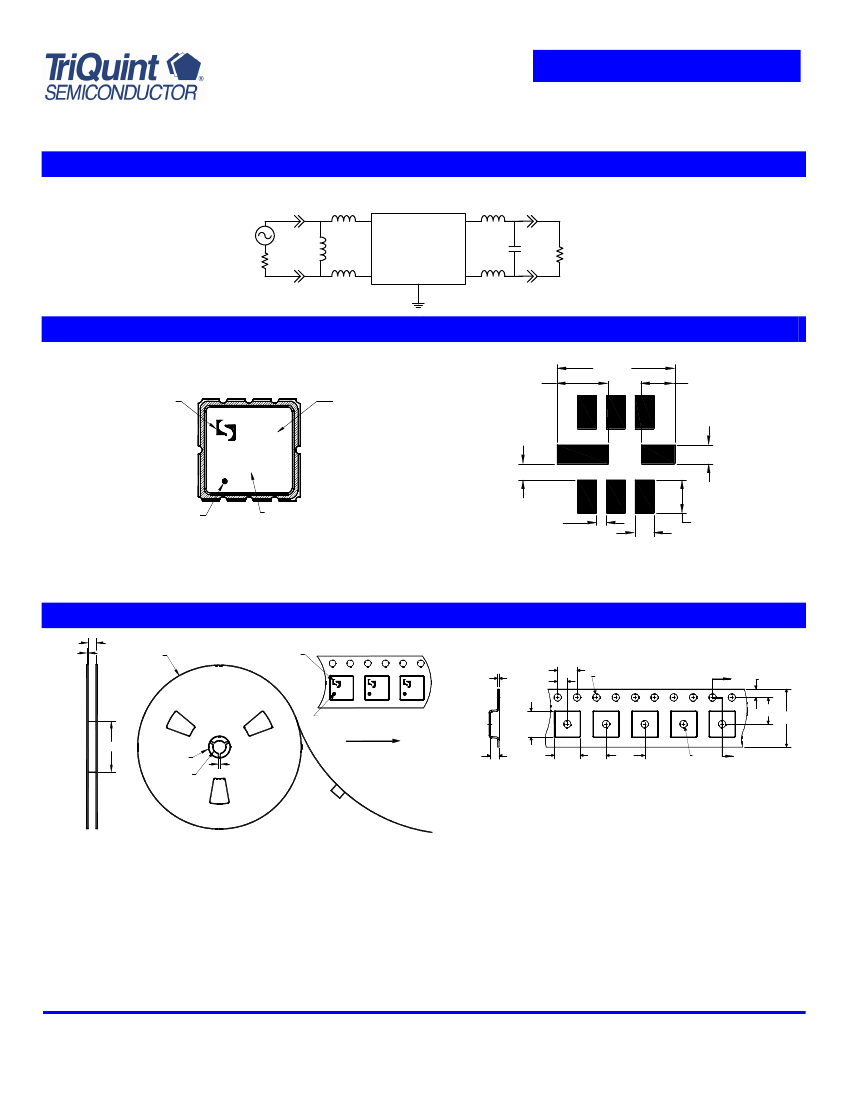

Matching Schematics
200Ω
Balanced
Input
200Ω
Ω
15nH
3nH
2
3,4,7,8
6
18nH
6pF
200Ω
Ω
200Ω
Balanced
Output
Marking
2.28
Sawtek
logo
Marking
code
PCB Footprint
5.20
1.47
BJ
JJJYM
.84
ID dot
Date code
.71
.43
.84
1.47
TBD
The date code consists of: JJJ = Julian day,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
12.8
2.7
Ø330
Sawtek
logo
0.3
2.0
4.0
Ø1.5
A
1.75
5.5
5.25
1.8
Section A-A
5.25
8.0
Ø1.5
A
ID dot
Ø102
Direction of travel
2.0
12.0
Ø20.2
Ø13.0
Dimensions shown are nominal in millimeters
Packaging quantity: 4000 units/reel
Subject to change or obsolescence without notice
Rev A
08-07 TriQuint Semiconductor, Inc. ©
Page 5 of 6
