1. Introduction
WARNING
Lethal voltage and fire ignition hazard
The non-insulated high voltages that are present when operating this product, constitute a
risk of electric shock, personal injury, death and/or ignition of fire.
This product is intended for evaluation purposes only. It shall be operated in a designated test
area by personnel qualified according to local requirements and labor laws to work with
non-insulated mains voltages and high-voltage circuits. This product shall never be operated
unattended.
This user manual describes the operation of the SSL5031BDB1207 120 V 9 W eco-THD
non-dimmable LED driver featuring the SSL5031BTS. The reference board has a A19
LED lamp compatible form factor. The buck converter topology provides a simple and
efficient solution for mains non-dimmable LED recessed light applications.
The reference board complies with EMI and safety regulations.
Figure 2
shows the dimensions of the SSL5031BDB1207 demo board. The design of the
board allows enough headroom for the board to fit into a A19 lamp base.
Figure 3
shows the SSL5031BDB1207 assembled top and bottom views.
2. Safety warning
The demo board input is connected to the 120 V mains supply. Avoid touching the board
while it is connected to the mains voltage and when it is in operation. An isolated housing
is obligatory when used in uncontrolled, non-laboratory environments. Galvanic isolation
from the mains phase using a fixed or variable transformer is always recommended.
Figure 1
shows the symbols on how to recognize these devices.
019aab173
019aab174
a. Isolated
Fig 1.
Isolation symbols
b. Not isolated
UM10793
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2014. All rights reserved.
User manual
Rev. 1 — 20 October 2014
3 of 16
NXP Semiconductors
UM10793
SSL5031BDB1207 120 V 9 W buck converter
3. Specifications
Table 1
lists the specification of the SSL5031BDB1207 demo board.
Table 1.
Symbol
V
mains
I
mains
V
LED
I
LED
I
LED(ripple)
I
LED
/V
mains
I
LED
/V
LED
PF
THD
T
oper
f
sw
t
startup
SSL5031BDB1207 specifications
Parameter
AC mains supply voltage
AC mains input current
output voltage
output current
output current ripple
line rejection
output voltage rejection
efficiency
power factor
total harmonic distortion
operating temperature
switching frequency
start-up time
Value
120 V (AC);
10
%
80 mA
40 V
205 mA
< 30 %
<2%
<1%
> 88 %; at 120 V (AC)/60 Hz
> 0.95
< 20 %
40 C
to +100
C
60 kHz to 160 kHz
120 ms

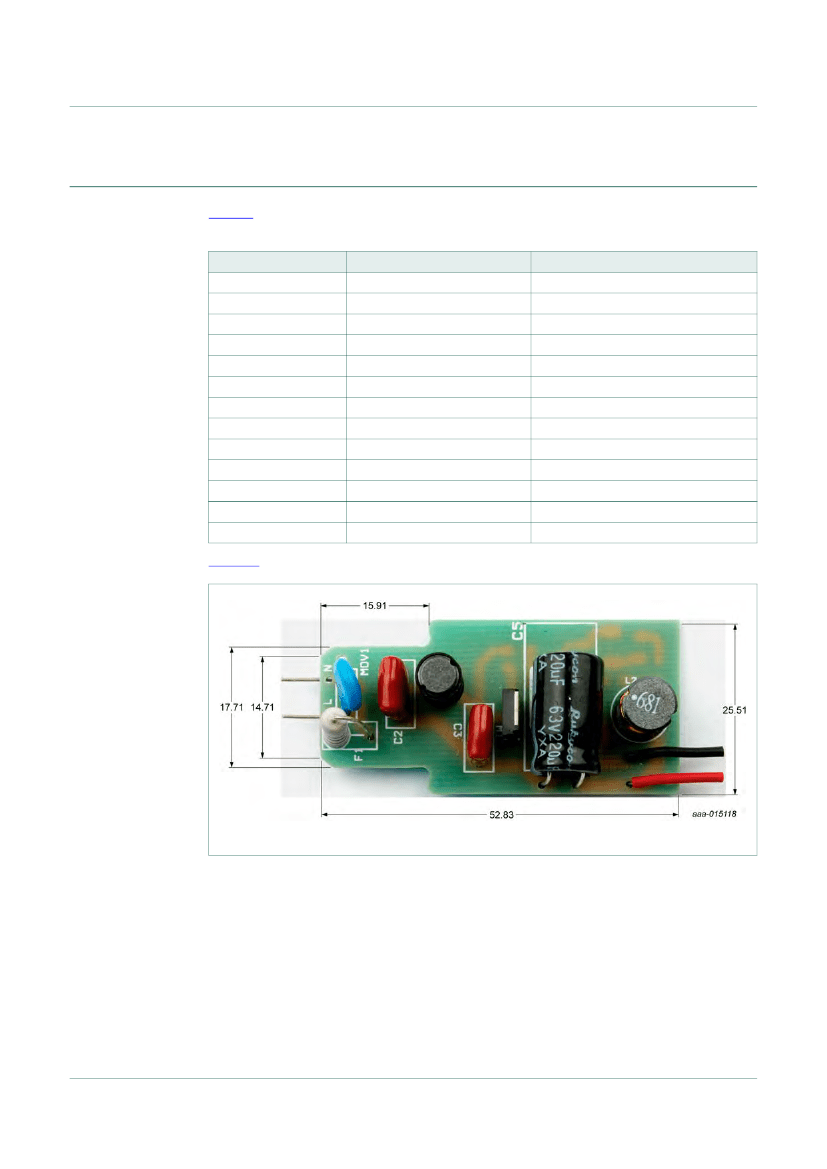

Figure 2
shows the dimensions of the demo board.
Fig 2.
SSL5031BDB1207 demo board dimensions
UM10793
All information provided in this document is subject to legal disclaimers.
© NXP Semiconductors N.V. 2014. All rights reserved.
User manual
Rev. 1 — 20 October 2014
4 of 16
NXP Semiconductors
UM10793
SSL5031BDB1207 120 V 9 W buck converter

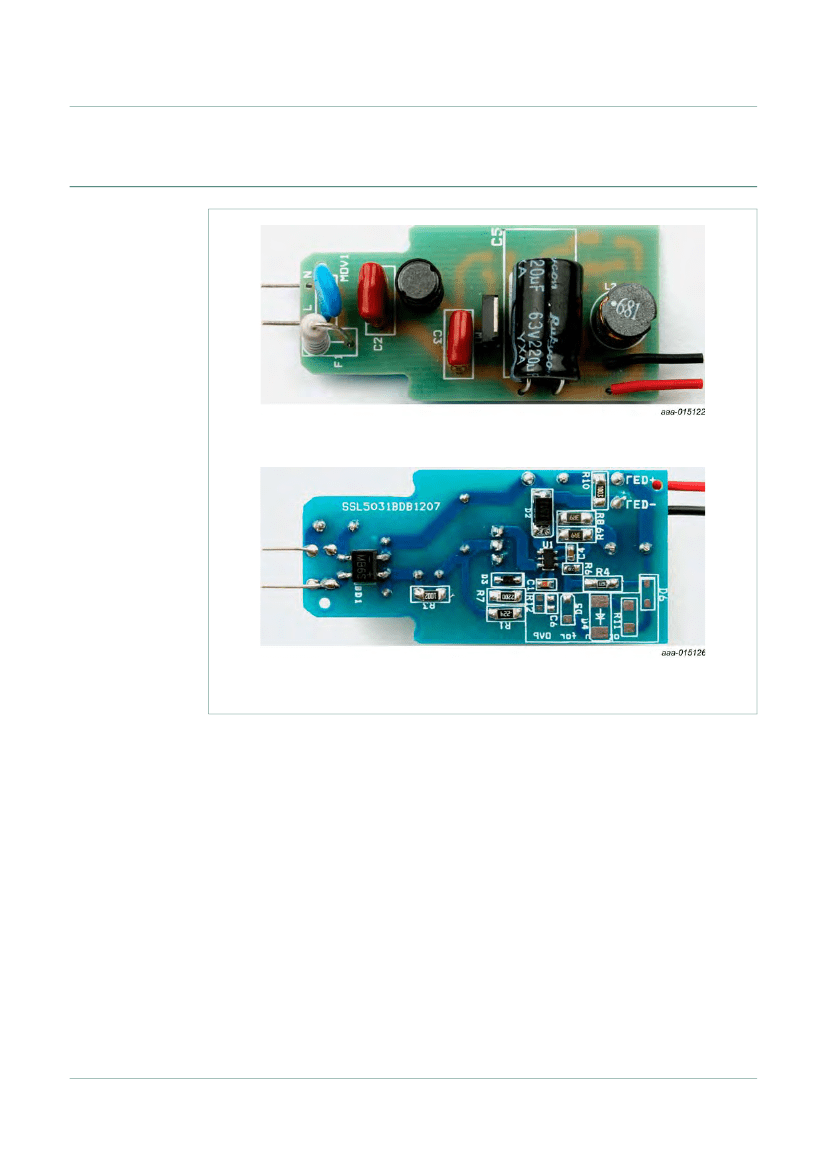

4. Board photographs
a. Top view
b. Bottom view
Fig 3.
SSL5031BDB1207 demo board
