DLP-uCF4420
LEAD-FREE

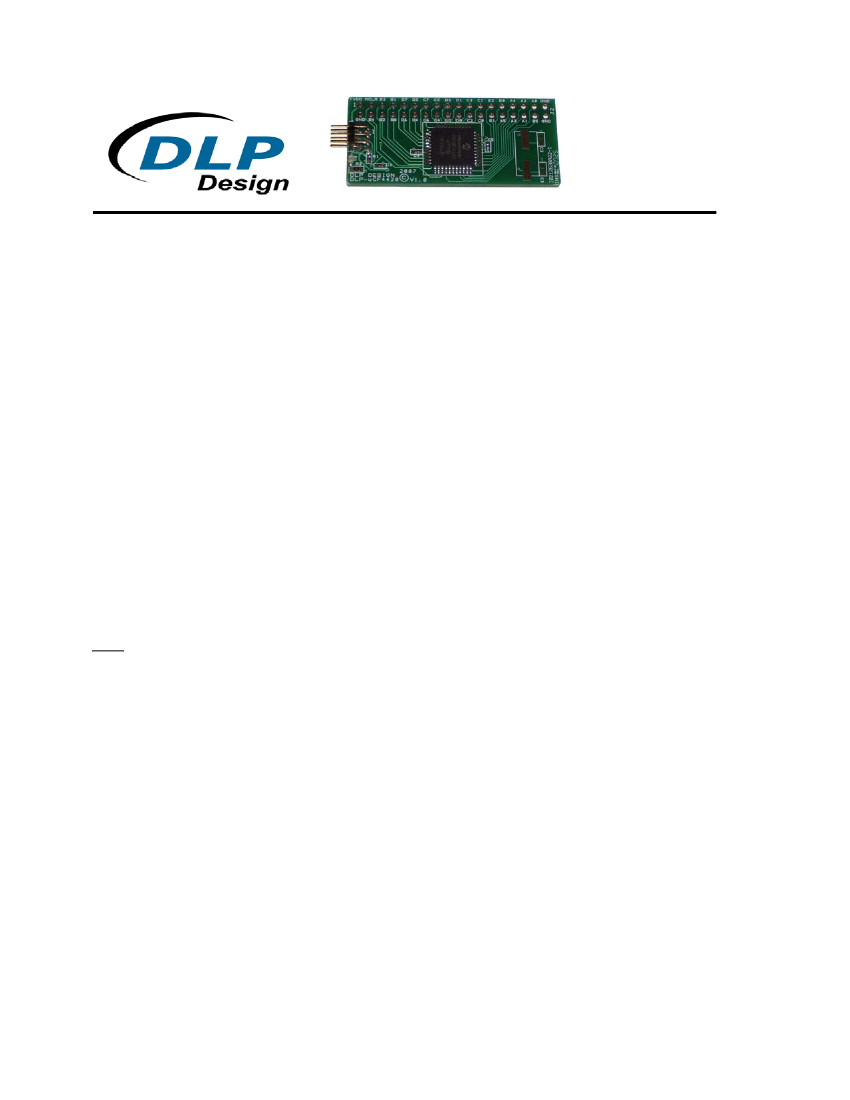

PIC18F4420 TARGET BOARD
1.0 INTRODUCTION
The DLP-uCF4420 Target Board is designed to easily connect to the DLP-FLASH2 Device
Programmer/Debugger and provide the design engineer with a low-cost hardware platform for
developing and testing applications for the PIC18F4420 microcontroller.

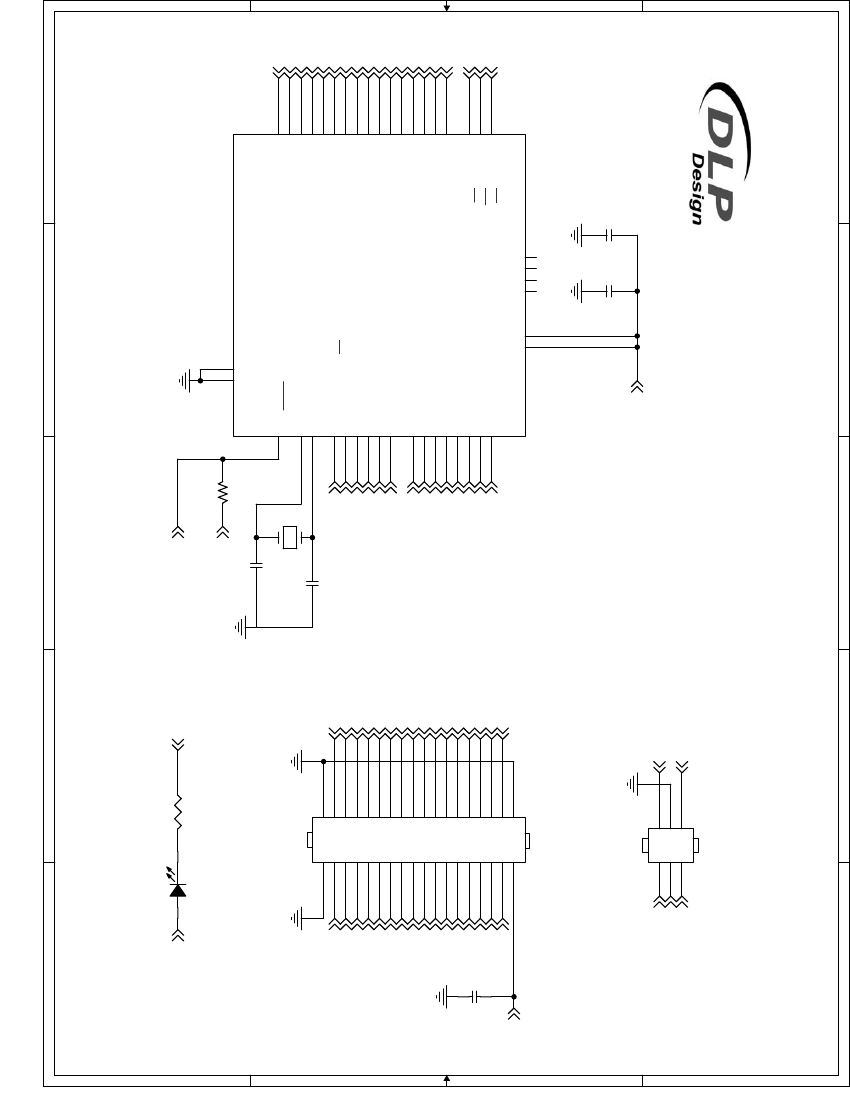

(Refer to the schematic at the end of this datasheet for additional details.)
2.0 SPECIFICATIONS
•
•
•
•
•
•
•
Program Memory: 8K x 14
2.0-5.5V Operation**
RAM Size: 768 x 8
31 I/O (13x10b Analog)
EEPROM Size: 256 x 8
LED Indicator
Size: 1.92 x 0.89 Inches
**Note: If this target board is operated at a voltage other than 5.0 volts via a user-supplied power
source, then the TPWR jumper must be removed on the DLP-FLASH2 Programmer.
3.0 OSCILLATOR OPTIONS
The PIC18F4420 has an internal oscillator with eight user-selectable frequencies from 31 kHz to
8 MHz. The internal oscillator also provides a range of clock speeds from 31 kHz to 32 MHz when
used with the PLL. Refer to the datasheet for the PIC18F4420 for additional details.
A user-supplied crystal and associated capacitors can also be added if a specific operating frequency
is required.
Rev. 1.1 (September 2007)
1
© DLP Design, Inc.
4.0 PROGRAMMER/DEBUGGER INTERFACE
The DLP-FLASH2 Programmer/Debugger utilizes a 6-pin, 2mm female header for connection to the

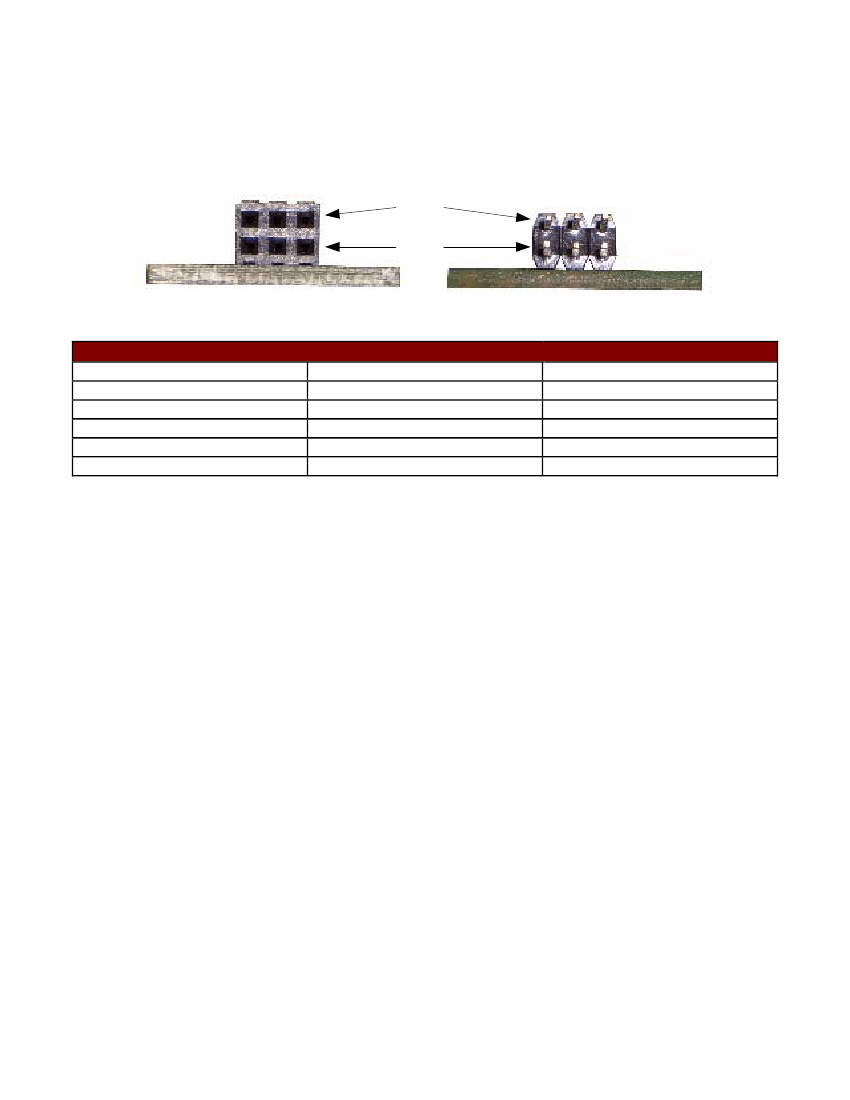

target device. The following shows the pinout for the programming interface connectors:
Pin 1
Pin 2
DLP-FLASH2
Pin #
1
2
3
4
5
6
Target Header
Description
PGM
PGC
PGD
Ground
Target Power
MCLR
Alternate Name
B3
B6
B7
TVDD
Vpp
5.0 DISCLAIMER
Neither the whole nor any part of the information contained herein or the product described in this
datasheet may be adapted or reproduced in any material or electronic form without the prior written
consent of the copyright holder.
This product and its documentation are supplied on an as-is basis, and no warranty as to their
suitability for any particular purpose is either made or implied. DLP Design will not accept any claim
for damages whatsoever arising as a result of use or failure of this product. Your statutory rights are
not affected.
This product or any variant of it is not intended for use in any medical appliance, device or system in
which the failure of the product might reasonably be expected to result in personal injury.
This document provides preliminary information that may be subject to change without notice.
6.0 CONTACT INFORMATION
DLP Design, Inc.
1605 Roma Lane
Allen, TX 75013
Phone: 469-964-8027
Fax:
415-901-4859
Email: support@dlpdesign.com
Internet: http://www.dlpdesign.com
Rev. 1.1 (September 2007)
2
© DLP Design, Inc.
