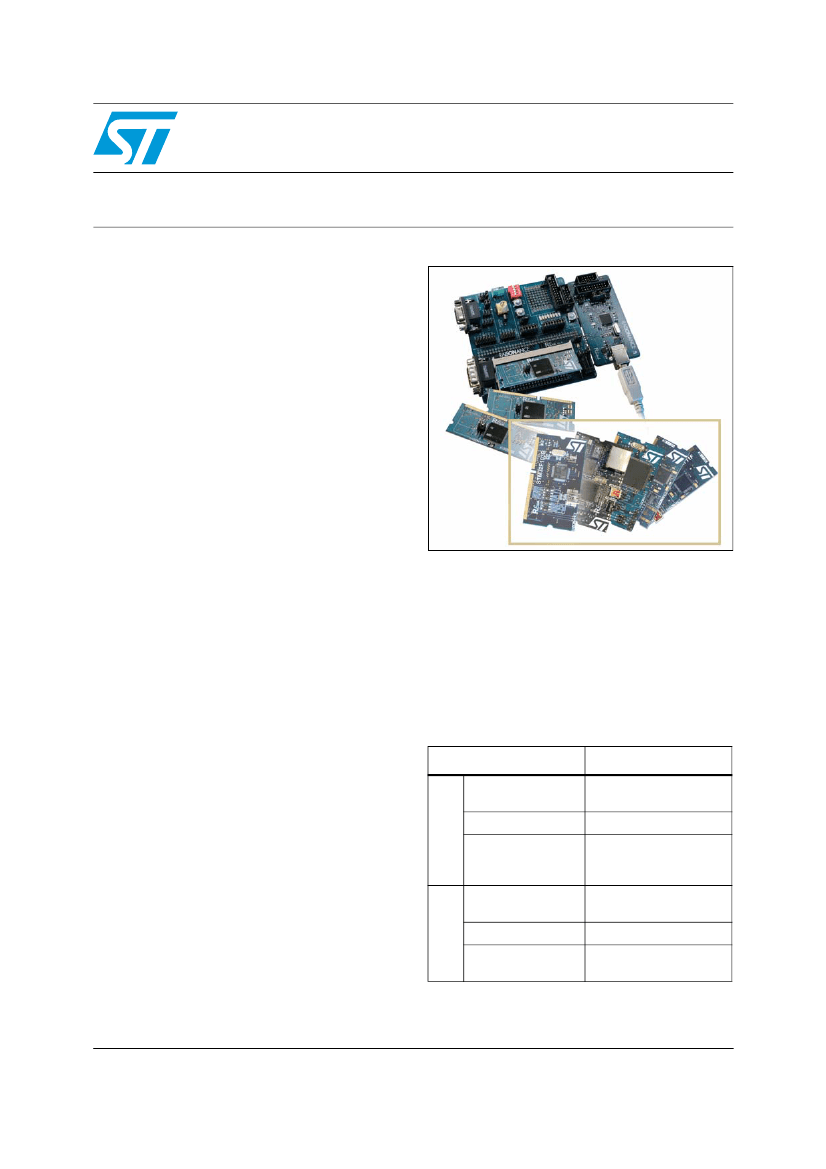

STM32-SK/RAIS,STR91X-SK/RAI,STR7-SK/RAIS
STM32-D/RAIS,STR9-D/RAIS,STR7-D/RAIS
Raisonance REva starter kits
for ST ARM core-based microcontrollers
Data brief
Features
■
Raisonance software toolset with:
– GNU C compiler
– RIDE integrated development environment
– High-level language debugger, editor,
project manager and SIMICE simulator
– RFlasher dedicated programming interface
Embedded RLink in-circuit
debugger/programmer with USB interface to
host PC and 20-pin JTAG application interface
Unlimited programming of the target device
Debugging of applications with debug code
limitation up to 64 Kbytes
Interchangeable daughterboards featuring
different target microcontrollers allowing
development of applications for a wide range of
ST microcontrollers
REva universal evaluation motherboard with:
– One standard SO-DIMM connector to plug
in interchangeable daughterboards.
– Digital and analog I/O evaluation features,
including on-board LEDs, buttons,
switches, external analog connector,
temperature sensor and potentiometer
– I²C EEPROM and bus
– RS-232 driver and 2 DB9 connectors
– Prototyping area
– VDD settings for 1.8V, 3.3V and 5V
– USB powered, no external power required
■
■
■
■
■
REva evaluation board, microcontrollers,
embedded RLink JTAG in-circuit
debugger/programmer and Raisonance
Integrated Development Environment (RIDE).
The REva starter kits are available for a full range
of 32-bit and 8-bit microcontrollers.
For more information, refer to the microcontrollers
support site on www.st.com.
Table 1.
Device summary
Order code
STM3210C-SK/RAIS
STM3210B-SK/RAIS
STR91X-SK/RAI
STR750-SK/RAIS
STR730-SK/RAIS
STR71X-SK/RAIS
STM32107C-D/RAIS
STM32103B-D/RAIS
STR912-D/RAIS
STR750-D/RAIS
STR730-D/RAIS
Part number
STM32-SK/RAIS
Starter kit
Daugterboard
Description
The
Raisonance REva Starter Kits
are
complete, low-cost solutions for starting
application development and evaluating the
features of STMicroelectonics ARM®
Cortex™-M3, ARM966E™ and ARM7TDMI™
core-based microcontrollers. Kits come with all
the hardware and software that developers need
to start developing applications, including the
STR91X-SK/RAI
STR7-SK/RAIS
STM32-D/RAIS
STR9-D/RAIS
STR7-D/RAIS
April 2013
Doc ID 11543 Rev 8
1/5
www.st.com
5
For further information contact your local STMicroelectronics sales office.
STM32-SK/RAIS, STR91X-SK/RAI, STR7-SK/RAIS, STM32-D/RAIS, STR9-D/RAIS, STR7-D/RAIS
Starter kit architecture
Ride7 software
Raisonance’s integrated development environment drives the hardware and offers seamless control of all
software development tools (compiler, assembler, linker, debugger) from an intuitive graphical interface.
Ride7 fully integrates control of the GNU C tools.
In addition to RLink, Ride7 also drives the Signum JTAGjet in-circuit debugging and programming tool for
ARM core-based microcontrollers, which supports trace using the STR9 microcontroller’s Embedded
Trace Macrocell™.
REva motherboard
The REva universal evaluation motherboard is designed for quick and easy evaluation of a complete
range of device features. All REva motherboards in starter kits for STM32, STR9 and STR7 provide the
following on-board evaluation and development features:
●
●
●
●
●
●
●
●
●
●
●
●
SO-DIMM connector for connection of interchangeable daughterboard featuring ST microcontrollers
20-pin JTAG interface connector
Power supply from USB connection (embedded RLink)
Two USART connectors
SPI
I
2
C
SPI
CAN connector
Eight user LEDs
Potentiometer connected to ADC
Two user push buttons and a reset button
Wrapping area
REva motherboards in STM32 starter kits include additional evaluation features including an LCD, MEMs
and buzzer.
Embedded RLink
The RLink in-circuit debugging and programming tool has a JTAG application board interface and a USB
connection to the host PC.
The RLink allows unlimited programming of the target microcontroller Flash memory. It also allows
debugging of applications with debug code up to half the size of the device Flash if Flash is less than or
equal to 64 Kbytes and up to 64 Kbytes if Flash is more than 64 Kbytes. An upgrade license file to extend
debug capability is available from Raisonance.
REva daughterboards
These interchangeable boards feature different target microcontrollers, making it easy to evaluate and
develop applications for a complete range of MCUs from a single evaluation platform.
2/5
Doc ID 11543 Rev 8
STM32-SK/RAIS, STR91X-SK/RAI, STR7-SK/RAIS, STM32-D/RAIS, STR9-D/RAIS, STR7-D/RAIS
The REva daughterboard microcontrollers and features are detailed in
Table 2.
Table 2.
REva daughterboard microcontrollers and features
MCU specific features
Ethernet connector
USB OTG connector
CAN connector
Audio jack and loudspeaker
USB connector
Ethernet connector
USB connector
CAN connector
ETM connector footprint for trace tool support
USB connector
Boot mode configuration jumper
CAN configuration jumper
CAN configuration jumpers
CAN configuration jumpers
STR71X-SK/RAIS
MCU
daughterboard
Included in starter kit
Daughterboard
order code
STM32F10xC
STM3210C-SK/RAIS
STM32107C-D/RAIS
STM32F10xB
STM3210B-SK/RAIS
STM32103B-D/RAIS
STR912F
STR91X-SK/RAI
STR912-D/RAIS
STR750F
STR730F
STR712F
STR711F
STR750-SK/RAIS
STR750-D/RAIS
STR730-D/RAIS
-
-
STR730-SK/RAIS
USB mini-B connector
Ordering information
REva starter kits can be ordered from Raisonance or from your nearest ST distributor or sales office.
Kits are currently available for:
●
●
●
●
●
●
STM32 connectivity line microcontrollers (ST order code:
STM3210C-SK/RAIS)
STM32 performance and access line microcontrollers with 128K Flash (ST order code:
STM3210B-
SK/RAIS)
STR91xF microcontrollers (ST order code:
STR91X-SK/RAI)
STR75xF microcontrollers (ST order code:
STR750-SK/RAIS)
STR73xF microcontrollers (ST order code:
STR730-SK/RAIS)
STR71xF microcontrollers (ST order code:
STR71X-SK/RAIS)
For more information and documentation, please refer to the Raisonance web site,
www.raisonance.com
or to the STMicroelectronics microcontroller support site at
www.st.com/mcu.
Doc ID 11543 Rev 8
3/5
STM32-SK/RAIS, STR91X-SK/RAI, STR7-SK/RAIS, STM32-D/RAIS, STR9-D/RAIS, STR7-D/RAIS
Revision history
Table 3.
Date
1-Aug-2005
21-Sep-2005
7-Jun-2006
16-Jun-2006
14-Feb-2007
Document revision history
Revision
1
2
3
4
5
Initial release.
Added STR730-SK/RAIS and features.
Added JTAGjet in hardware driven by RIDE.
Added ordering codes and product information for the STR91X-SK/RAI.
Added REva motherboard table of features.
Corrected ordering codes in Table 1.
Addition of the STR750-SK/RAIS.
Updated Table 1 and Table 2 for STR750.
Modified document title.
Added STM3210B-SK/RAIS and features.
Modified presentation of daughter board features (removed Table 1).
Added STM3210C-SK/RAIS STM32107C-D/RAIS and features.
Modified presentation of daughter board features (added Table 1).
Modified document title.
Modified programming and debugging information in
Features.
Modified supported family information in
Description.
Updated
Embedded RLink
and
Ordering information.
Changes
4-Oct-2007
6
25-Jun-2009
7
22-Apr-2013
8
