052-101
7-Port Unmanaged Ethernet Switch
10/100/1000 BASE-T
With Series 805 Mighty Mouse Connector
REV
A
B
DESCRIPTION
Initial Release
Per DCN 52458
DATE
8/11/2014
10/7/2014
APPROVED
MF
RAS
BF12U2-1671
THIS COPYRIGHTED DOCUMENT IS THE PROPERTY OF GLENAIR, INC. AND IS FURNISHED ON THE CONDITION THAT IT IS NOT TO
BE DISCLOSED, REPRODUCED IN WHOLE OR IN PART, OR USED TO SOLICIT QUOTATIONS FROM COMPETITIVE SOURCES, OR USED
FOR MANUFACTURE BY ANYONE OTHER THAN GLENAIR, INC. WITHOUT WRITTEN PERMISSION FROM GLENAIR, INC. THE INFORMATION
HEREIN HAS BEEN DEVELOPED AT GLENAIR'S EXPENSE AND MAY BE USED FOR ENGINEERING EVALUATION AND INCORPORATION
INTO TECHNICAL SPECIFICATIONS AND OTHER DOCUMENTS WHICH SPECIFY PROCUREMENT OF PRODUCTS FROM GLENAIR, INC.
052-101
7-Port Unmanaged Ethernet Switch
WITH SERIES 805 MIGHTY MOUSE CONNECTOR INTERFACE
7-Port Unmanaged Ethernet Switch

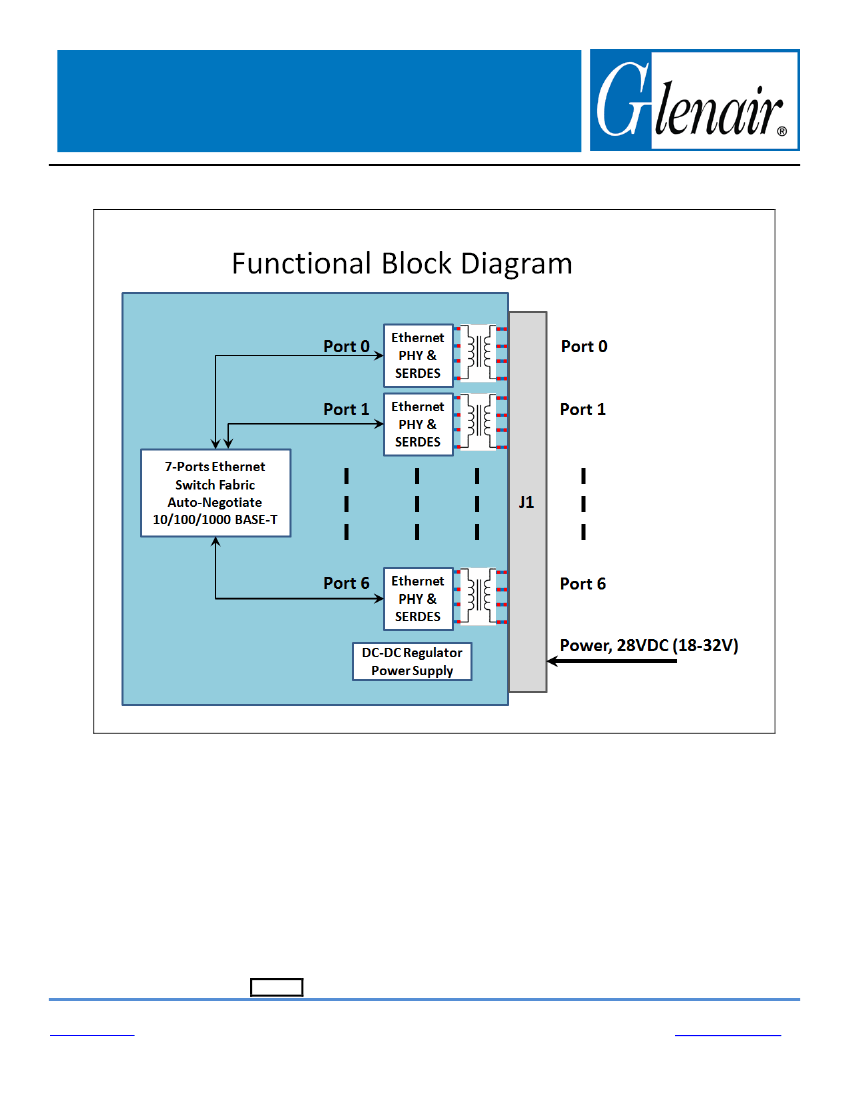

The Glenair 052-101 unmanaged Ethernet switch is a seven port
10/100/1000Base- layer 2 switch with auto negotiation and auto MDI / MDIX
circuitry that enables up to 6x port expansion with IEEE-802.3U 10/100/1000Base-
T Ethernet ports. Developed for use in harsh environment applications, the
electronics are incorporated into a panel-mountable housing that is sealed against
liquid and solid contaminants, and designed for shock and vibration resistance.

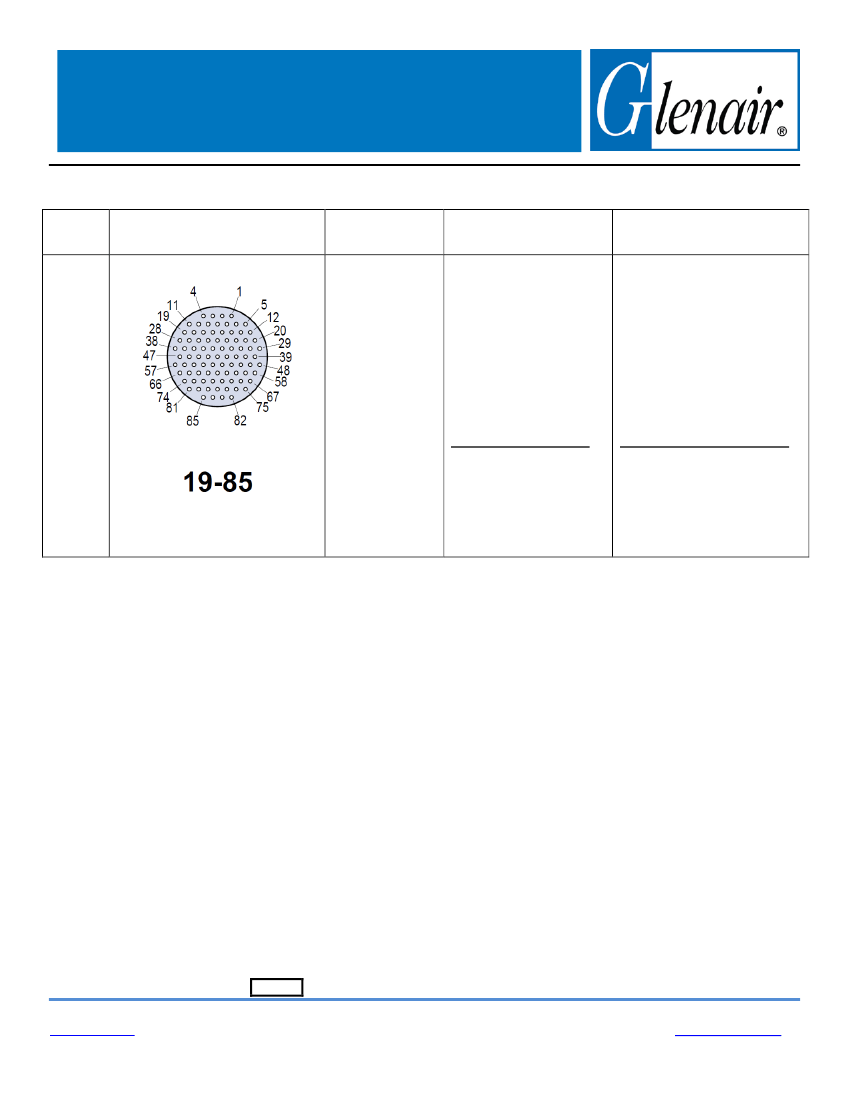

Connector interface is a high-performance size and weight-saving Glenair Series
805 Mighty Mouse jam nut receptacle connector. This switch is offered in both
panel mount and flange mount configurations and also has the option for heatsink
fins.

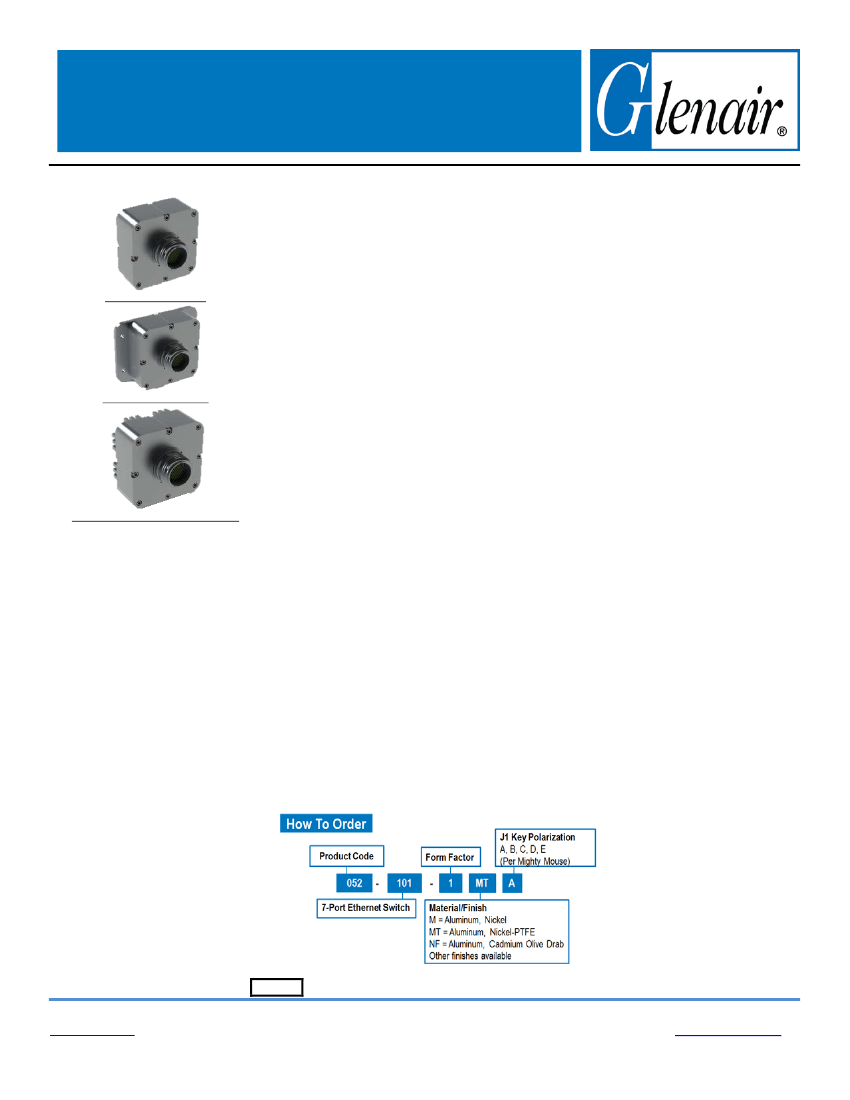

Form 1 (Panel Mount)
Form 2 (Flange Mount)
Form 3 (Panel Mount with Heatsink)
KEY FEATURES/BENEFITS
7 copper 10/100/1000BASE-T ports per
IEEE 802.3:2005
Non-Blocking switch fabric allows 1000
Mbps data rate on all 7 ports simultaneously
Cable link distances up to 100 Meters
(EIA/TIA Cat-5E)
Operating temperature range from -40°C to
+85°C
Jumbo frame support in all speeds
Full duplex flow control per IEEE Std 802.3X
and half duplex back pressure, symmetric
and asymmetric
Shock, vibration and immersion resistant per MIL-STD-
810 F test methods
Many Plating Options available
Strong, durable, lightweight aluminum connector shell
Auto sensing of half or full duplex operation
Unmanaged Ethernet switch - no configuration required
Mighty Mouse Series 805 shell is water-tight to Mil-Std-
810 test method when mated.
Flange-mount and panel-mount options
APPLICATIONS
Glenair 052-101 10/100/1000Base-T Ethernet switch
enables high speed network communications in harsh
environments.
•
Civil and military vehicle networking
•
Plug and play operation - no configuration required
•
Unmanaged Ethernet switch port multiplication
©2014 Glenair, Inc.
REV: B
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 2 of 10
