Accelerate the speed of circuit
design...Oscillators in seconds,
not days!
The MEMSpeed Pro
oscillators operate
down to 4mA with
1uA standby
current!
Introducing the MEMSpeed Pro, Low Power Oscillator Programmer.
The Oscillator Programming
Kit includes all hardware and software necessary for the user to easily program custom oscillator
frequencies in the field, or in the lab.
FEATURES
MEMS Oscillator Programming Kit featuring
Discera Pure Silicon Resonator Technology.
Field Programmable Output Frequencies
User specified from 1 to 150MHz
Programmable Supply Voltage Range
1.8, 2.5, and 3.3v operation
Standard SMD Package Sizes
5.0 x 3.2mm and 3.2 x 2.5mm
PC/USB Interface
Microsoft Windows™ compatible software
Includes Programmer and All Hardware
QuickStart Guide, Socket Adapters, USB Cable,Tweezers,
CD-ROM and Blank Oscillators.
SPECIFICATIONS
Frequency Range
Power Supply
Programmable Operating /
Supply Voltage Range
Oscillator Packages
Oscillator Blank Part Number
1.0000 to 150.0000MHz
USB Driven
1.8v, 2.5v, and 3.3v
5.0 x 3.2 mm SMD
3.2 x 2.5 mm SMD
ASFLM-Blank
ASEM-Blank
ASDM-Blank
ASFLM-Adapter
ASEM-Adapter
ASDM-Adapter
Approx. 1 sec / pc
USB (MS Windows XP & Vista)
- or -
Stand Alone (display menu)
6“ x 3.5“ x 1“
Socket Adapters (ZIF)
Programming Time
User Interface
Programmer Size
For ordering information, contact:
REVISION: 02/06/09
30332
Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
TM
Looking for the lowest
power oscillators?...
New programming kit allows you to program parts to any frequency
between 1 and 150 MHz In 1 second!!!
$499 MEMSpeed Pro Deluxe Kit
includes:
TM
•
•
•
•
•
•
MEMSpeed Pro
Two Socket Adapters (5.0 x 3.2 and 3.2 x 2.5mm)
USB Cable
Tweezers
Quickstart Guide and CD-ROM for PC Installation
200 unprogrammed blank oscillators - $500 value!
(100
ASFLM-5032
and
100 ASEM-3225 )
TM
$319 MEMSpeed Pro Standard Kit
includes:
•
•
•
•
•
•
MEMSpeed Pro
One Socket Adapter (5.0 x 3.2 or 3.2 x 2.5mm)
USB Cable
Tweezers
Quickstart Guide and CD-ROM for PC Installation
50 unprogrammed blank oscillators - $125 value!
$$$$$$$$$$
(50
ASFLM-5032
or
50 ASEM-3225)

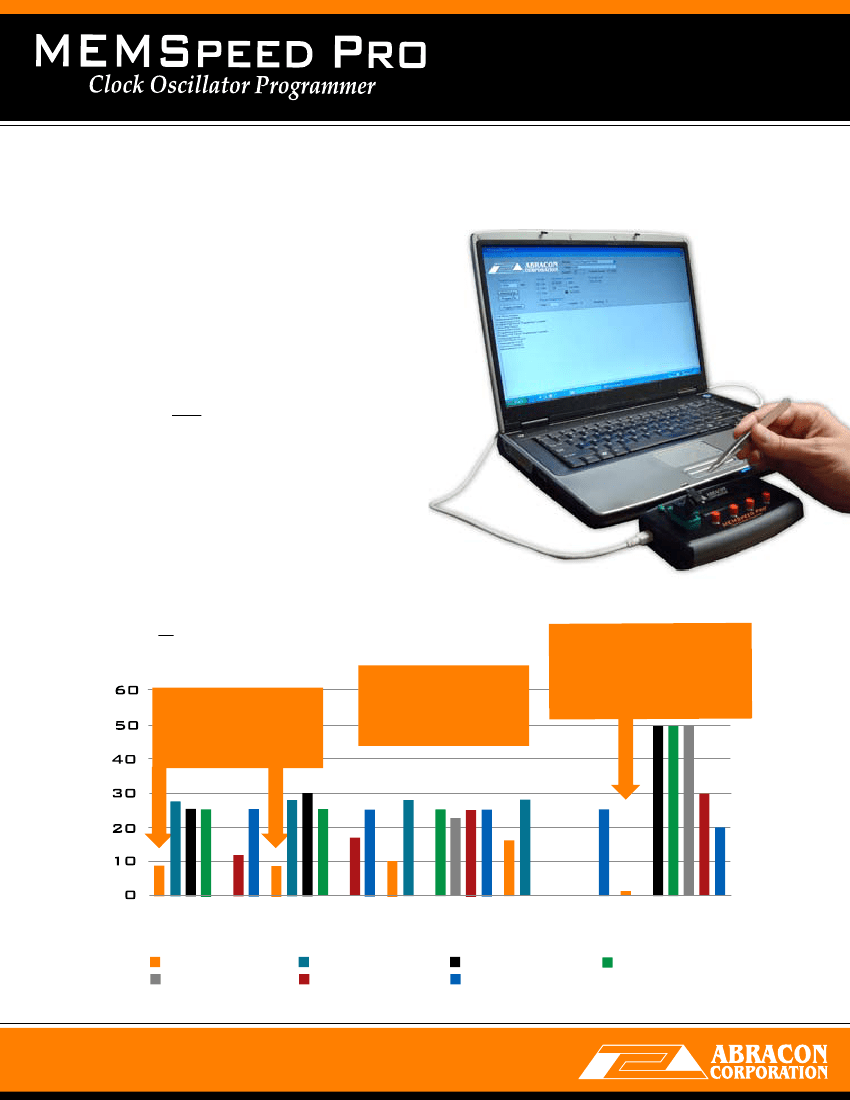

B@@$<52,0$=S@@$3P$&5.T$<5.:54&$U$!>@@$V5'(&WD
Operating current 3
times better than
competition
Operating and
Standby Current
50 times better than
competition: 1 uA
Standby Current!!
1-40
MH
Z
ABRACON ASFLM
SITime SIT8002
40-60
MH
Z
60-100
MH
Z
100-125
MH
Z
STANDBY
(Ua)
Cardinal CPPFX
Vectron VPC1
Ecliptec EP13E7
SaRonix PRO S8002
Citizen CSX750P
* Information provided is based on published specification data and is provided for reference only. No warranty is implied.
REVISION: 02/04/09
30332
Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000 | fax 949-546-8001 | www.abracon.com
ULTRA MINIATURE PLASTIC PACKAGE
PURE SILICON CLOCK OSCILLATOR
TM
ASEM
Life Size
3.2 x 2.5 x 0.85mm
| | | | | | | | | | | | | | |
ASEM
Pb
RoHS
Compliant
FEATURES:
• Ultra Miniature Pure Silicon
TM
Clock Oscillator
• MEMS Technology by Discera
• Low Power Consumption <10mA
• Exceptional Stability Over Temp. at -40 to +85
°
C.
• Available over Extended Operating Temperature
• Available in 30kG Shock Resistance Configuration
• Low Cost-Compact QFN Plastic Packaging
• Compact Package design
APPLICATIONS:
• CCD Clock for VTR Camera
• Equipment Connected to PCs
• Low Profile Equipment
AVAILABLE NOW!
• Lower Cost Crystal Oscillator Replacement
• Computers and Peripherals
• Portable Electronics (MP3 Players, Games)
• Consumer Electronics such as TV’s, DVR’s, etc.
• Vibrant, Shock-Prone & Humid Environments for Industrial Equipment
• Demanding Military & Automotive Electronics
TM
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Frequency range:
Operating temperature:
Storage temperature:
Overall Frequency Stablilty:
Supply Voltage (Vdd):
Supply Current
(No Load)
Supply Current:
(Full Load)
Symmetry
Rise and fall time (Tr/Tf)
Output load
Output voltage
Input voltage
Start-up time
Enable time
Disable time
Tri-State function
(Stand-by)
Stand-by Current
Aging at +25°C/year
Jitter (reference only)
ASEM Series
1.000 MHz - 150 MHz
0°C to + 70°C (see options)
-40°C to +155°C
± 100 ppm max. (see options)
3.3 V ± 0.3 V (see options)
6.0mA max (1.0 to 39.9999MHz)
7.0mA max (40.0 to 79.9999MHz)
9.0mA max (80.0 to 125MHz)
˚
(T=-40 to +85˚C, Vdd=3.3 ± 0.3V, 2.5 ± 0.2V, 1.8 ± 0.15V )
9.0mA max (1.0 to 39.9999MHz)
10.0mA max (40.0 to 79.9999MHz)
16.0mA max (80.0 to 125MHz)
(T=-40 to +85°C, Vdd=3.3 ± 0.3V, 2.5 ± 0.2V, 1.8 ± 0.15V CL=15pF, RL=10kΩ)
45/55 % max.@ 1/2Vdd
5ns max. (+25°C, 15pF output load, 10/90% Vdd.)
15 pF max., 10k ohms min.
VOH = 0.9* Vdd min. ; VOL = 0.1* Vdd max.
VIH = 0.9* Vdd min. ; VIL = 0.1* Vdd max.
10ms max.
10ms max.
100ns max.
"1" or open: Oscillation; "0" : No oscillation/Hi Z
1uA max. (T= +25°C, Vdd=3.0 ± 0.3V, 2.5 ± 0.2V, 1.8 ± 0.2V)
± 5ppm max.
1MHz: 176ps
(Left blank if standard)
typ.(Pk-Pk Jitter)
typ.(RMS Jitter); 1.7ns
26MHz: 19ps typ.(RMS Jitter); 147ps typ.(Pk-Pk Jitter)
100MHz: 8ps typ.(RMS Jitter); 77ps typ.(Pk-Pk Jitter)
150MHz: 10ps typ.(RMS Jitter); 82ps typ.(Pk-Pk Jitter)
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 12.31.08
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
ULTRA MINIATURE PLASTIC PACKAGE
PURE SILICON CLOCK OSCILLATOR
TM
ASEM
Life Size
3.2 x 2.5 x 0.85mm
| | | | | | | | | | | | | | |
ASEM
Pb
RoHS
Compliant

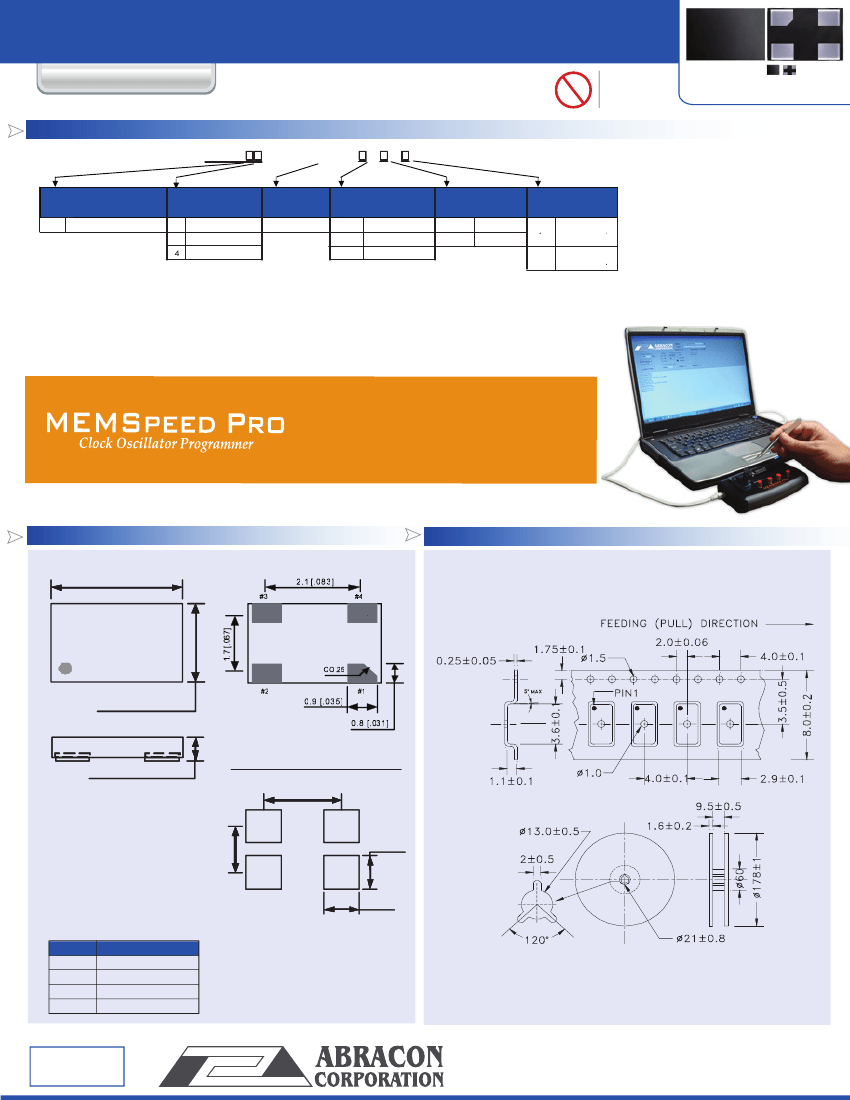

OPTIONS AND PART IDENTIFICATION:
ASEM
Programmable
B**
Blank Unprogrammed
1
3
- Frequency -
Frequency
XXX.XXX MH
-
-
Freq. Stability
Blank
C
± 100 ppm
± 50 ppm
Supply
Voltage
3.3 ± 0.3V (std)
2.5 ± 0.2V
1.8 ± 0.15V
Operating Temp.
Blank
M
L*
0°C to +70°C
-20°C to +85°C
-40°C to +85°C
Packaging
Blank
T
Tube
(114pcs/tube)
Tape and Reel
(1000pcs/reel)
* Please contact Abracon for Temperature Option Availability.
Specify “B” option in part number when ordering blank unprogrammed oscillators e.g., ASEM-B.
** Blank un-programmed oscillators and our low cost portable programmer is available for quick turn engineering
requirements. Please call or visit www.abracon.com for more information. Please contact Abracon for order assistance
for high shock application.
TM
Our new MEMSpeed Pro Clock Oscillator
Programmer allows you to program parts
yourself to any frequency between 1 and 150 Mhz
in 1 second! For ordering information go to
www.abracon.com, or call 949.546.8000.
OUTLINE DRAWING:
3.2±0.10 [.126±0.004]
#4
#3
TAPE & REEL:
Tape and reel 1,000pcs/reel
2 . 1 [. 0 8 3 ]
#3
#4
1. 7 [.067]
CO .25
#1
#2
#2
2.5±0.10 [.098±0.004]
0 .9 [.0 3 5 ]
.03
#1
0 .8 [.03 1 ]
[.0
0. 85±0.05 [.033±0.002]
Recomm end ed L and Pa ttern
2.2 [.087]
1.75 [.069]
0.95 [.037]
Note: Recommend using an
approximately 0.01uF bypass
capacitor between PIN 2 and 4.
1.2 [.047]
No.
1
2
3
4
Pin terminal
Tri-state
Gnd
Output
V
DD
Dimensions: Inches (mm)
Visit www.abracon.com for Terms & Conditions of Sale
Dimensions: mm
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 12.31.08
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
ULTRA MINIATURE PLASTIC PACKAGE
PURE SILICON CLOCK OSCILLATOR
TM
ASFLM
Life Size
5.0 x 3.2 x 0.85mm
| | | | | | | | | | | | | | |
ASFLM
Pb
RoHS
Compliant
FEATURES:
• Ultra Miniature Pure Silicon
TM
Clock Oscillator
• MEMS Technology by Discera
• Low Power Consumption <10mA
• Low Stand by Current <1uA
• Exceptional Stability Over Temp. at 40 to +85°C
• Available over Extended Temp Range
• Available in 30kG Shock Resistance Configuration
• Low Cost-Compact QFN Plastic Packaging
• Compact Package design
APPLICATIONS:
• CCD Clock for VTR Camera
• Equipment Connected to PCs
• Low Profile Equipment
• Lower Cost Crystal Oscillator Replacement
AVAILABLE NOW!
• Computers and Peripherals
• Portable Electronics (MP3 Players, Games)
• Consumer Electronics such as TV’s, DVR’s, etc.
• Vibrant, Shock-Prone & Humid Environments for Industrial Equipment
• Demanding Military & Automotive Electronics
TM
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency range
Operating temperature
Storage temperature
Overall Frequency Stablilty
Supply Voltage (Vdd)
Supply Current
(No Load)
Supply Current:
(Full Load)
Symmetry
Rise and fall time (Tr/Tf)
Output load
Output voltage:
Input voltage:
Start-up time
Enable time
Disable time
Tri-State function (Stand-by)
Stand-by Current
Aging at +25°C/year
Jitter
ASFLM Series
1.000 MHz - 150 MHz
0°C to + 70°C (see options)
-40°C to +155°C
± 100 ppm max. (see options)
3.0 V ± 0.3 V (see options)
6.0mA max (1.0 to 39.9999MHz)
7.0mA max (40.0 to 79.9999MHz)
10.0mA max (80.0 to 125MHz)
(T=-40 to +85°C, Vdd=3.3 ± 0.3V, 3.0 ± 0.3V, 2.5 ± 0.2V, 1.8 ± 0.15V CL=15pF, RL=10kΩ)
9.0mA max (1.0 to 39.9999MHz)
10.0mA max (40.0 to 79.9999MHz)
16.0mA max (80.0 to 125MHz)
(T=-40 to +85°C, Vdd=3.3 ± 0.3V, 3.0 ± 0.3V, 2.5 ± 0.2V, 1.8 ± 0.15V CL=15pF, RL=10kΩ)
45/55 % max.@ 1/2Vdd
5ns max. (+25°C, 15pF output load, 10/90% Vdd.)
15 pF max., 10k ohms min.
VOH = 0.9* Vdd min. ; VOL = 0.1* Vdd max.
VIH = 0.9* Vdd min. ; VIL = 0.1* Vdd max.
10ms max.
5ms max.
100ns max.
"1" or open: Oscillation; "0" : No oscillation/Hi Z
1uA max. (T= +25°C, Vdd=3.0 ± 0.3V, 2.5 ± 0.2V, 1.8 ± 0.2V)
± 5ppm max.
1MHz: 181ps typ.(RSM Jitter); 1.6ns typ.(Pk-Pk Jitter)
26MHz: 17.8ps typ.(RSM Jitter); 138ps typ.(Pk-Pk Jitter)
100MHz: 8.4ps typ.(RSM Jitter); 106ps typ.(Pk-Pk Jitter)
150MHz: 9.9ps typ.(RSM Jitter); 82ps typ.(Pk-Pk Jitter)
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 12.31.08
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
