PCE-5128G2-00A1E datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Module/solution> PCE-5128G2-00A1E

Preview

PCE-5128G2-00A1E: DescriptionSingle Board Computers LGA1155 4th Gen Gen Core i7/ i5/ i3/ Pentium PICMG 1.3 SBC with Q87/ DDR3/ PCIe/VGA/ Dual GbE; CategoryModule/solution; File Size1MB，2 Pages; ManufacturerAdvantech; Websitehttp://www.advantech.com/; Environmental Compliance

Download Datasheet Parametric View All

PCE-5128G2-00A1E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PCE-5128G2-00A1E	-	-	View	Buy Now

PCE-5128G2-00A1E Overview

Single Board Computers LGA1155 4th Gen Gen Core i7/ i5/ i3/ Pentium PICMG 1.3 SBC with Q87/ DDR3/ PCIe/VGA/ Dual GbE

PCE-5128G2-00A1E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Advantech
Product Category	Single Board Computers
RoHS	Details
Factory Pack Quantity	1

Preview

Download Datasheet

View All

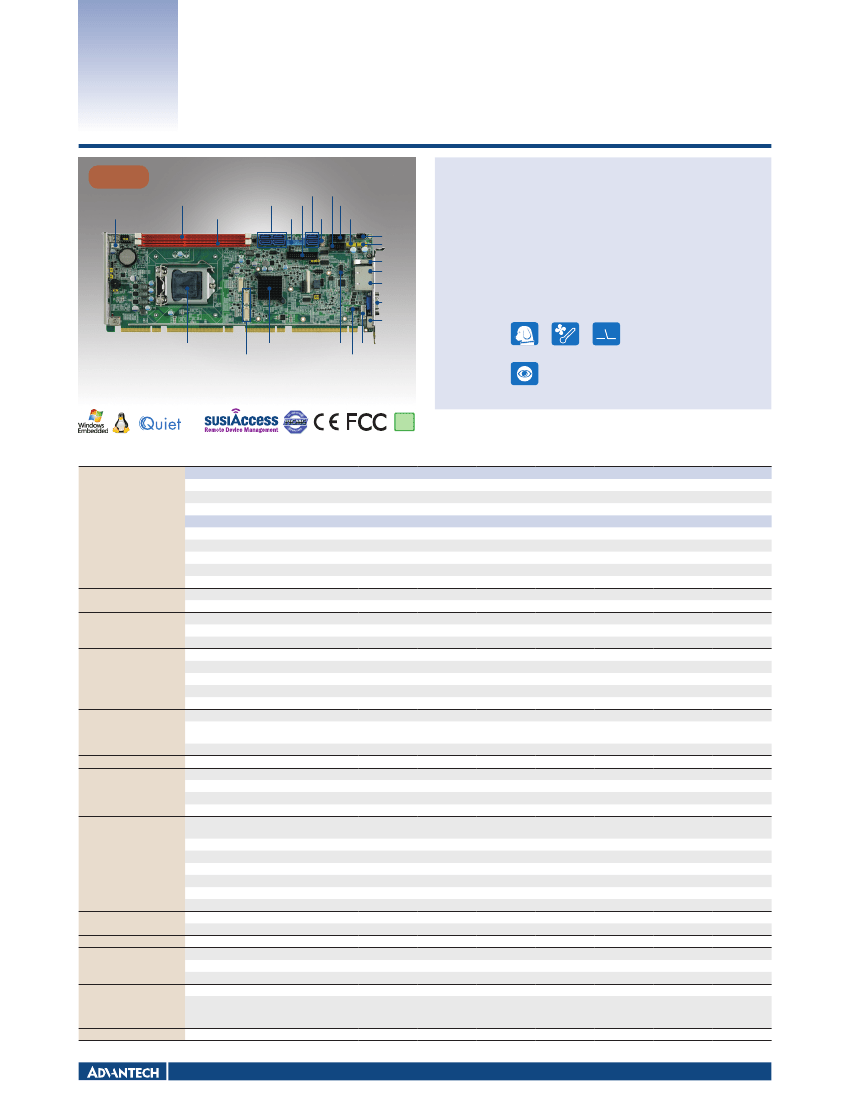

PCE-5128

NEW

DIMM B1

CPU FAN1

DIMM A1

SATA3

1,2,4,5

SATA3

3,6 COM2

LPT1

COM1

LAN

USB12

LED1

USB78

USB4

USB56

USB3

LAN1

LAN2

VGA1

KBMS1

LGA1150 Intel

®

Core™i7/i5/i3/Pentium

®

SHB

DDR3/SATA 3.0/USB3.0/Dual GbE /3 Displays

Features

Supports Intel

®

Core™ i7/i5/i3 LGA1150 processors with Q87

Dual Channel (Non-ECC) DDR3 1333/1600 up to 16 GB

Supports PCIE 3.0, USB 3.0, SATA3.0, SW Raid 0, 1, 5, 10

Supports CRT and 2 x DVI-D(optional) display

Supports out-of-band remote management with AMT9.0

Supports Advantech TPM module (LPC I/O)

Supports SUSIAccess and Embedded Software APIs

Software APIs:

CPU1

DVI1

DVI2

PCH

LPC KBMS2

HD Audio1

Watchdog H/W Monitor

GPIO

Utilities:

Monitoring

RoHS

COMPLIANT

2002/95/EC

Specifications

Haswell refresh CPUs are supported from BIOS V2.xx

CPU

i7-4790S

i5-4590S

i5-4590T

i3-4360

i3-4350T

i3-4340TE

Base Frequency

3.2GHz

3.0GHz

2.0GHZ

3.7GHz

3.1GHz

2.6GHz

L3 Cache

8MB

6MB

4MB

Hawell CPUs are supported by both BIOS V1.xx and V2.xx

G3420

G3320TE

CPU

i7-4770S

i7-4770TE

i5-4570S

i5-4570TE

i3-4330

i3-4330TE

Base Frequency

3.1GHz

2.3GHz

2.9GHz

2.7GHz

3.5GHz

2.4GHz

3.2GHz

2.3GHz

L3 Cache

8MB

8M

6MB

4MB

3MB

SKU/Chipset

Intel Q87

BIOS

AMI 128Mbit SPI Flash

PCI-Express

One x16 plus four x1 to backplane

PCI

Four 32-bit 33 MHz PCI Masters to backplane

Technology

Dual channel (Non-ECC) DDR3 1333/1600

Max. Cap.

16 GB (8 GB per DIMM)

DDR3 240-pin DIMM x 2

Socket

Controller

Chipset integrated Intel HD Graphics

VRAM

Shared system memory is subject to OS

CRT

Supports resolution up to 2048 x 1536 pixel at 60MHz

DVI-D

Supports resolution up to 1920 x 1200 pixel at 60MHz

Triple Display

CRT+DVI-D+ DVI-D

Interface

10/100/1000 Mbps

LAN 1: Intel I217LM

Controller

LAN 2: Intel I211AT

Connector with LED

RJ-45 x 2

S/W Raid 0, 1, 5, 10

SATA 3.0 x 6 (600 MB/sec)

USB 3.0

1

Ethernet

2

VGA

1

PS/2

1 (PS/2 Y cable supports 1 x keyboard and 1 x mouse)

Night USB2.0 (Pin-header*4+USB Type A*1+ 4 on backplane);

USB

Two USB3.0 (Pin header)

SATA

6

DVI-D

2 (Pin header)

COM

2

Parallel

1

IrDA

1

GPIO

8-bit

Output

System reset

Programmable 1-255 sec

Interval

Audio

Intel High Definition audio interface (required an audio extension module P/N: PCA-AUDIO-HDA1E)

Test Environment

Core i7-4770S DDR3 1600 8GB x 2

Voltage

+12V

+5V

+3.3V

+5Vsb

-12V

-5V

Current

4.02A

1.36A

0.81A

0.09A

0A

Operating

Non-operating

0 ~ 60° C(32~140° F); Depends on CPU frequency and

-40 ~ 85°C and 60° C @ 95% RH Non-Condensing

Temperature/Humidity

cooler solution

Operating humidity: 40° C @ 85% RH Non-Condensing

Dimensions

338 mm (L) x 122 mm (W) (13.3" x 4.8")

Processor System

Bus

Memory

Graphics

Ethernet

SATA

Rear I/O

Internal Connector

Watchdog Timer

Miscellaneous

Power Requirement

Environment

Physical

Slot SBC & Passive Backplanes

All product specifications are subject to change without notice

Last updated : 15-Jul-2014
